Zoom V3 Vocal Effects Processor

Effects

EFFECTS: 16 types
CONCURRENT EFFECTS: 5
SAMPLING FREQUENCY: 44.1 kHz
A/D CONVERSION: 24-bit 128× oversampling
D/A CONVERSION: 24-bit 128× oversampling
SIGNAL PROCESSING: 32-bit
FREQUENCY RESPONSE: 20 Hz–20 kHz (+1 dB/−3 dB) (10 kΩ load)

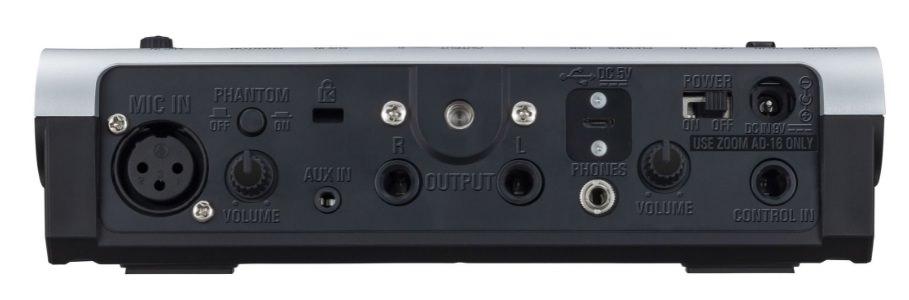

INPUTS
MIC IN: XLR jack
INPUT GAIN: +3 – +40 dB
MAXIMUM INPUT LEVEL: +4 dBu
INPUT IMPEDANCE: 3 kΩ or higher (1 kHz)
PHANTOM POWER: +48 V
AUX IN: Stereo mini jack
RATED INPUT LEVEL: −10 dBu
INPUT IMPEDANCE (LINE): 22 kΩ
OUTPUTS
L/R OUT: Unbalanced TS jacks
MAXIMUM OUTPUT LEVEL: +6 dBu
OUTPUT IMPEDANCE: 100 Ω
PHONES: Stereo mini jack
MAXIMUM OUTPUT LEVEL: 20 mW + 20 mW (into 32 Ω load)
EQUIVALENT INPUT NOISE (WHEN PHANTOM POWER OFF): –125 dBu or less (A-weighted, 150 Ω input, +40 dB input gain)
NOISE FLOOR (RESIDUAL NOISE): –75 dBu
CONTROL INPUT: FS01/FP02M input
POWER

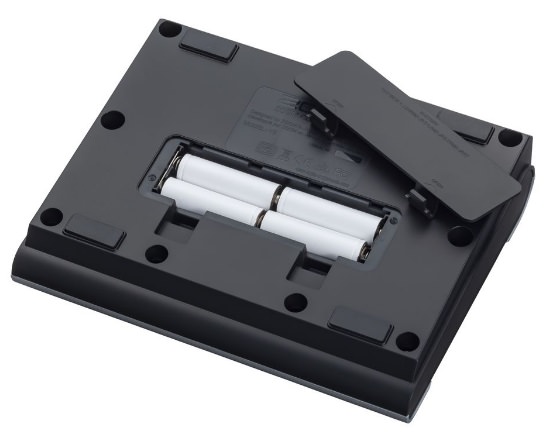

POWER: AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16) 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries)
USB: CONNECTOR: Micro USB
AUDIO INTERFACE OPERATION: 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit
Power can also be supplied through the USB port.
When using a cable designed only for power, other USB functions cannot be used.
WEIGHTS AND DIMENSIONS
EXTERNAL DIMENSIONS: 150 mm (D) × 190 mm (W) × 50 mm (H)
WEIGHT: 0.59 kg (excluding batteries)
