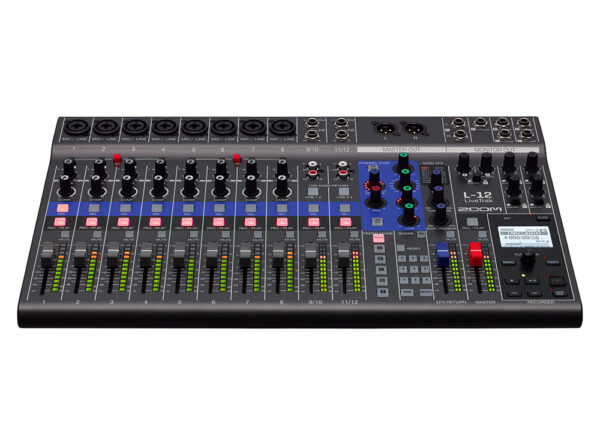

Zoom Livetrack 12 Channel Mixer/ Recorder/ Interface

NUMBER OF INPUT AND OUTPUT CHANNELS
Inputs:
Mono (MIC/LINE): 8
Stereo (LINE): 2

Outputs:
MASTER OUT: 1
MONITOR OUT: 5

INPUTS
Mono (MIC/LINE):
Type: XLR/TRS combo jacks
         (XLR: 2 HOT, TRS: TIP HOT)

Input gain
PAD OFF: +16 - +60 dB
PAD ON: −10 – +34 dB
Hi-Z ON: +6 - +50 dB

Input impedance
XLR: 3 kΩ
TRS: 10kΩ/1 MΩ (when Hi-Z ON)

Maximum input level
PAD OFF: 0 dBu (at 0 dBFS)
PAD ON: +26 dBu (at dBFS)

Phantom Power
+48 V

Stereo (LINE):
Type: TRS phone/RCA pin (unbalanced) jacks
         Maximum input level  +10 dBu

OUTPUTS
MASTER OUT :
Type: XLR jacks (balanced)
Maximum output level: +14.5 dBu
Output impedance: 100 Ω

MONITOR OUT A (TRS):
Type: TRS phone jacks (balanced)
Maximum output Level: +14.5 dBu
Output impedance: 100 Ω

MONITOR OUT A-E (PHONES):
Type: Standard Stereo phone jacks
Maximum output level: 42 mW + 42 mW at 60 Ω
Output impedance: 100 Ω

BUSES
MASTER:
1

MONITOR:
5

SEND EFX:
1

CHANNEL STRIP
COMP:
LOW CUT:
75 Hz, 12 dB/OCT

EQ:
HIGH: 10 kHz, ± 15 dB, shelving
MID: 100 Hz-8 kHz, ±15 dB, peaking
LOW: 100 Hz, ± 15 dB, shelving

LEVEL METERS
Level segments:
12

SEND EFFECTS
Effects:
16 types:
Hall 1 & 2 (reverb)
Room 1 & 2(reverb)
Plate (reverb)
Church (reverb)
DrumAmb (reverb)
GateRev (reverb)
Spring (reverb)
Delay (delay)
Analog (delay)
P-P Dly (delay)
Vocal 1-4 (delay + reverb)

RECORDER
Maximum simultaneous recording tracks:
14 at 44.1/48 kHz (12 channel + stereo mix)
12 at 96 kHz

Maximum simultaneous playback tracks:
12

Recording format:
WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format

Recording media:
16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards

AUDIO INTERFACE
44.1/48 kHz:
Recording: 14 channels
Playback: 4 channels

Bit depth:
24-bit

Interface:
USB 2.0

SYSTEM REQUIREMENTS
Windows:
OS： Windows® 7 SP1 or later / 8.1 / 10
        (32bit/64bit)
        CPU: Intel® Core i3 or faster*
        USB: USB 3.0/USB 2.0**

* Operation is not guaranteed with CPUs
from Atom, Celeron or Pentium series or CPUs
made by AMD.

** Only USB host controllers with Intel Chipsets are
supported. Operation is not guaranteed when used
with USB hubs or expansion cards.

Mac:
OS： Mac® OS X 10.10 / 10.11 / 10.12
        CPU: Intel® Core i3 or faster
        USB: USB 3.0/USB 2.0*

* Operation is not guaranteed when used
with USB hubs or expansion cards.

iPhone/iPad:
OS： iOS 8 / 9 / 10

* Apple Lightning-to-USB
Camera Adapter required.

CARD READER
Class:
Mass storage
USB 2.0 High Speed

USB HOST
Class:
USB 2.0 High Speed

SAMPLING RATE
Sampling rate:
44.1/48/96 kHz

FREQUENCY CHARACTERISTICS
44.1 kHz:
-1.0 dB: 20 Hz - 20 kHz

96 kHz:
-3.0 dB: 20 Hz - 40 kHz

EQUIVALENT INPUT NOISE
Actual measurements:
-128 dB EIN (IHF-A) with +60 dB/150 Ω input

Display:
LCD with backlight (128x64 resolution)

Power supply:
ZOOM AD-19 AC adapter (DC12 V/2 A)

Power consumption:
17W maximum

External dimensions:
445 mm (W) x 282 mm (D) x 70.5 mm (H)
17.5” (W) x 11.1” (D) x 2.78” (H)

Weight (main unit only):
2.53 kg / 5.58 lbs
