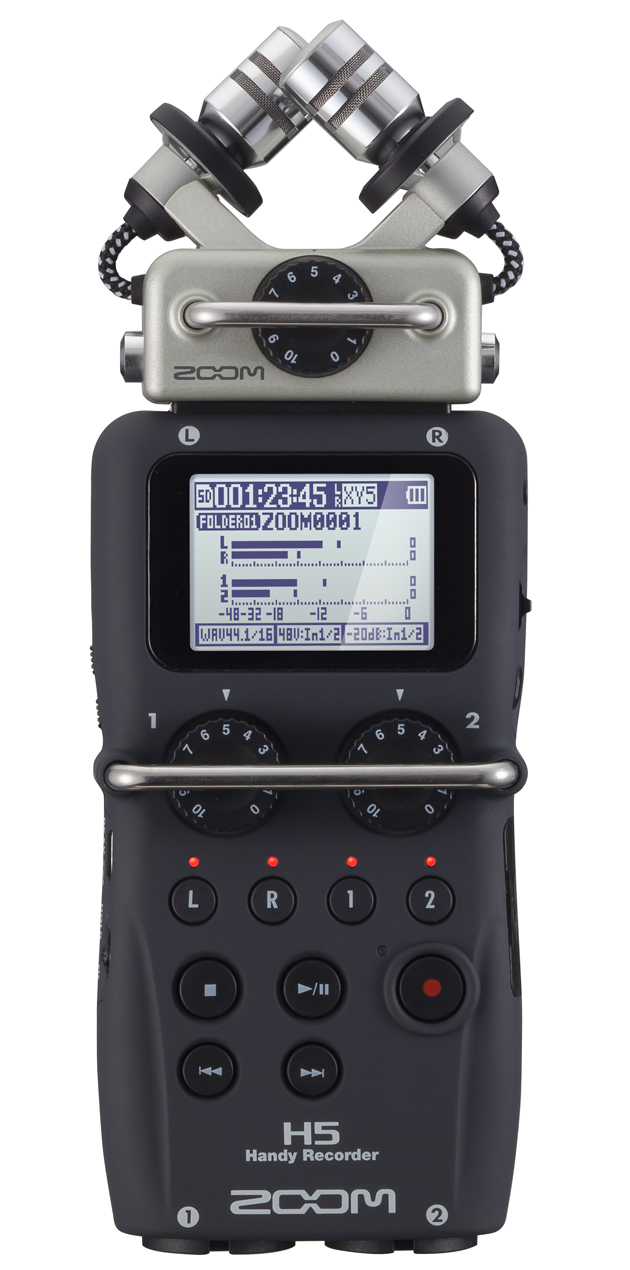

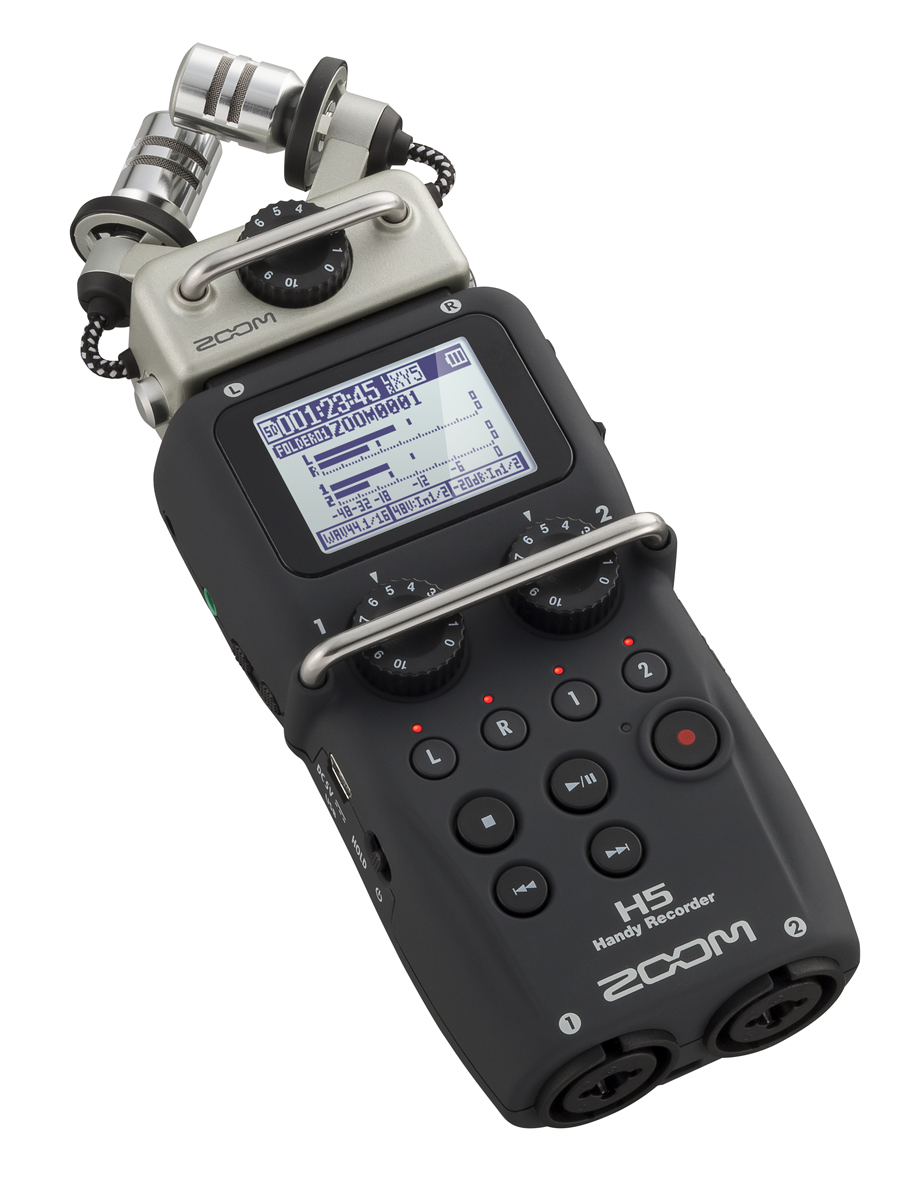

Zoom H5 | 4 Track Recorder

Recording Media
SD card: 16MB to 2GB
SDHC card: 4GB to 32GB

Display
Backlit LCD (128 x 64 pixels)

Power Requirements
AA size (LR6) battery x 2
AC adapter (AD-17 (DC5V/1A/USB-type, optional)
USB bus power

I/O
Inputs
L/R [XYH-5 X/Y mic]:
Mic Type: Unidirectional
Sensitivity: -45 dB, 1 kHz at 1 Pa
Input Gain: -∞ to 52 dB
Max Sound Pressure Input: 140 dB SPL

Mic/Line In:
Connector: 1/8" stereo mini jack
Input Gain: -∞ to 52 dB
Input Impedance: 2 kΩ or more
Plug-In Power: 2.5V supported
Backup Recording: -12 dB lower than set L/R input gain

Inputs 1/2:
Connectors: XLR / TRS combo jacks (XLR: Pin 2 hot / TRS: Tip hot)
Input Gain (PAD OFF): -∞ to 55.0 dB
Input Gain (PAD ON): -∞ to 35.0 dB
Input Impedance: 1.8 kΩ or more
Max Input Level: +22 dBu (PAD ON)
Phantom Power: +12V /+24V /+48V
Equivalent Input Noise (EIN): -120 dBu or less

Outputs

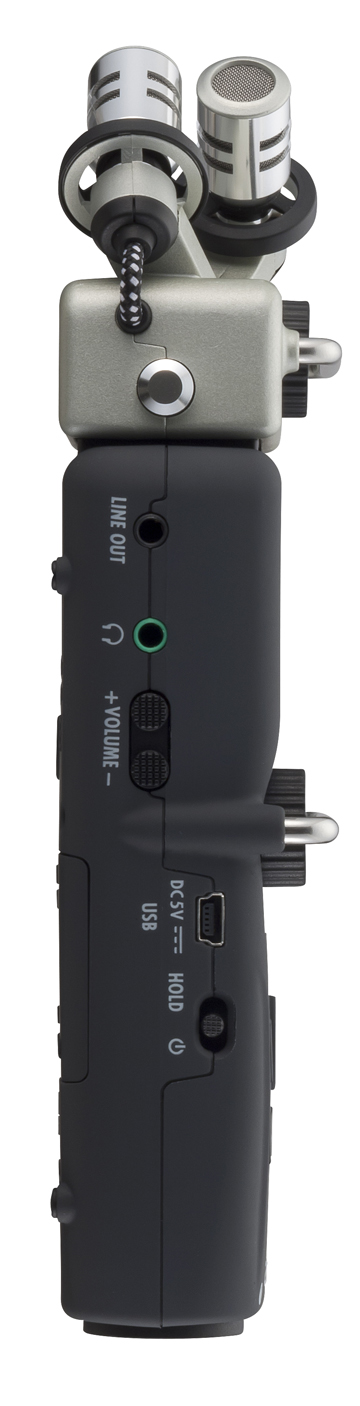

Line Out:
Connector: 1/8" stereo mini jack
Rated Output Level: -10 dBm
Output Load Impedance: 10 kΩ or more

Phone Out:
Connector: 1/8" stereo mini jack
Output Level: 20 W + 20 W into 32 Ω load

Built-in speaker:
400 mw 8 Ω mono

USB
Mass Storage Class Operation:
Class: USB 2.0 high speed

Audio Interface Operation:
Multitrack Mode:
Class: USB 2.0 high speed
Sampling Frequency: 44.1/48 kHz
Bit Rate: 16-/24-bit
Inputs / Outputs: 4 / 2

Stereo Mode:
Class: USB 2.0 full speed
Sampling Frequency: 44.1/48 kHz
Bit Rate: 16-bit
Inputs / Outputs: 2 / 2
USB Bus Powered Operation: Yes
iPad Operation: Supported in stereo mode only

Recording Formats
Stereo Mode:
WAV (BWF-compliant)
Sampling Frequency: 44.1/48/96 kHz
Bit Rate: 16-/24-bit (Stereo)
Maximum Simultaneous Recording Tracks: 2
MP3
Sampling Frequency: 44.1 kHz
Bit Rate: 48/56/64/80/96/112/32/160/192/224/256/320 kbps

Multi-Track Mode:
WAV (BWF-compliant)
Sampling Frequency: 44.1/48 kHz
Bit Rate: 16-/24-bit (mono/stereo)
Maximum Simultaneous Recording Tracks: 6 (L/R + INPUT 1/2 + L/R backup)

Physical Specifications
Dimensions
H5: 2.3 x 5.3 x 1.7" (66.8 x 135.2 x 42.1 mm)
XYH-5 X/Y mic:2.6 x 2.4 x 1.6" (65.5 x 62.2 x 41 mm)
Weight
H5: 6.2 oz (176.0 g)
XYH-5 X/Y mic: 3.3 oz (94.0 g)
