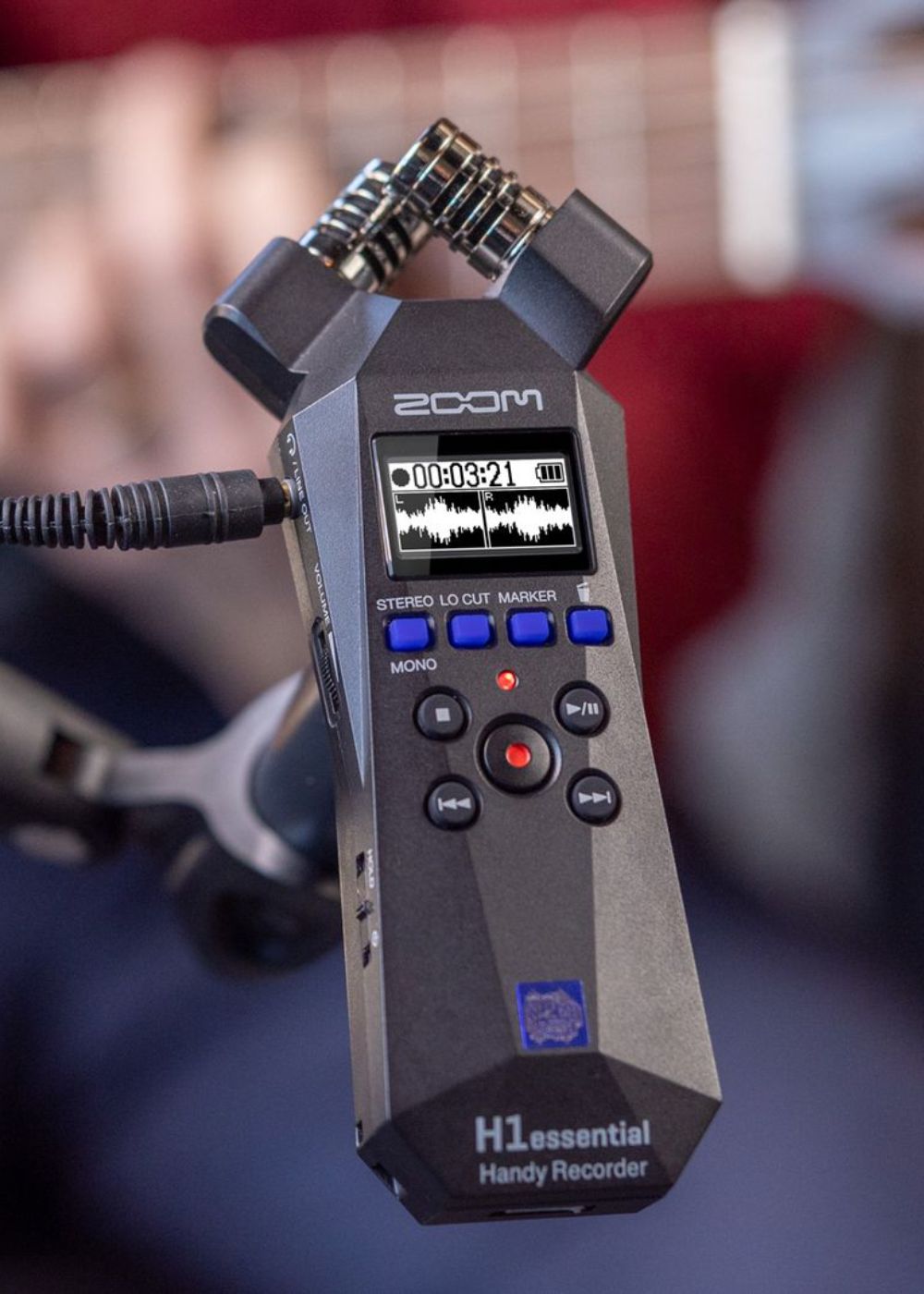

Zoom H1 Essential recorder

Specs

INPUTS

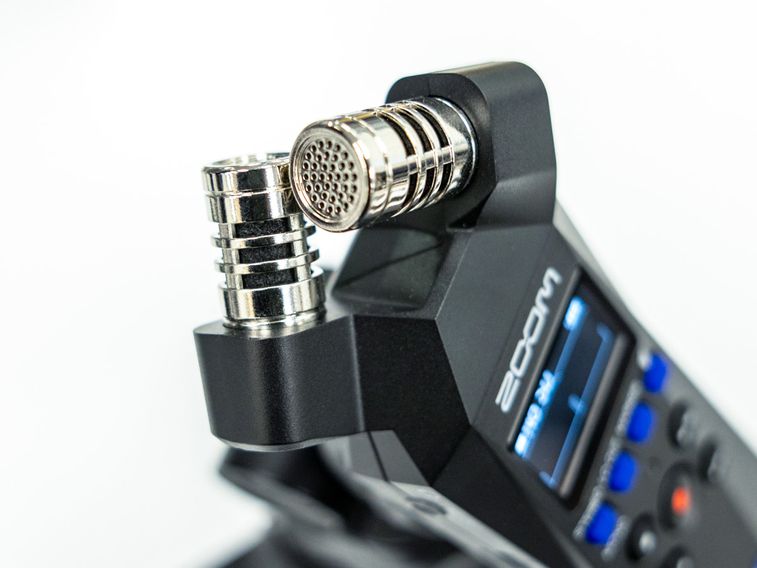

Built-in mic       90º XY stereo format

              Directionality   Unidirectional

              Sensitivity         –37 dB/1 Pa at 1 kHz

              Maximum sound pressure input             120 dB SPL

MIC/LINE IN jack           Connector         Stereo mini jack

              Input impedance           2 kΩ or more

              Plug-in power   2.5 V



Built-in mic       90º XY stereo format

              Directionality   Unidirectional



OUTPUTS

PHONE / LINE OUT jack             Connector         Stereo mini jack

              Maximum output level 20 ｍW + 20 ｍW(into 32Ω load)

              Output impedance       10 Ω or less

Built-in speaker             Type      20 x 30mm oval dynamic speaker

              Practical maximum output        250mW



RECORDER

Recording formats         WAV

              44.1/48/96 kHz、32-bit Float

              Stereo / Mono

              BWF and iXML formats supported

Recording media           4–32GB cards compatible with the microSDHC specification

              64GB–1TB cards compatible with the microSDXC specification



DISPLAY

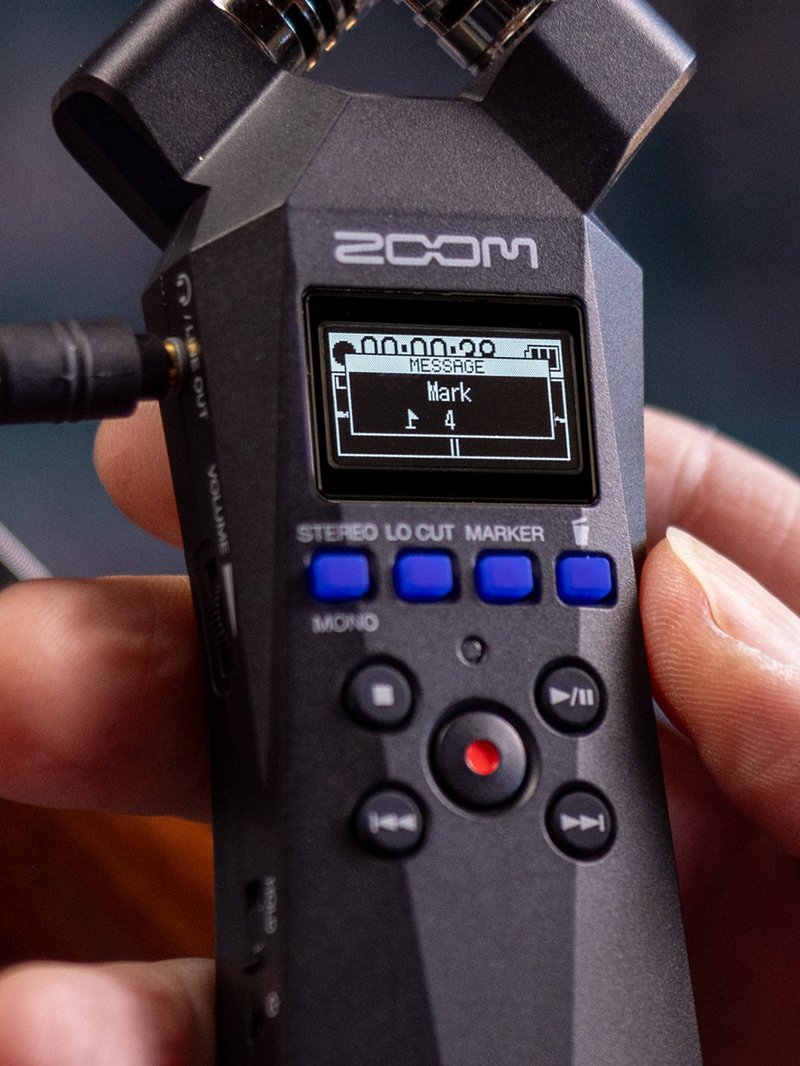

OLED    128 x 64



USB

Connector         USB Type-C

              • Use a USB cable that supports data transfer.

USB Mic             USB 2.0 High Speed

              48 kHz, 24-bit

File transfer      USB 2.0 High Speed



POWER

2 AAA batteries               Alkaline, Lithium, or Rechargeable NiMH

AC adapter        ZOOM AD-17: DC 5 V/1 A

              • USB bus power is supported.



ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES

Alkaline batteries           About 10 hours

NiMH batteries (800 mAh)         About 9 hours

Lithium batteries           About 18 hours



Stereo recording, 48kHz/32-bit float, no headphones, Power Save 1min

These values are approximate.

Continuous battery operation times were determined using in-house testing methods.

They will vary greatly according to use conditions.

POWER CONSUMPTION            5 W maximum

DIMENSIONS   53.9 mm (W) × 136.6 mm (D) × 29.0 mm (H)

WEIGHT (INCLUDING BATTERIES)         92 g



Note: 0 dBu = 0.775 Vrms
