Zoom F8n Pro | Field Recorder | Black

Specifications

Inputs

• Input 1-8: XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)
• Input source set to mic (Input gain): +10 – +75 dB
• Input impedance: 3 k ohms or more
• Maximum input level: +4 dBu (at 0 dBFS)
• Phantom power: +24/+48 V, 10 mA maximum per channel#
• Equivalent input noise: -127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input)
• Frequency response: 20 Hz – 60 kHz, +0.5 dB/−1 kHz (192 kHz sample rate)
• A/D dynamic range: 113 dB typ. (−60 dBFS input, A-weighted)
• Crosstalk: −90 dB or less (between adjacent channels, 1 kHz)
• Mic Input: ZOOM mic capsule input (use disables Inputs 1/2)
• Slate Mic: Built-in mic for voice memos can be assigned to tracks freely

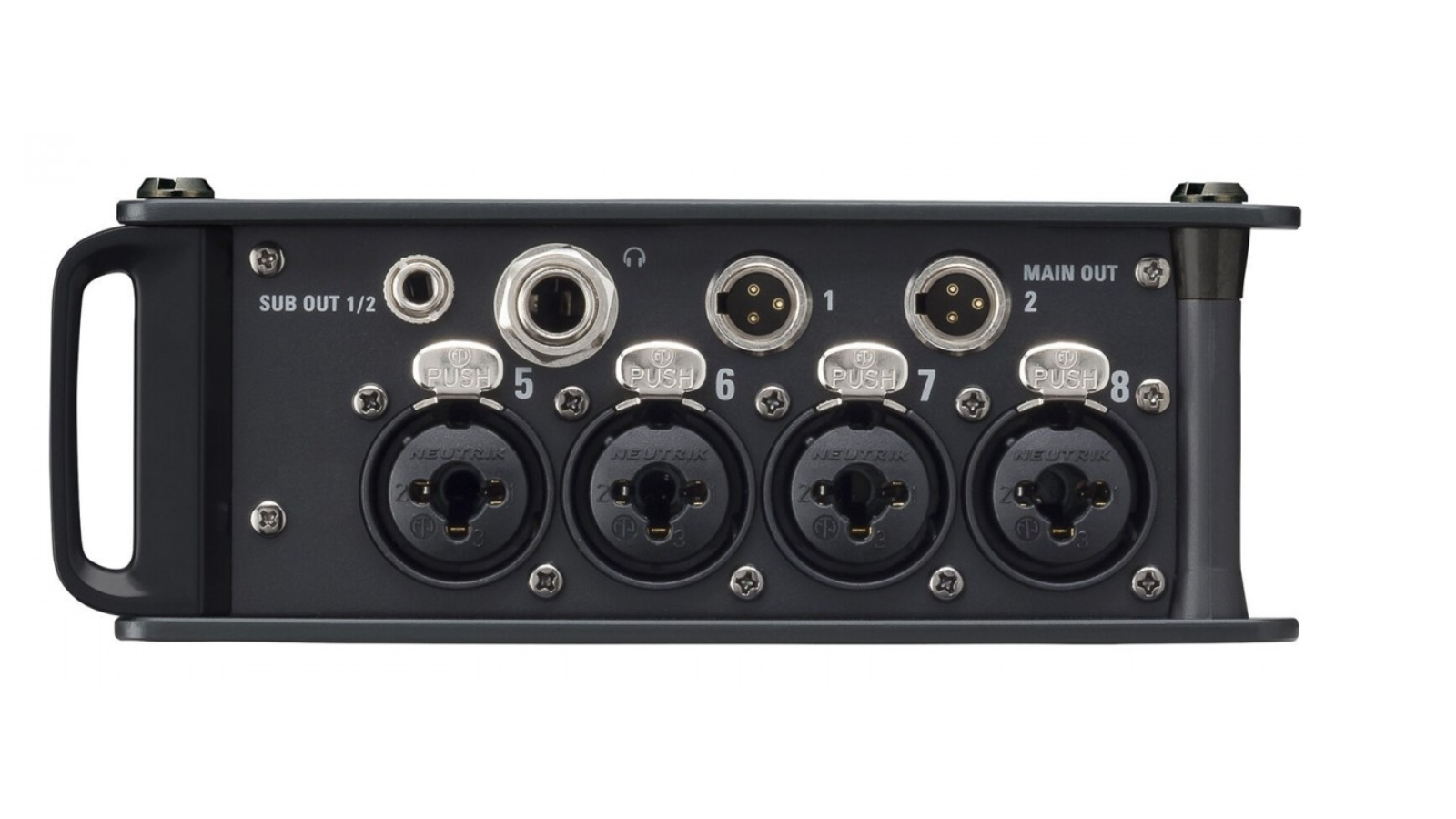

Outputs

• Main Out 1/2:
  • Connectors: TA3 connectors (balanced output, 2: hot)
  • Output impedance: 150 ohms or less
  • Reference output level:
    • −10 dBV (normal output level)
    • +4 dBu (line output level)
    • 1 kHz, 600 ohms load
  • Maximum output level:
    • +10 dBV (normal output level)
    • +24 dBu (line output level)
    • 1 kHz, 600 ohms load
• Sub Out 1/2:
  • Connectors: 3.5 mm stereo mini (unbalanced output)
  • Output impedance: 100 ohms or less
  • Reference output level:
    • −10 dBV (normal output level)
    • −40 dBu (mic output level)
    • 1 kHz, 10 k load
  • Maximum output level: +10 dBV (normal output level)
• Headphone:
  • Connector: 1/4 inch stereo (unbalanced output)
  • Output impedance: 18 ohms or less
  • Maximum output level: 100 mW + 100 mW (32 ohms load)
• D/A dynamic range: 105 dB typ. (−60dBFS input, A-weighted)

Recording Media

• Dual SD card slots:
  • SDHC cards: 4 GB – 32 GB
  • SDXC cards: 64 GB – 1 TB

Recording Formats

• When WAV selected:
  • Supported formats:
    • 44.1, 47.952, 48, 48.048, 88.2, 96 and 192 kHz
    • 16-bit linear, 24-bit linear and 32-bit float
    • Mono/stereo/2-10 ch poly
    • BWF and iXML
  • Maximum simultaneous recording tracks:
    • 10 (8 inputs + stereo mix)
    • 8 (at 192 kHz sampling rate)
• When MP3 selected:
  • Supported formats:
    • 128, 192 and 320 kbps
    • 44.1 and 48 kHz
    • ID3v1 tags
  • Maximum simultaneous recording tracks: 2

Recording Time

• Using a 32GB card:
  • 23:08:00 (48 kHz/32-bit float stereo WAV)
  • 5:47:00 (192 kHz/32-bit float stereo WAV)

Timecode

• Connector: BNC
• Modes: Off, Int Free Run, Int Record Run, Int RTC Run, Ext and Ext Auto Rec (audio clock can be synchronized to timecode)
• Frame rates:23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND and 30D
• Precision: ±0.2 ppm
• Supported input levels: 0.2 - 5.0 Vpp
• Input impedance: 4.6 kΩ
• Output level: 3.3 Vpp
• Output impedance: 50 ohms or less

Power Supplies

• AA batteries: 8 (alkaline, nickel-metal hydride or lithium)
• AC adapter: ZOOM AD-19, DC 12 V/2 A, center plus
• External DC power supply: HIROSE HR10A-7R-4S 4-pin connector (1 pin: -, 4 pin: +), 9–18 V

Display

• Screen: 2.4 inch full-colour LCD (320 × 240)

General

• Power Consumption: 15 W
• External Dimensions: 7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H)
• Weight (including batteries): 1200 g
• Product Code: F8n-Pro
