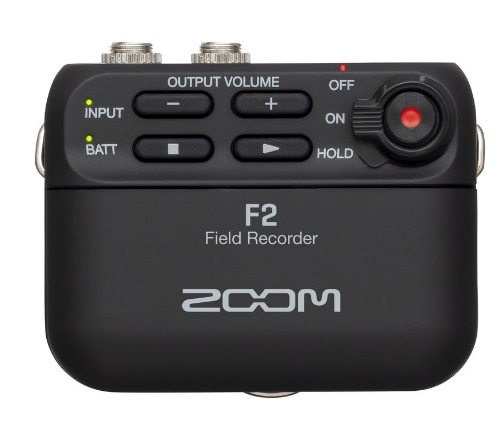

Zoom F2 | Compact Light weight Field Recorder | Black

F2 /
input
CONNECTOR 3.5 mm stereo mini (with screw lock), plug-in power compatible (2.5 V)
INPUT GAIN No adjustment required (dual AD converter circuit adopted)
INPUT IMPEDANCE 2 k Ω or more
MAXIMUM INPUT LEVEL -5.5 dBu
output
CONNECTOR 3.5 mm stereo mini (with screw lock)
MAXIMUM OUTPUT LEVEL 20 mW + 20 mW (with 32 Ω load)
Recording media
microSD / microSDHC / microSDXC standard compatible card (Class 4 or higher, maximum 512 GB)
Recording format
WAV: Supports 44.1 kHz / 32-bit float, 48 kHz / 32-bit float monaural, BWF format

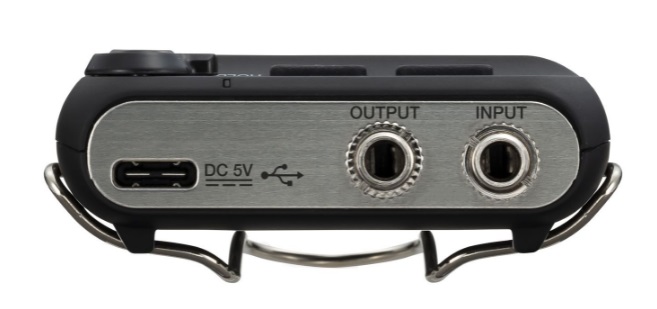

USB
USB TYPE-C * Use a USB cable that supports data transfer. Supports USB bus power.
MASS STORAGE CLASS OPERATION USB 2.0 High Speed
PC APPLICATION OPERATION USB 2.0 High Speed

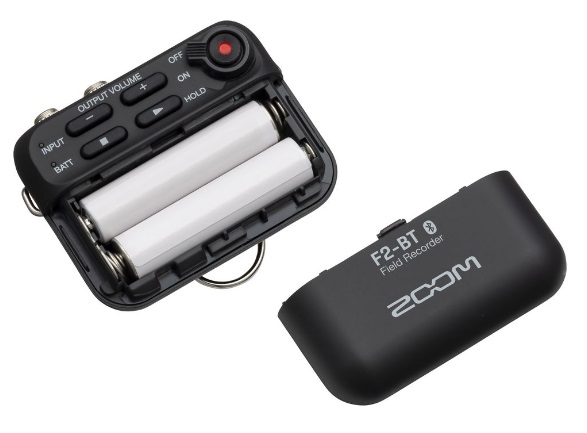

Power supply
Operates two AAA batteries (alkaline batteries, lithium batteries, nickel-metal hydride batteries)
AC adapter (ZOOM AD-17): DC 5 V / 1 A

F2 continuous recording time
Alkaline batteries about 15 hours
Nickel metal hydride battery (750 mAh) about 11 hours
Lithium batteries about 21 hours
* When a lavalier microphone LMF-2 is connected (48 kHz / 32-bit float) * The above values ​​are for reference only. * Battery life is based on our test method. It varies greatly depending on the conditions of use.
F2 continuous recording time
Alkaline batteries about 14 hours
Nickel metal hydride battery (750 mAh) about 10 hours
Lithium batteries about 18 hours
* When a lavalier microphone LMF-2 is connected (48 kHz / 32-bit float), when using F2 Control * The above values ​​are for reference only. * Battery life is based on our test method. It varies greatly depending on the conditions of use.
External dimensions
57.5 mm (W) x 46.4 mm (D) x 22.4 mm (H)
Mass (body only)
32 g

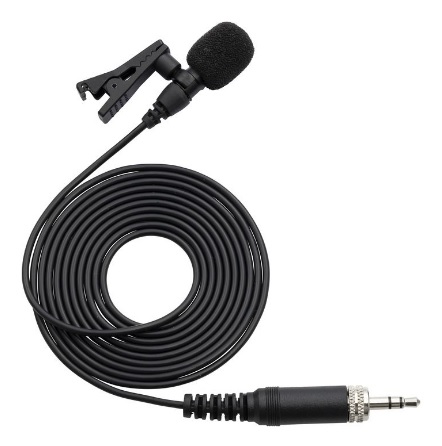

LMF-2
Lavalier microphone
CONNECTOR 3.5 mm stereo mini (with screw lock)
DIRECTIVITY Omnidirectional
SENSITIVITY –32 dB / 1 Pa 1 kHz
MAXIMUM INPUT SOUND PRESSURE 115 dB SPL
CABLE LENGTH 160 cm
