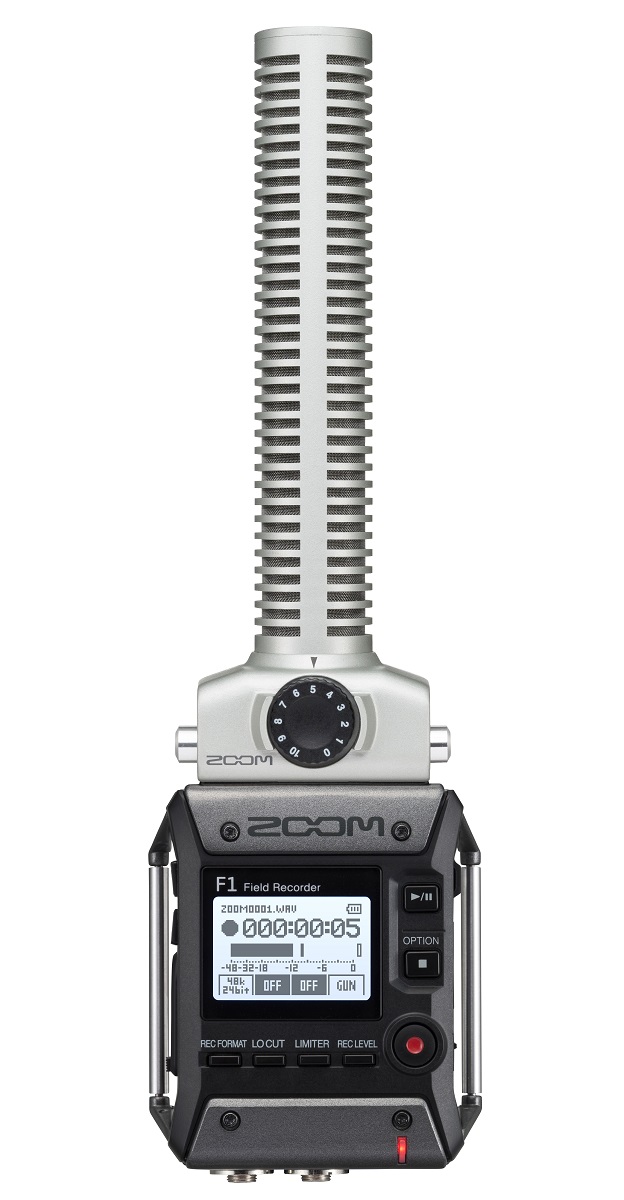

Zoom F1 Field Recorder Shotgun Pack

Recording media:
microSD/microSDHC cards
(Class 4 or higher, up to 32 GB)

Recording formats:
WAV
44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit
MP3
48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
Mono/stereo ID3v1 tags supported

Display:
1.25" monochrome LCD

INPUTS
MIC IN:
ZOOM mic capsule input

Mono shotgun mic (SGH-6):
Directionality: Super cardioid (3 directional mic units)
Sensitivity: −39 dB/1 Pa at 1 kHz
Input gain: −∞ – +50 dB
Maximum sound pressure input: 122 dB SPL

MIC/LINE IN :
Connector: 3.5 mm stereo mini (with screw lock)
Supports plug-in power (2.5 V)
Input gain: −12 dB – +36 dB
Input impedance: 2 kΩ or more

OUTPUTS
PHONE OUT:
Connector: 3.5 mm stereo mini (with screw lock)
Maximum output level: 11 mW + 11 mW (into 32 Ω load)

USB:
microUSB
Mass storage operation: USB 2.0 High Speed
Audio interface operation: USB class compliant
44.1kHz/16-bit, 48kHz/16-bit, 2-in/2-out
Transfer method: asynchronous

POWER
2 AAA batteries (alkaline, NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5V/1A

Recording time using batteries:
SGH-6 mono shotgun mic capsule (48 kHz/24-bit, mono):
Alkaline batteries: about 6.5 hours
NiMH batteries 750 mAh): about 6 hours
Lithium batteries: about 11 hours
*The above values are approximate.
