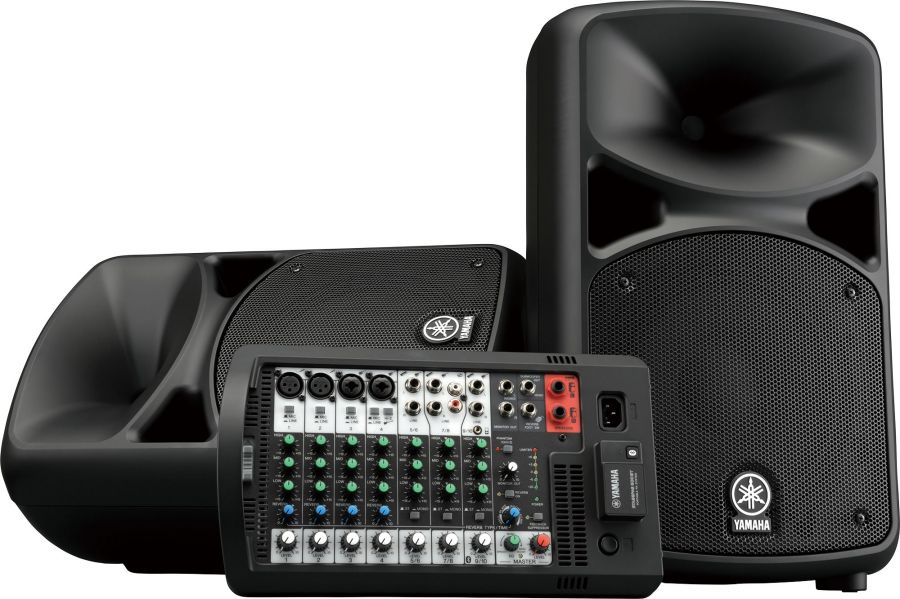

Yamaha STAGEPAS 600BT All-In-One Portable PA System

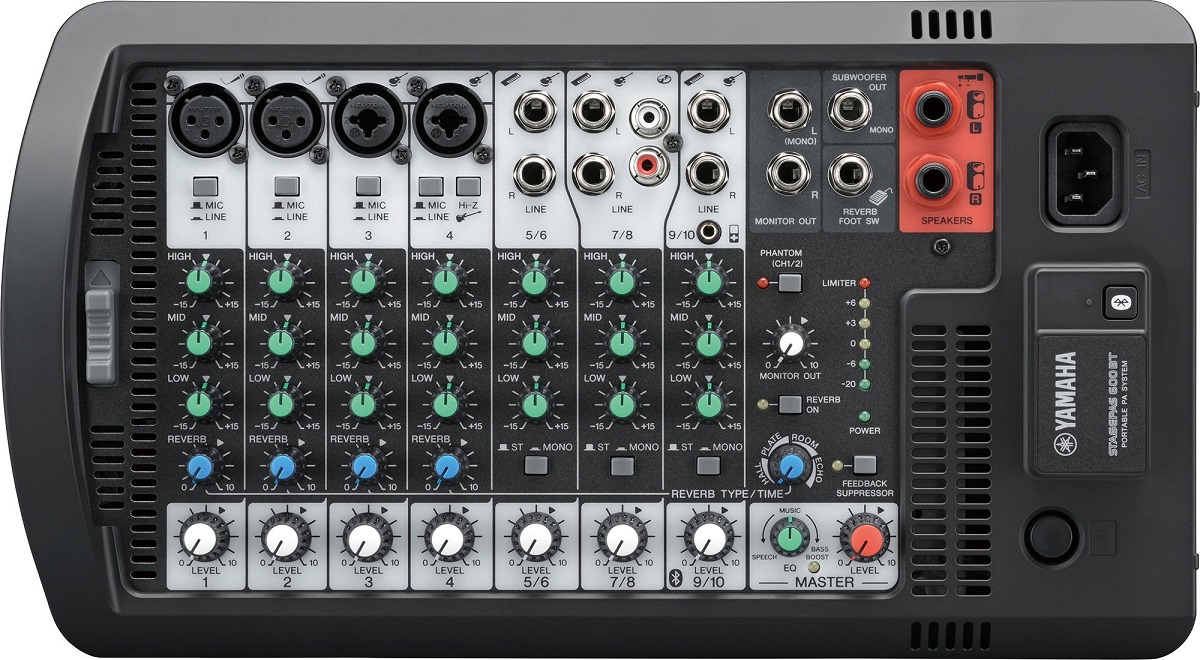

Mixing channels

10

Input channel functions

Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10

Output channel functions

Feedback suppressor, 1-Knob Master EQ

Inputs

4 mono mic / line + 6 mono / 3 stereo line

Phantom power

+30V (CH1, 2)

Outputs

SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF

Bluetooth

Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m

Control and others

Reverb foot switch

Hi-Z

CH4

EQ HIGH

HIGH Shelving: 8 kHz

EQ LOW

LOW Shelving: 100 Hz

EQ MID

MID peaking: 2.5 kHz

DSP

SPX digital reverb (4 program, parameter control)

Maximum output power @4ohms

680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous)

Speaker type

Two-way bass-relfex speakers

Frequency range (-10dB)

55 Hz - 20 kHz

H

90°

V

60°

Floor Monitor Angle

50°

LF

10" (25 cm) cone

HF

1.4" (3.56 cm) voice coil compression driver

Maximum output level (1m; on axis)

129 dB SPL / speaker

Power requirements

100 V - 240 V 50 Hz/60 Hz

Power consumption

35 W (Idle), 100 W (1/8 Power)

Pole socket

34.8-35.2 mm pole socket with StageLok

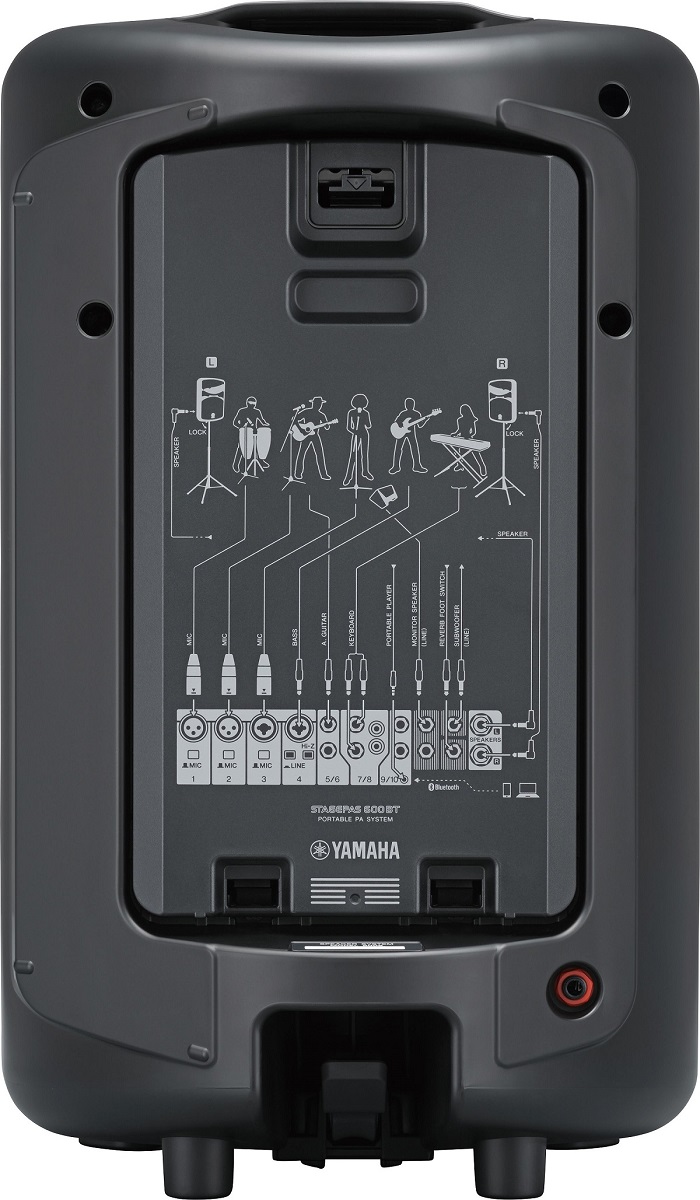

Accessories

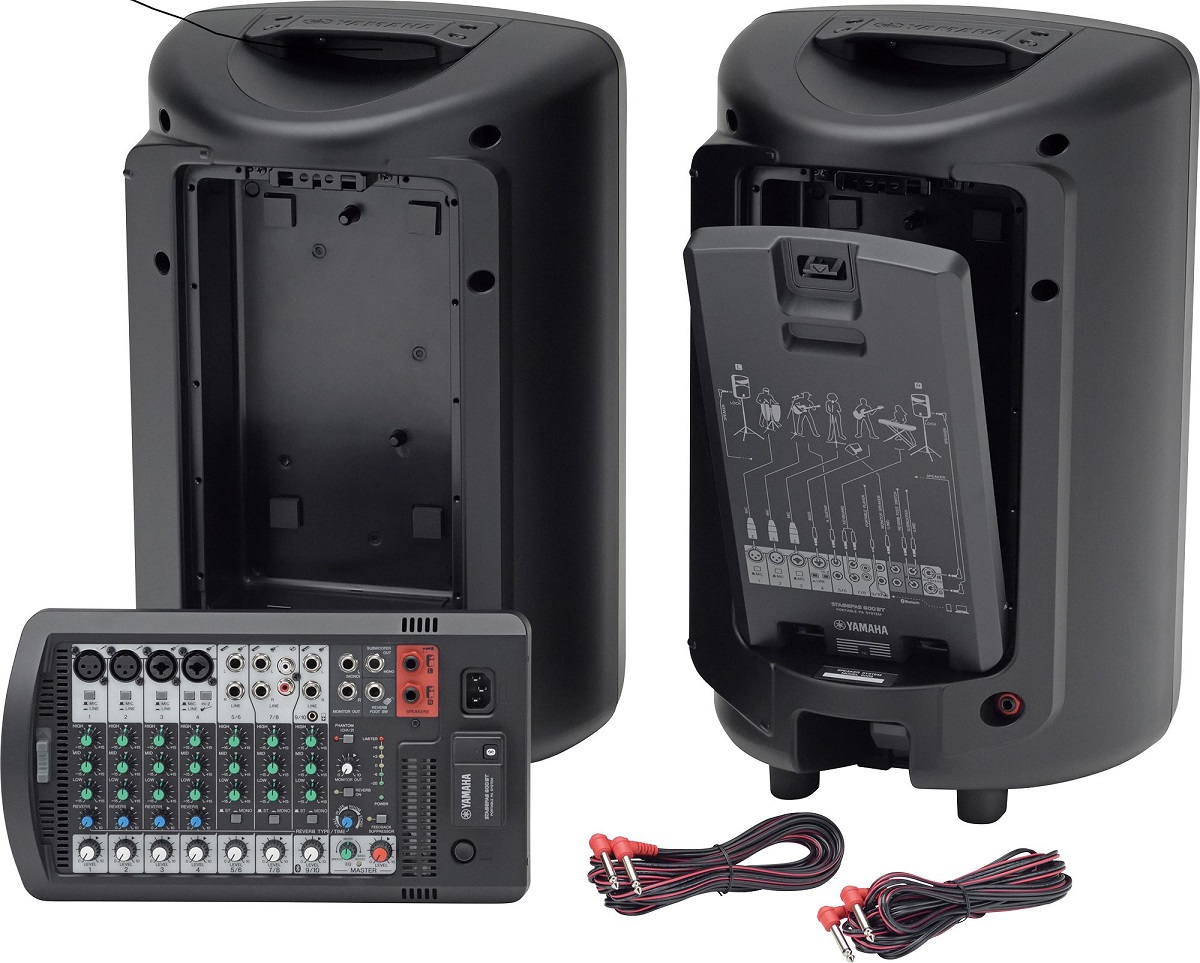

Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties

Options

Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF

Others

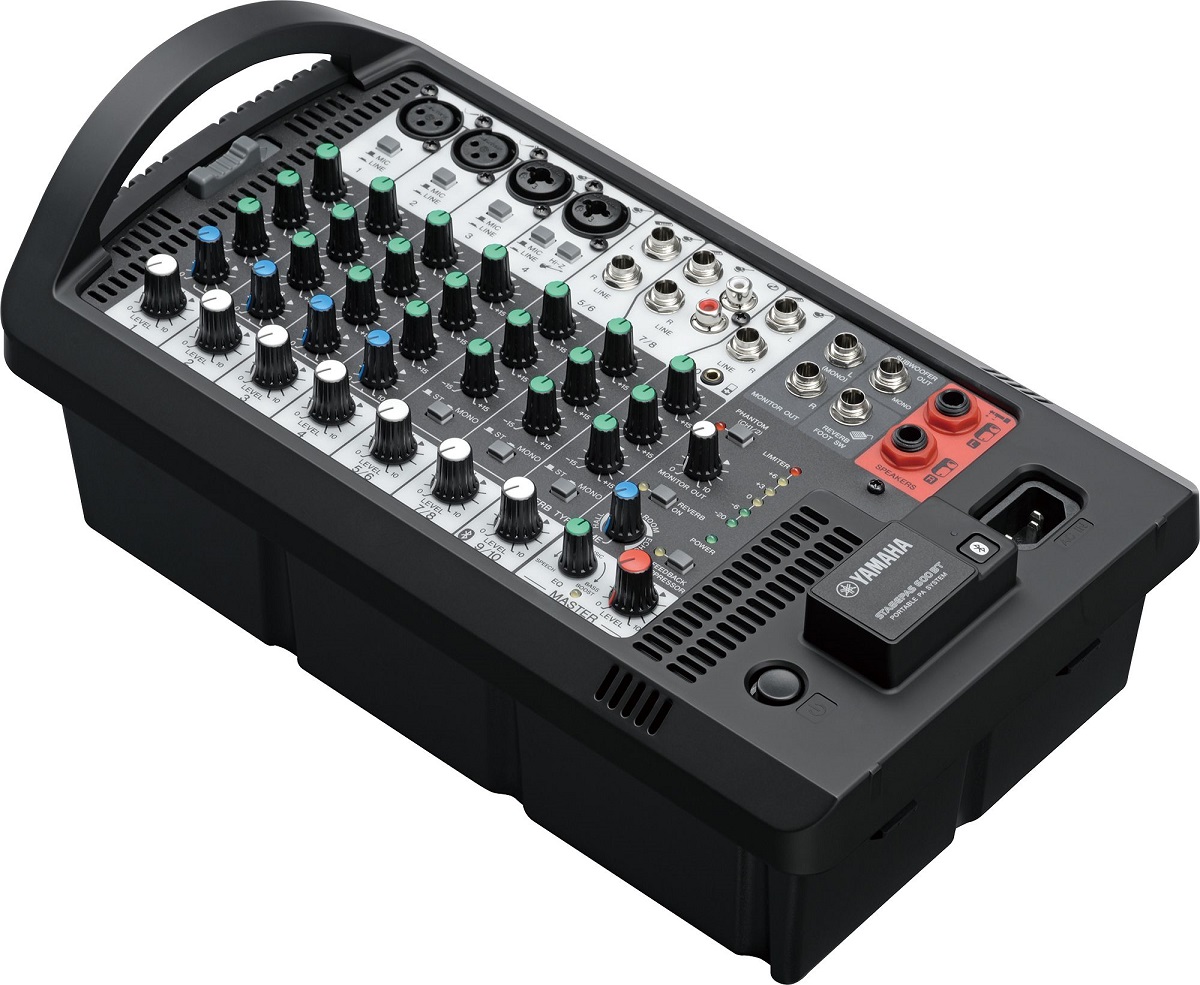

Handle: 1 x Top

Dimensions (W x H x D)

Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm

Weight

25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg)
