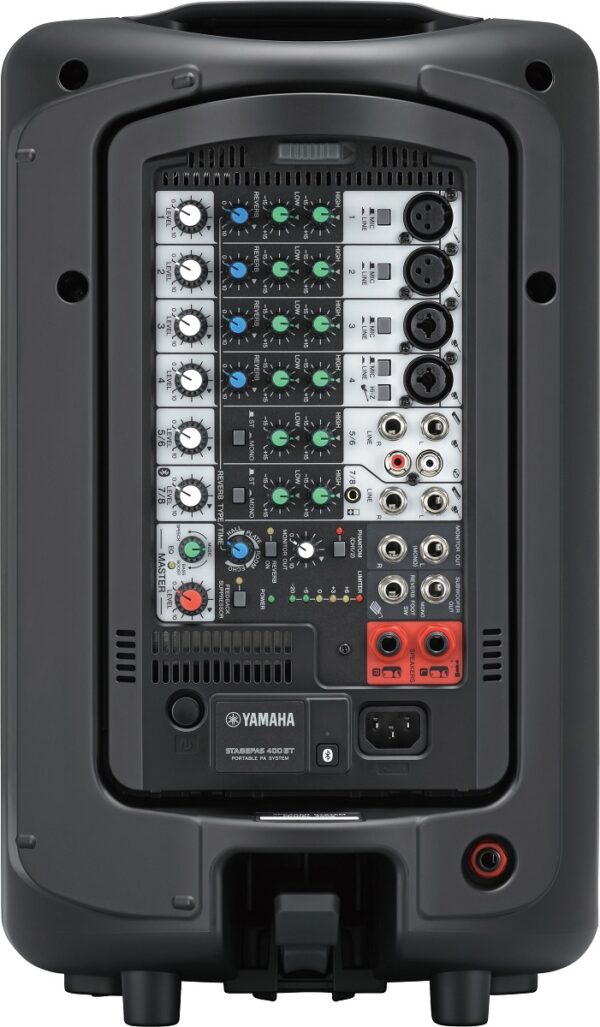

Yamaha STAGEPAS 400BT All-In-One Portable PA System

Mixing channels

8

Input channel functions

Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8

Output channel functions

Feedback suppressor, 1-Knob Master EQ

Inputs

4 mono mic / line + 4 mono / 2 stereo line

Phantom power

+30V (CH1, 2)

Outputs

SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF

Bluetooth

Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m

Control and others

Reverb foot switch

Hi-Z

CH4

EQ HIGH

HIGH Shelving: 8 kHz

EQ LOW

LOW Shelving: 100 Hz

EQ MID

-

DSP

SPX digital reverb (4 program, parameter control)

Maximum output power @4ohms

400W (200 W + 200 W) (Dynamic), 360W (180W + 180W) (Continuous)

Speaker type

Two-way bass-relfex speakers

Frequency range (-10dB)

55 Hz - 20 kHz

H

90°

V

60°

Floor Monitor Angle

50°

LF

8" (20 cm) cone

HF

1" (2.54 cm) voice coil compression driver

Maximum output level (1m; on axis)

125 dB SPL / speaker

Power requirements

100 V - 240 V 50 Hz/60 Hz

Power consumption

30 W (Idle), 70 W (1/8 Power)

Pole socket

34.8-35.2 mm pole socket with StageLok

Accessories

Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties

Options

Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF

Others

Handle: 1 x Top

Dimensions (W x H x D)

Speaker 289 x 472 x 275 mm, Mixer 308 x 180 x 116 mm

Weight

18.3 kg (40.3 lbs) (2 x Speaker 7.7kg + Mixer 2.9kg)
