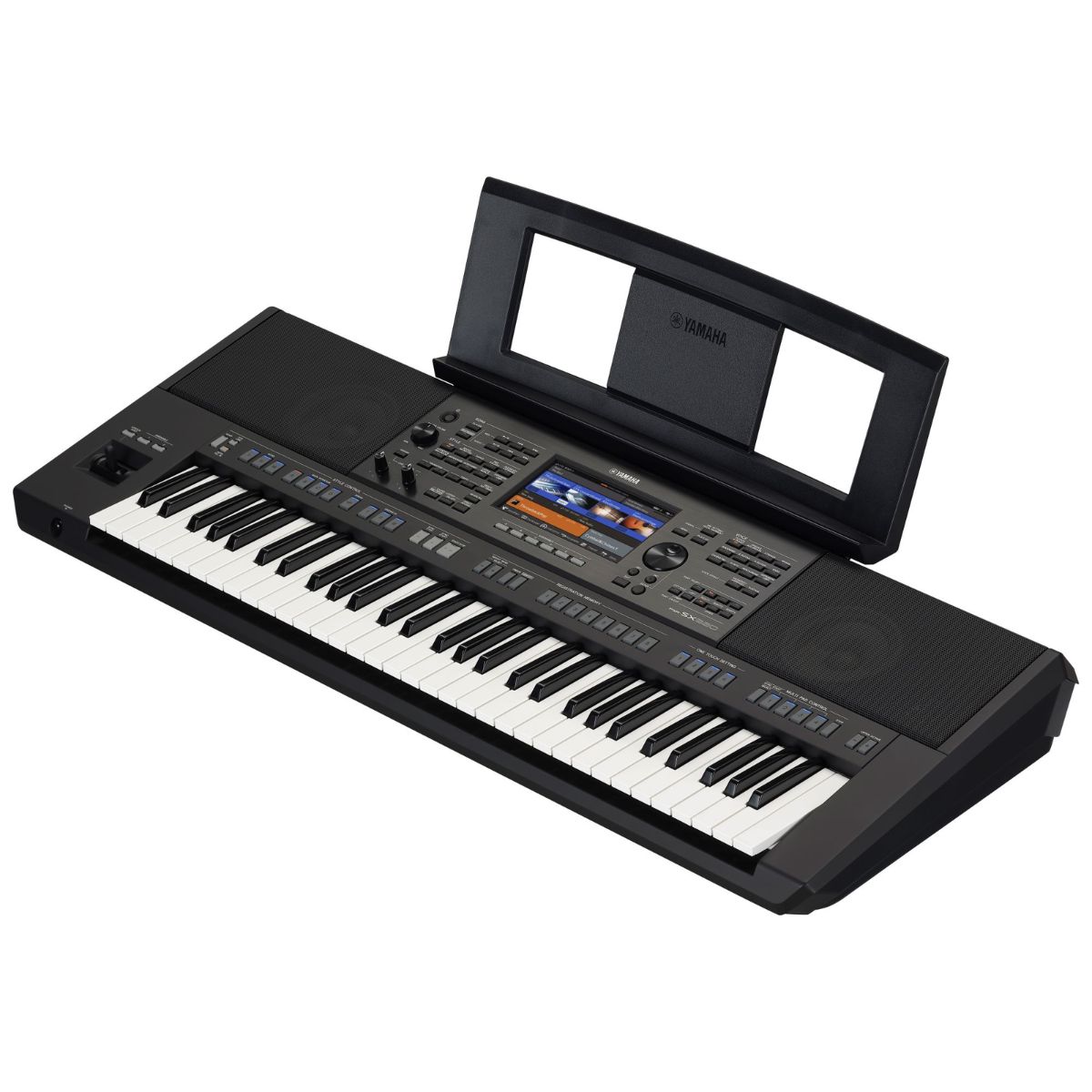

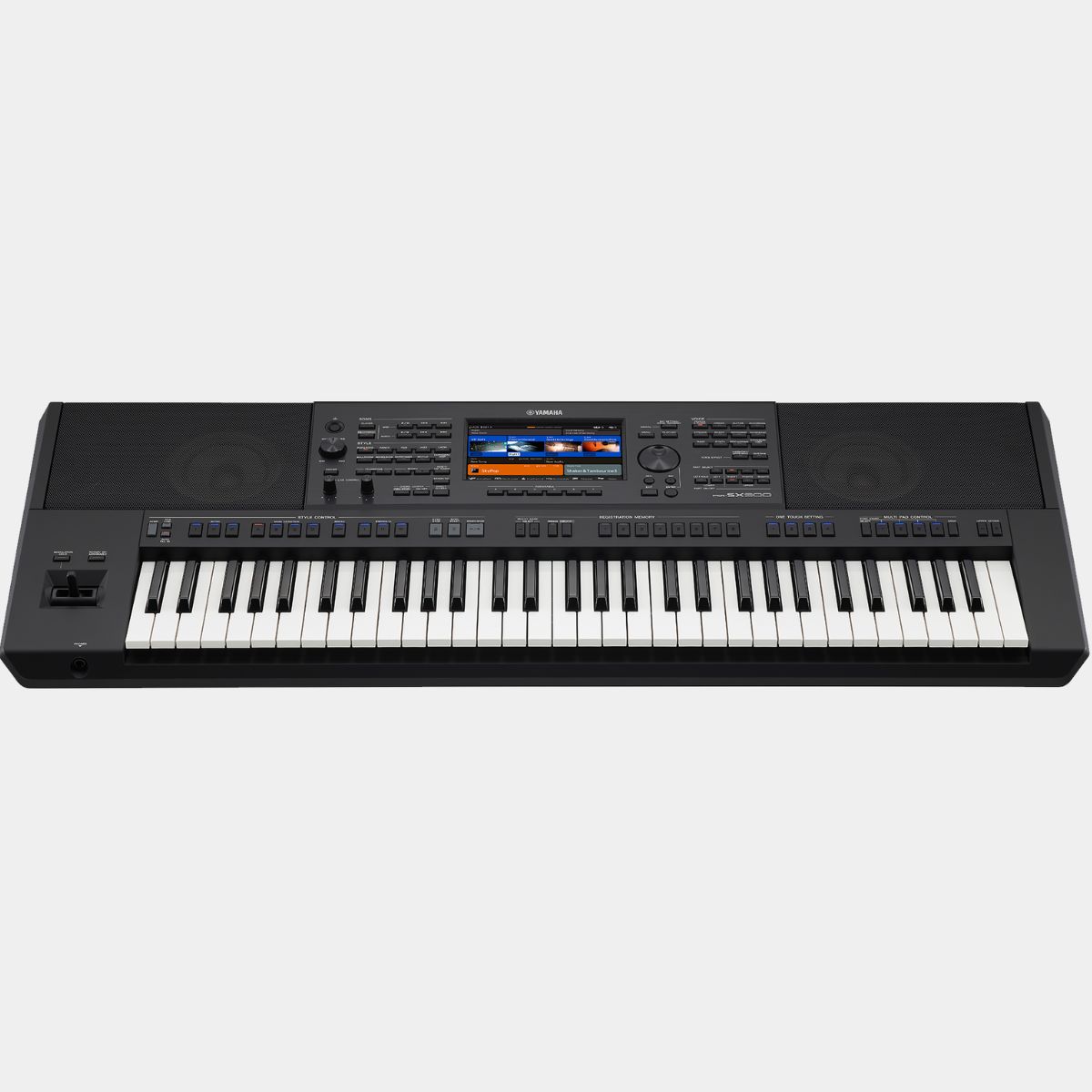

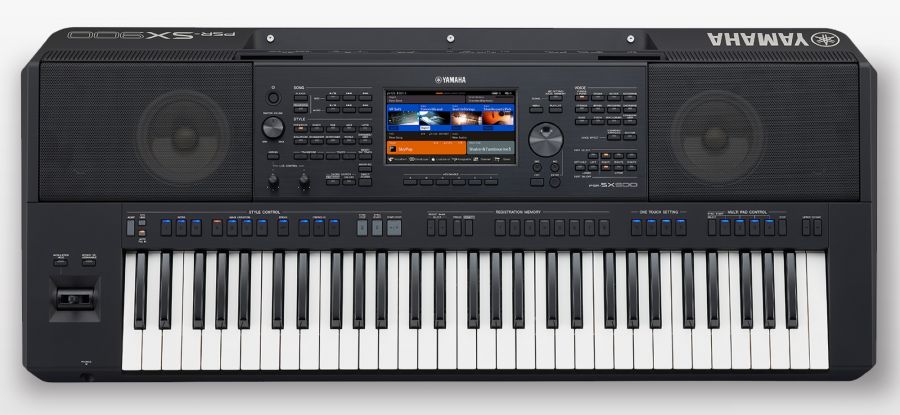

Yamaha PSR-SX900 | 61 Keys Velocity Senstive FSB Keyboard Workstation

idth

1017 mm

Height

139 mm

Depth

431 mm

Weight

11.5 kg

Number of Keys

61

Type

Organ (FSB), Initial Touch

Touch Response

Normal, Soft 1, Soft 2, Hard 1, Hard 2

Joystick

Yes

Control Knobs

2 (assignable)

Type

TFT Color Wide VGA LCD

Size

800 x 480 dots (7 inch)

Touch Screen

Yes

Color

Color

Language

English, German, French, Spanish, Italian

Language

English

Tone Generating Technology

AWM Stereo Sampling

Number of Polyphony (Max.)

128

Number of Voices

1337 Voices + 56 Drum/SFX Kits

Featured Voices

252 S.Art!, 54 Mega Voices, 31 Sweet! Voices, 87 Cool! Voices, 131 Live! Voices, 24 Organ Flutes!

XG Compatible

Yes (for Song playback)

GS Compatible

Yes (for Song playback)

GM Compatible

Yes

GM2 Compatible

Yes

Expansion Voice Memory

Yes (approx. 1 GB)

Editing Capability

Voice Set

Playable Parts

Right 1, Right 2, Right 3, Left

Reverb Settings

59 Presets + 30 User

Chorus Settings

106 Presets + 30 User

DSP Types

322 Presets (with VCM) + 30 User

Insertion Effects

1-8: 322 Presets (with VCM) + 30 User

Master Compressor Settings

5 Presets + 30 User

Master EQ Settings

5 Presets + 30 User

Part EQ Settings

28 Parts

Others Effects

Mic/Guitar Effects: Noise Gate, Compressor, 3 Band EQ, Vocal Effect: 23

Arpeggio Effect

Yes

Number of Vocal Harmony Presets

Vocal Harmony: 54, Synth Vocoder: 20

Number of Vocal Harmony User Settings

60 *The number is the total of Vocal Harmony and Synth Vocoder

Number of Preset Accompaniment Styles

525

Featured Accompaniment Styles

463 Pro Styles, 46 Session Styles, 10 DJ Styles, 6 Free Play

Fingering Types

Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard

Style Controls

INTRO x 3, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING x 3

One Touch Setting (OTS)

4 for each Style

Chord Looper

Yes

Style Section Reset

Yes

Expansion Style

Yes (Internal Memory)

Expansion Audio Style

Yes (Internal Memory)

Song File Compatibility

Style File Format, Style File Format GE

Number of Preset Songs

5 Sample Songs

Number of Recordable Songs

Unlimited (depends on the drive capacity)

Number of Recording Tracks

16

Recording Data Capacity

Approx. 3 MB/Song

Recording Functions

Quick Recording, Multi Recording, Step Recording

Data Playback Compatibility

SMF (Format 0 & 1), XF

Recording Format

SMF (Format 0)

Number of Multi Pad Banks

329 Banks x 4 Pads

Audio Link

Yes

Number of Registration Buttons

8

Registration Controls

Registration Sequence, Freeze

Number of Playlist Records

2500 (max.) Records per Playlist file

Lesson/Guide

Follow Lights, Any Key, Karao-Key, Your Tempo

Search Function

Registration Bank

Demonstration Mode

Yes

Metronome

Yes

Tempo Range

5 - 500, Tap Tempo

Transpose

-12 – 0 – +12

Tuning

414.8 – 440 – 466.8 Hz

Octave Button

Yes

Scale Type

9 types

Sub Scale Setting

Yes

Bluetooth Audio Capability

Yes (Audio) * May not have this functionality depending on the country

Direct Access Control

Yes

Text Display Function

Yes

Wallpaper Customisation

Yes

Display Output

Yes (by using a commercially available USB display adaptor) * For a list of compatible devices, access the “Yamaha Downloads” website.

Harmony/Echo

Yes (with Arpeggio)

Panel Sustain Control

Yes

Monophonic/Polyphonic Switch

Yes

Style Creator

Yes

Style Recommender

Yes

One-Touch-Setting Information

Yes

Score Display Function

Yes

Lyrics Display Function

Yes

Multi Pad Creator

Yes

Audio Recording Time (max.)

80 minutes/Song

Audio Recording Formats

.wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (44.1 kHz sample rate,128/256/320 kbps, mono/stereo)

Audio Playback Formats

.wav (WAV format: 44.1 kHz sample rate, 16 bit resolution, stereo), .mp3 (MPEG-1 Audio Layer-3: 44.1/48.0 kHz sample rate, 64-320 kbps and variable bit rate, mono/stereo)

Lyrics Display Function

Yes (.mp3 only)

Time Stretch Function

Yes

Pitch Shift Function

Yes

Vocal Cancellation Function

Yes

Internal Memory

Yes (approx. 4 GB)

External Drive Support

USB Flash Memory (via USB to DEVICE)

Headphone Output

Yes

Foot Pedal Connectivity

1 (SUSTAIN), 2 (ARTICULATION), Function Assignable

Microphone Input

Microphone/Guitar (Hi-Z) x 1

MIDI Connectivity

IN, OUT

AUX IN Connection

Stereo mini jack

LINE OUT

MAIN OUTPUT (L/L+R, R), SUB (AUX) OUTPUT (1,2 (L/L+R, R))

USB TO DEVICE

Yes (x 2)

USB TO HOST

Yes

Amplifiers and Speakers

Amplifiers

(15 W + 10 W) x 2

Speakers

13 cm x 2 + 2.5 cm (dome) x 2

Power Supply

Power Supply

Yamaha PA-300C (Included)

Power Consumption

24 W

Auto Power Off Function

Yes

Included Accessories

Owner's Manual, Online Member Product Registration, Music Rest, AC Adaptor
