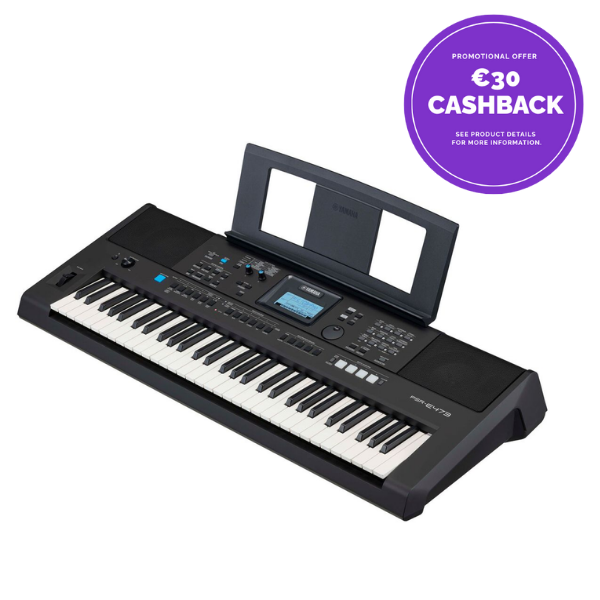

Yamaha PSR-E473 | 61 Note | Touch Sensitive | Portable Keyboard

Size/Weight

Width: 992mm (39-1/16”)
Height 404mm (15-7/8”)
Depth: 136mm 5-3/8”)
Weight: 7.0kg (15lb, 7oz) not including batteries
Control Interface

Keyboard
Number of Keys: 61
Touch Response: Soft, Medium, Hard Fixed
Other Controllers
Pitch Bend Wheel: Yes
Knobs: 2
Panel
Language: English
Voices

Tone Generation
Tone Generation Technology: AWM Stereo Sampling
Polphony
Number of Polyphony (Max.): 64
Preset
Number of Voices: 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
Compatibility
XGlite
Effects

Types:
Reverb: 12
Chorus: 5
Master EQ: 4
DSP: DSP1:41 DSP2:12
Accompaniment Style

Preset
Number of Styles: 290
Fingering: Multi-finger, Smart Chord
Style Control: ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
External Styles: 10
Other Features
One Touch Settings (OTS): Yes
Compatibility: Style File Format (SFF)
Groove Creator

Preset
Number of Grooves: 35
Number of Sections: 5 (4 Sections + 1 Musical Climax/Ending)
Songs (MIDI)

Preset
Number of Preset Songs: 30
Recording
Number of Songs: 10
Number of Tracks: 6 (5 Melody + 1 Style/Groove Creator)
Data Capacity: Approx. 19,000 notes (when only “melody” tracks are recorded)
Data Format
Playback: SMF Formats 0&1
Recording: Original File Format (SMF 0 conversion function)
USB Audio Recorder

Recording Time (max): 80 minutes (approx. 0.9GB) per song
Format
Playback: WAV(44.1 kHz, 16 bit, stereo)
Recording: WAV(44.1 kHz, 16 bit, stereo)
Quick Sampling

Sampling Type: Oneshot, Loop
Samples (Preset/User): 4
Sampling Time: Approx. 9.6sec
Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
Sampling Format: Original File Format (16 bit, stereo)
Sampling Rate: 44.1kHz
Functions

Voices
Dual Split: Yes
Split: Yes
Harmony: 26
Arpeggio: 152
Articulation: Yes
Registration Memory
Number of Buttons: 9
Control: Freeze
Overall Controls
Metronome: Yes
Tempo Range: 11 - 280
Transpose: -12 - 0 - +12
Tuning: 427.0 – 440.0 – 453.0 Hz (approx. 0.2Hz increments)
Octave Button: Yes
Scale Type: 5 types
Miscellaneous
PIANO Button: Yes
Demo: Yes
Melody Suppressor: Yes
Crossfade: Yes
USB Audio Interface: 44.1 kHz, 16 bit, stereo
Motion effect: 57
Mega Boost: 2 steps (approx. +3 dB, and +6 dB)
Storage and Connectivity

Storage
Internal Memory> Approx. 1.72MB
External Drives: USB flash drive
Connectivity
DC IN: 12V
Headphones: Standard stereo phone jack
Microphone: Yes
Sustain Pedal: Yes
AUX IN: Yes Stereo Mini Jack
AUX OUTPUT: Standard stereo phone JACKS [L/L+R] [R]
USB TO DEVICE: Yes
USB TO HOST: Yes
Sound System

Amplifiers: 6W + 6W
Speakers: 12cm x 2
Power Supply

AC Adapter: V PA-150 or an equivalent recommended by Yamaha (Output : DC 12V, 1.5 A)
Batteries: Six 1.5 V “AA” size alkaline (LR6), manganese (R6) or six 1.2 V “AA” size Ni-MH rechargeable batteries (HR6)
Power Consumption: 9 W (When using PA-150 AC adaptor)
Auto Power Off: Yes
Accessories:

Owner’s Manual
AC adaptor (PA-150 (PSR-E473)/ PA-300C (PSR-EW425) or an equivalent recommended by Yamaha)
Music Rest
Online Member Product Registration
Separately Sold Accessories (May not be available depending on you area)

Keyboard Stand: L-2C (PSR-E473)
Headphones: HPH-150/HPH-100/ HPH-50
Subwoofer: KS-SW100
Footswitch: FC4A/FC5
Wireless MIDI adaptor: UD-BT01
