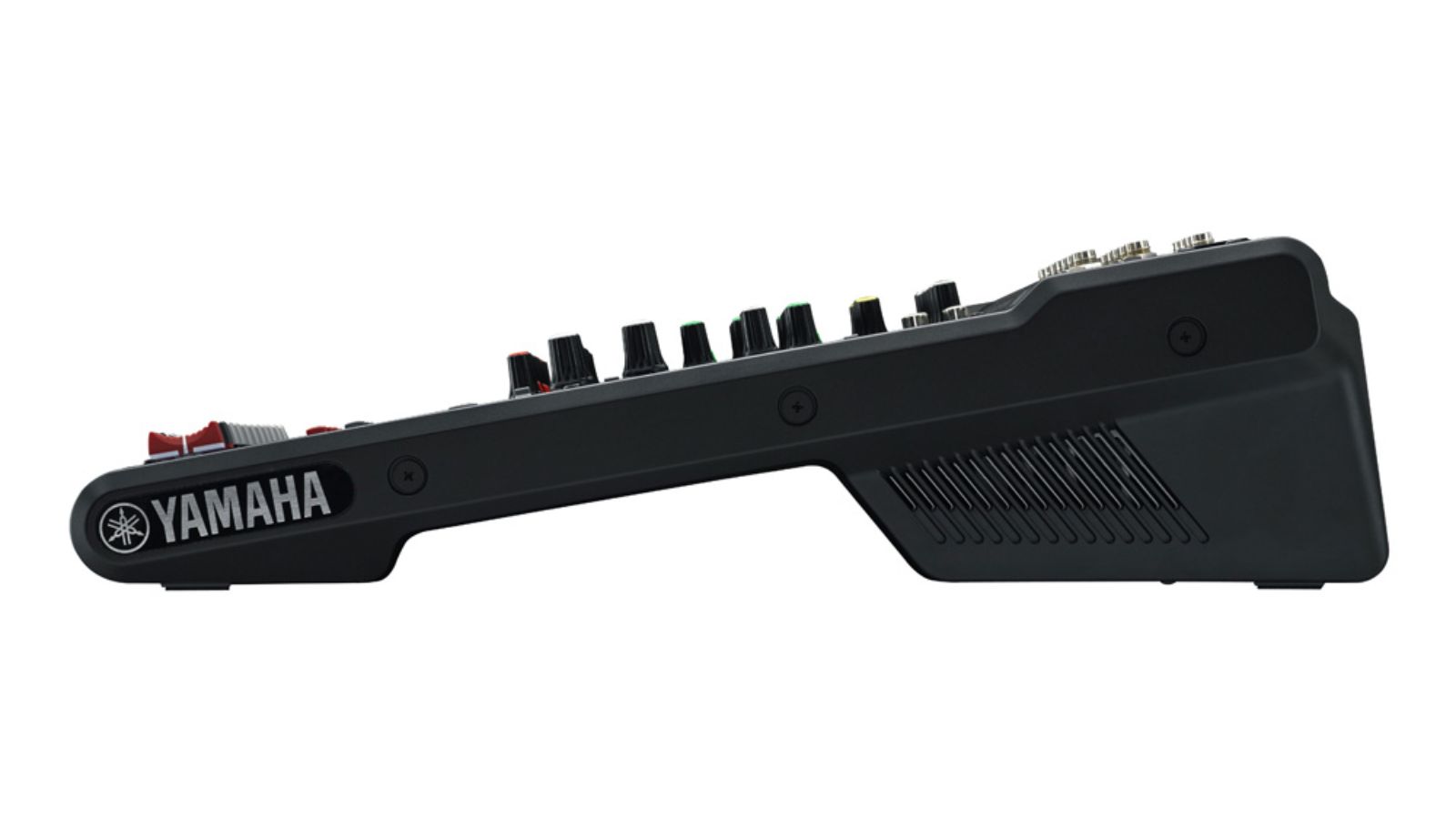

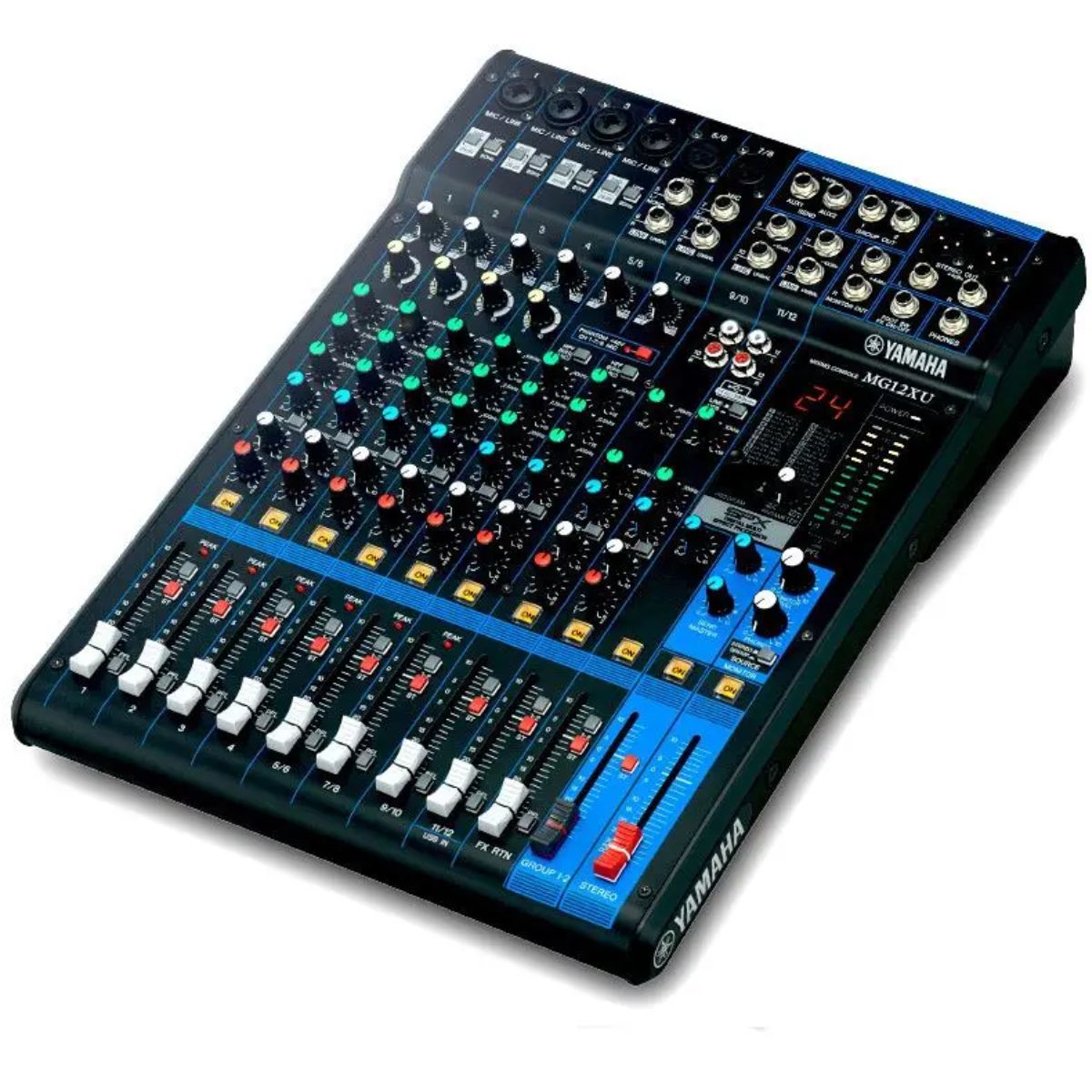

Yamaha MG12XU Mixer (3rd Gen) | 12-Channel
€483.00
the compact MG12 features 6 class leading Class A D-PRE microphone preamps, SPX effects, stereo USB audio interface and Cubase AI (download)
3 in stock
the compact MG12 features 6 class leading Class A D-PRE microphone preamps, SPX effects, stereo USB audio interface and Cubase AI (download)
- Mixing capability On-board processors SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
- I/O Phantom power +48 V
- Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
-
Input Channels
Mono[MIC/LINE] 4
Mono/Stereo[MIC/LINE] 2
Stereo[LINE] 2 -
Output Channels
STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 2
GROUP OUT 2
Bus Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) -
Input Channel Function
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOW Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
- Total harmonic distortion 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
- Frequency response +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
- Hum & noise level Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
- Residual output noise -102 dBu (STEREO OUT, STEREO master fader: Min)
- Crosstalk -78 dB
- Power requirements AC 100 – 240 V, 50 / 60 Hz
- Power consumption 22 W
- Dimensions W 308 mm (12.1"), H 118 mm (4.6"), D 422 mm (16.6")
- Net weight 4.2 kg (9.3 lbs.)
- Accessories: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information.
- Operating Temperature: 0 to +40˚C
- Optional Accessory (not included): Rack-mount kit RK-MG12, Foot Switch FC5
