Yamaha HS3 Compact Studio Monitor 26 Watt | Pair | Black

    0 out of 5
    Not reviewed
    Add a Review

    239.00

    powerful tools to help create a wide range of audio content from music production to video editing, meeting expectations of creators who have limited space

    • Yamaha

    3 in stock

    Product No. 06AYAM-CHS3UK

    HS3 Powered Studio Monitors

    High-quality compact studio monitors for the uncompromising creator

    • 2-way bass-reflex powered speaker with 3.5" cone woofer and 0.75" dome tweeter
    • 70 Hz – 22 kHz frequency response (-10 dB)
    • 26 W + 26 W output power (Dynamic, RL=6 Ω)
    • ROOM CONTROL and HIGH TRIM response controls
    • XLR/TRS Phone (COMBO), RCA, and Stereo Mini inputs
    • Stereo mini – RCA cable, speaker cable, and anti-slip pad included
    • Packaging: Pair



    High-quality compact studio monitors for the uncompromising creator

    HS Series speakers have become the standard in studio monitors, trusted for many years by the world’s top audio engineers, producers, and artists. Now Yamaha has redefined their essence in a compact housing. The HS3 and HS4 are powerful tools to help create a wide range of audio content—from music production to video editing—that meets the expectations of creators who have limited space and need to keep the volume down but do not want to compromise on monitoring quality.

    Yamaha HS3 Compact Studio Monitor 26 Watt | Pair | Black

    Optimal sound tailored to your environment

    The sound produced by speakers is sometimes affected by the surrounding environment.

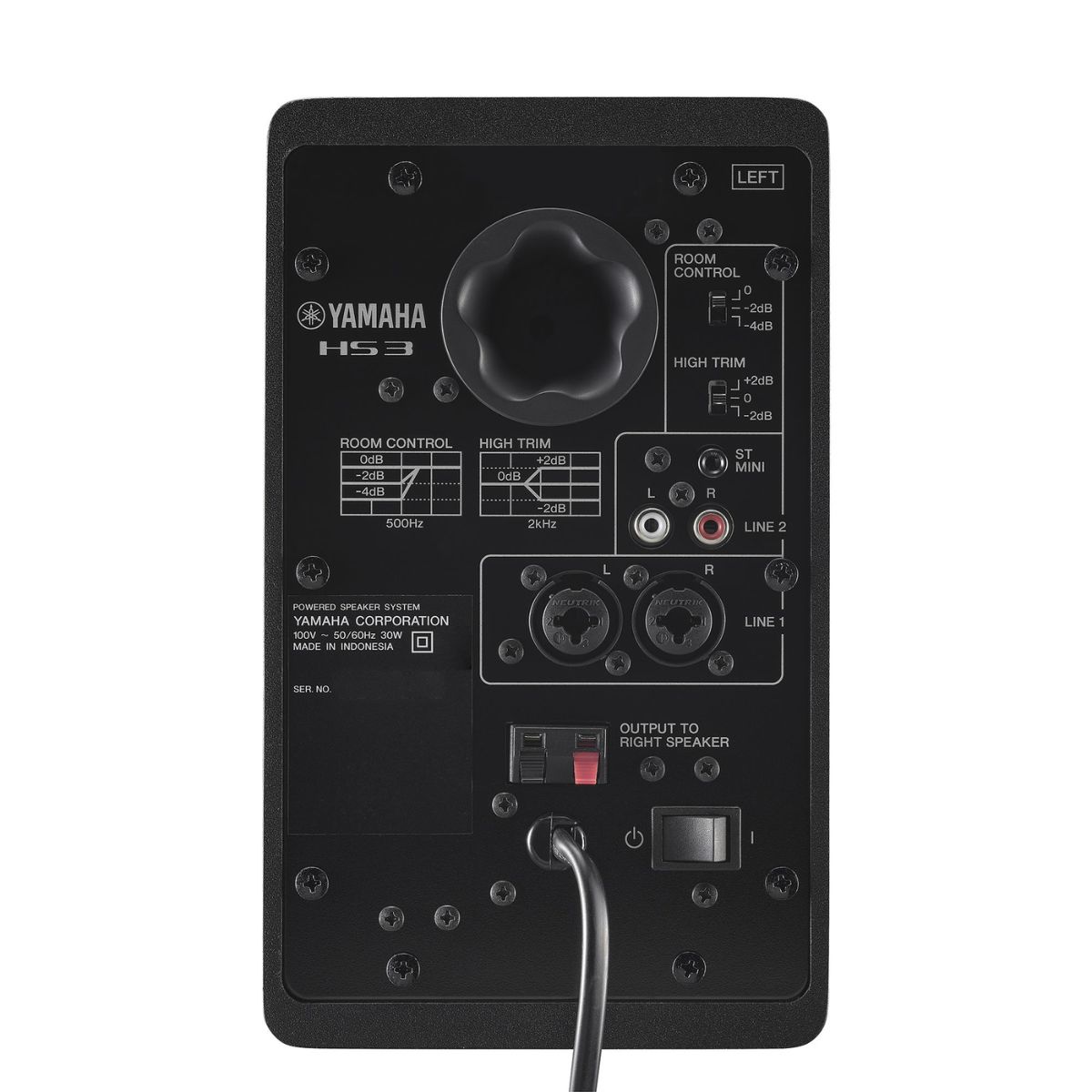

    The rear panels of the HS3 and HS4 are equipped with ROOM CONTROL and HIGH TRIM functions that allow you to make adjustments to achieve the ideal sound for any environment, such as reducing the unneeded, exaggerated low-end that can often occur when speakers are placed next to walls.

    Yamaha HS3 Compact Studio Monitor 26 Watt | Pair | Black

    Inputs and controls to fit any use case

    The rear panel of the HS3 and HS4 is equipped with combination XLR/TRS phone, RCA, and stereo mini connectors, allowing you to connect to a wide range of professional and consumer equipment such as computers, audio interfaces, audio mixers, and electric instruments. The most commonly used features—power button, volume knob, and headphone connector—are located in the front for easy access.

    Yamaha HS3 Compact Studio Monitor 26 Watt | Pair | Black

    Compact and portable

    The compact size of the HS3 and HS4 was made possible thanks to the highly efficient class-D amp. Using one amp for two speakers has enabled us to both reduce the weight of the speakers and simplify the cable connections. They take up little space even in a small bedroom studio, and are easy to take with you on the road.

    Yamaha HS3 Compact Studio Monitor 26 Watt | Pair | Black

    General specifications

    Speaker type   2-way powered speaker, Bass-reflex type

    Frequency response (-10dB)   70 Hz - 22 kHz

    Frequency response (-3dB)     85 Hz - 20 kHz

    Crossover        3.2 kHz

    Maximum Output Level (Measured peak, IEC noise@1m)  100 dB SPL

    Components    HF       0.75" Dome

                LF        3.5" Cone

    Nominal impedance   6 Ω

    I/O connectors [Input Connector] L Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini, R Side: Speaker Input; [Output Connector] L Side: Headphone, Speaker Output

    Output power  26 W + 26 W (Dynamic, RL=6 Ω), 20 W + 20 W (THD 0.1%, 1kHz, RL=6 Ω)

    Input sensitivity          LINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): -10 dBu (Volume: Maximum)

    Input Level     LINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu (Maximum Input)

    Input impedance         LINE 1 (COMBO): 20 kΩ, LINE 2 (RCA, ST Mini): 10 kΩ

    Controls          Front: Volume, Rear: ROOM CONTROL SWITCH (0/-2/-4 dB under 500 Hz), HIGH TRIM SWITCH (+2/0/-2 dB above 2 kHz)

    Indicators        Power ON (White LED)

    Power requirements    Depending on area of purchase; 100-240 V, 50/60 Hz (*)

    Power consumption    15 W

    Cabinet material         MDF

    Dimensions     W        L Side: 132 mm (5.2"), R Side: 132 mm (5.2")

                H         L Side: 223 mm (8.8"), R Side: 223 mm (8.8")

                D         L Side: 189 mm (7.4"), R Side: 177 mm (7.0")

    Net weight      L Side: 2.8 kg (6.2 lb), R Side: 2.1 kg (4.6 lb)

    Accessories     Stereo Mini - RCA Cable 1.5 m, Speaker Cable 2.5 m, Anti Slip Pad, Quick Start Guide, Safety Guide

    Packaging       Pair



    * While this product will work at a voltage of between 100 V to 240 V, as limiter settings vary depending on the supply voltage, make sure to use this product at the supply voltage indicated on the rear panel of this product.
