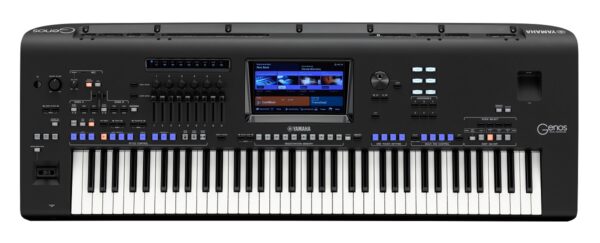

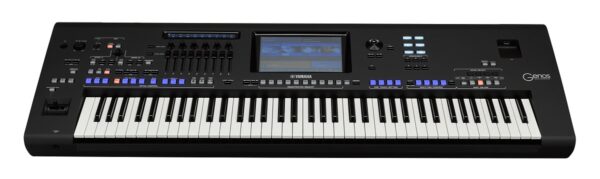

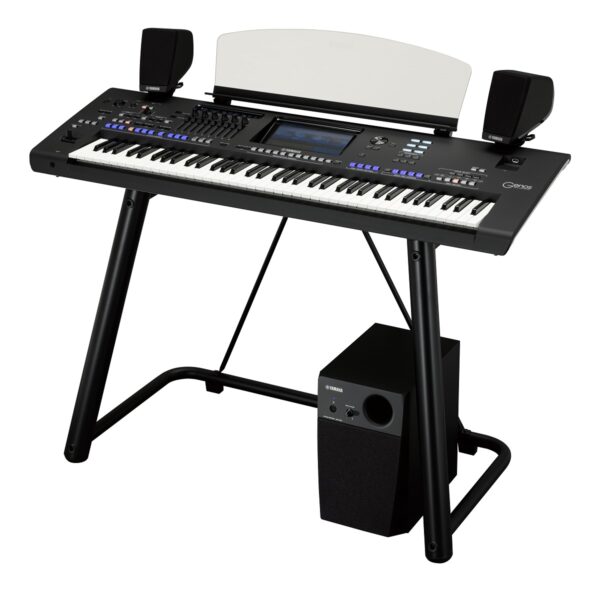

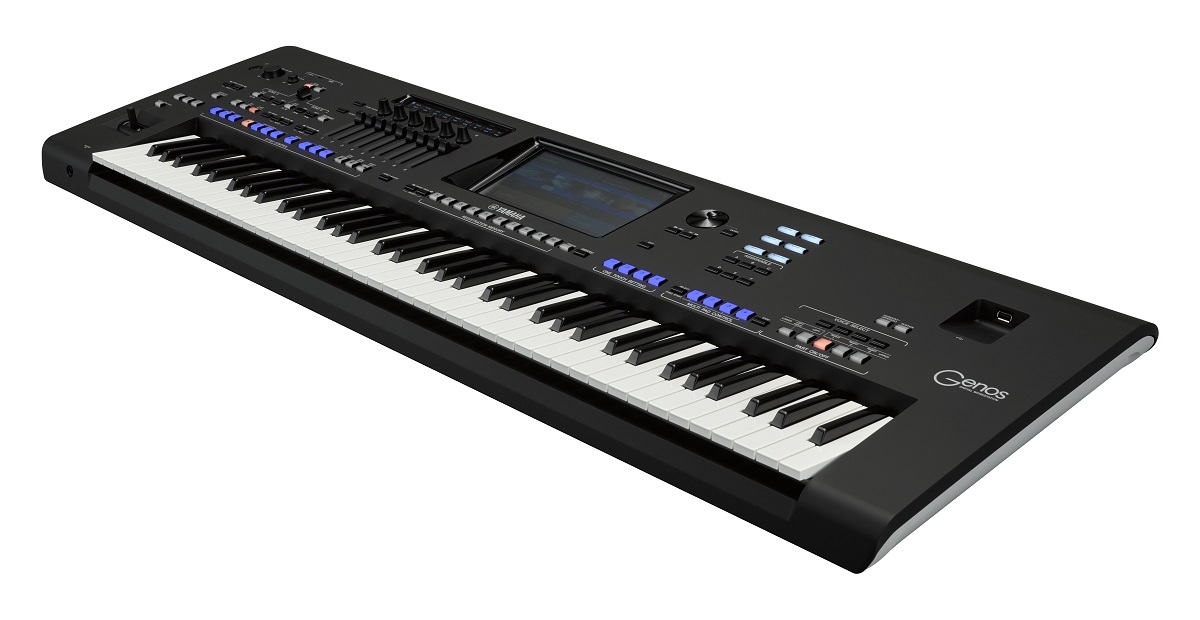

Yamaha Genos | Keyboard Workstation

Dimensions

Width

1234mm (48-9/16”)

Depth

456mm (17-15/16”)

Height

138 (5-7/16”)

Weight

13kg (28lbs 11oz)

Keyboard

Number of keys

76

Type

Yamaha FSX

Touch Response

Yes

Aftertouch

Yes

Touch Response Settings

Normal, Easy 1, Easy 2, Soft 1, Soft 2, Hard 1, Hard 2

Additional Controls

Pitch/Modulation Controls

Combined 2-Axis Joystick

Dials

6 Assignable Knobs

Silders

9 Assignable, Cross Fader

Articulation Switches

3 Switches

Displays

Main Display

9” LCD Touchscreen

Sub Display

OLED Live Control View

Sound Engine

Tone Generation Technologies

AWM Stereo Sampling + Articulation Element Modelling (AEM)

Polyphony

256 (max.)

Total Number of Voice Presets

1652

Number of Drum & Sound Effect Kits

58

Revo! Drum/SFX Kits Included

10

Ensemble Voices

76

Super Articulation! Voices

390

Super Articulation 2 Voices

75

MegaVoices

82

Sweet! Voices

40

Cool! Voices

81

Live! Voices

160

Organ Flute Presets

24

Dual & Split Voice Spaces

Right 1, Right 2, Right 3, Left

Dedicated Flash Memory For New Voice Wave Data

1.8GB (Approx)

Voice Functions

Harmony

Yes

Arpeggio

Yes

Panel Sustain

Yes

Mono/Poly Switch

Yes

Layer/Dual

Yes (Right 1, Right 2, Right 3)

Split

Yes (Left)

Song Display

Score

Yes

Lyrics

Yes

Song Playback Compatibility

XG

Yes

General MIDI (GM)

Yes

General MIDI 2 (GM2)

Yes

Song Playlist Length

2,500 Songs (Max.) Per Playlist File

DSP Effects Engine

Reverb Preset Settings

59

Reverb Custom Settings

3

Chorus Preset Settings

107

Chorus Custom Settings

3

Variation Preset Settings

358 (with VCM)

Variation Custom Settings

3

Number of Parts with Independent Insertion Effect Blocks

28

Insertion Effect Preset Settings

358

Insertion Effect User Settings

10

Master Compressor Preset Settings

5

Master Compressor Custom Settings

5

Master EQ Preset Settings

5

Master EQ Custom Settings

2

Number of Parts with Independent EQ Control

28

Vocal Harmony Preset Settings

54

Synth Vocoder Preset Settings

20

Vocal Harmony & Synth Vocoder Custom Settings (Total)

60

Microphone Effects

Noise Gate

Yes

Compressor

Yes

3-Band EQ

Yes

Vocal Effect Types

23

Backing Accompaniment Styles

Total Number of Styles

550

Number of Pro Styles

491

Number of  Session Styles

39

Number of Free Play Styles

10

Number of DJ Styles

10

Memory For Additional Styles

Yes (Using Available Internal Data Memory)

Style Fingering Modes Supported

Single Finger

Yes

Fingered

Yes

Fingered On Bass

Yes

Multi Finger

Yes

AI Fingered

Yes

Full Keyboard

Yes

AI Full Keyboard

Yes

Physical Style Controls

Intro Versions

3

Main Variations

4

Fill Versions

4

Break

1

Ending Versions

3

One Touch Settings

4 per Style

Style Functions

Style Creator

Yes

One Touch Setting Information

Yes

Style Compatibility

Style File (SFF)

Yes

Style File GE (SFF GE)

Yes

Multi Pads

Number of Pads

4

Number of Banks

Yes

Pad-To-Audio File Link Option

Yes

Multi Pad Creator Function

Yes

Registrations

Number of Buttons

10

Sequence Control

Yes

Freeze Control

Yes

MIDI Sequencing

Number of Tracks

16

Data Capacity

Maximum of 300KB per Song

Quick Recording Mode

Yes

Multi-Track Recording Mode

Yes

Step Recording Mode

Yes

Recording Format

Standard MIDI File Format (Format 0)

MIDI Playback Compatibility

Standard MIDI File  (SMF Format 0)

Yes

Standard MIDI File (SMF Format 1)

Yes

XF File

Yes

Audio Data Handling

Maximum Recording Time

80 Minutes per Song (0.8GB Approx)

Recording Format

WAV (44.1kHz, 16bit Stereo)

WAV Playback

Yes, (44.1kHz, 16bit Stereo)

MP3 Playback

Yes (44.1kHz, 64/96/128/256/320 kbps, Stereo)

Time Stretch Function

Yes

Pitch Shift Function

Yes

Vocal Cancellation Function

Yes

Storage & Memory

Internal Memory (For Songs, Styles etc)

58GB (Approx)

Dedicated Voice Data Flash Memory

1.8GB (Approx)

External Drives

Via USB

Connectivity

Headphones

Yes

Microphone

Yes (Combo XLR + Jack Input), Phantom Power Switch (+48V)

MIDI

2 Sets, A & B (IN & OUT)

Aux In

Left/L+R, Right

Line Out

Main Left/L+R & Right, Sub 1 & 2, Sub 3, 4 / Aux Out

Digital Out

Coax

Sustain Pedal Connection

Yes

Articulation Pedal Connection

Yes

Volume Pedal Connection

Yes

Assignable Pedal Connection

Yes

USB-To-Device

Yes (USB-A)

USB-To-Host

Yes (USB-B)

Wireless LAN Compatibility

Yes with Adapter
