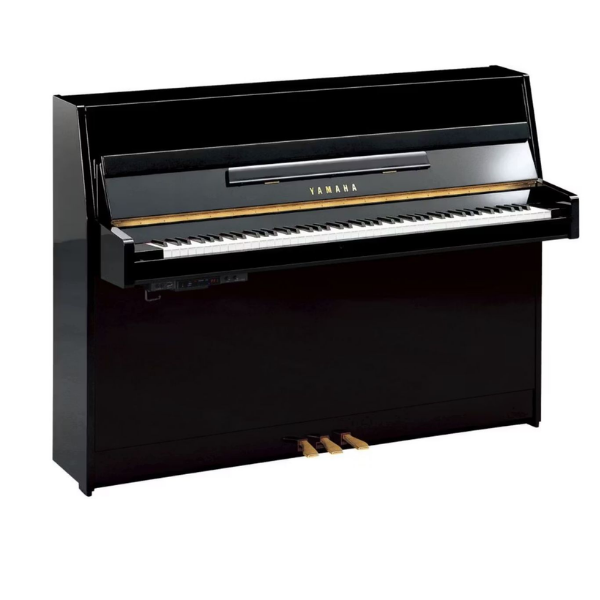

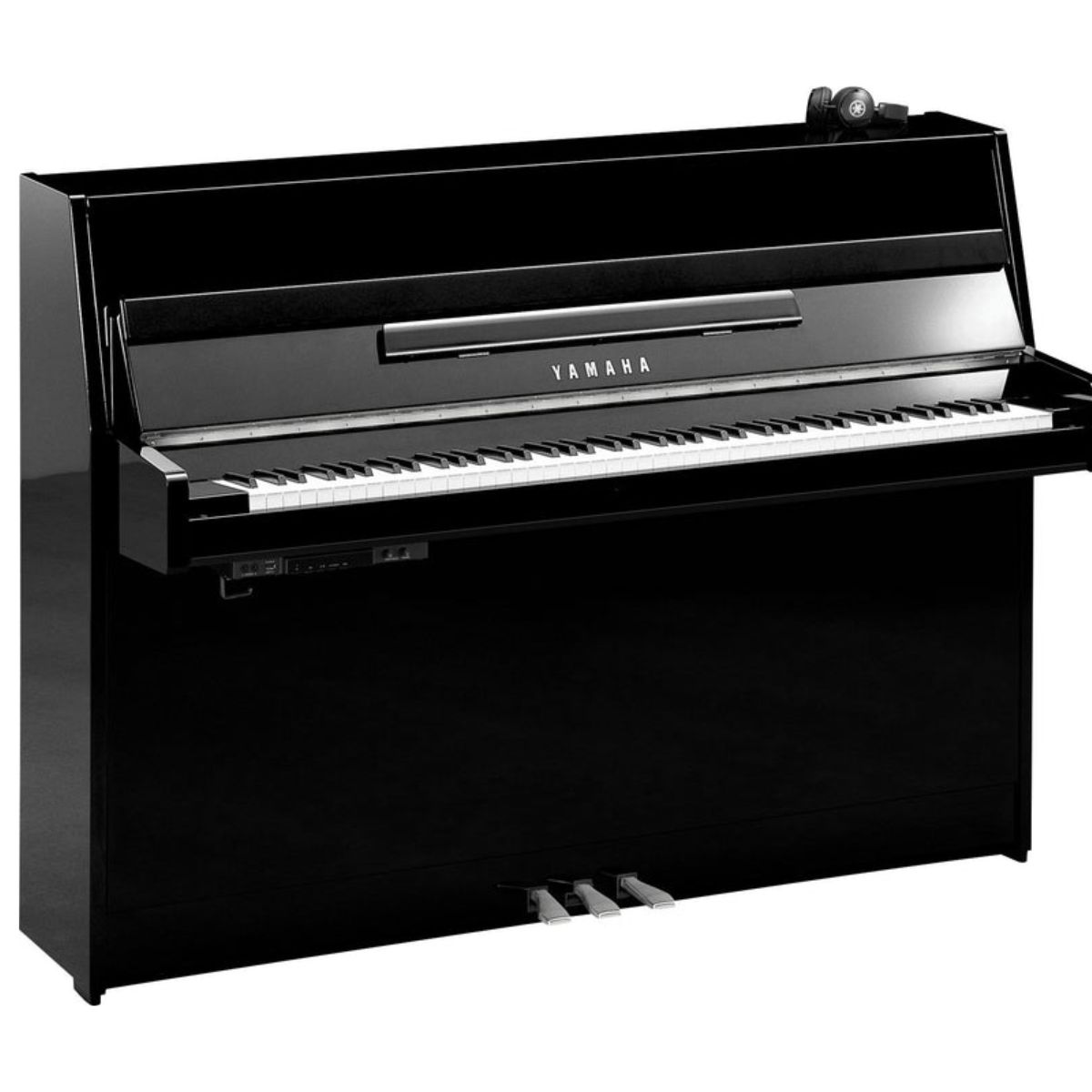

Yamaha B1 | Upright Silent Piano | Polished Ebony

Size/Weight

Dimensions

• Width 149 cm (58 3/4")
• Height 109 cm (43")
• Depth 54 cm (21 1/4")
• Weight 197 kg (444 lb)

Control Interface

• KeyboardKey Surfaces - White : Acrylic resin, Key Surfaces - Black : Phenolic rersin
• Hammer Type b Series Special
• Pedal Type Damper/Muffler/Soft

Sensor System

• Key Sensors - Non-contact continuous detection electromagnetic inductive sensor
• Damper Pedal - Continuous detection sensor
• Soft/Short Pedal - On/Off detection

Silencing System

• Mechanism - Hammer shank stopper operated by centre pedal

Voices

Tone Gernation

• Piano sound - Yamaha CFX Bösendorfer Imperial
• Binaural Sampling - Yes (CFX Grand Voice only)
• VRM - Yes
• Key-off Samples - Yes
• Smooth Release - Yes
• Polyphony (max.) 256
• Preset - Number of Voices - 12

Effects

• Reverb - Yes
• Brilliance - Yes
• Stereophonic Optimizer - Yes (Piano Voices other than CFX Grand and Bosendorfer)

Songs (MIDI)

• Number of Preset Songs - 12 Voice Demo Songs, 50 Classics
• Recording - Number of songs - 10
• Recording - Number of Tracks - 2
• Data Capacity - Approx. 550 KB

Format

• Playback - SMF (Format 0, Format 1)
• Recording - SMF (Format 0)

Recording/Playback (Audio)

• Recording Time (max.) : 80 Minutes/Song

Format

• Playback : WAV (44.1 kHz, 16 bit, stereo)
• Recording : WAV (44.1 kHz, 16 bit stereo)

Functions

Overall Controls

• Rhythm Patterns : 20
• Metronome : Yes
• Tempo Range : 5 - 500
• Transpose : - 12 - 0 - +12
• Tuning : 414.8 - 444.0 - 466.8Hz (approx 0.2 Hz increments)
• Control Interface - display : 7-Seg
• Bluetooth : Yes (Audio/MIDI) *May not have this functionality depending on your area. Check with your Yamaha dealer

Storage and Connectivity

Storage

• Internal Memory : approx. 1.3 MB
• External Drives : USB flash Drive

Connectivity

• Headphones : Stereo mini jack (x2)
• AUX IN : Stereo mini jack
• USB TO DEVICE : Yes
• USB TO HOST : Yes

Power Supply

• AC Adaptor : PA-300C (or an equivalent recommended by Yamaha)
• Power Consumption : 11 W (When using PA-300C AC adaptor)
• Auto Power Off : Yes

Accessories

Included Accessories

• AC adaptor*
• Power cord*
• Headphones
• Headphone hanger
• Attachment screws for headphone hanger
• Owner's Manual

* May not be included depending in your area.

Separately Sold Accessories

• USB wireless LAN adaptor (UD - WL01)
