Yamaha AG06 | Multi-Purpose Mixer For Gamers, Vloggers and Music Prod

I/O Phantom power + 48 V
Input Channels Mono[MIC/LINE] 2 including HEADSET MIC (Plug-in Power)
Stereo[LINE] 2
AUX 1
Output Channels STEREO OUT 1
MONITOR OUT 1
PHONES 2 including HEADSET PHONES
Bus Stereo: 1
Input Channel Function PAD 26 dB
PEAK LED LED turns on when the signal reaches 3 dB below clipping level
On-board processors DSP CH1: COMP / EQ, EFFECT (SPX Reverb) ; CH2: AMP SIM, EFFECT (SPX Reverb)
Level Meter USB Output Level; 2 x 2 point LED meter [PEAK, SIG]

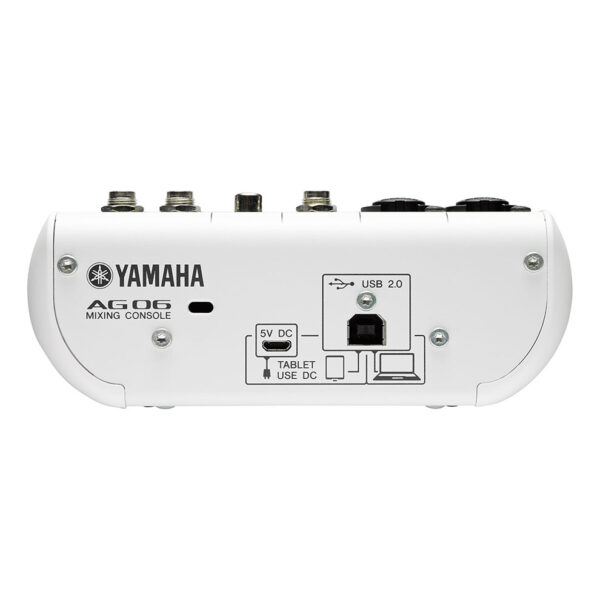

USB USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
General specifications
Power requirements DC 5 V, 500 mA
Power consumption Max. 2.5 W
Dimensions W 155 mm (6.1")
H 63 mm (2.5")
D 202 mm (8.0")
Net weight 1.0 kg (2.2 lbs)
Options Foot Switch: FC5, Mic Stand Adaptor: BMS-10A
Others Foot Switch: EFFECT Mute on / off, Operating Temperature: 0 to + 40 °C
