Way Huge Atreides Weirding Module

WAY HUGE ATREIDES WEIRDING MODULE
THE SLEEPER HAS AWAKENED!
The Way Huge Atreides Analog Weirding Module offers a kaleidoscope

of organic synth-like tones.

Inspired by a vintage 1980 mini synthesizer, this consciousness

-awakening device produces a monophonic effect with many

layers that can be manipulated as needed through dynamic playing technique

and adjustment of each of its several sliders.

Kicking the footswitch generates

an explosion of growly sub-octave, expressive vocal envelope, swooshing

phase, and gnarly fuzz sounds. Ascend the high dune, and gaze upon an

expanding world of musical delights full of pure imagination.

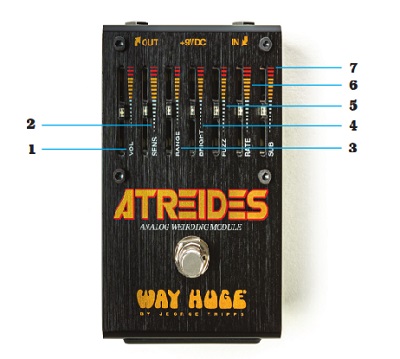

External Controls
1 VOL slider sets overall output level
2  SENS slider sets envelope filter sensitivity
3  RANGE slider adjusts envelope filter range
4   BRIGHT slider sets overall EQ
5 FUZZ slider sets fuzz signal level
6  RATE slider sets speed of phase signal
7   SUB slider adjusts blend of sub octave signal
POWER

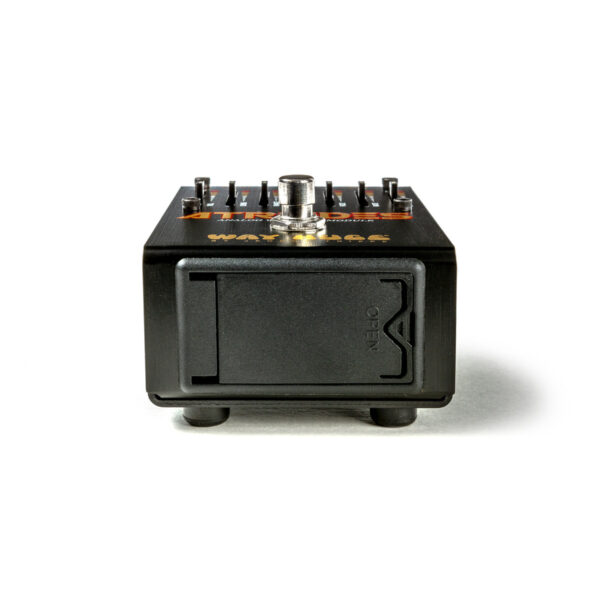

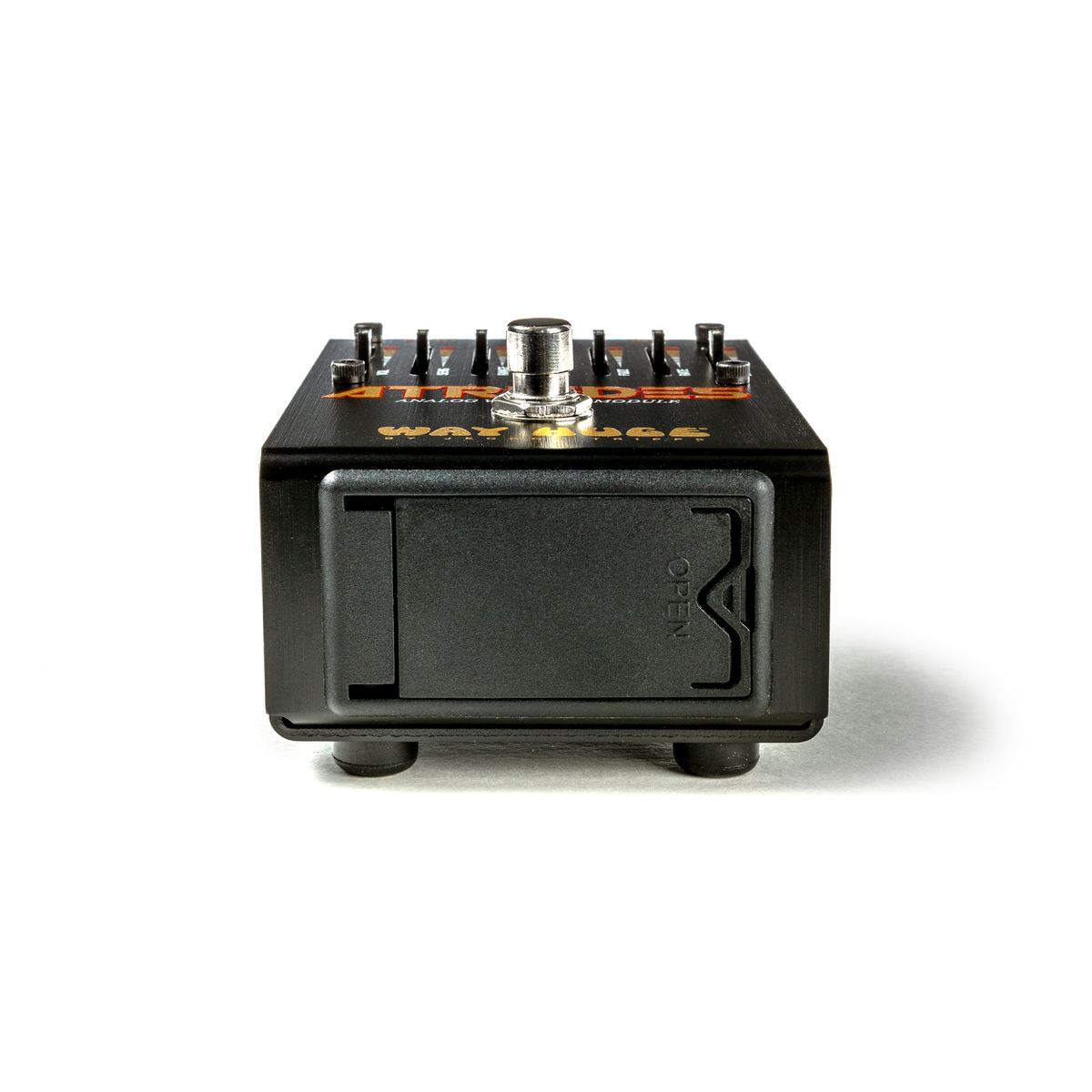

The Way Huge Atreides Weirding Module is powered by a
single 9-volt battery, a 9-volt AC adapter such as the Dunlop
ECB003, or the DC Brick

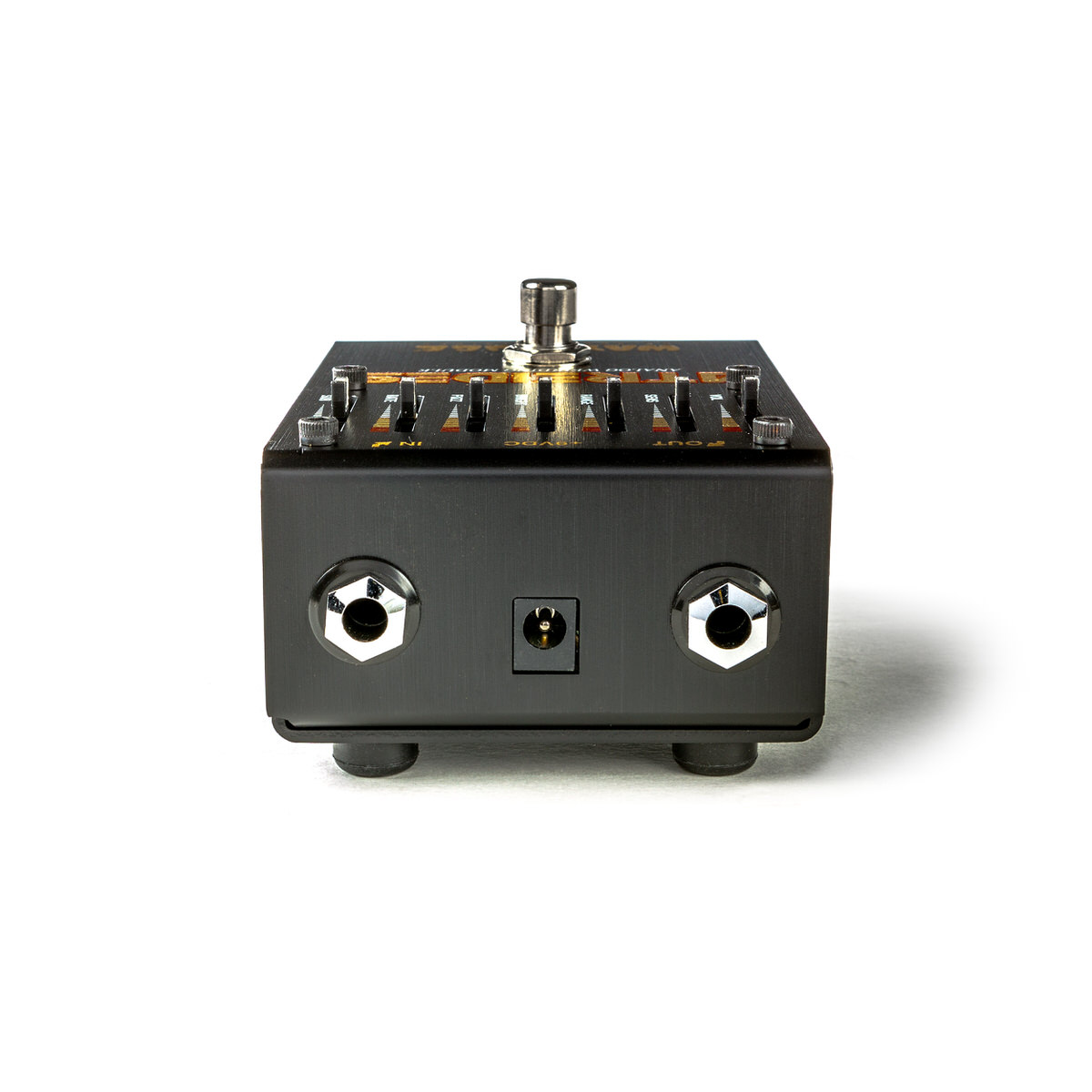

The power input is a 5.5mm x 2.1mm jack
with the positive voltage on the outer sleeve. Using an external
power supply will disconnect the battery. Disconnect the input
jack to preserve battery life when not in use. The pedal will
lock into bypass mode when it is time to change the battery.
It also includes power protection circuitry to prevent damage
from AC power supplies.

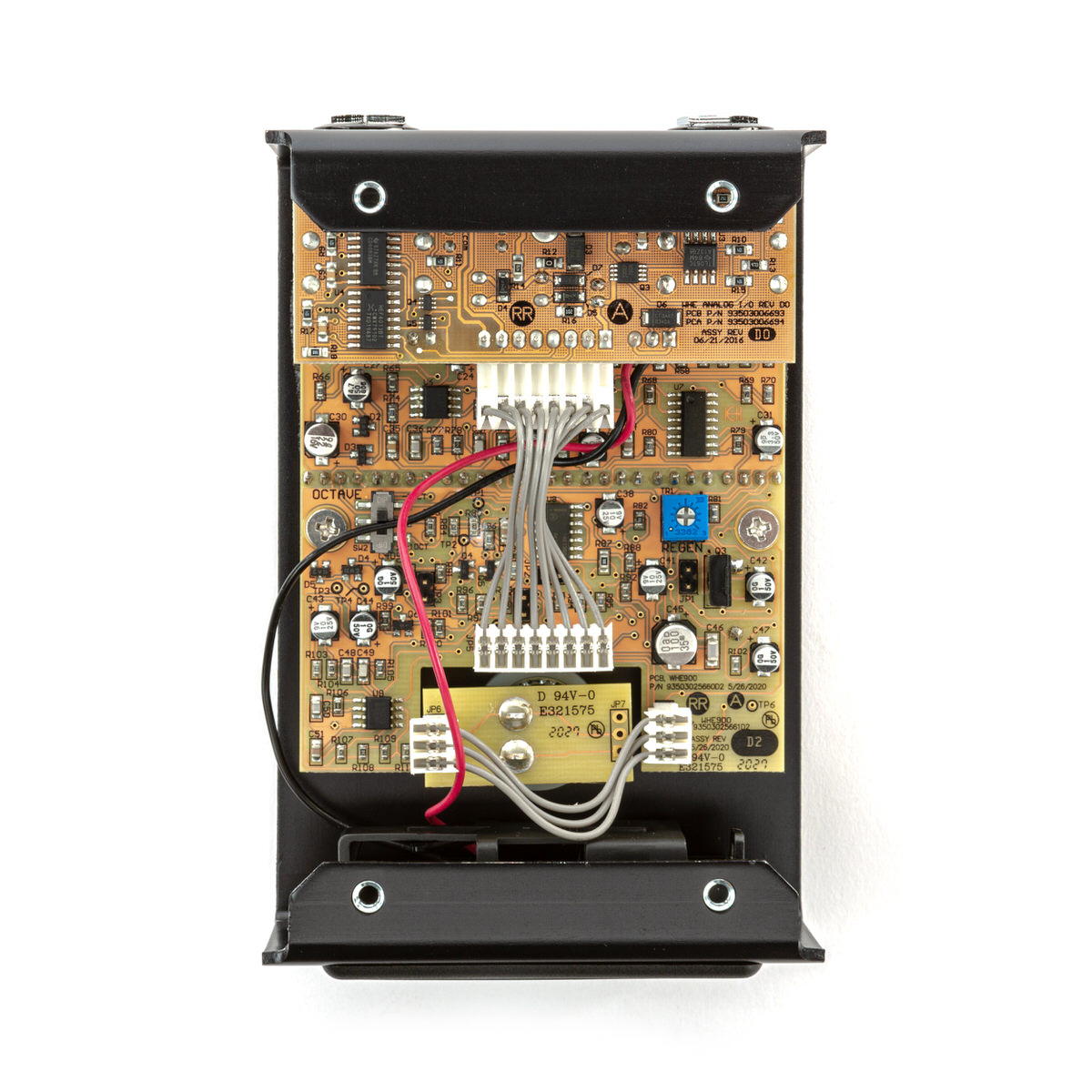

Internal Controls
1
1 SLIDE SWITCH toggles sub octave signal between 1 octave down (left) or 2 octaves down (right)
2  TRIM POT adjusts phaser feedback
