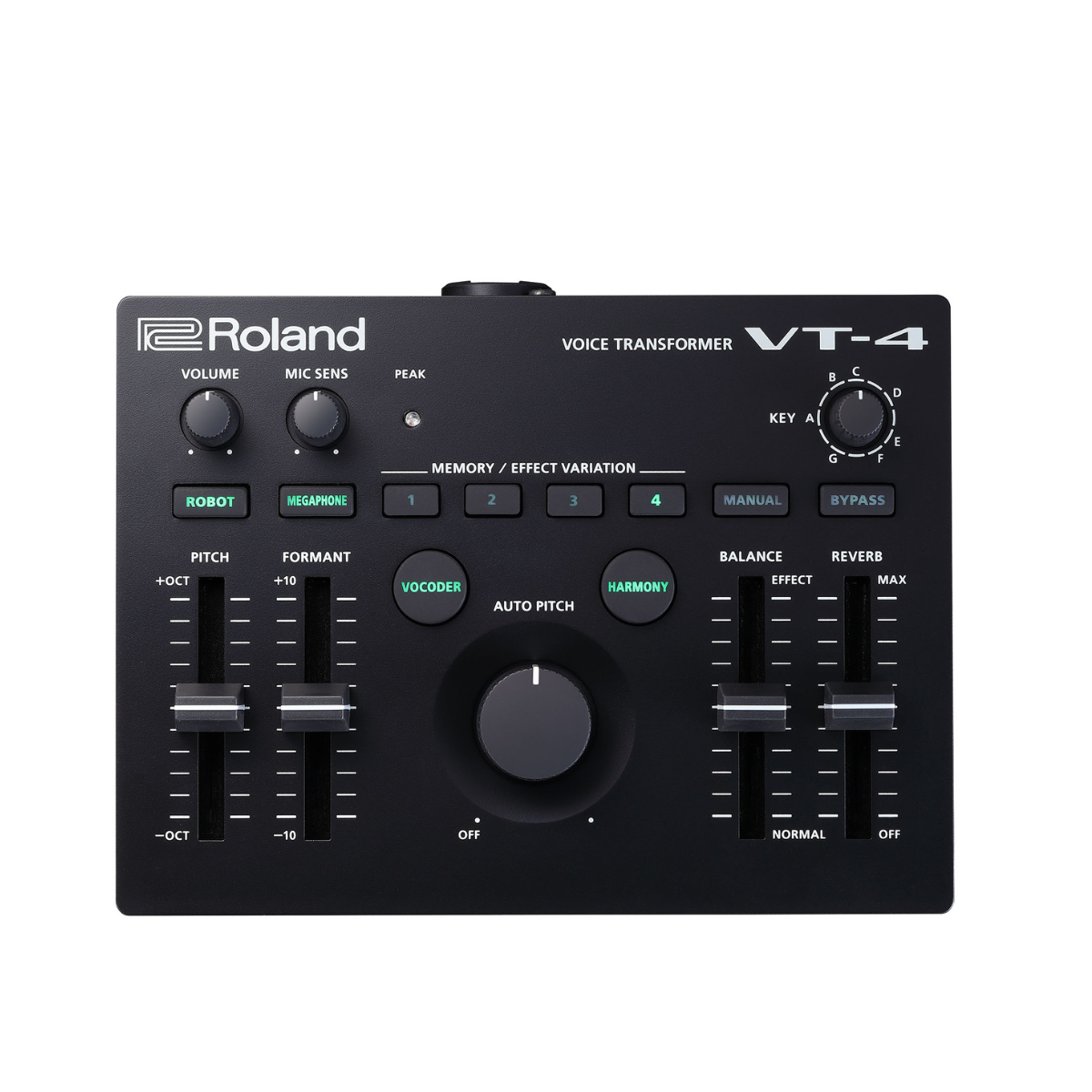

Roland VT-4: Voice Transformer



– Nominal Input Level

MIC IN: -40 to -12 dBu (variable)



– Input Impedance

MIC IN (Rear): 4.4 k ohms

MIC IN (Front): 2.2 k ohms



– Nominal Output Level

LINE OUT: -10 dBu



– Output Impedance

LINE OUT: 1 k ohm

PHONES: 24 ohms



– Memory

Scene memory: 8



– Effect Type

ROBOT

[1] NORMAL

[2] OCTAVE-1

[3] OCTAVE+1

[4] FEEDBACK



MEGAPHONE

[1] MEGAPHONE

[2] RADIO

[3] BBD CHORUS

[4] STROBO



VOCODER

[1] ADVANCED

[2] VP

[3] TALK BOX

[4] SPELL TOY



HARMONY

[1] +5

[2] +3

[3] +3, -4

[4] +3, +5



REVERB

[1] REVERB

[2] ECHO

[3] TEMPO DELAY

[4] DUB ECHO



– Connectors

MIC IN jack (rear): Combo type (XLR, 1/4-inch TRS phone), balanced (phantom power: +48 V, 10 mA Max.)

MIC IN jack (front): Stereo miniature phone type (plug-in power)

PHONES jack: Stereo miniature phone type

LINE OUT jacks (L/MONO, R/BYPASS): 1/4-inch phone type

USB port: USB type B

MIDI IN jack



– USB

Audio



Signal Processing

PC interface: 24 bits

AD/DA conversion: 24 bits



Sampling Frequency

AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz



MIDI



– Power Supply

Rechargeable Ni-MH battery (AA, HR6) x 4

Alkaline battery (AA, LR6) x 4

Obtained via USB port (USB bus power)



– Current Draw

500 mA



– Expected battery life under continuous use:

Alkaline battery (phantom power: Off): Approx. 6 hours

Alkaline battery (phantom power: On): Approx. 4 hours

Rechargeable Ni-MH battery (phantom power: Off): Approx. 7 hours

Rechargeable Ni-MH battery (phantom power: On): Approx. 5.5 hours



* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.



– Dimensions

174 (W) x 133 (D) x 58 (H) mm

6-7/8 (W) x 5-1/4 (D) x 2-5/16 (H) inches



-Weight (including batteries)

554 g

1 lb 4 oz



– Accessories

Owner's Manual

Leaflet "USING THE UNIT SAFELY"

Alkaline battery (AA, LR6) x 4



* 0 dBu = 0.775 Vrms
