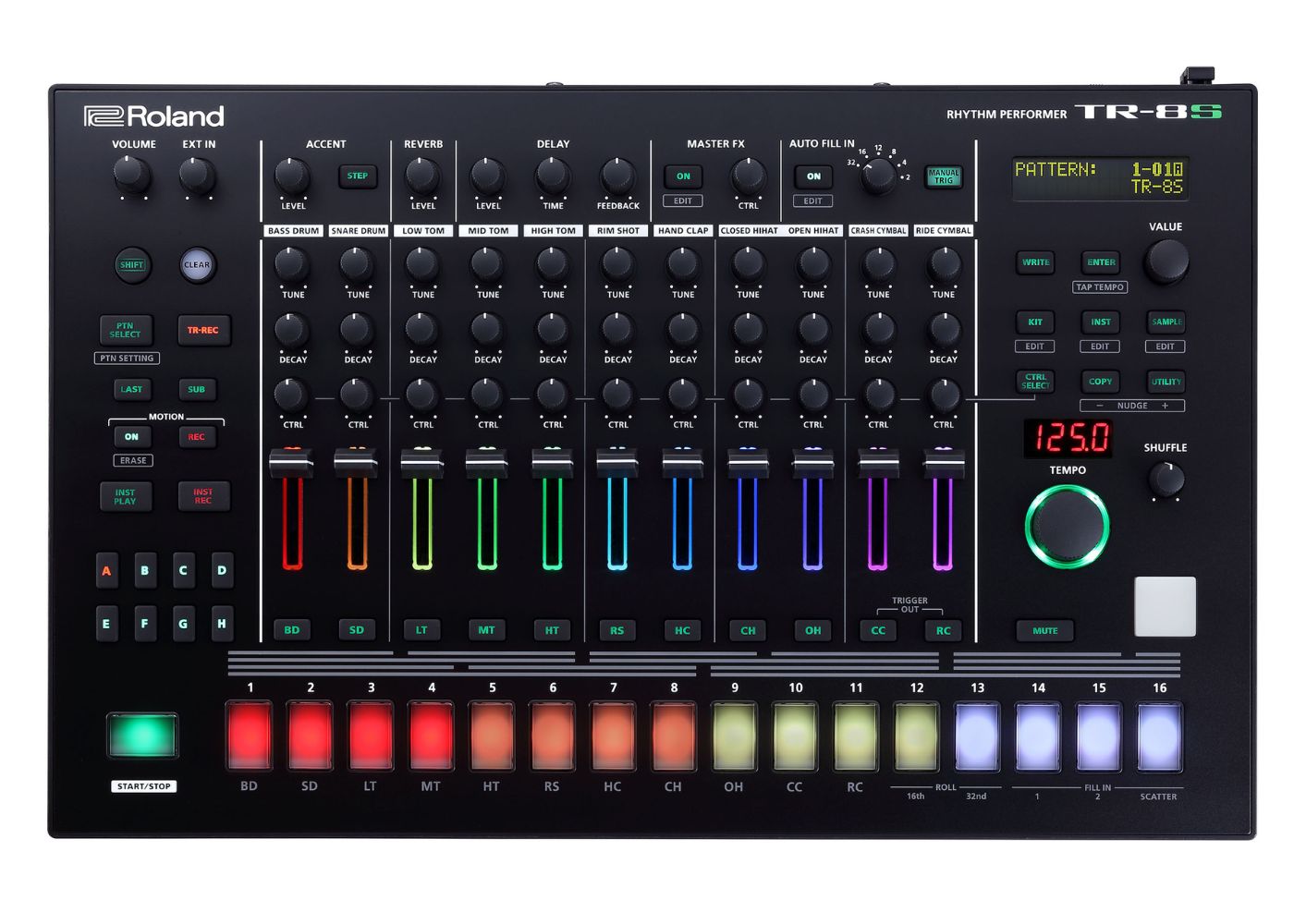

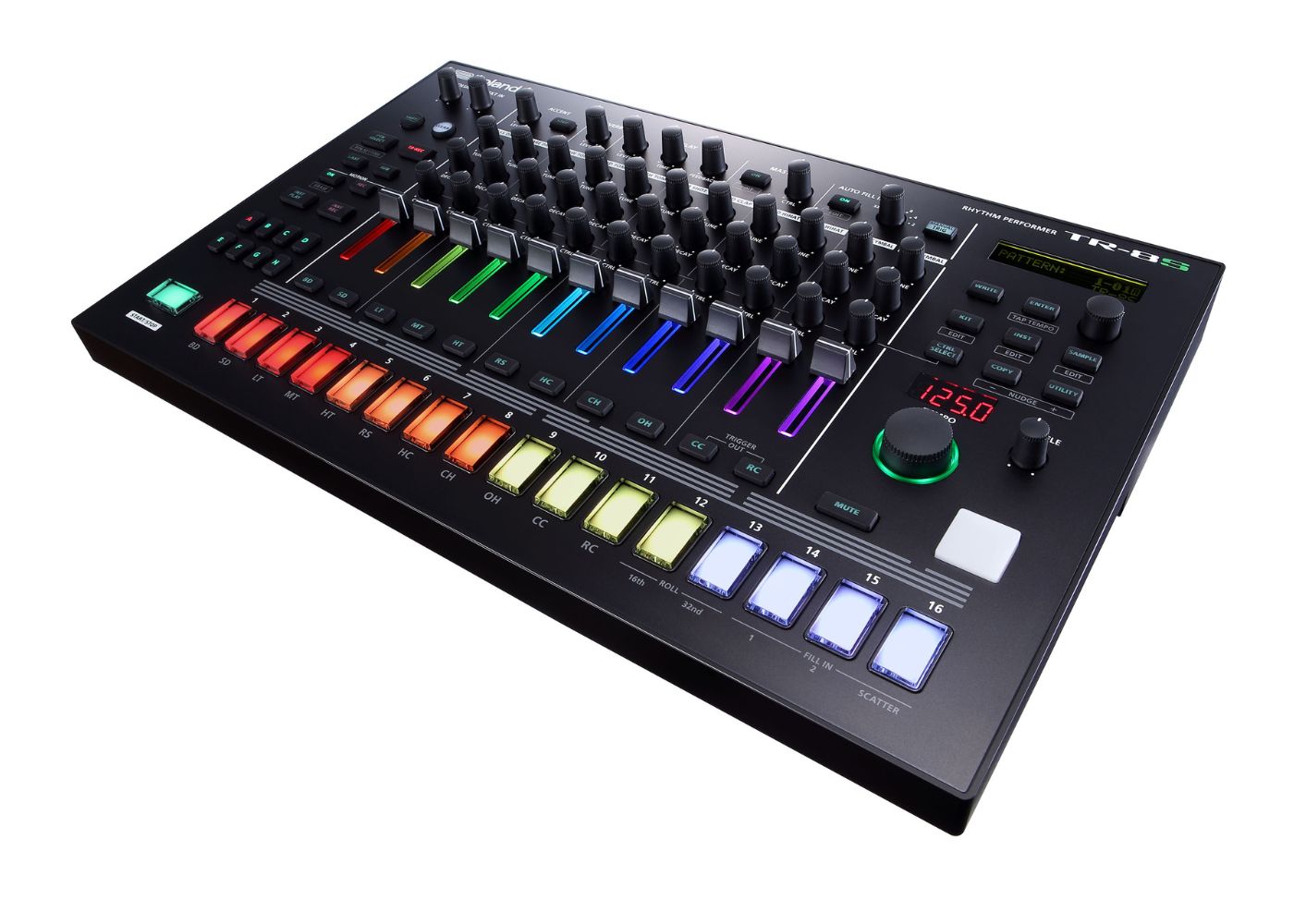

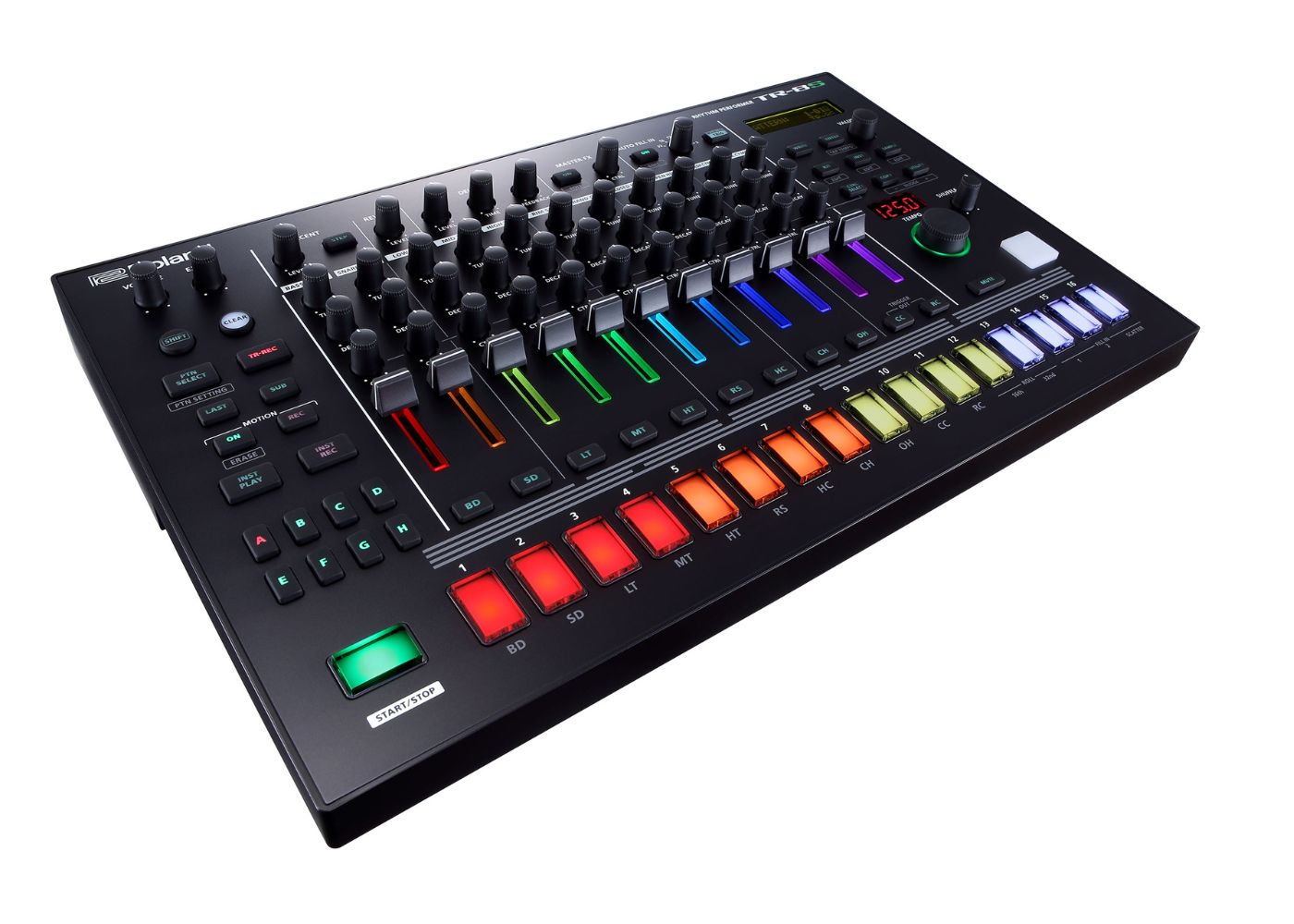

Roland TR-8S | Rhythm Performer Drum machine

User Drum Kit

128

User Patterns

128

Step Sequencer

11 instrument parts and 1 exclusive part for trigger out
16 steps per 1 variation
8 (A – H) variations per 1 pattern
2 Fill-in patterns per 1 pattern

INST tone

(Tone can be assigned to each 11 instrument parts freely.)
BASS DRUM: 11 ACB tones
SNARE DRUM: 8 ACB tones
TOM: 15 ACB tones
RIM SHOT: 3 ACB tones
HAND CLAP: 5 ACB tones
HI HAT: 8 ACB tones
CYMBAL: 8 ACB tones
PERCUSSION: 23 ACB tones
FM: 72 tones
PRESET SAMPLE: 300 tones or greater
USER SAMPLE (imported form SD CARD for playback): Available format: WAV, AIFF
Total time for all samples: Approximately 600 sec (at 44.1 kHz, mono)
* The maximum length of a single audio file that can be imported is approximately 180 seconds (at 44.1 kHz).

Effects

INST FX: THRU, HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR, TRANSIENT, COMPRESSOR, DRIVE, COMP+DRV, CRUSHER
REVERB: AMBI, ROOM, HALL1, HALL2, PLATE, MOD, HA-DOU
DELAY: DLY, PAN, TAPE ECHO, PITCH SHIFT
MASTER FX: HPF, LPF, LPF/HPF, H BOOST, L BOOST, L/H BOOST, ISOLATOR, TRANSIENT, TRANSIENT2, COMPRESSOR, DRIVE, OVERDRIVE, DISTORTION, FUZZ, CRUSHER, PHASER, FLANGER, SBF, NOISE, FATTENER, VINYL SIM
Other: SIDE CHAIN (for EXT IN), SCATTER (as one of AUTO FILL IN function)

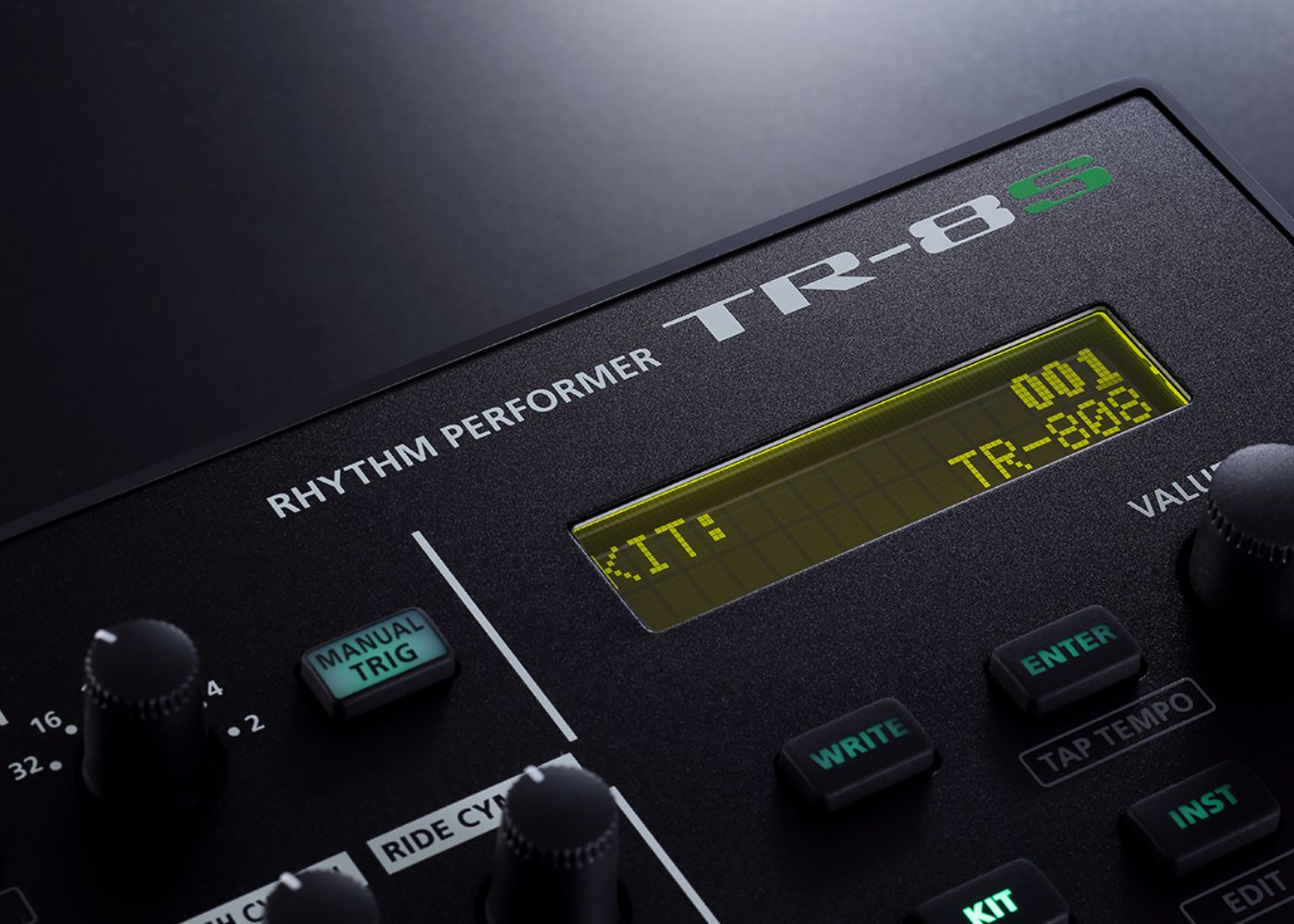

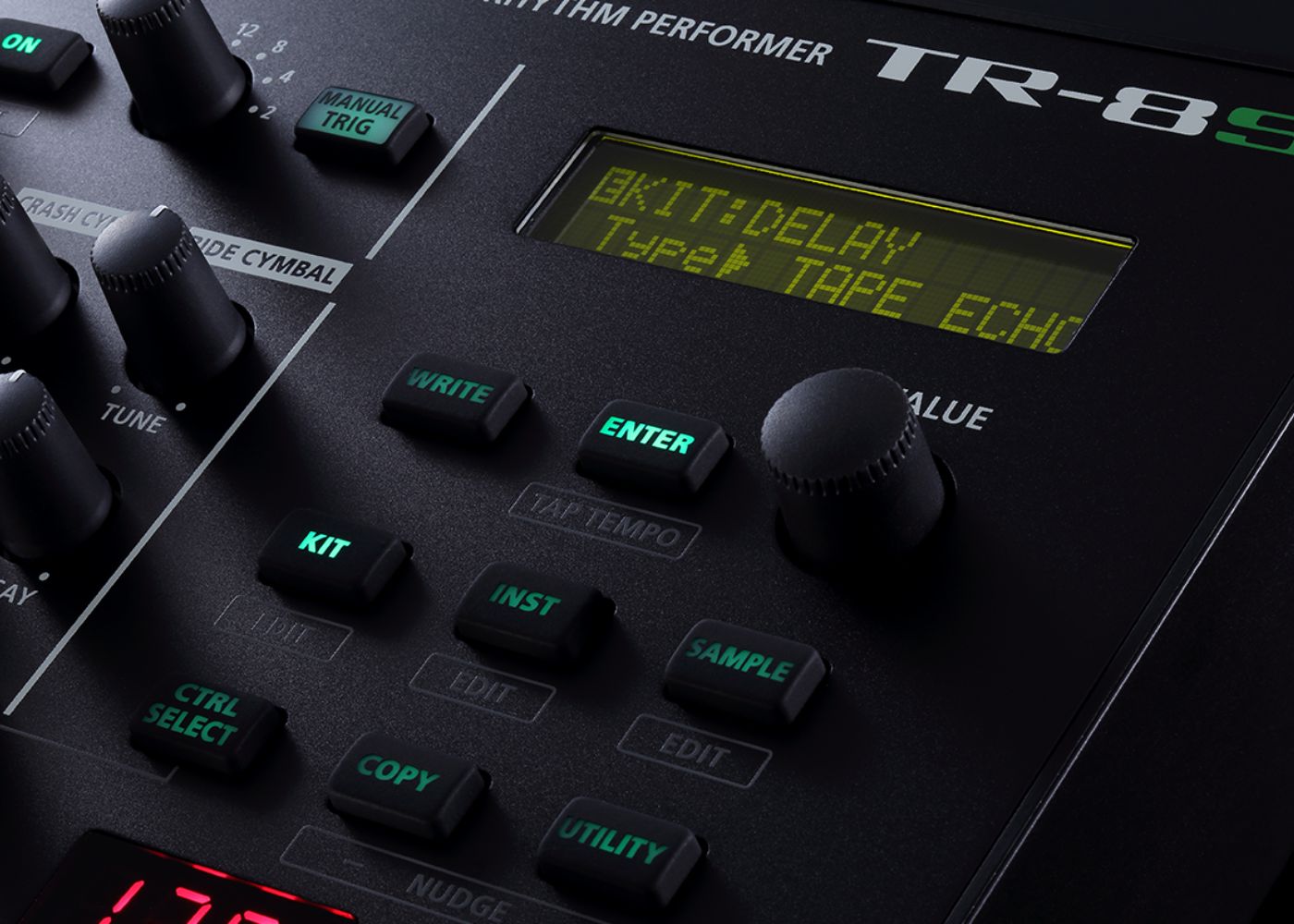

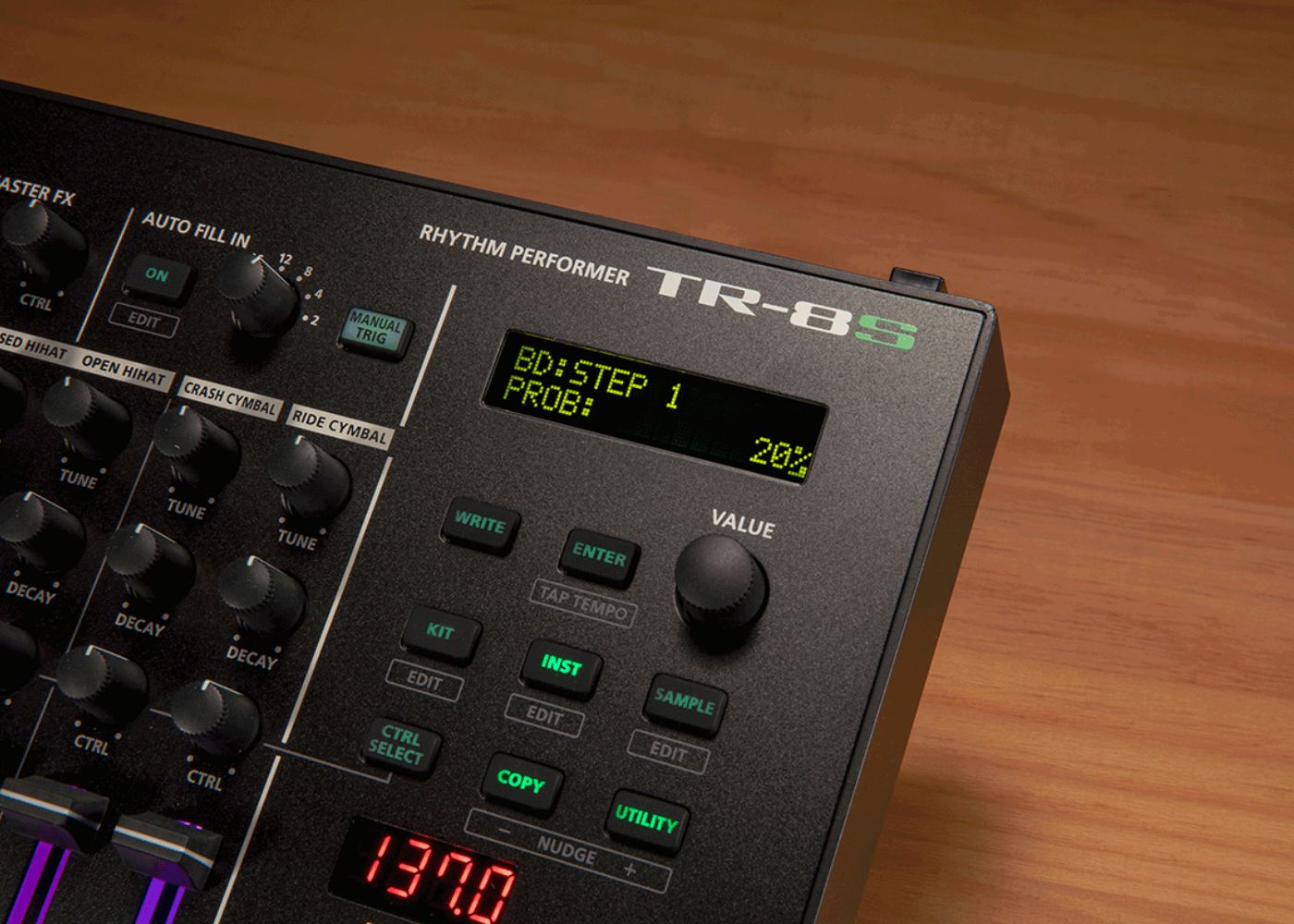

Display

16 characters, 2 line (backlit LCD)
7 segments, 4 characters (LED)

External Storage

SD Card (SDHC supported) for backup/restore function and import sample data

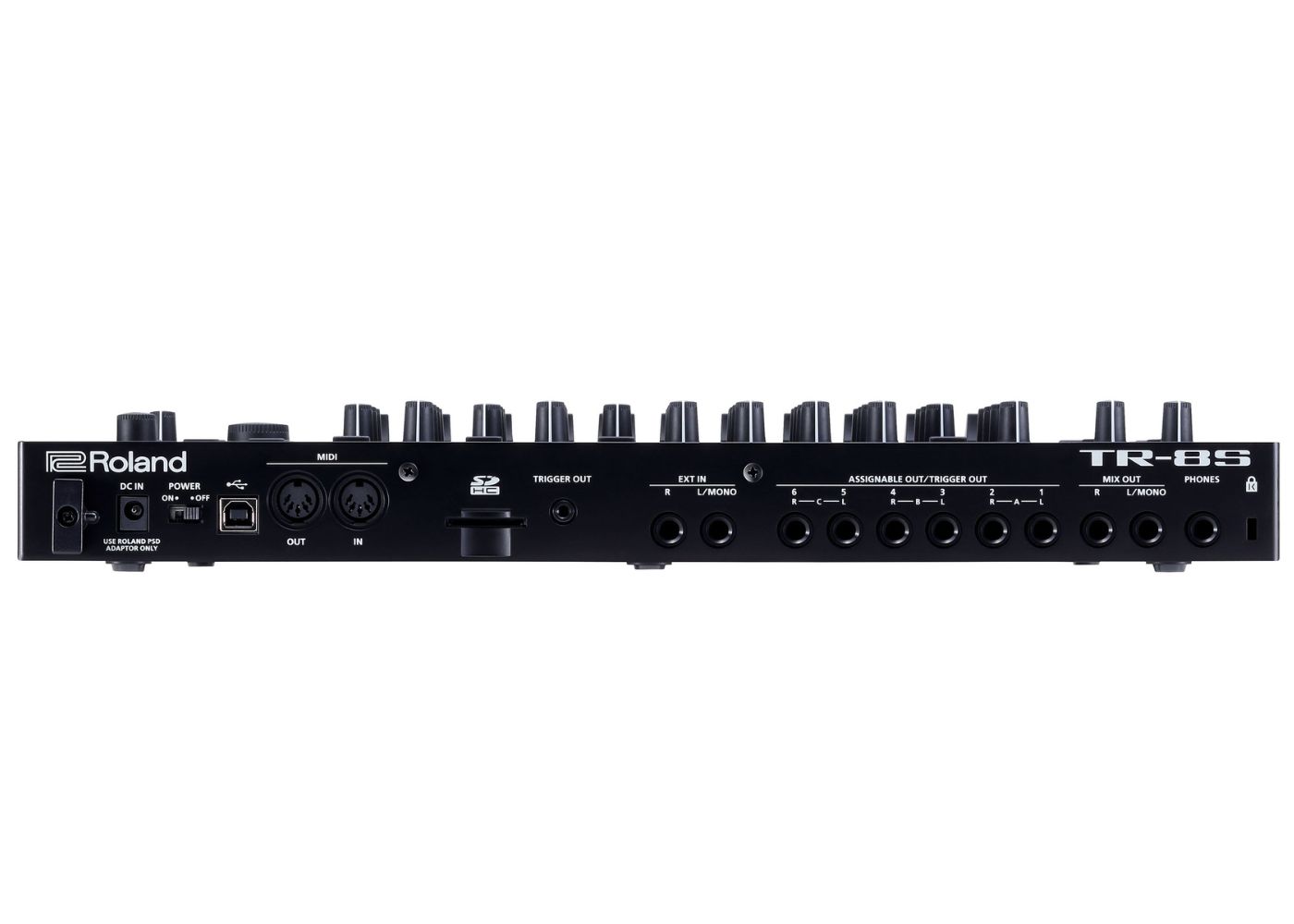

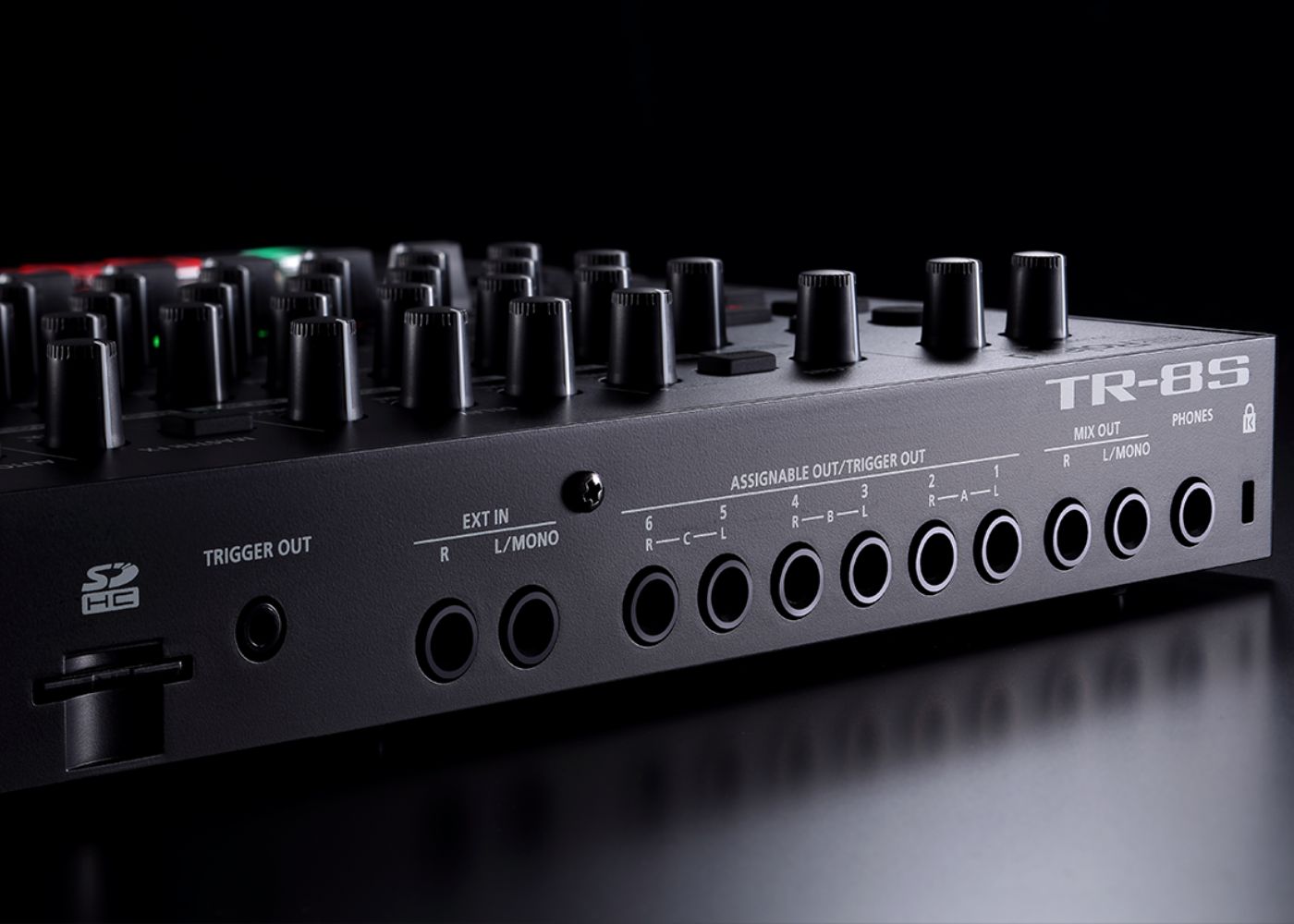

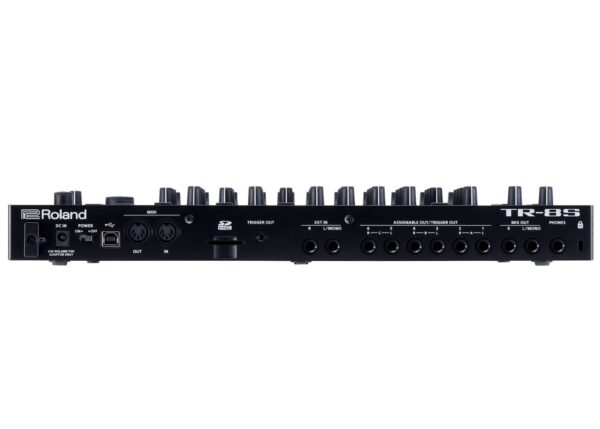

Connectors

PHONES jack: Stereo 1/4-inch phone type
MIX OUT (L/MONO, R) jacks: 1/4-inch TRS phone type

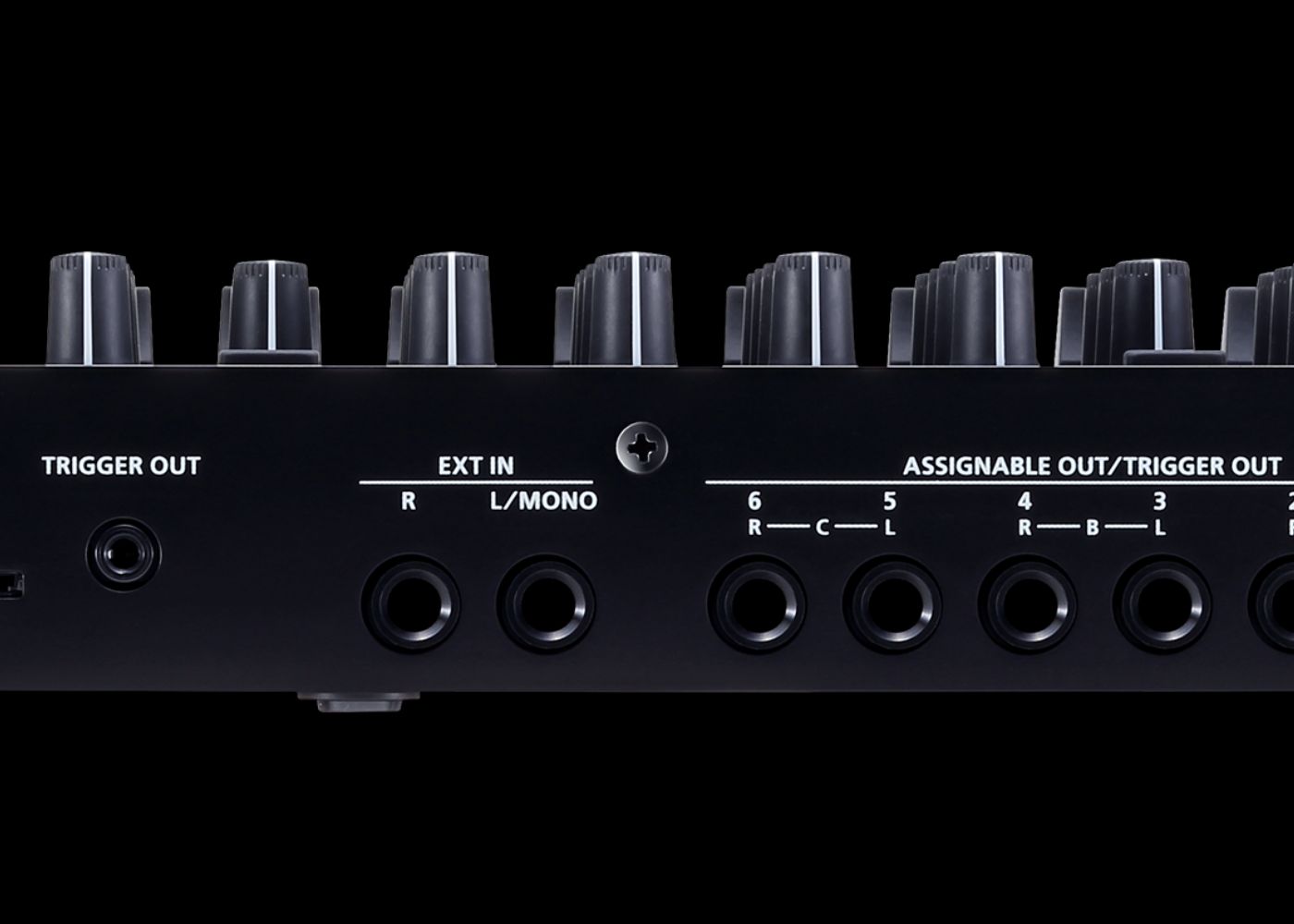

ASSIGNABLE OUT/TRIGGER OUT (1 – 6) jacks: 1/4-inch phone type
EXT IN (L/MONO, R) jacks: 1/4-inch phone type
TRIGGER OUT jack: Miniature phone type
MIDI (IN, OUT) connectors

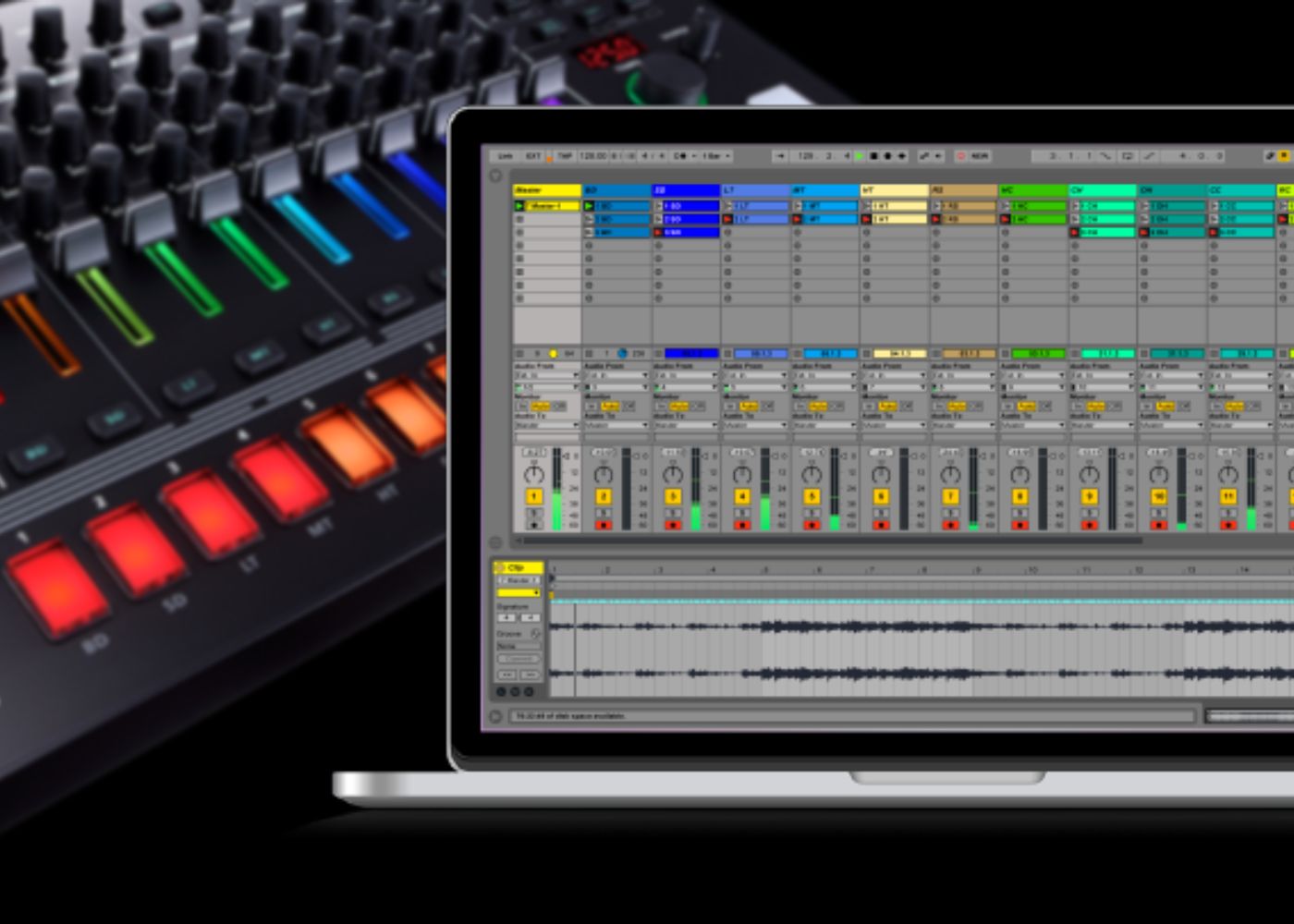

USB port: USB type B (Audio, MIDI)
DC IN jack

Power Supply

AC adaptor

Current Draw

2,000 mA

Accessories

AC adaptor
Owner's manual
Leaflet “USING THE UNIT SAFELY”

SIZE AND WEIGHT

Width

409 mm
16-1/8 inches

Depth

263 mm
10-3/8 inches

Height

58 mm
2-5/16 inches

Weight

2.1 kg
4 lbs. 11 oz.
