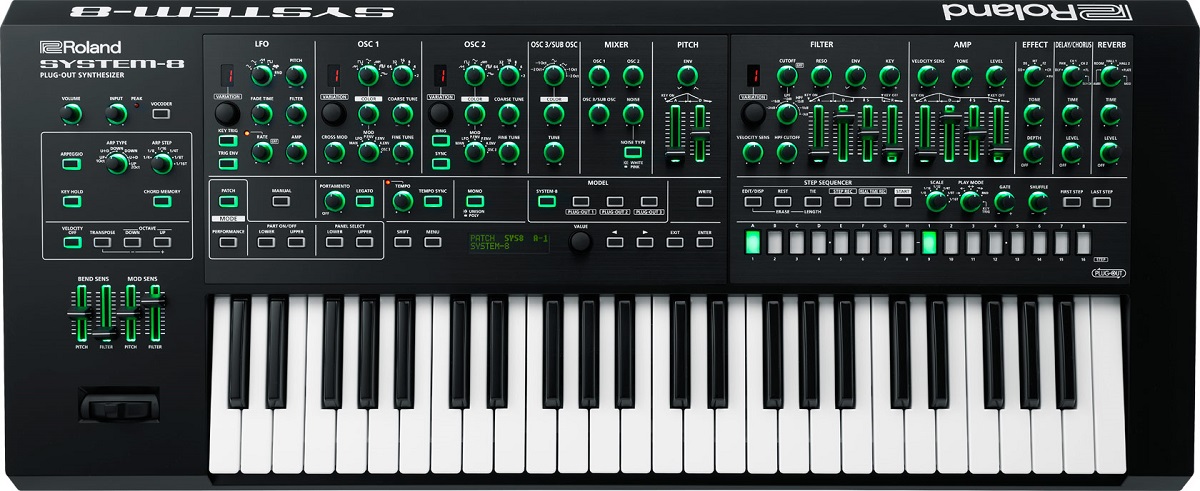

Roland System 8 Plug Out Synth

Keyboard49 keys (with velocity)SOUND GENERATOR SECTIONModelsSYSTEM-8, PLUG-OUT1, PLUG-OUT2, PLUG-OUT3Maximum Polyphony8 voices (MODEL: SYSTEM-8)
(MODEL: PLUG-OUT1, 2 and 3 are depend on PLUG-OUT software)User MemoryPatch: 64 (8 memories x 8 banks, per one model)
Performance: 64 (8 memories x 8 banks)Structure ElementsMODEL: SYSTEM-8 is as follows
(MODEL: PLUG-OUT 1, 2 and 3 are depend on PLUG-OUT software)LFO SectionVariation: 1 (Single LFO), 2 (Dual LFO), 3 (Resonanced Pulse LFO)
Waveform:
VARIATION 1: SINE, TRIANGLE, SAW, SQUARE, Sample&Hold, Random
VARIATION 2: 6 types
VARIATION 3: 6 types
Knobs: FADE TIME, RATE, PITCH, FILTER, AMP
Controllers: KEY TRIGGER, TRIGGER ENVELOPEOscillator 1 SectionVariation: 1, 2
Waveform:
VARIATION 1: SAW, SQUARE, TRIANGLE, SAW2, SQUARE2, TRIANGLE2
VARIATION 2: 6 types
Knobs: COLOR, MODULATION Source (MANUAL, LFO, P.ENV, F.ENV, A.ENV, OSC 3), OCTAVE (64, 32, 16, 8, 4, 2), COARSE TUNE, FINE TUNE
Modulation: CROSS ModulatorOscillator 2 SectionVariation: 1, 2
Waveform:
VARIATION 1: SAW, SQUARE, TRIANGLE, SAW2, SQUARE2, TRIANGLE2
VARIATION 2: 6 types
Knobs: COLOR, MODULATION Source (MANUAL, LFO, P.ENV, F.ENV, A.ENV, OSC 3), OCTAVE (64, 32, 16, 8, 4, 2), COARSE TUNE, FINE TUNE
Modulation: RING Modulator, Oscillator SYNCOscillator 3/Sub Oscillator SectionVariation: 1, 2
Waveform: SINE (-2 octave), SINE (-1 octave), SINE, TRIANGLE､TRIANGLE (-1 octave)､TRIANGLE (-2 octave)
Knobs: COLOR, TUNEMixer SectionLevel: OSC 1, OSC 2, OSC 3/SUB OSC, NOISE
Noise: WHITE Noise/PINK NoisePitch SectionKnob: ENVELOPE Depth
Envelope: ATTACK Time, DECAY TimeFilter SectionVariation: 1, 2
Filter Type:
VARIATION 1: LPF (-24 dB), LPF (-18 dB), LPF (-12 dB), HPF (-12 dB), HPF (-18 dB), HPF (-24 dB)
VARIATION 2: 6 types
Knobs: CUTOFF, RESONANCE, VELOCITY SENS, ENVELOPE Depth, KEY Follow, HPF CUTOFF
Envelope: ATTACK Time, DECAY Time, SUSTAIN LEVEL, RELEASE TimeAmplifier SectionKnobs: VELOCITY SENS, TONE, LEVEL
Envelope: ATTACK Time, DECAY Time, SUSTAIN LEVEL, RELEASE TimeEffect SectionType: OVER DRIVE, DISTORTION, METAL, FUZZ, CRUSHER, PHASER
Knobs: TONE, DEPTHDelay/Chorus SectionType: DELAY, PANNING DELAY, CHORUS 1, CHORUS 2, FLANGER, DELAY + CHORUS
Knobs: TIME, LEVELReverb SectionType: AMBIENCE, ROOM, HALL 1, HALL 2, PLATE, MODULATION
Knobs: TIME, LEVELOther SectionKnobs: PORTAMENTO, TEMPO
Controller: LEGATO, TEMPO SYNC
Key Mode: MONO/UNISON/POLYStep SequencerTrack
1 per Patch (step pattern is saved as a patch)Step1 - 64 stepsRecording MethodStep recording, Realtime recordingControllersSCALE, PLAY MODE, GATE, SHUFFLE, FIRST STEP, LAST STEPOTHER VOLUME, INPUT volume, ARPEGGIO, CHORD MEMORY, VOCODER, KEYHOLD, VELOCITY OFF, TRANSPOSE, OCTAVECONTROLLERS Pitch bend and modulation lever, BEND SENS PITCH, BEND SENS FILTER, MOD SENS PITCH, MOD SENS FILTERDISPLAY 16 characters 2 line LCDEXTERNAL STORAGE SD Card (SDHC supported) for backup/restore functionCONNECTORS PHONES jack: Stereo 1/4-inch phone type
OUTPUT (L/MONO, R) jacks: 1/4-inch TRS phone type
INPUT (L/MONO, R) jacks: 1/4-inch phone type
CV/GATE OUTPUT jacks: Miniature phone type
(CV: This jack supports OCT/V (Hz/V is not supported). GATE: This jack outputs +10 V.)
TRIGGER IN jack: Miniature phone type
PEDAL (HOLD, CONTROL) jacks: 1/4-inch phone type
MIDI (IN, OUT) connectors
USB port: USB type B (Audio/MIDI)
DC IN jackPOWER SUPPLY AC AdaptorCURRENT DRAW 2 AACCESSORIES Owner's manual
AC adaptor
Power cordOPTIONS (SOLD SEPARATELY) Keyboard Stand (*1): KS-18Z
Pedal switch: DP Series
Expression pedal: EV-5
*1 When using the KS-18Z ensure that the height of the unit is one meter or lower.SIZE AND WEIGHTWidth881 mm
34-11/16 inchesDepth364 mm
14-3/8 inchesHeight109 mm
4-5/16 inchesWeight5.9 kg
13 lbs 1 oz
