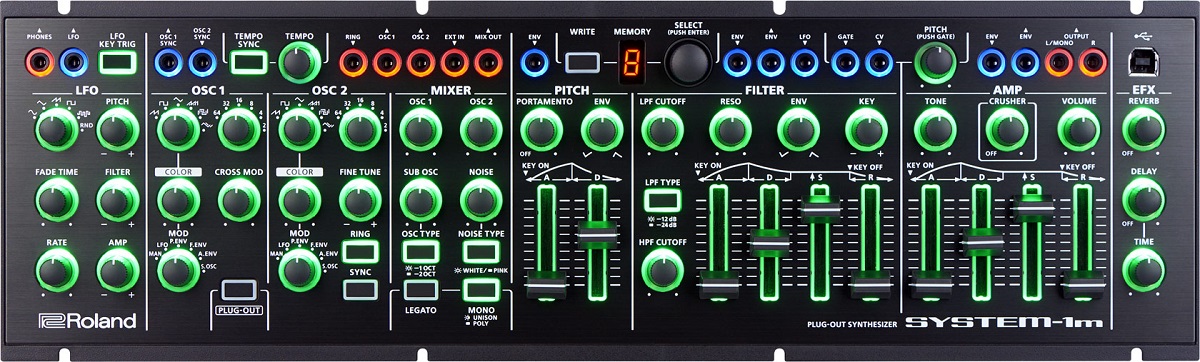

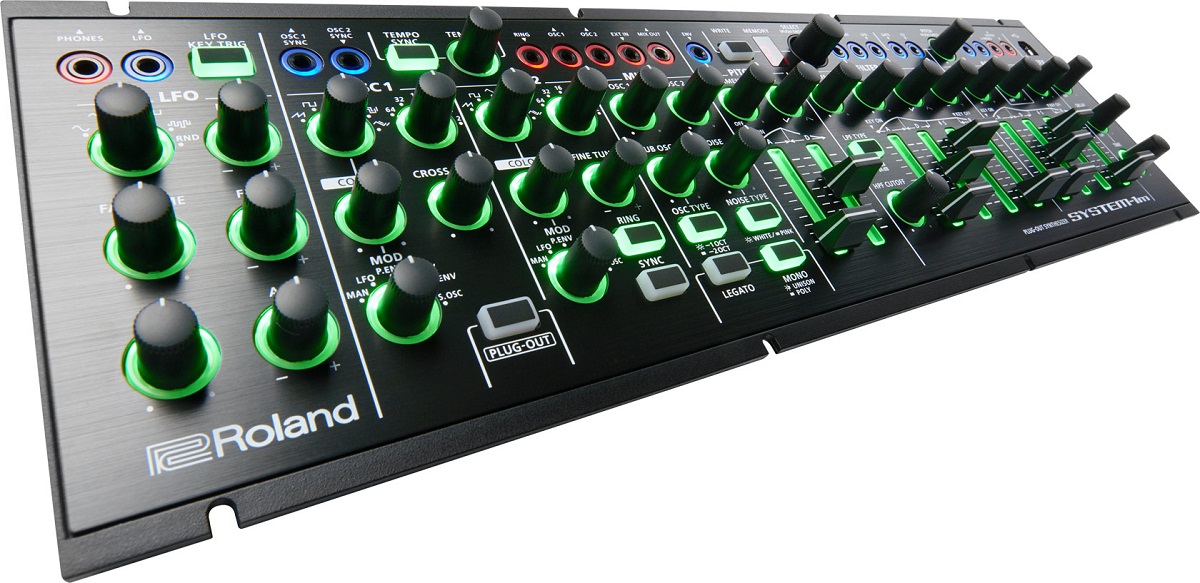

Roland System 1M Semi Modular Plug Out Synth

Maximum Polyphony4 voices (SYSTEM-1m Mode)
User Memory64 (8 memories x 8 banks)Structure Elements (SYSTEM-1m Mode)Oscillator Section
Waveform: SAW, SQUARE, TRIANGLE, SAW 2, SQUARE 2, TRIANGLE 2
Knobs: COLOR, MODULATION Source (MANUAL, LFO, P. ENV, F. ENV, A. ENV, SUB OSC), OCTAVE, TUNE
Envelope: ATTACK Time, DECAY Time, ENVELOPE Depth
Modulation: CROSS Modulator, RING Modulator, Oscillator SYNC
Sub Oscillator: -1 oct/-2 oct
Noise: WHITE Noise/PINK Noise

Filter Section
Type: LPF (-12 dB/-24 dB), HPF
Knobs: LPF CUTOFF, RESONANCE, HPF CUTOFF, KEY Follow
Envelope: ATTACK Time, DECAY Time, SUSTAIN Level, RELEASE Time, ENVELOPE Depth

Amplifier Section
TONE
Envelope: ATTACK Time, DECAY Time, SUSTAIN Level, RELEASE Time

LFO Section
LFO Waveform: SINE, TRIANGLE, SAW, SQUARE, Sample&Hold, Random
Knobs: FADE TIME, RATE, PITCH, FILTER, AMP
Controller: LFO KEY TRIGGER

Mixer Section
Level: OSC 1, OSC 2, SUB OSC, NOISE

Effecter Section
CRUSHER, REVERB, DELAY, DELAY TIMEStructure Elements (PLUG-OUT Mode)Depend on PLUG-OUT softwareOTHERControllersVOLUME knob
TEMPO knob
TEMPO SYNC button
LEGATO button
MONO/UNISON/POLY button
PITCH knob
SELECT knob
WRITE button
MEMORY display

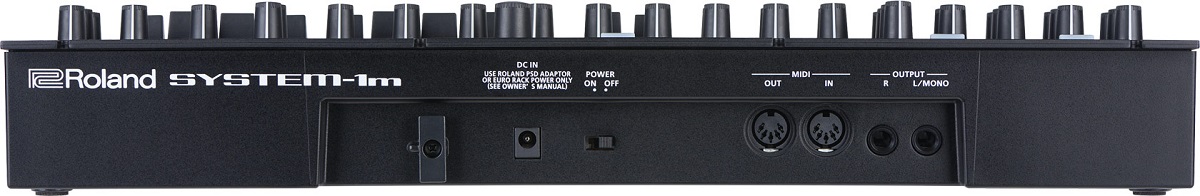

Power Switch (Rear)ConnectorsPHONES jack: Stereo miniature phone type
OUTPUT (L/MONO, R) jacks: 1/4-inch phone type (Rear)
OUTPUT (L/MONO, R) jacks: Miniature phone type (Front)
LFO OUT, OSC 1 SYNC OUT, OSC 2 SYNC IN, RING IN,
OSC 1 OUT, OSC 2 OUT, EXT IN, MIX OUT, PITCH ENV IN,
FILTER ENV IN, FILTER ENV OUT, FILTER LFO IN,
GATE IN, CV IN, AMP ENV IN, AMP ENV OUT jacks: Miniature phone type
MIDI (IN, OUT) connectors (Rear and Bottom)
USB port: USB type B (Audio/MIDI)
DC IN jackPower SupplyAC adaptor or Eurorack powerCurrent draw1,300 mA (AC adaptor)
700 mA (Eurorack power)AccessoriesAC adaptor
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
PLUG-OUT information card

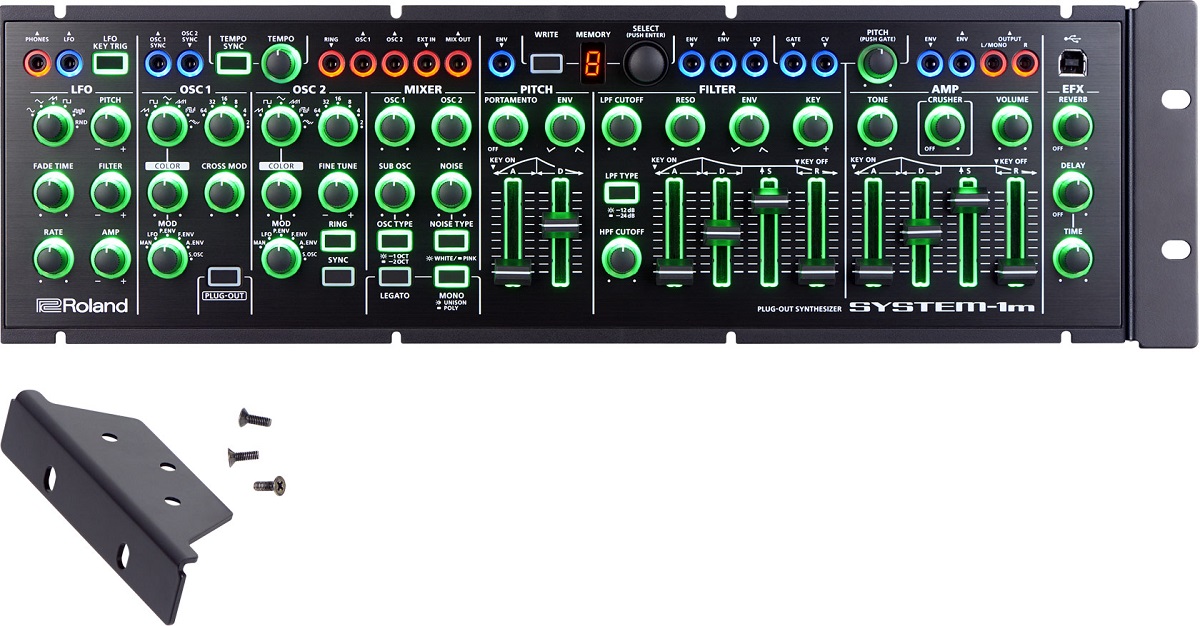

Rackmount adaptors
Eurorack installation screws
Eurorack power cable
Patch cables (set of three)
Ableton Live Lite Serial Number Card*

* Internet connection is required for installation. http://ableton.com/live-liteOptions (sold separately)PLUG-OUT SYNTHESIZER: SH-2, PROMARSSIZE AND WEIGHTWidth427 mm
16-13/16 inchesDepth129 mm
5-1/8 inchesHeight70 mm
2-13/16 inchesWeight1.25 kg
2 lbs 13 oz
