Roland SPD-1K One Kick Digital Percussion Pad | 22 Onboard Sounds

SPECIFICATIONS

Instruments

22

User Sample

Number of User Sample: 1
Sound Length: 5seconds
Data Format: WAV (44.1 kHz, 16 bits, Mono/Stereo)

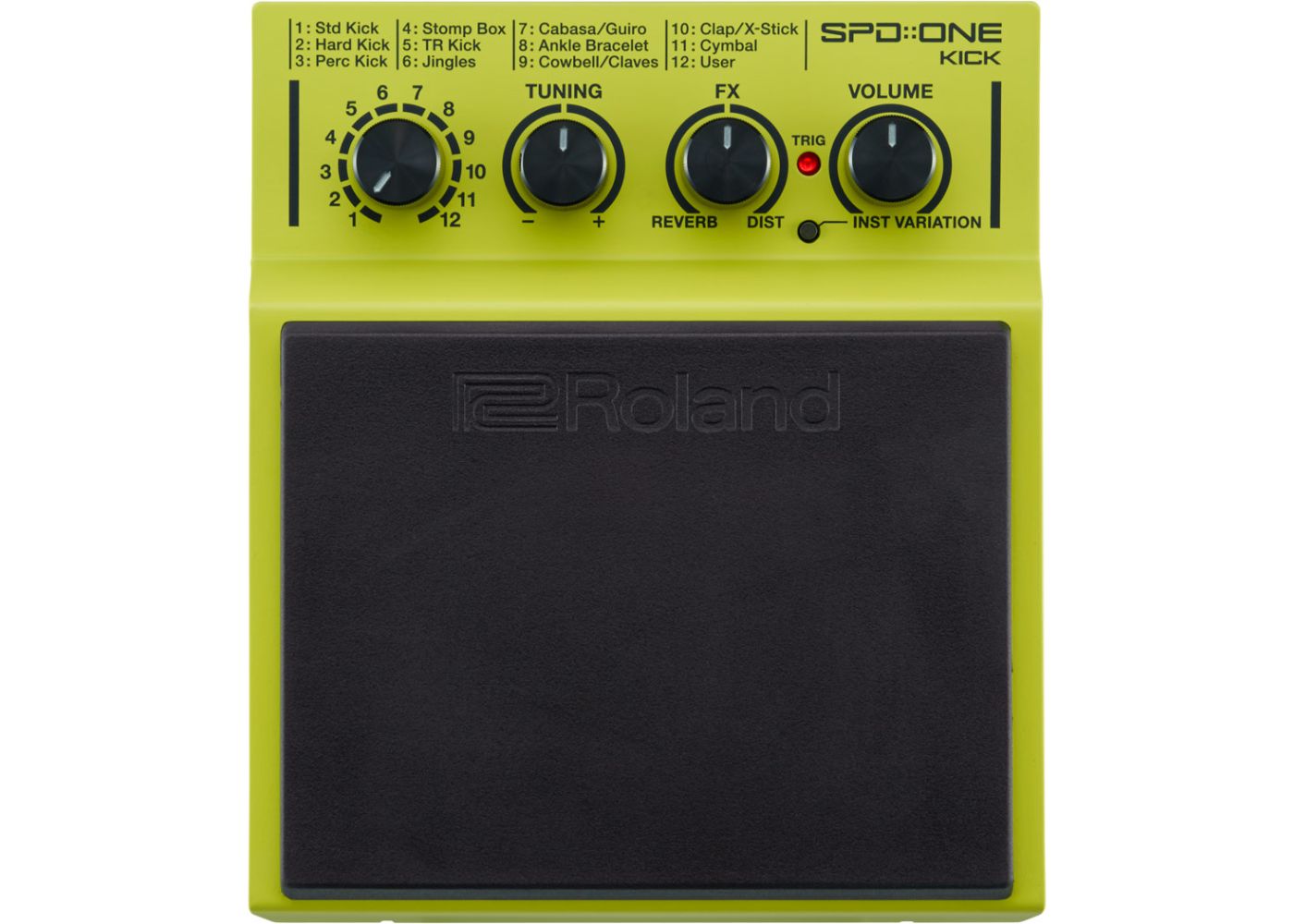

Controls

INST knob
[TUNING] knob
[FX] knob
[VOLUME] knob
[INST VARIATION] button

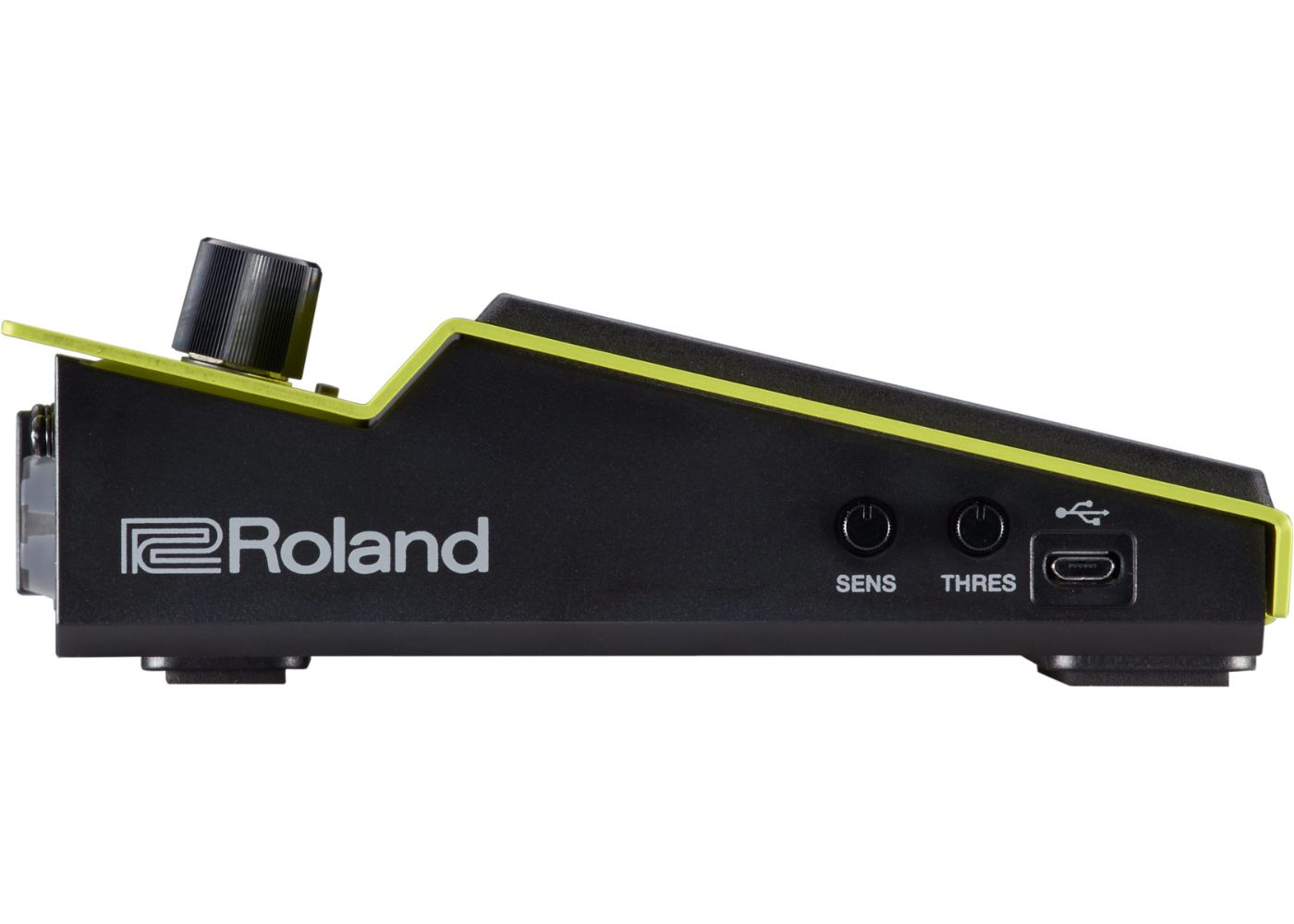

[THRES] knob
[SENS] knob
[POWER] switch

Effects

Reverb, Distortion

Indicator

TRIG Indicator

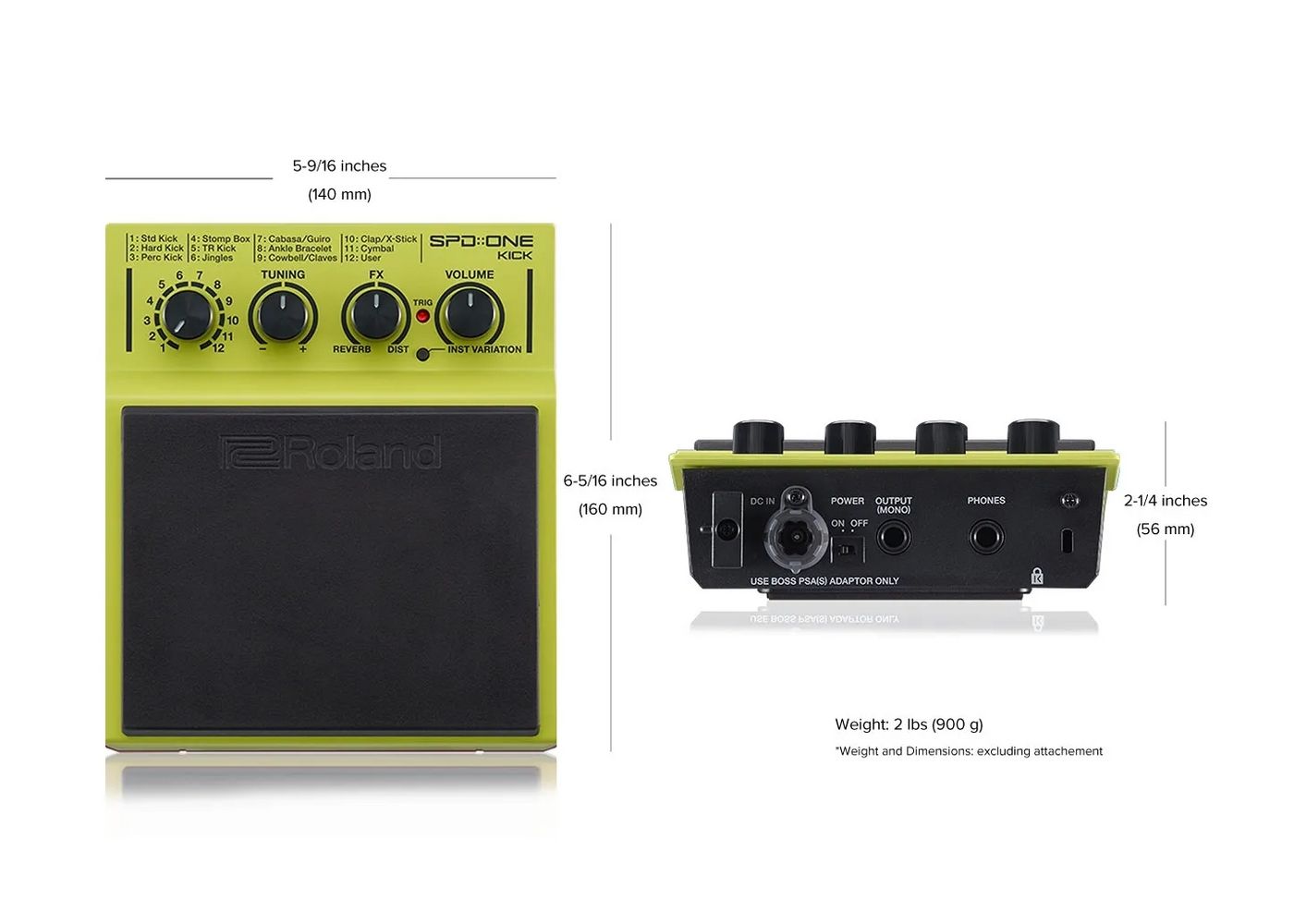

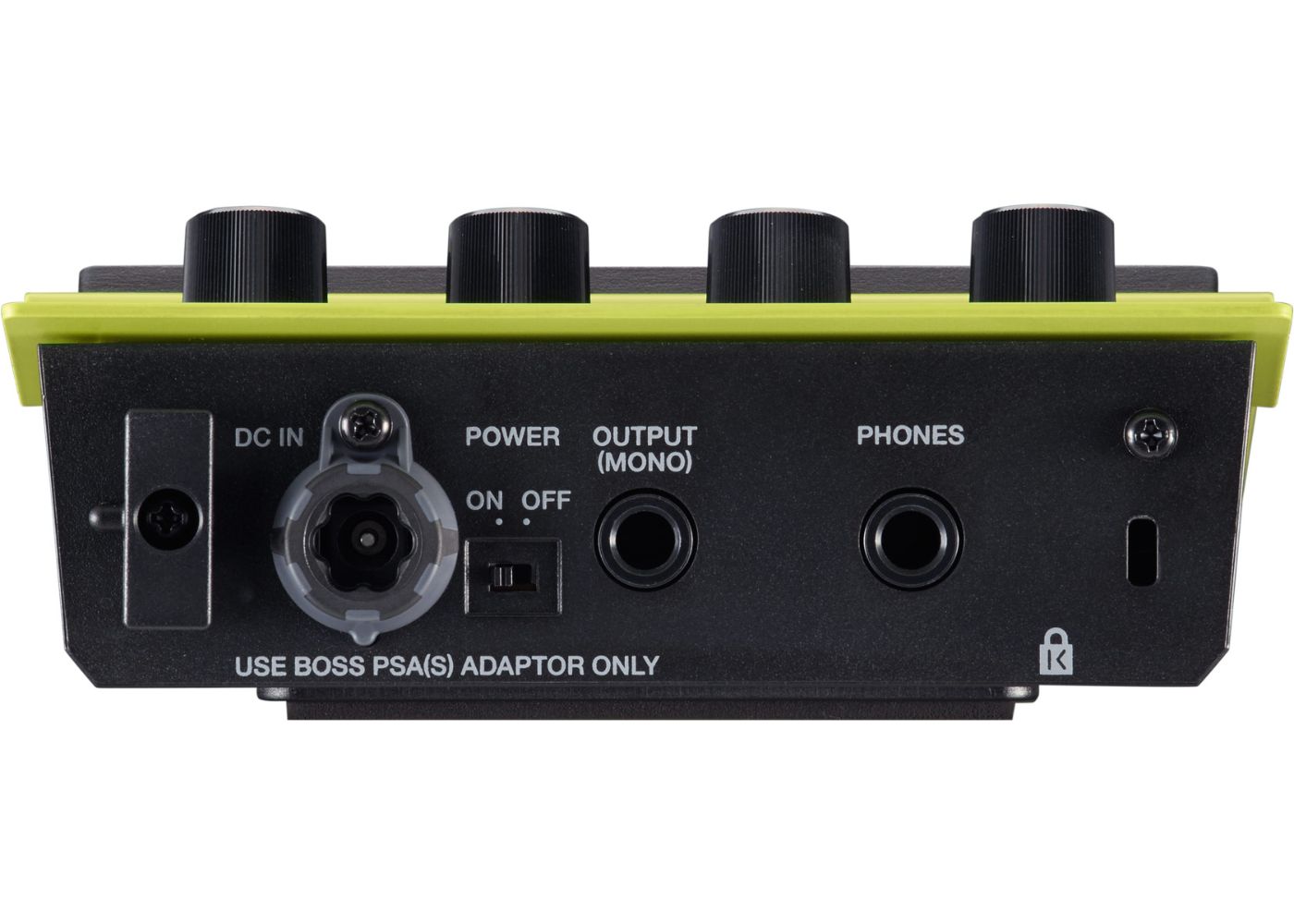

Connectors

OUTPUT (MONO) jack: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
USB port: Micro-B type
DC IN jack

USB

MIDI
Mass Storage Class

Power Supply

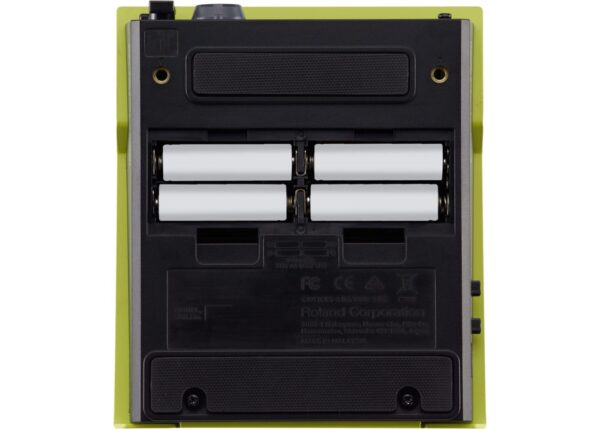

Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
AC adaptor (DC9V)

Current Draw

300 mA (DC IN)

*Expected battery life under continuous use
Rechargeable Ni-MH battery (AA, HR6):
Normal use: Approx. 7 hours
Maximum load use: Approx. 4 hours

Alkaline battery (AA, LR6):
Normal use: Approx. 6 hours
Maximum load use: Approx. 3 hours

*These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories

Owner's manual
Leaflet "USING THE UNIT SAFELY"

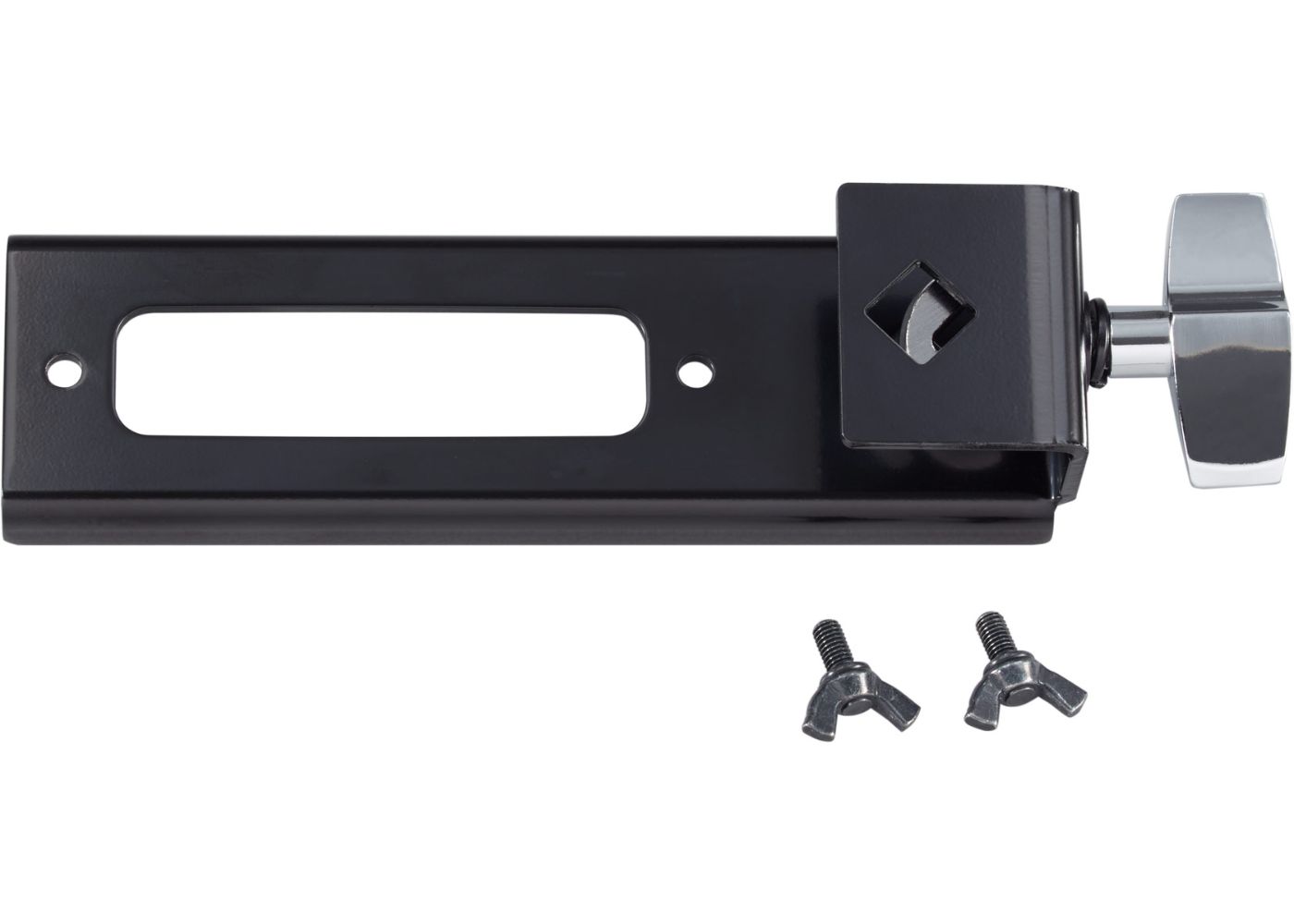

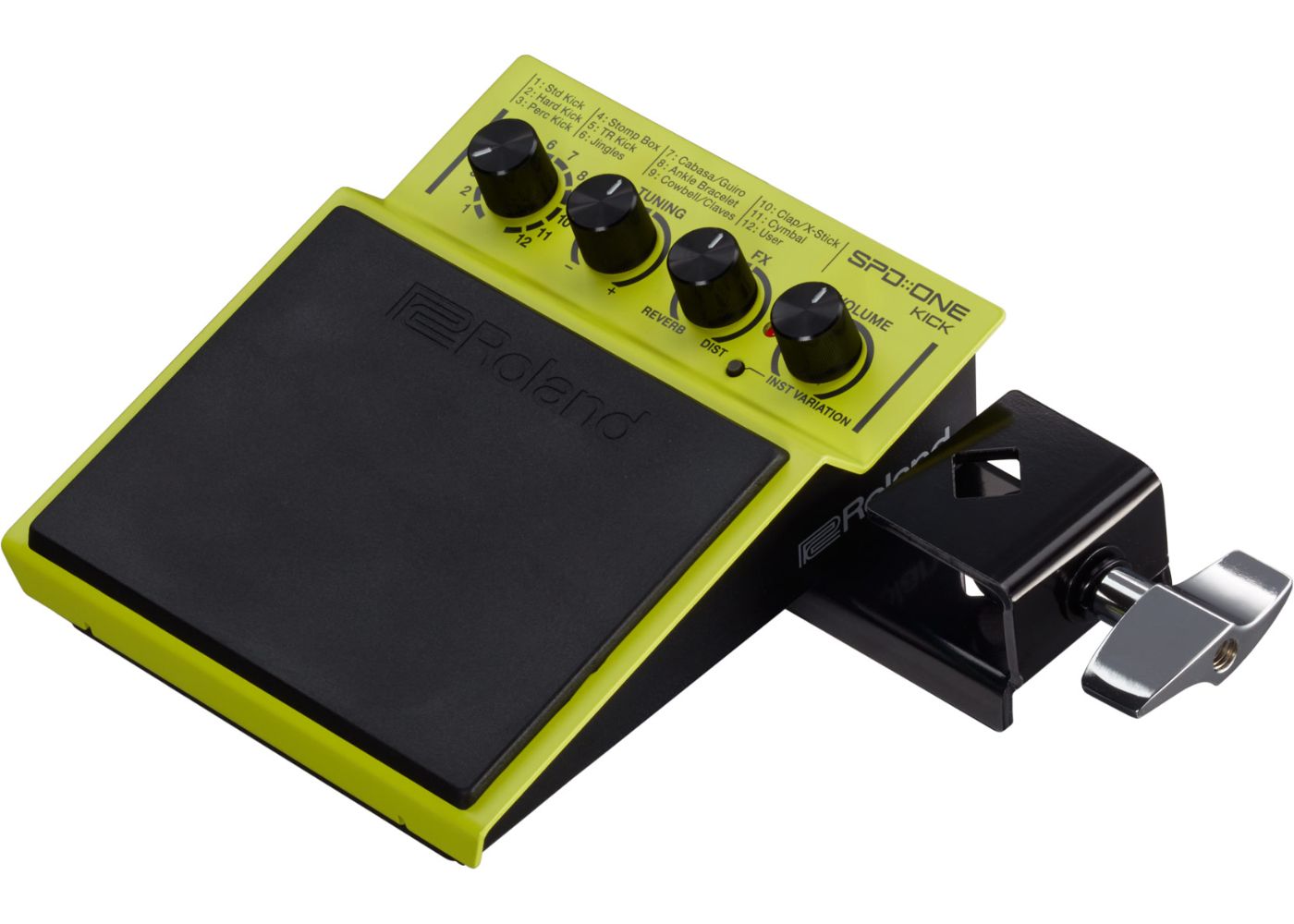

Attachment
Attachment screws x 2
Holder mounting screws (bolt x 1, nut x 1, washers x 2)
*Acceptable rod diameters: 8.0–12.7 mm (3/8–1/2 inches)
Alkaline batteries (AA, LR6) x 4
