Roland El Cajon Microphone Processor

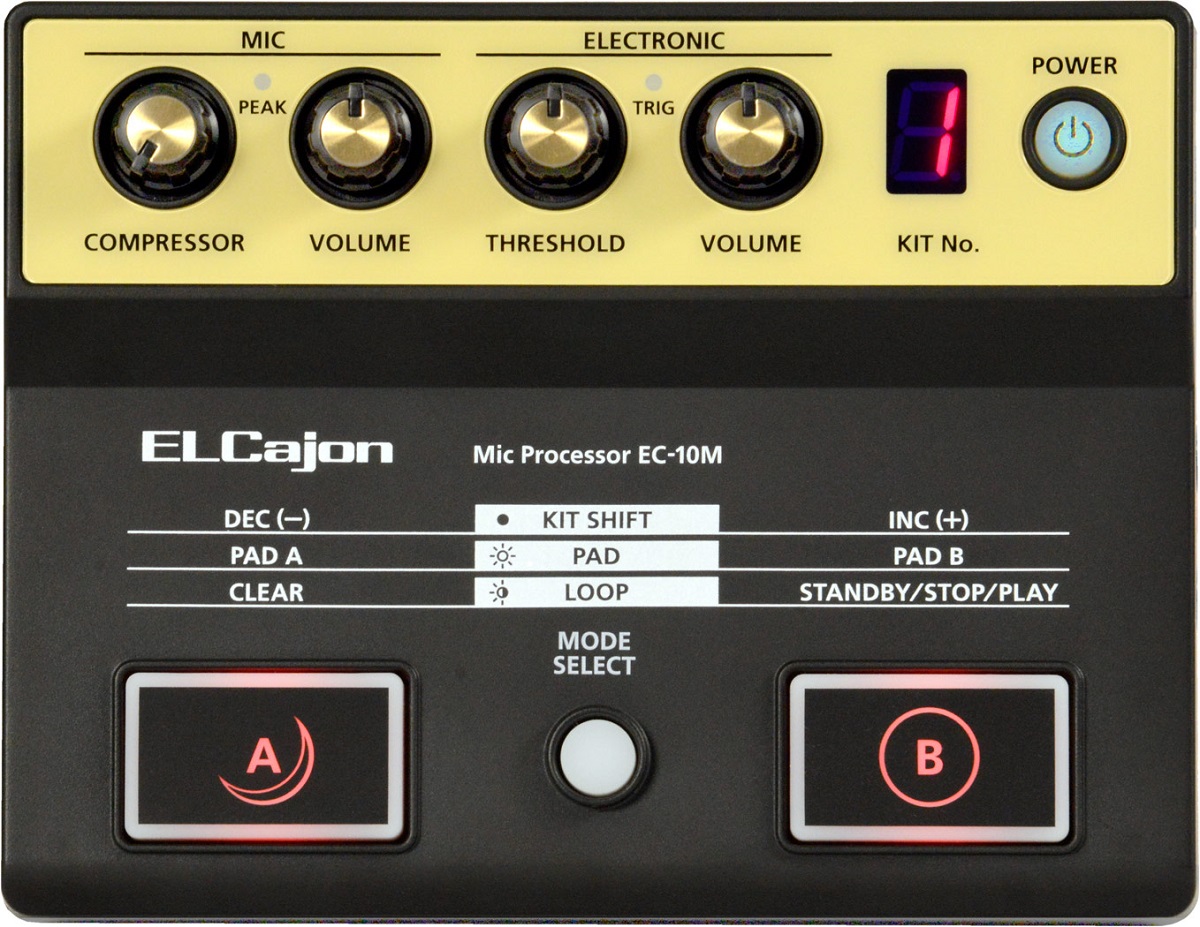

Sound Kit Variation16Layered Sound Contents2 (High, Low)Controls[Top Panel]
POWER switch
(MIC) COMPRESSOR knob
(MIC) VOLUME knob
(ELECTRONIC) THRESHOLD knob
(ELECTRONIC) VOLUME knob

MODE SELECT button
A button
B button

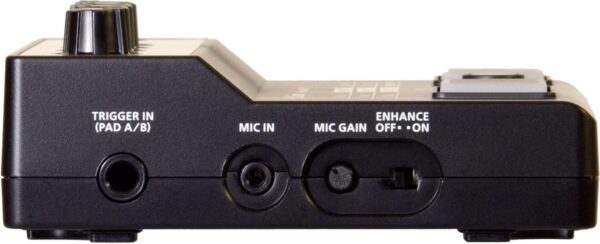

[Left Side]
MIC GAIN knob
ENHANCE switchIndicatorsKIT NumberConnectorsTRIGGER INPUT jack: 1/4-inch TRS phone type
MIC INPUT jack: Stereo miniature type (Use included clip mic only)

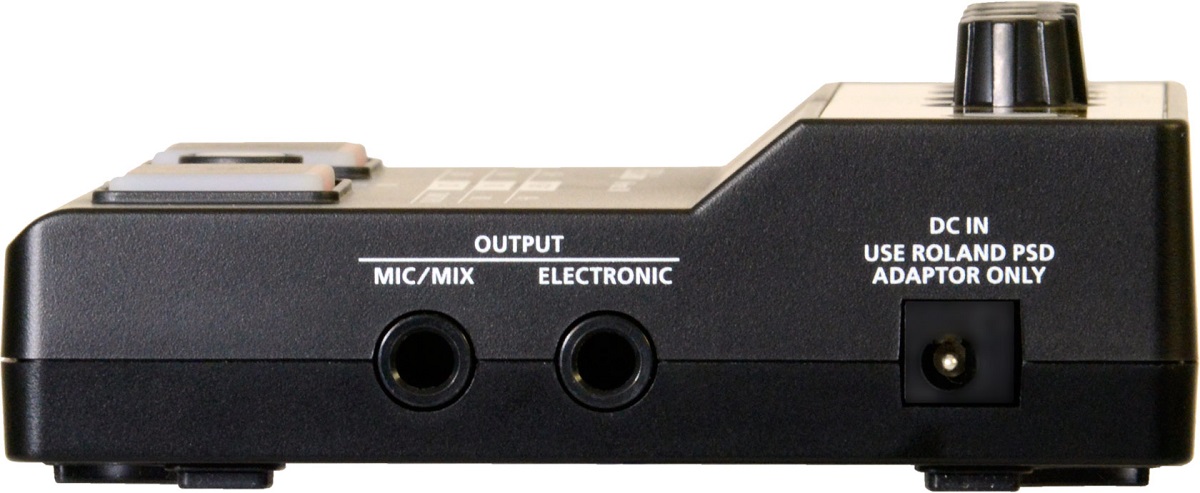

MIC/MIX OUTPUT jack (MONO): 1/4-inch phone type
ELECTRONIC OUTPUT jack (MONO): 1/4-inch phone type
DC IN jackPower SupplyAC adaptor (DC5.7V)

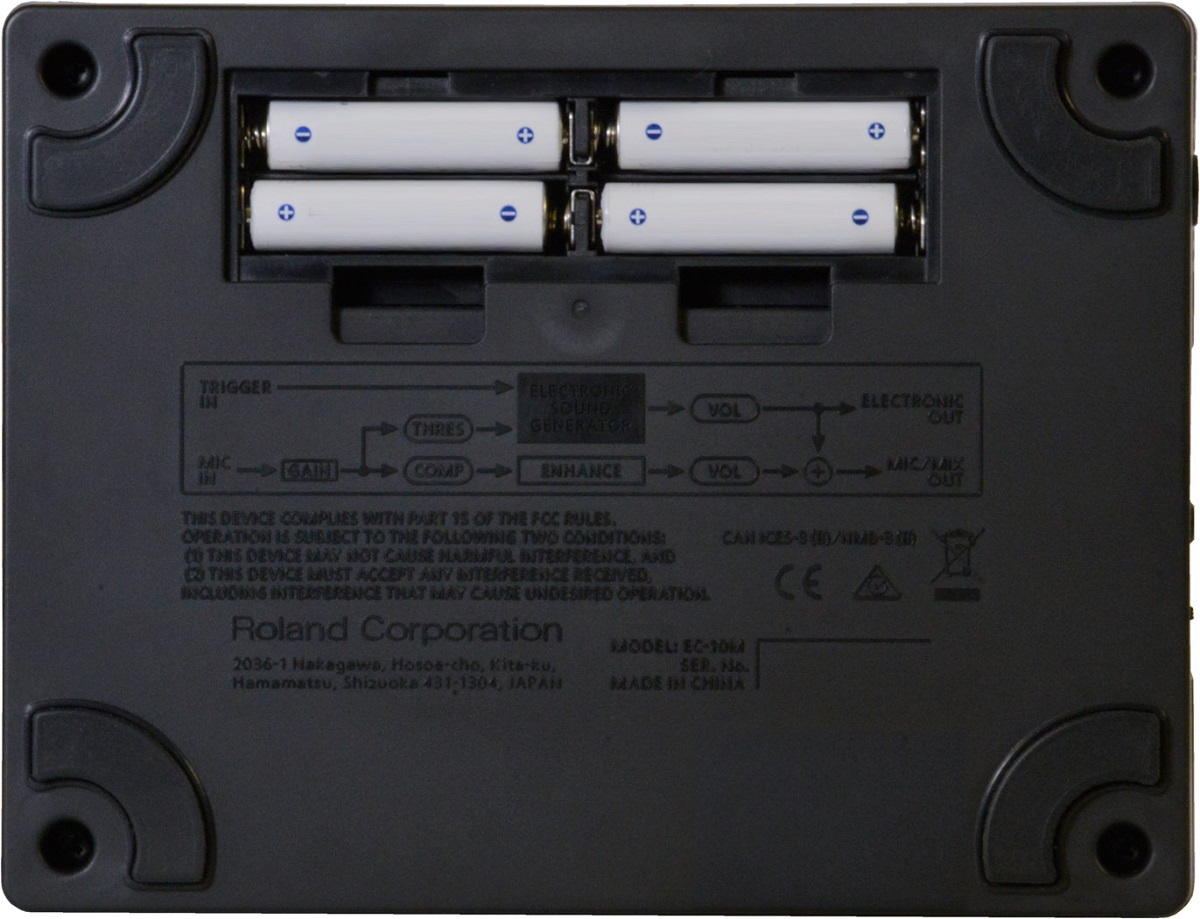

Rechargeable Ni-MH battery (AAA, HR03) x 4Current Draw150 mAExpected battery life under continuous useApprox. 5 hours.
* These can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesClip Mic
Owner's manual
Leaflet "USING THE UNIT SAFELY"

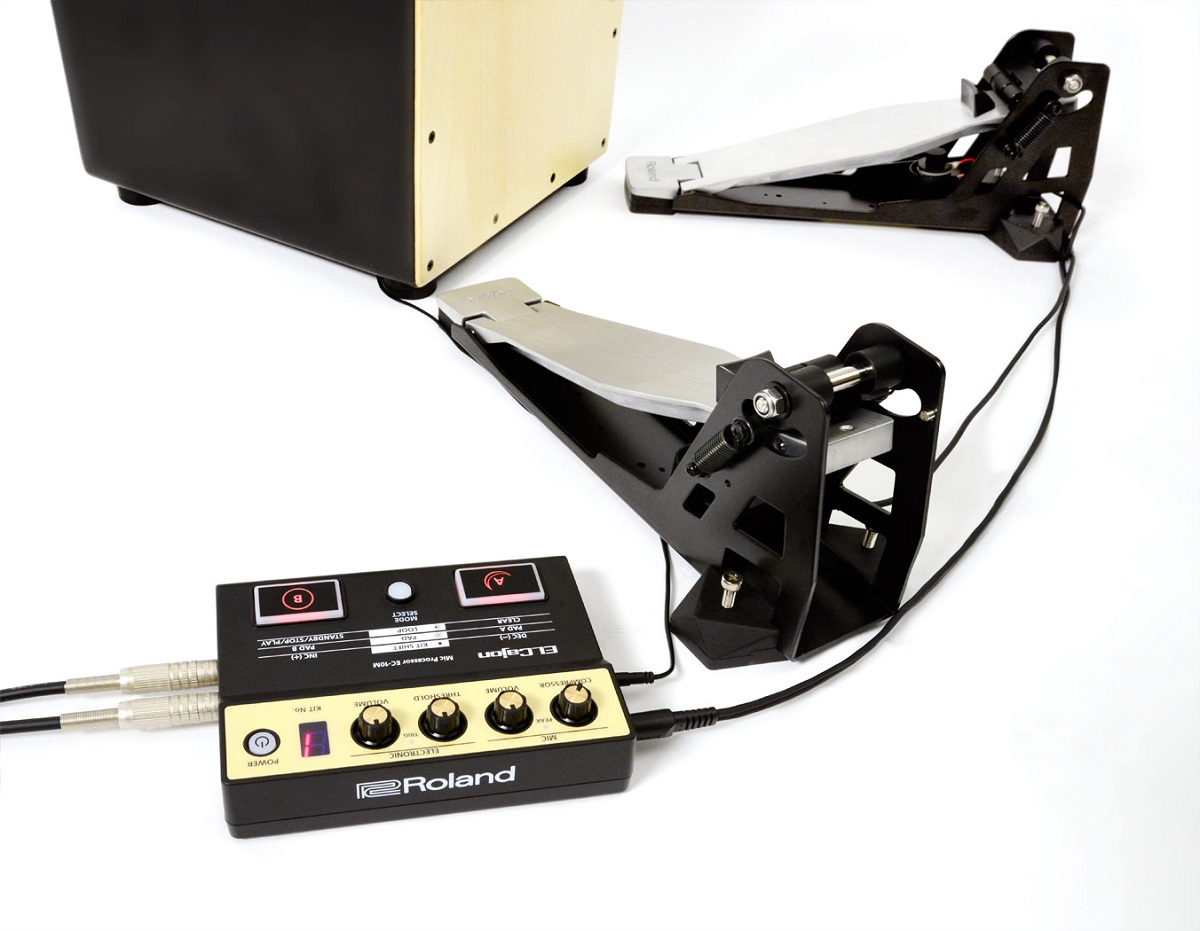

AC adaptorOptions (sold separately)Kicks: KD-7, KT-9, KT-10
Stereo Split Cable: PCS-31LSIZE AND WEIGHTWidth175 mm
6-15/16 inchesDepth135 mm
5-3/8 inchesHeight55 mm
2-3/16 inchesWeight500 g
1 lb. 2 oz.
