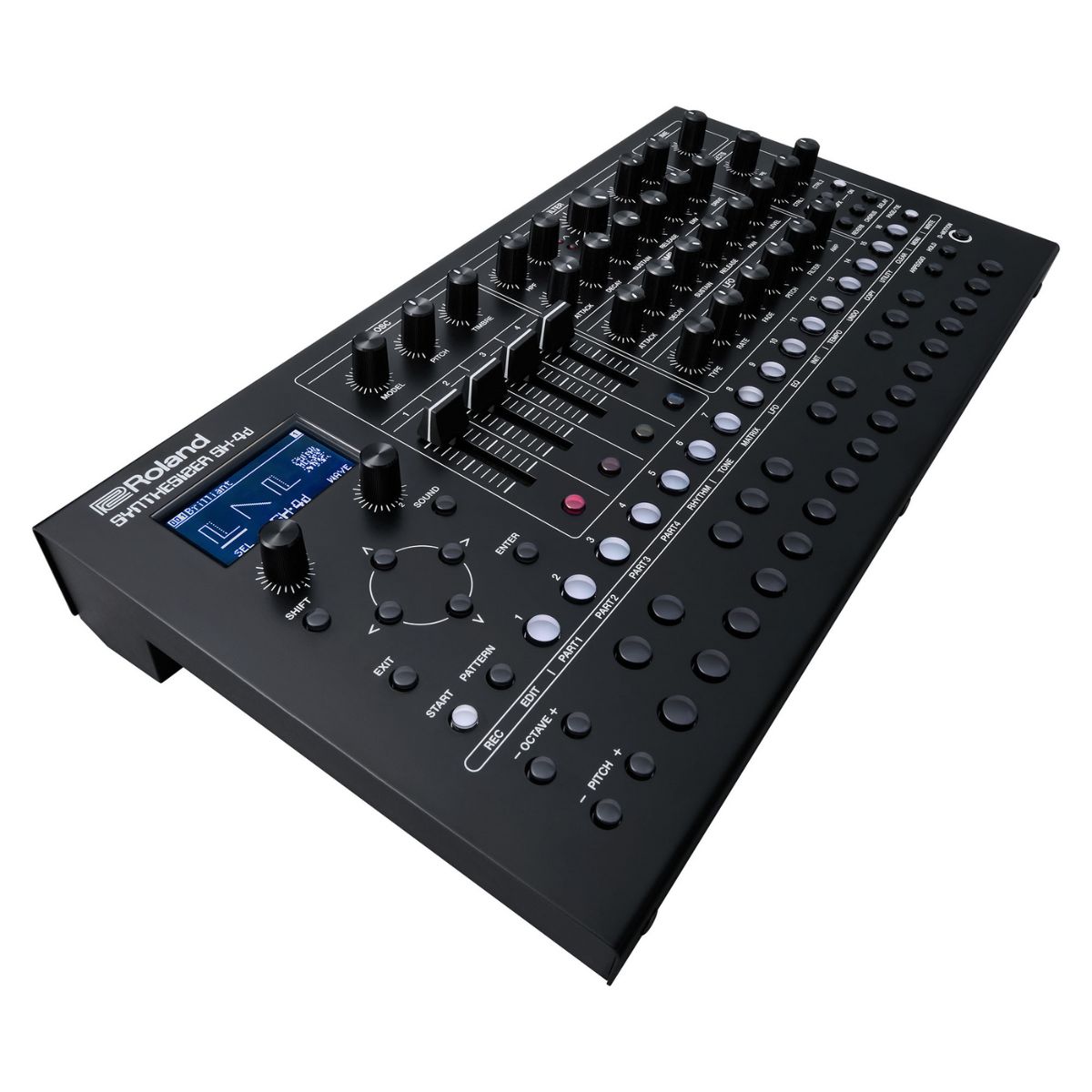

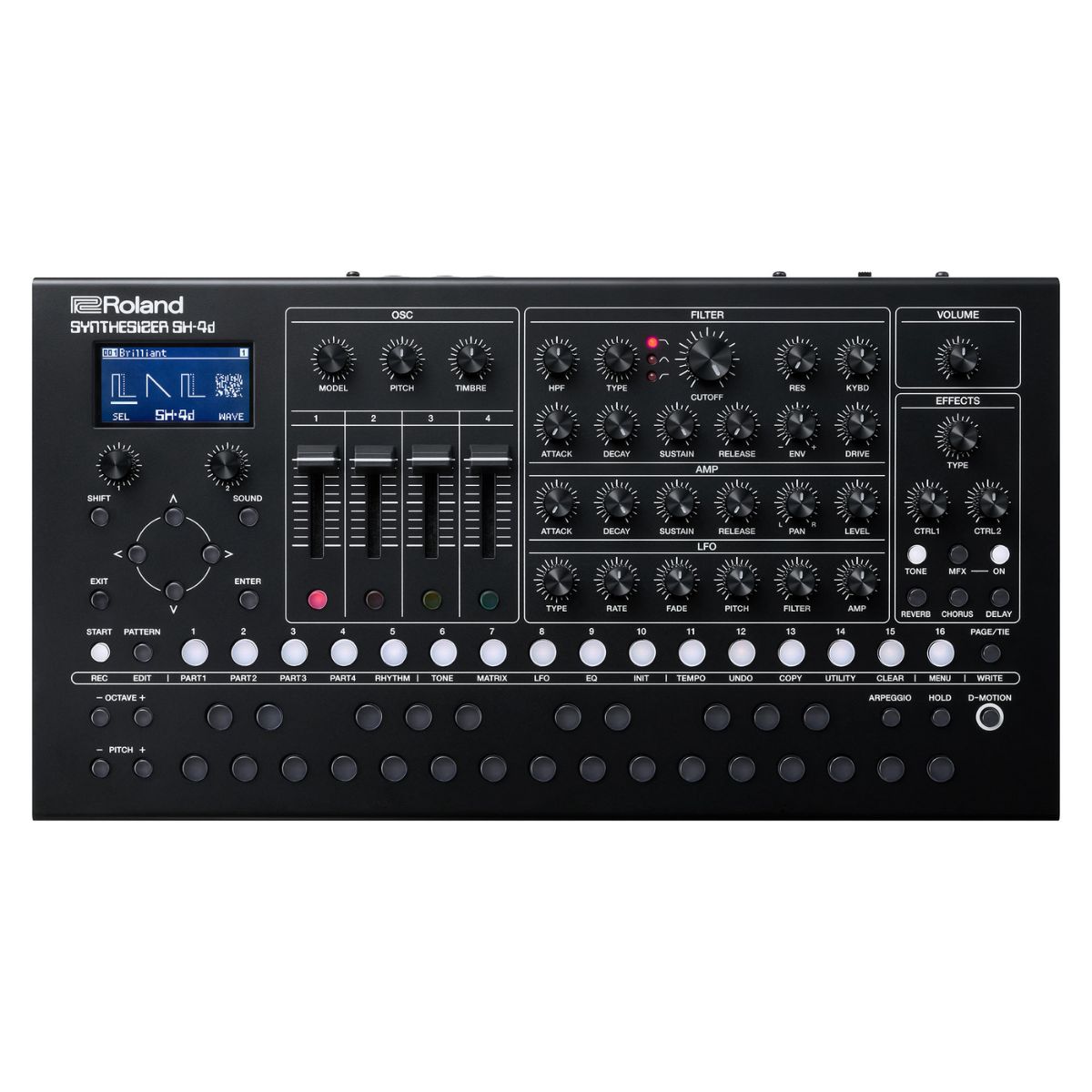

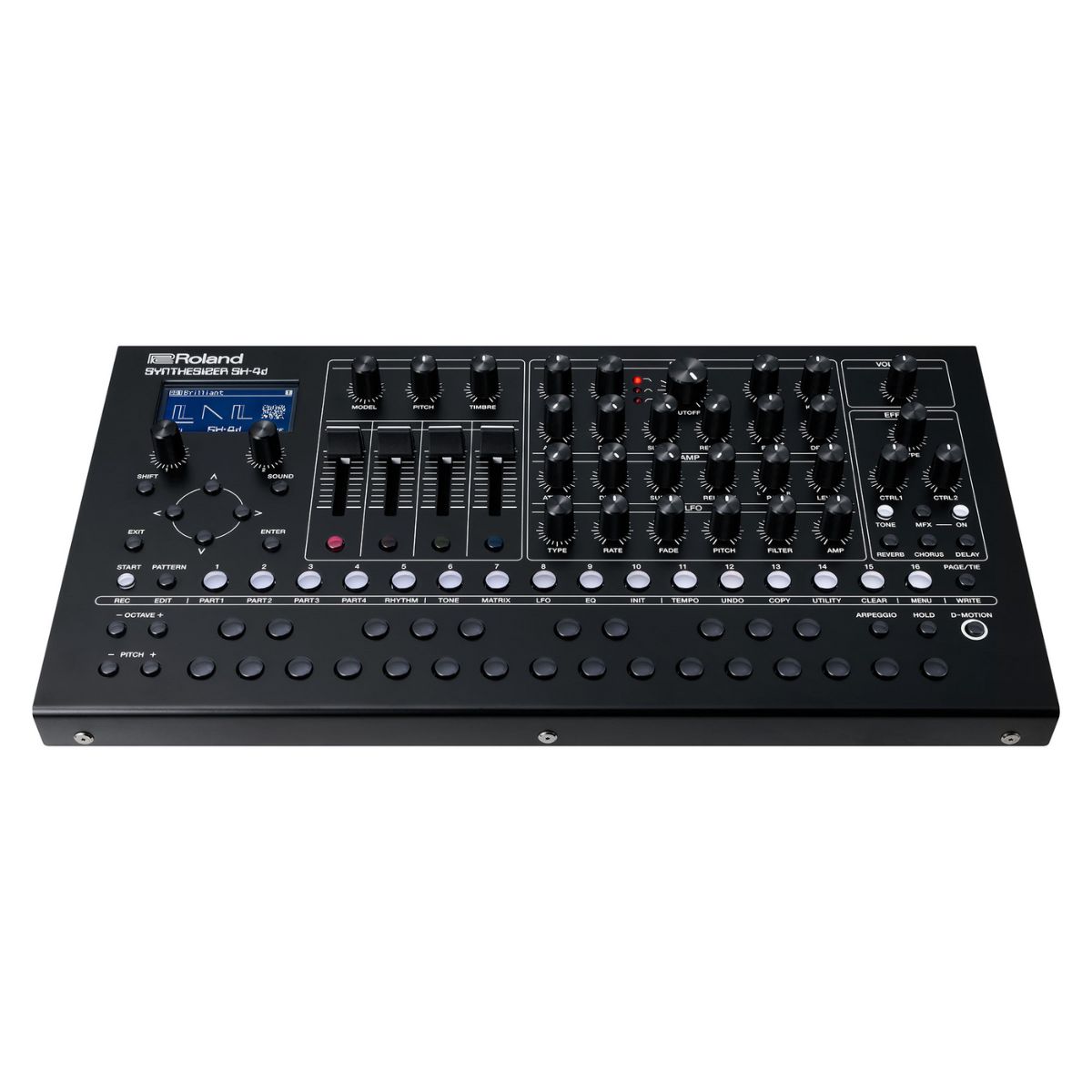

Roland Compact desktop synthesizer |11 OSC Models | hands-on workflow

SH-4d Specs





- User Memory

Sound Patch: 256

Pattern: 128



- OSC MODEL

SH-4d

SH-3D

SYNC

SH-101

JUNO-106

Cross FM

RING

WAVETABLE

CHORD

DRAWING

PCM

RHYTHM (only for RHYTHM part)



- Maximum Polyphony

60 voices (varies according to the sound generator load)



- Parts

5 parts (Tone part: 4, Rhythm part: 1)



- Effects

Multi-Effects: 5 systems, 93 types

Reverb: 9 types

Chorus: 5 types

Delay: 5 types

Master Effect: 93 types

Master EQ / Comp



-Arpeggiator

5 types



-Sequencer

parts: 5

Steps: 64

Sub Steps

Flam

Probability



-Controllers

Switch Keyboard

Step buttons

D-Motion (motion sensor)



-Display

Graphic LCD 128 x 64 dots

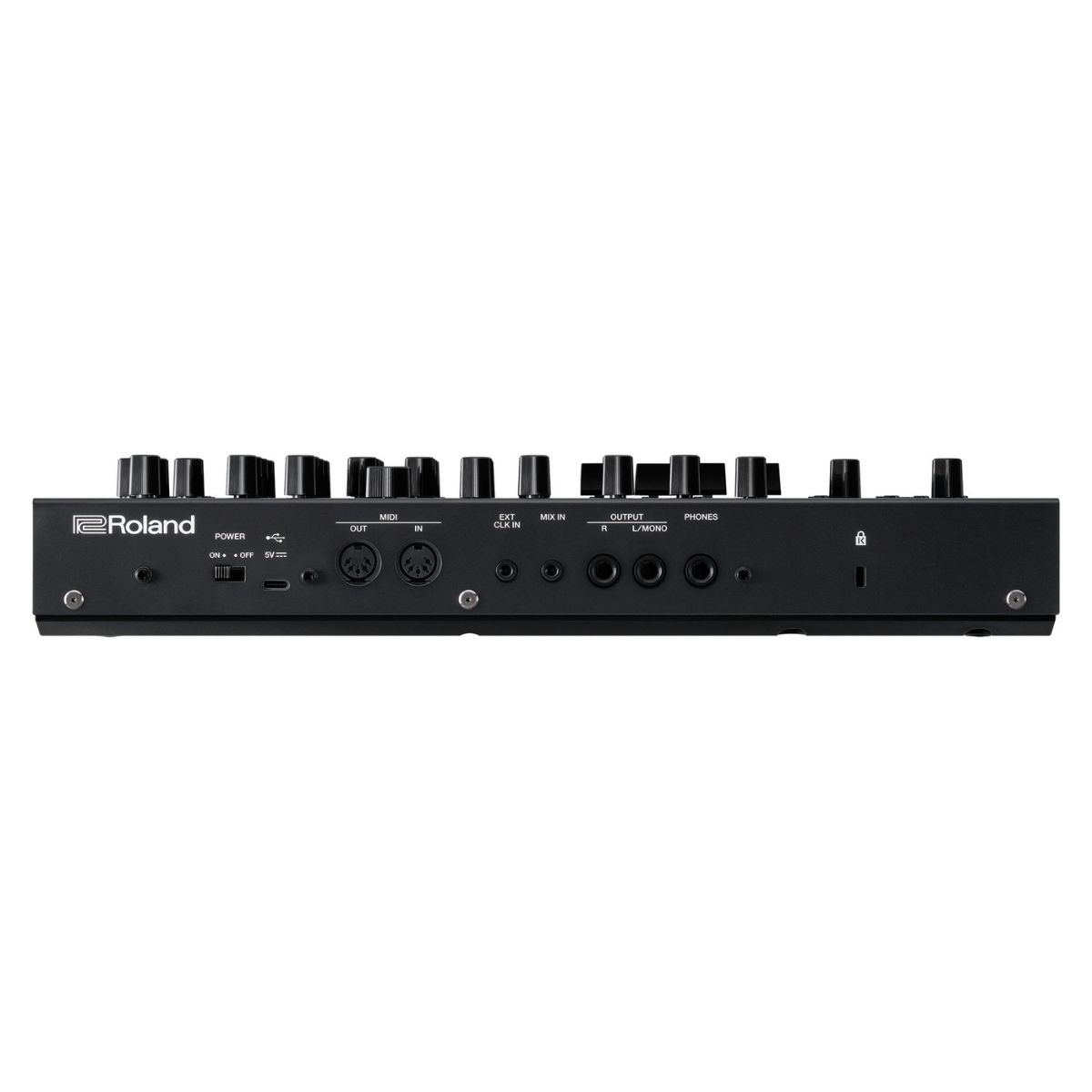

-Connectors

PHONES jack: Stereo 1/4-inch phone type

OUTPUT jacks (L/MONO, R): 1/4-inch phone type

MIX IN jack: Stereo miniature phone type

EXT CLK IN jack: Mono miniature phone type

MIDI connectors (IN, OUT)

USB port: USB Type-C(R) (Audio, MIDI)



-Power Supply

USB bus power supply (USB Type-C(R) port)

Ni-MH batteries (AA, HR6) (commercially available) x 4

Alkaline battery (AA, LR6) (commercially available) x 4



-Current Draw

500 mA (USB bus power supply)





-Expected battery life under continuous use

Alkaline battery: Approx. 4 hours

Ni-MH battery: Approx. 5 hours

* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.



-Dimensions

360 (W) x 195 (D) x 66 (H) mm

14-3/16 (W) x 7-11/16 (D) x 2-5/8 (H) inches



-Weight(excluding Batteries)

1,780 g

3 lbs 15 oz



-Accessories

Quick Start

"Safety Precautions" leaflet

USB Type-C to USB Type-A cable

Alkaline battery (AA, LR6) x 4
