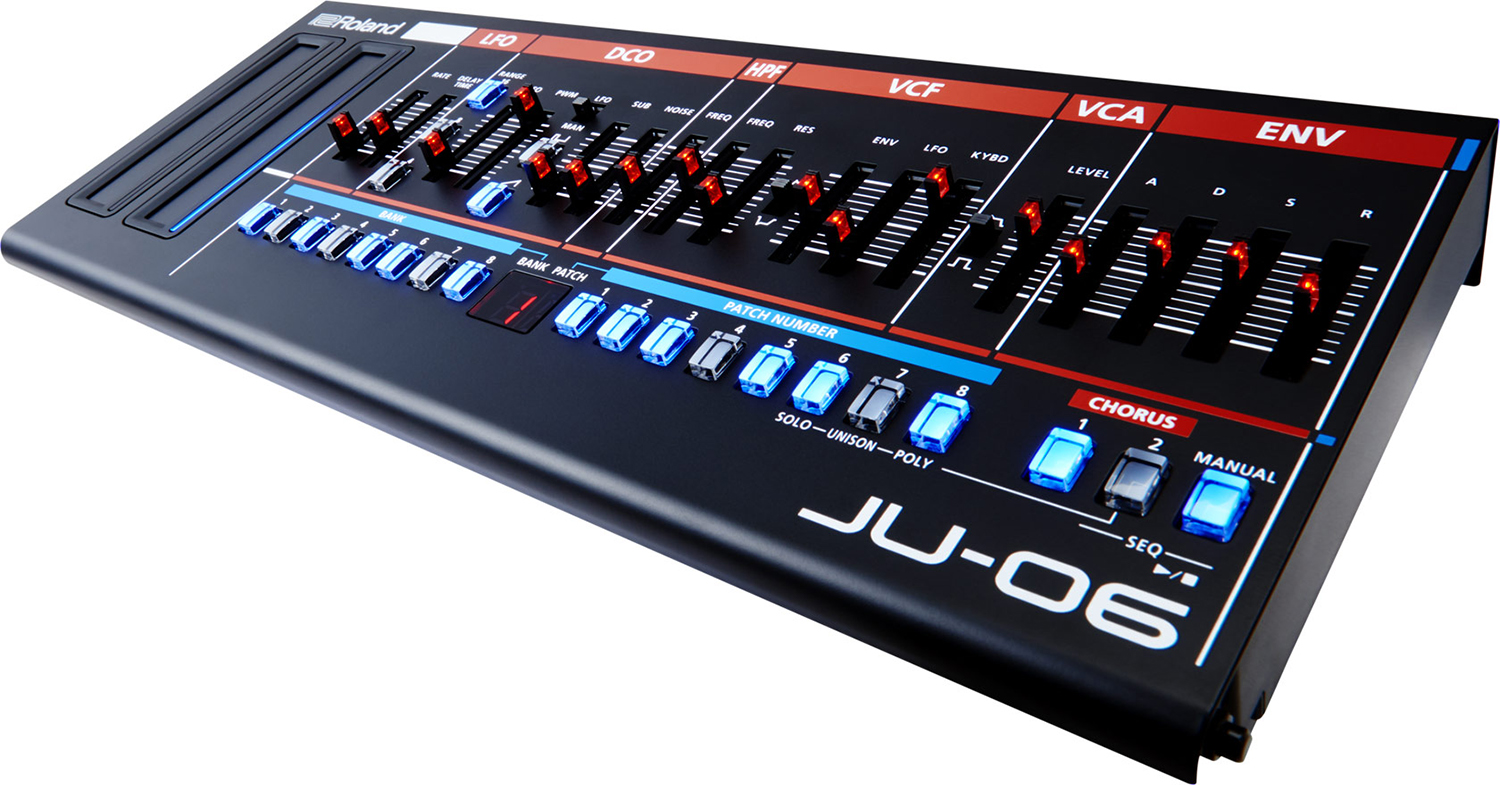

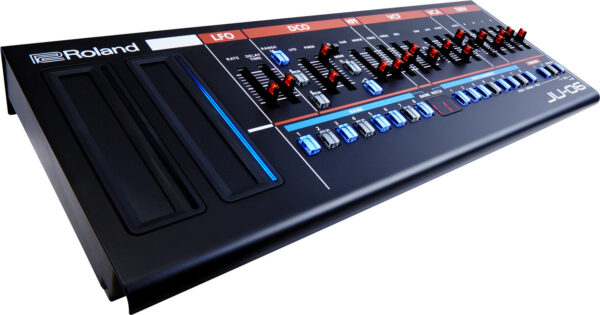

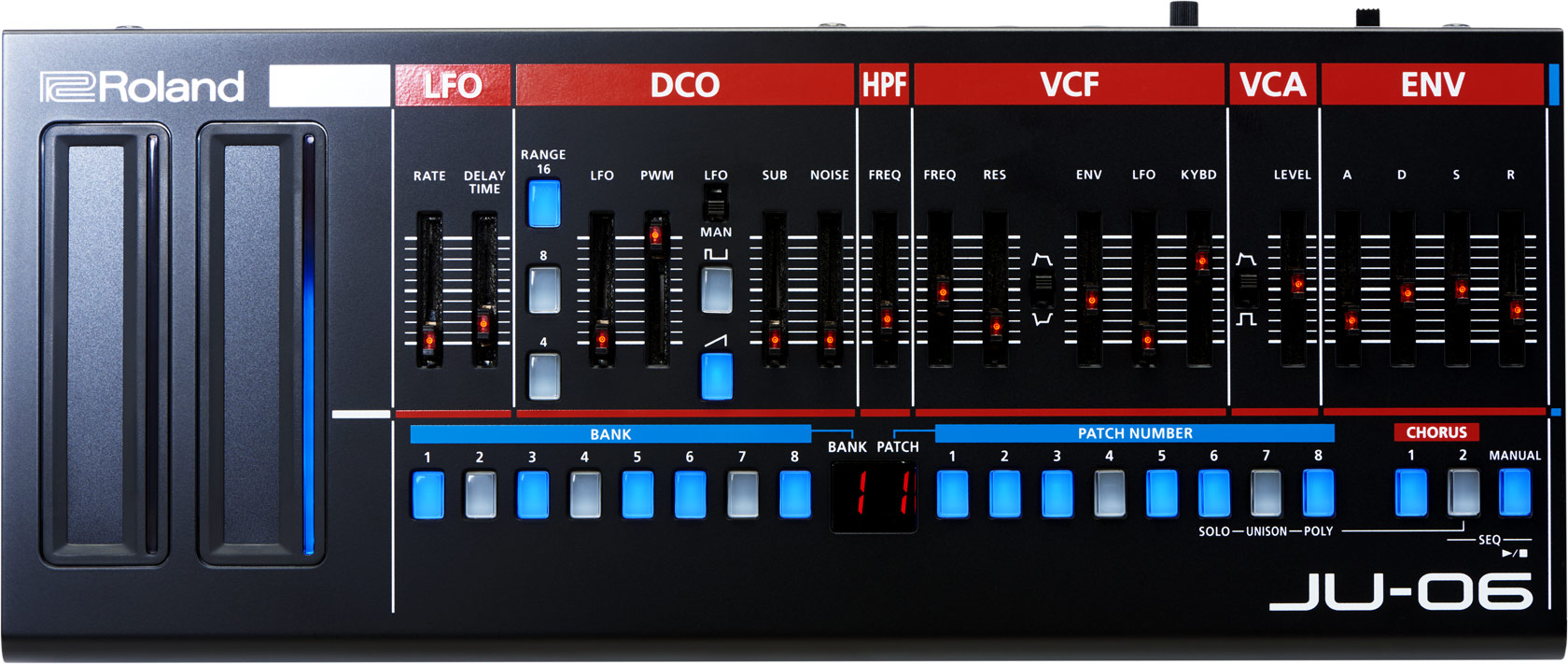

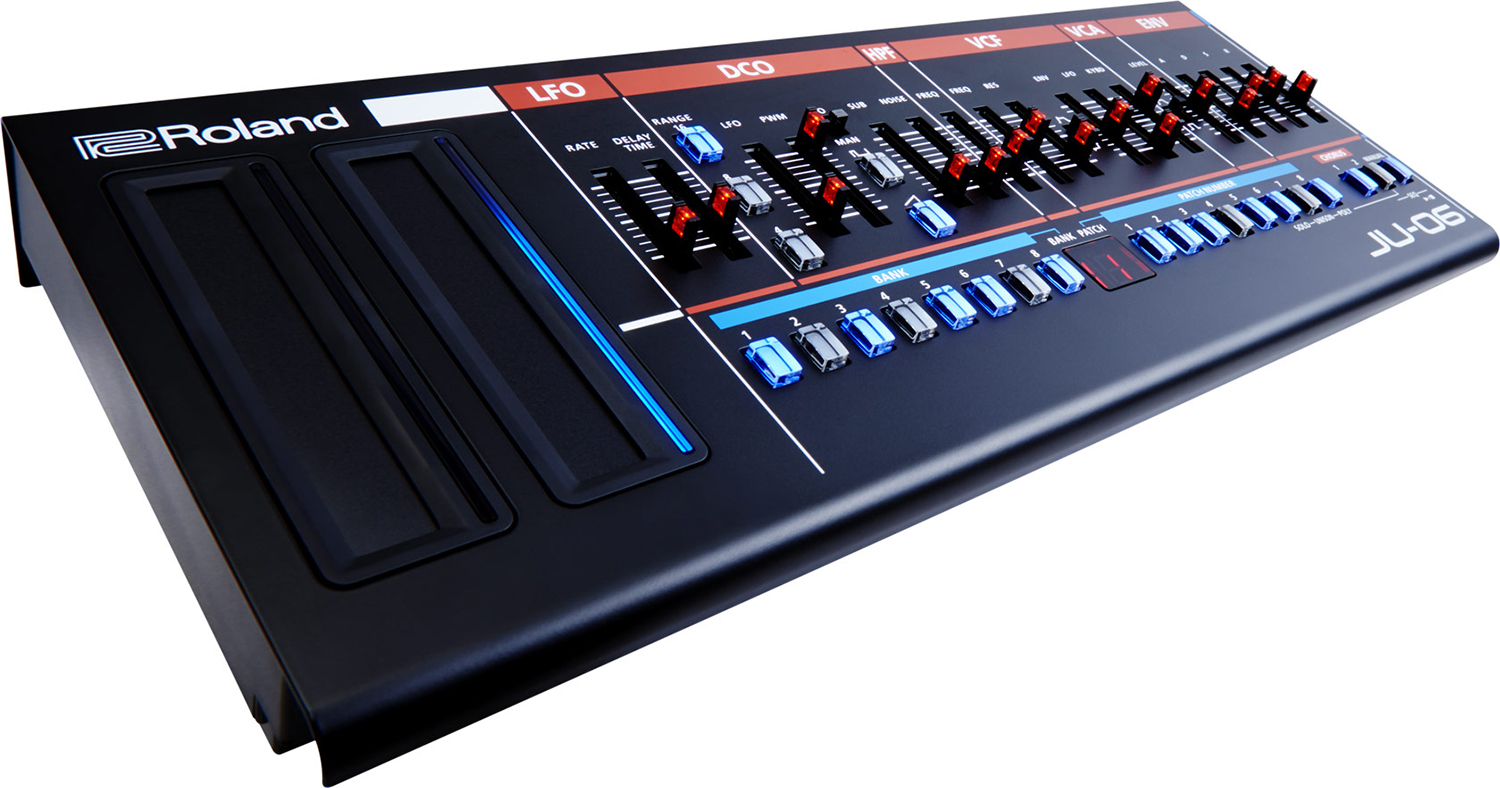

Roland JU-06 | Boutique Sound Module
€446.00
The limited edition JU-06 is an authentic recreation of the iconic JUNO-106 synthesizer. Sometimes described as one of the last great synths of the analog era
1 in stock
The limited edition JU-06 is an authentic recreation of the iconic JUNO-106 synthesizer. Sometimes described as one of the last great synths of the analog era
SPECFICATIONS
Maximum Polyphony
4 voices
User Memory
64 (8 patches x 8 banks)
Controllers
VOLUME knob
Ribbon controllers 1, 2
LFO Section
RATE slider
DELAY TIME slider
DCO Section
RANGE buttons 16', 8', 4'
LFO slider
PWM slider
PWM mode switch
SQUARE, SAW buttons
SUB oscillator slider
NOISE slider
HPF Section
CUTOFF FREQ slider
VCF Section
CUTOFF FREQ slider
RESONANCE slider
Polarity switch
ENV slider
LFO slider
KEY FOLLOW slider
VCA Section
Control signal switch
VCA level slider
ENV Section
Attack Time slider
Decay Time slider
Sustain Time slider
Release Time slider
CHORUS Section
CHORUS 1, CHORUS 2 buttons
BANK 1–8 buttons
PATCH NUMBER 1–8 buttons
MANUAL button
Power switch
Effects
Chorus
Delay
Step Sequencer
16 step
16 pattern
Nominal Input Level
INPUT jack: -0 dBu
Display
7 segments, 2 characters (LED)
Connectors
PHONES jack: Stereo miniature phone type
OUTPUT jack: Stereo miniature phone type
INPUT jack: Stereo miniature phone type
MIDI (IN, OUT) connectors
USB port: MicroB type (Audio, MIDI)
Power Supply
Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
USB Bus power
Current Draw
500mA (USB Bus power)
Expected battery life under continuous use:
Rechargeable Ni-MH battery: Approx. 6 hours
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Accessories
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4
Options (sold separately)

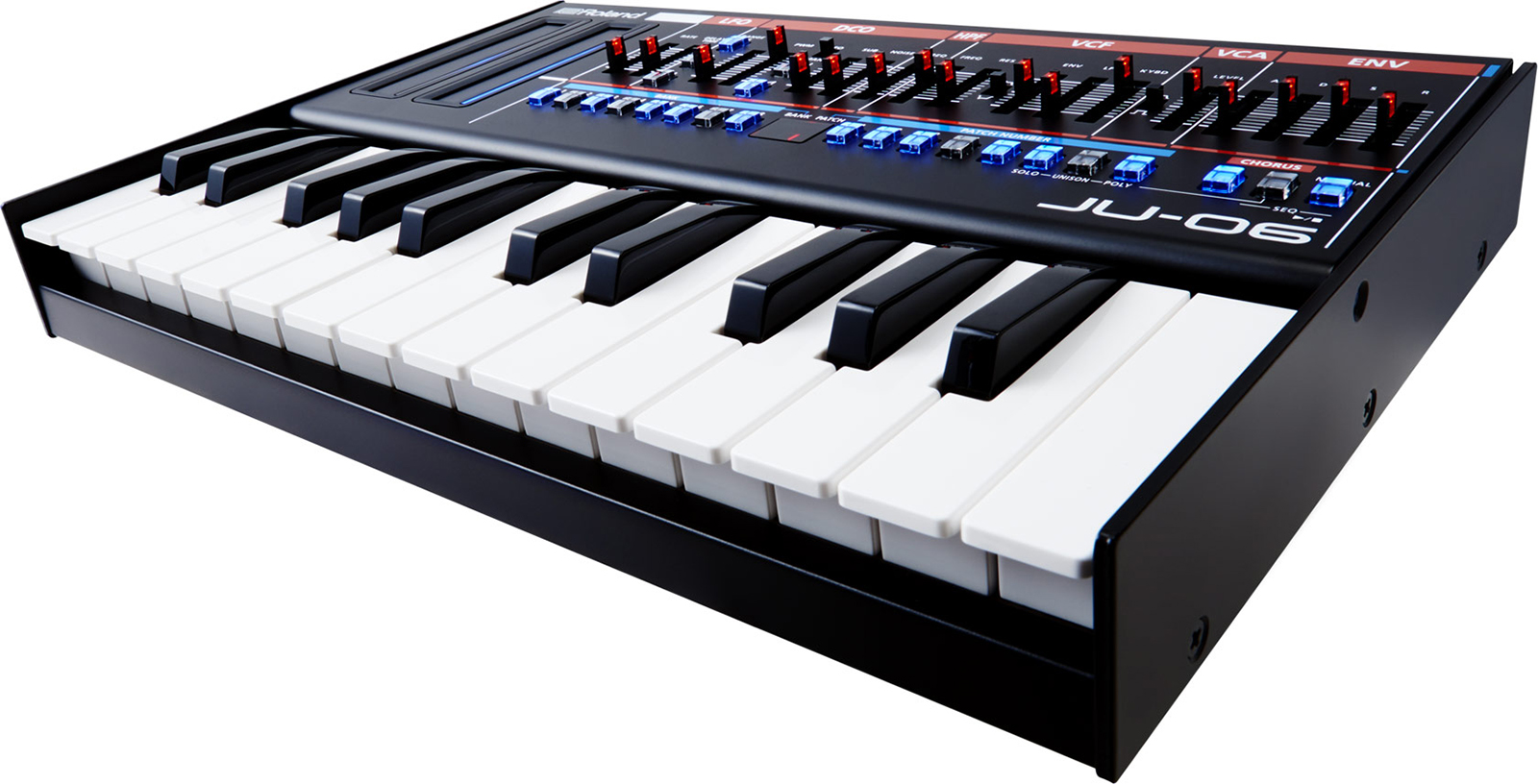

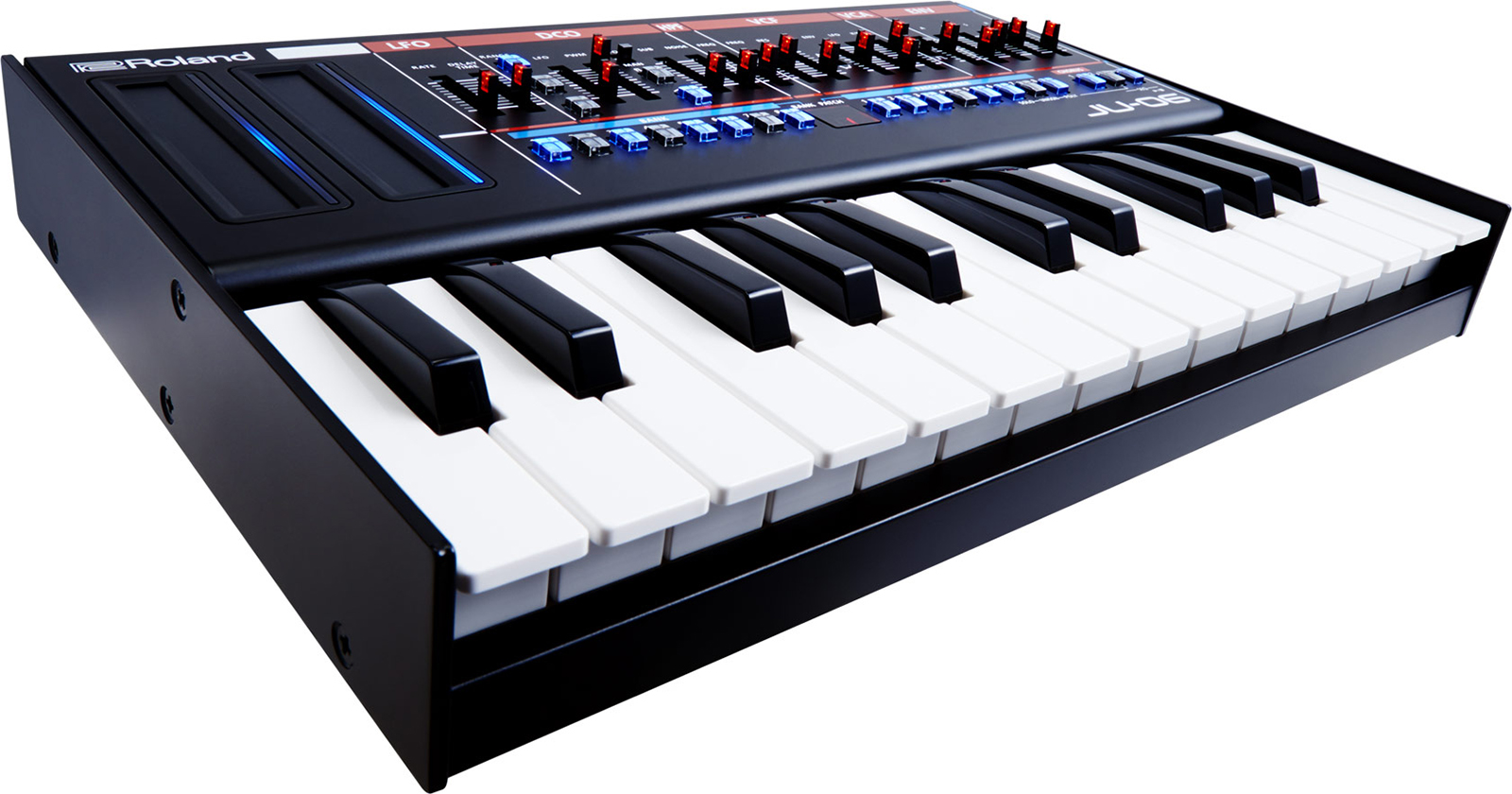

Keyboard unit: K-25m
SIZE AND WEIGHT
Width
300 mm
11-13/16 inches
Depth
128 mm
5-1/16 inches
Height
45 mm
1-3/4 inches
Weight
940 g
2 lbs 2 oz
