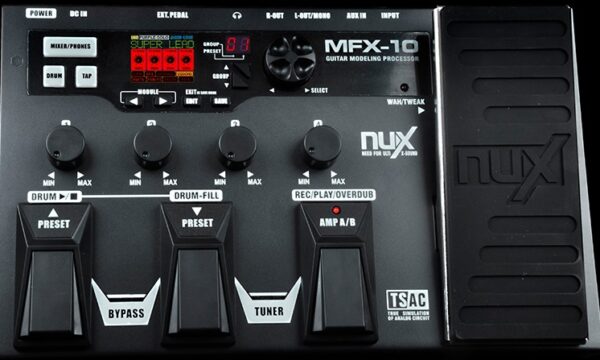

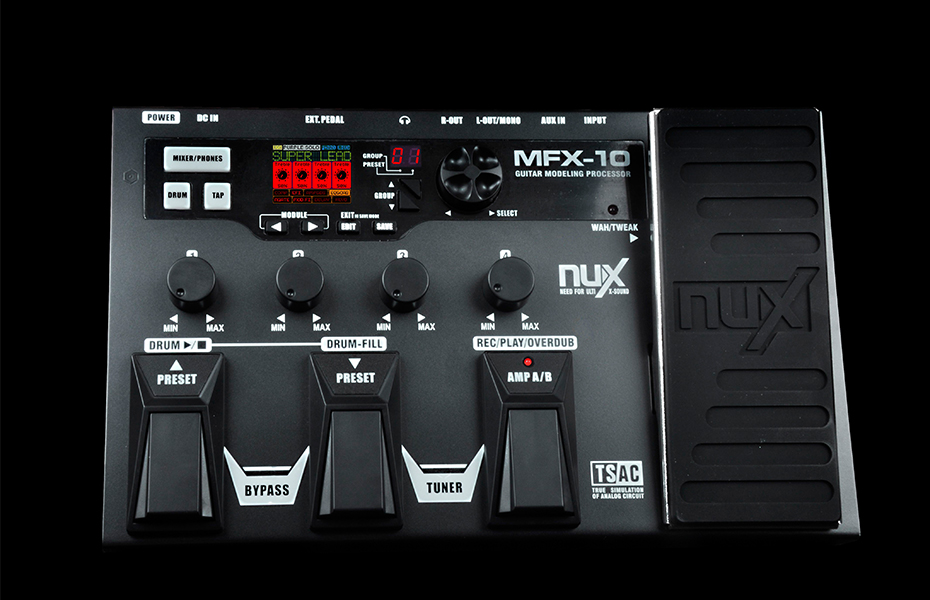

Nux MFX-10 Multi Effects Processor

Effects types
55
Effect modules
Max. 8 simultaneous modules
Preset memory
User settings
4Preset (A-D) x 9 (1-9) groups = 36
Factory setting
4 Preset (A-D) x 9 (1-9) groups = 36
Total 72 presets (up to 144 presets with AMP A/B switch)
Sampling Frequency
44.1kHz
AD/DA converter
24bit
Signal processing
32bit
Frequency response
20Hz-20,000Hz ±1dB
THD+N
< 0.01%
Display
160 x 128 TFT LCD
Jacks
INPUT, LEFT(MONO), RIGHT, HEADPHONES, AUX IN, EXT.PEDAL, DC IN.
Input
-10dBv @ 1MΩ
Output
-10dBv (Output load impedance of 10kΩ or more)
AUX In
-10dBV @ 10k or more
Headphones
20mW + 20mW (into 32Ω load)
Power
9V DC, 500mA, ACD-007A (Negative pin)
Dimensions
330(L) × 202(W) × 72(H)mm
Weight
2.65kg
Accessories
Owner’s Manual, Power Adaptor
