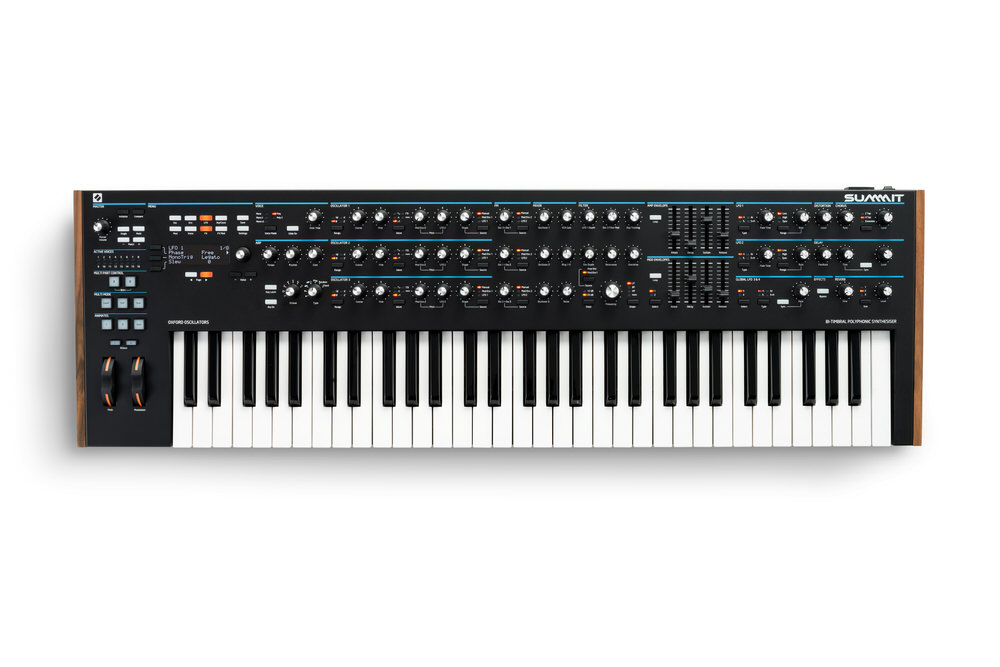

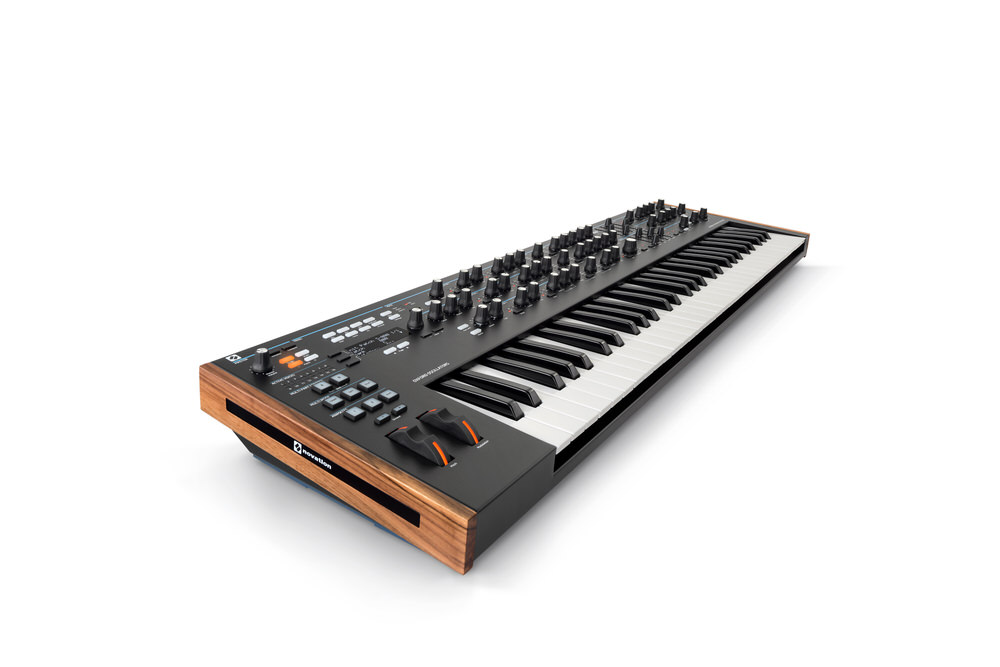

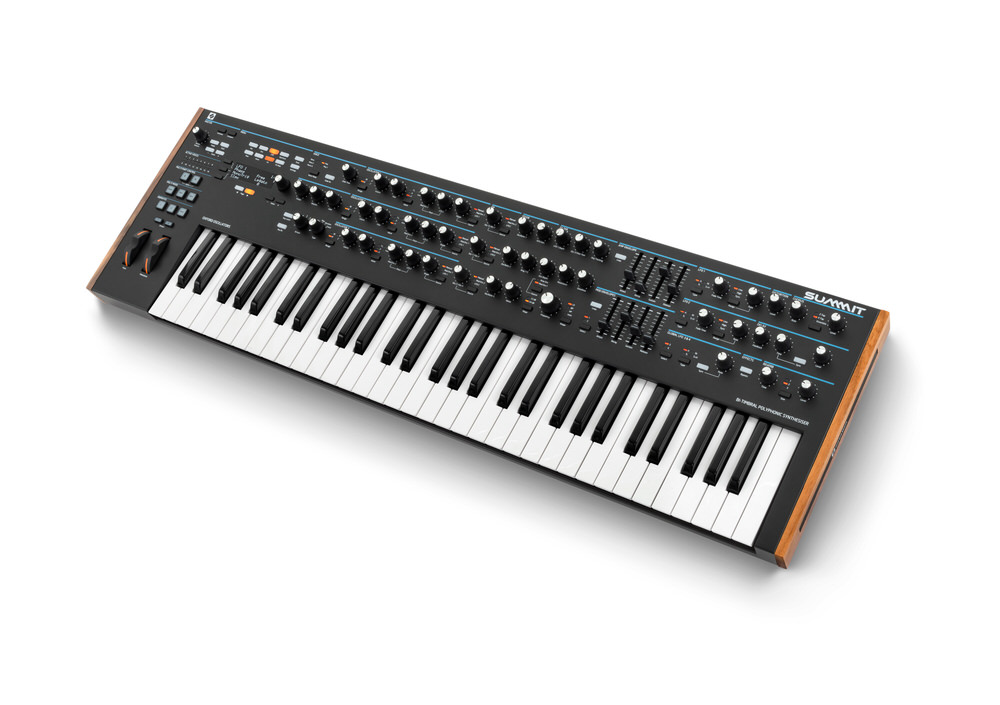

Novation Summit 16 Voice Polyphonic Synth

Technical Specifications
### Synth Engine
   * 16 note polyphony (dependent on voices used per note)
   * 2-part-timbral
   * Layered, Split, Dual Bi-Timbral Modes
   * 5 Voice Modes - Mono, MonoLG, Mono2, Poly, Poly2

#### Per voice
   * 3 oscillators
   * 1 noise generator with HP filter control
   * 1 ring modulator
   * 2 LFOs
   * 1 amp envelope and 2 mod envelopes (ADHSR + looping)
   * 1 filter

#### Waveforms include:
   * Sine, tri, sawtooth, square / pulse, plus 43 wavetables of 5 waveforms per row

#### Filter
   * 1 state variable OTA filter per voice
   * 12/24dB slope
   * Low-pass / band-pass / high-pass / dual filter (separation of each 12dB filters)
   * dual filter: LP > HP, LP > BP, HP > BP, LP + HP, LP + BP, HP + BP, LP + LP, BP + BP, and HP + HP
   * Pre-filter overdrive
   * Post-filter distortion

#### Modulation
   * 16 modulation slots per patch
   * 2 sources per destination per slot

#### Mod sources
   * Direct (depth)
   * Modulation wheel
   * Aftertouch (polyphonic and channel AT)
   * Expression pedal 1
   * Expression pedal 2
   * Keyboard velocity
   * LFO1 positive
   * LFO1 bi-polar
   * LFO2 positive
   * LFO2 bi-polar
   * Amp envelope
   * Mod envelope 1
   * Mod envelope 2
   * Animate 1
   * Animate 2
   * CV mod input bi-polar
   * Bend Up
   * Bend Down

#### Mod destinations
   * Oscillator 1-3 frequency, v-sync level, shape amount and level
   * Noise source level
   * Ring modulator output level
   * Overall synth output level
   * Filter drive, distortion, cut-off frequency and resonance
   * LFO 1 and 2 frequency
   * Amp env / mod env 1 / mod env 2 attack, decay and release
   * FM Osc 1 -> osc 2, osc 2 -> osc 3, osc 3 -> osc 1 and noise -> osc 1
   * Osc 3 -> filter cutoff frequency
   * Noise -> filter cutoff frequency

#### Effects
   * FX are per part
   * Analogue distortion
   * 3 chorus types
   * Delay with 16 types of delay sync, LP and HP damping, slew and stereo
   * 3 reverb types

#### FX Mod Matrix Source
   * Direct (depth)
   * Mod wheel
   * Aftertouch
   * Expression pedal 1
   * Expression/breath pedal 2
   * Velocity
   * Keyboard
   * LFO 1 +/-
   * LFO 2 +/-
   * LFO 3 +/-
   * LFO 4 +/-
   * Amp envelope
   * Mod envelope 1 & 2
   * Animate 1 & 2
   * CV +/-
   * Bendwheel +/-
   * Bend up
   * Bend down

#### FX Mod Matrix Destinations
   * Distortion level
   * Chorus level
   * Chorus rate
   * Chorus depth
   * Chorus feedback
   * Delay level
   * Delay time
   * Delay feedback
   * Reverb level
   * Reverb time
   * Reverb low pass
   * Reverb high pass

#### Misc
   * FM controls on front panel
   * Global LFO 3 & 4
   * Arpeggiator with key latch – 33 patterns
   * Patch storage - up to 512 on hardware (ships with 256 factory patches)
   * Glide control
   * All knobs (excl. volume), sliders and most buttons transmit and receive MIDI cc commands for external control and mapping
   * Microtuning with Scala table import and table tuning creation
   * Manual mode
   * Multi pot mode: Relative, Pot pick-up, Snap

### Product Hardware Specifications
   * 50 control knobs
   * 8 45mm sliders
   * 1 volume knob
   * 1 data encoder knob
   * Rubberised knob caps with spun metal discs
   * 55 function buttons
   * 2 Animate buttons plus hold button
   * OLED display
   * Kensington Lock

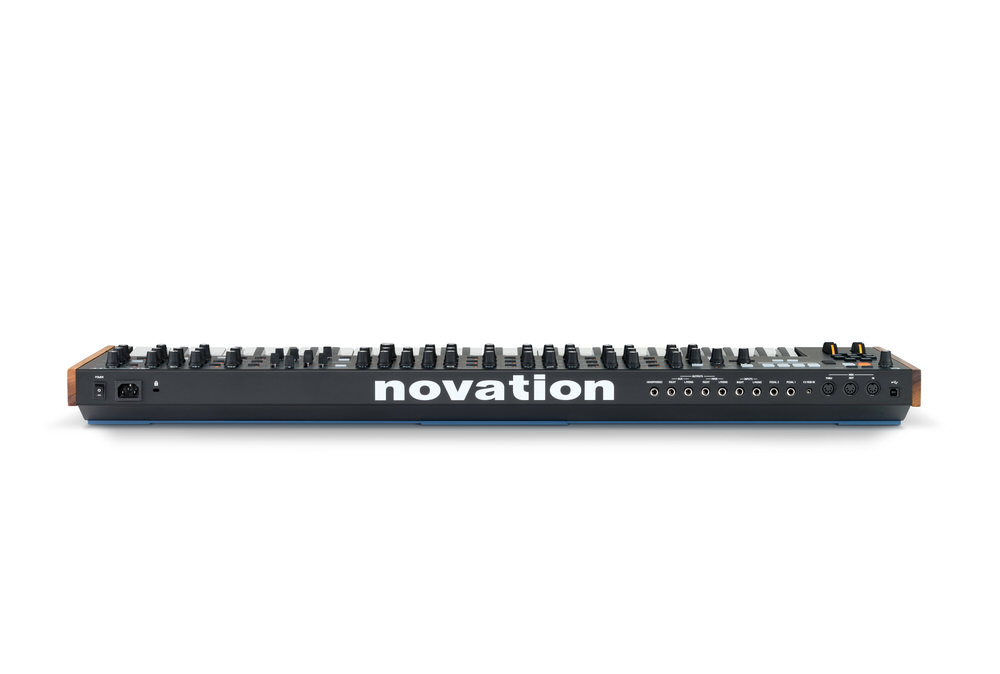

   * Power switch
   * IEC power supply connector
   * USB socket for system (MIDI comms only, no bus power)
   * MIDI In / Out / Thru
   * 2 1/4" jack sockets for continuous or switched pedals
   * 1 3.5mm jack socket for CV in
   * 2 1/4" jack sockets for left and right outputs
   * 2 1/4" jack sockets for left and right auxiliary outputs
   * 2 1/4" jack sockets for left and right inputs
   * 2 1/4" jack socket for headphone output
   * Metal chassis with American walnut wooden end cheeks
   * Metal magnetic inset end pieces

### Software Compatibility

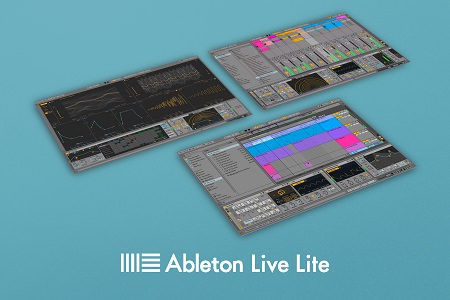

   * Ableton Live Lite is included
   * Summit is a USB-MIDI class compliant device

### Product Dimensions
   * 998.4mm width x 302.4mm depth x 71mm  height
