Novation SL49MK3 Midi Controller

Technical Specifications

## Technical Specifications - Novation 49SL MkIII
### Product Hardware Specifications
• 49 note velocity sensitive, individually sprung, synth style, semi-weighted keyboard
• 16 full-colour RGB backlit velocity sensitive drum pads
• 2 Page and 2 scene launch buttons
• 8 continuous rotary knobs
• 8 sliders
• 6 dedicated transport controls
• RGB backlit pitch bend and modulation wheels
• 2 octave / transpose buttons
• 2 Track buttons
• 5x RGB TFT LCD screens
• 59 Backlit buttons with tact switches
• 61 RGB LEDs plus 49 or 61 keybed RGB LEDs
• 16 Assignable buttons x 2 pages (32 assignable buttons)
• Assignable grid x 2 pages | (32 assignable pads)
• Backlit RGB Mode switching buttons including InControl

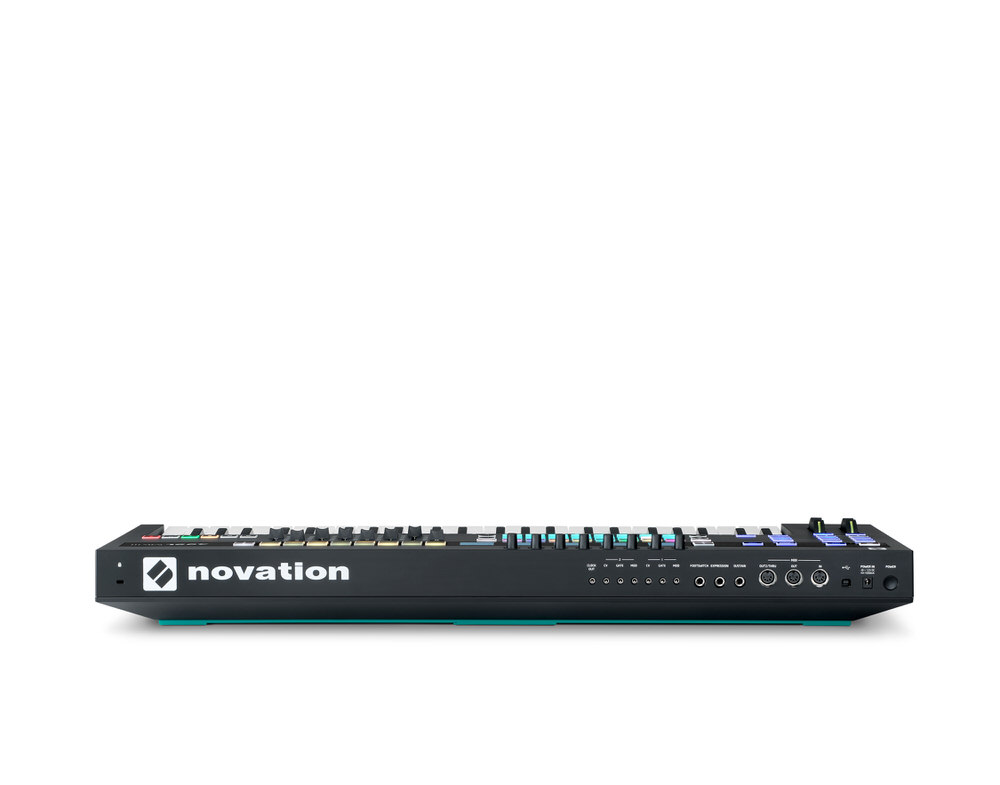

#### Rear Panel & Connectors
• Power switch
• DC power socket
• USB socket
• MIDI IN, OUT, OUT2 / THRU - 3x 5-pin DIN sockets
• Sustain and Expression pedal 1/4" TRS jack inputs
• Footswitch pedal 1/4" TS jack input
• CV, Gate, Modulation -1- on 3.5mm jack sockets
• CV, Gate, Modulation -2- on 3.5mm jack sockets
• Clock out
• Kensington security slot
### Sequencer
• 64 Sessions
• 8 Tracks per session
• 8 Patterns per track (16 steps per Pattern for a total of 128 steps per track)
• Real time record (notes, with velocity and automation)
• Auto-quantise notes to steps and automation to 8 events per step
• All assignable controls can be automated (8 maximum automation lanes)
• Internal tempo range 40 - 240
• External synced tempo range 30 - 300
• Swing 20 - 80%
### Real Time Performance
• 22 Scale types and chromatic transposition
• Pattern expand view - flip the grid
• Pattern start and end, direction incl. random
• Configurable pattern chain
• Session instant switching and queued switch
### Editing
• Velocity and gate per step
• Multiple gate lengths per step (via real time record)
• Automation edit per step
• Clear step, automation parameter per pattern, pattern, session
• Duplicate step, pattern
### Software Compatibility
• Ableton Live Lite included
### Power Requirements
• Maximum power consumption 12V DC 1000mA
• Power supply included (This product cannot be powered from USB)
### Product Dimensions
• 49SL MkIII: <817mm length x 300mm depth x 100mm height>
<Note: Maximum power consumption is required to be screened onto the product next to the power jack and must be consumption and not the specification for the power supply. Format is to the nearest 100mA. Up to 900 write in mA, above 1000 write 1.1A, 1.2A etc. >
