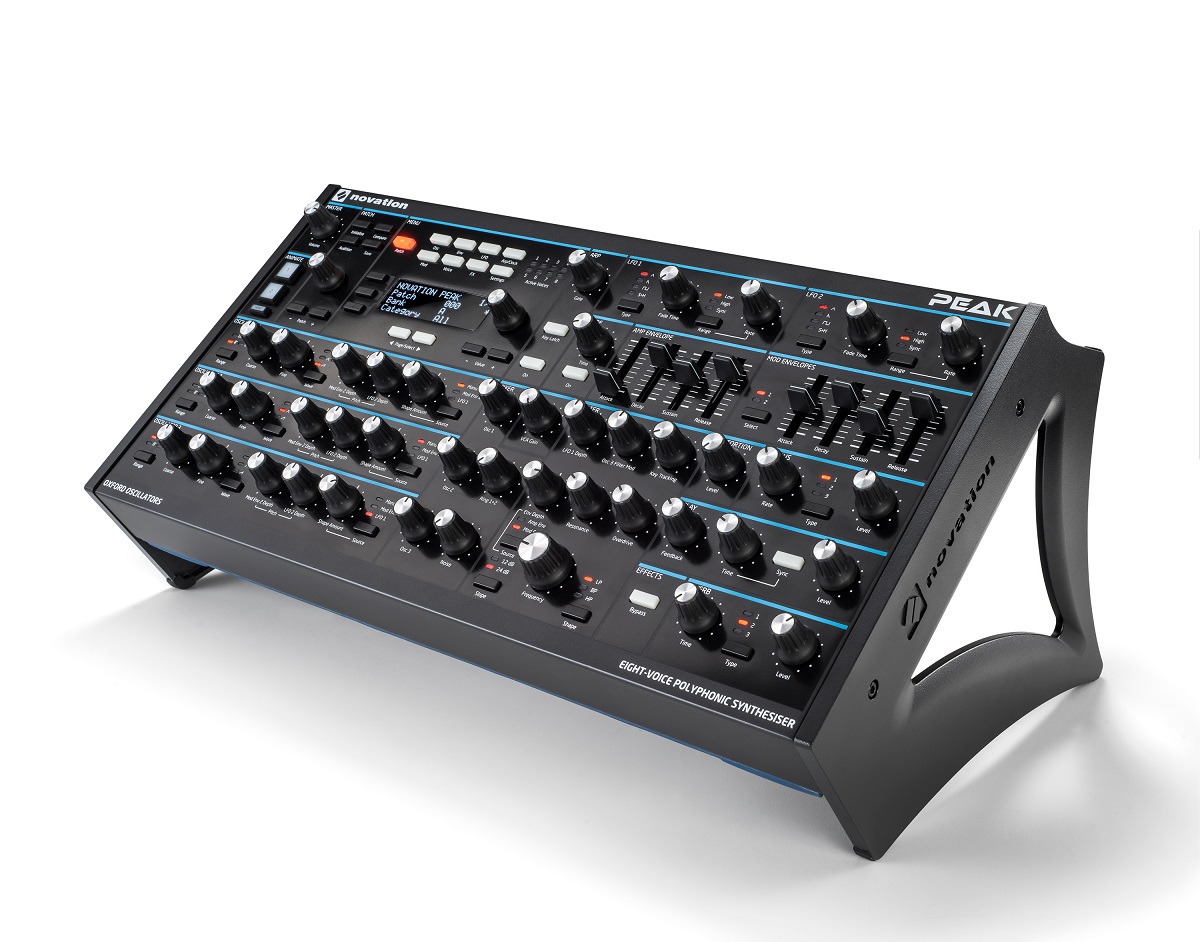

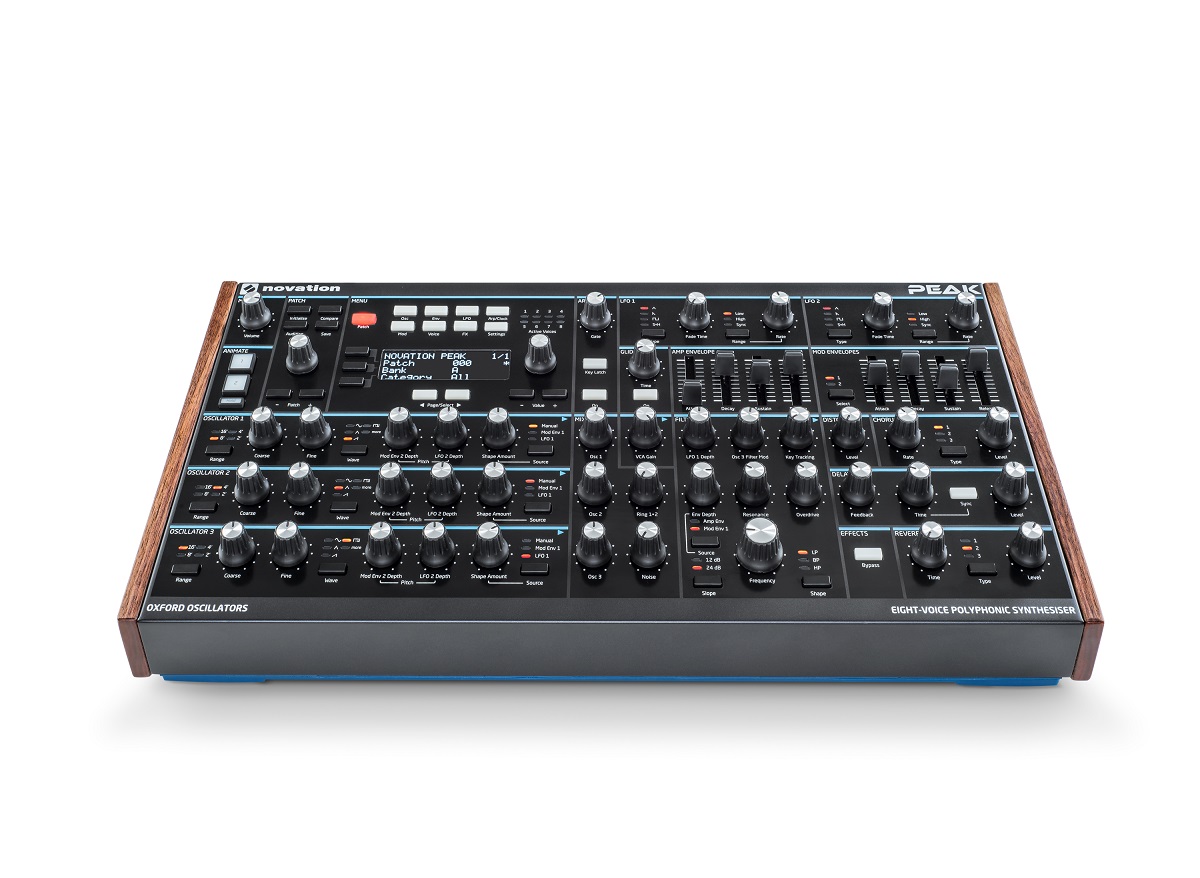

Novation Peak 3 Oscillator 8 Voice Synthesiser

Product Hardware Specifications

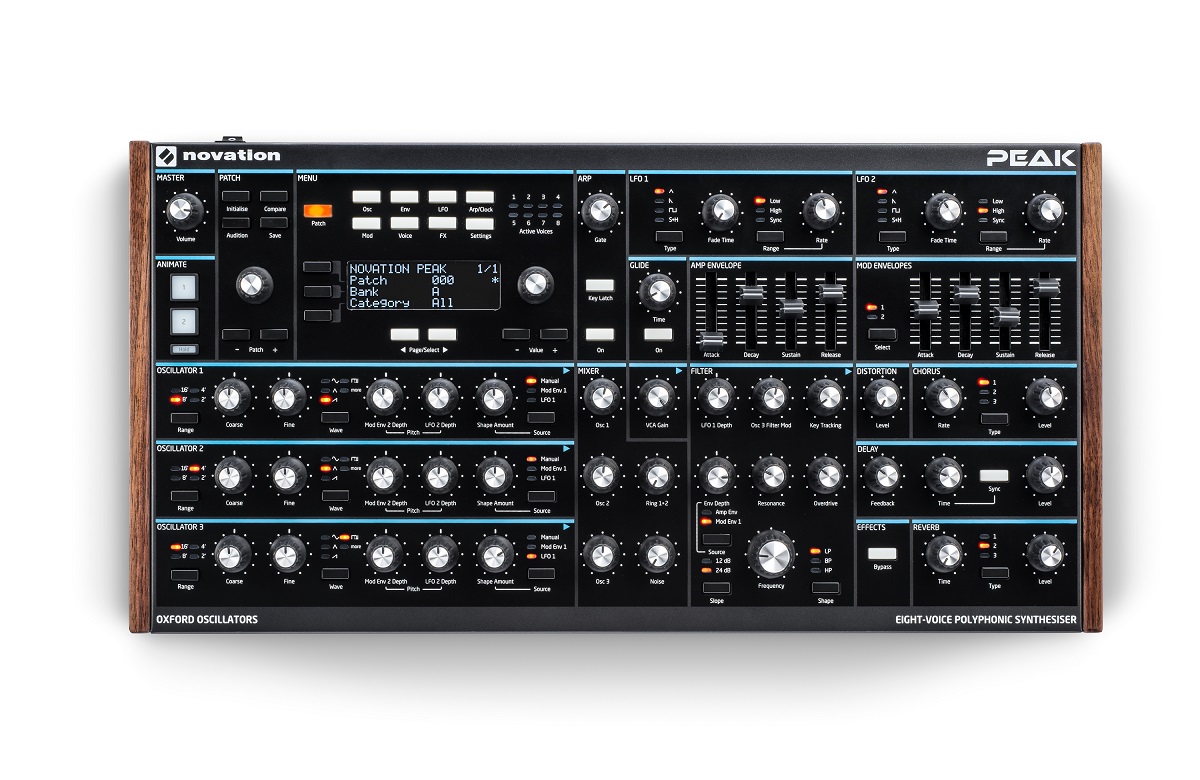

 42 Control knobs
 8 35mm Sliders
 1 Volume knob
 2 Data encoders
 Rubberised knob caps with spun metal discs
 30 Function buttons (not lit)
 16 Function buttons (lit)
 2 Animate buttons plus hold button
 90 Indicator LEDs
 OLED display

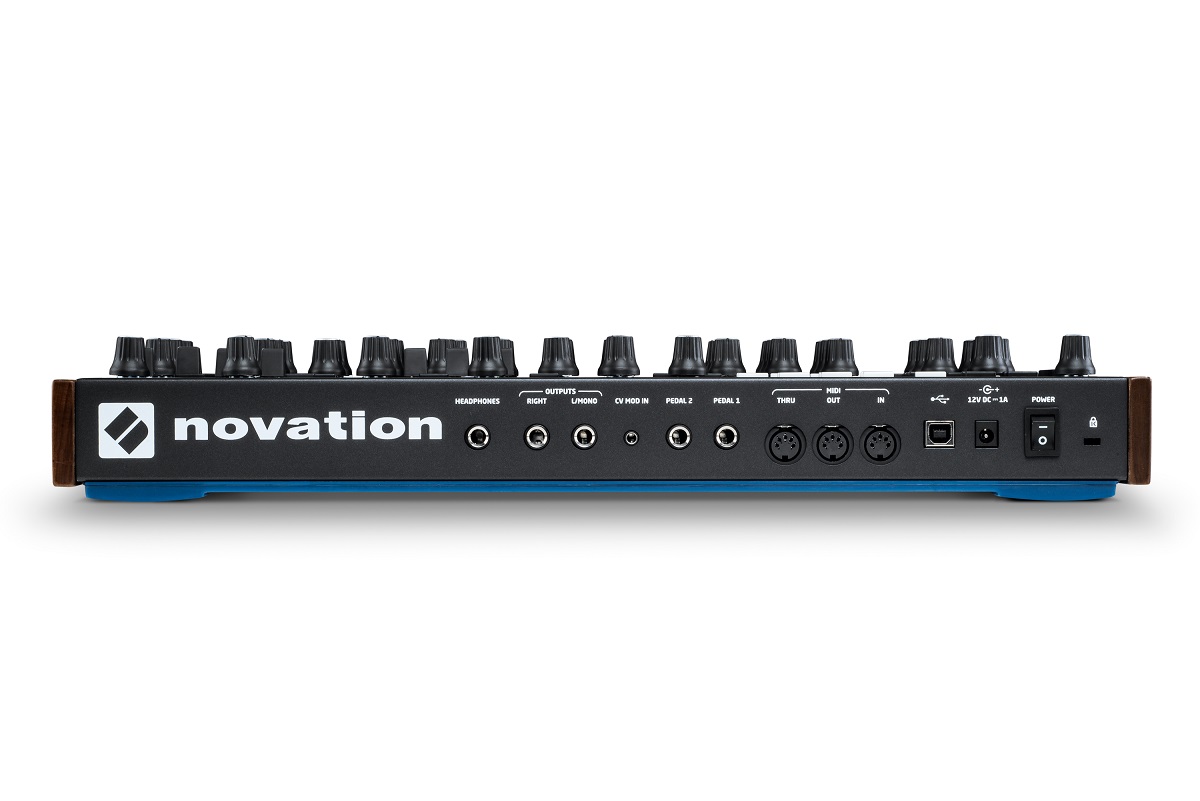

 Kensington Security Slot
 Power switch
 Power supply connector
 USB socket for system / MIDI comms only (no bus-power)
 MIDI In / Out / Thru
 2 1/4" jack socket for continuous or switched pedals
 3.5mm jack socket for CV in
 1/4" jack sockets for left and right outputs
 1/4" jack socket for headphone output
 Metal chassis with American walnut wooden end cheeks
 Metal magnetic inset end pieces
Synth Engine
 8 voice polyphonic (voice modes available unison etc.)
 Mono-Timbral
 5 Voice Modes - Mono, MonoLG, Mono2, Poly, Poly2
Per voice
 3 oscillators
 1 noise generator
 1 ring modulator
 2 LFOs
 1 Amp envelope and 2 mod envelopes
 1 Filter
Waveforms include:
 Sine, tri, sawtooth, square / pulse plus 17 wavetables of 5 waveforms per row
Filter
 1x State variable OTA filter per voice
 12/24dB slope
 Low-pass / band-pass / high-pass
 Pre-filter overdrive
 Post-filter distortion
