JTS UR-816PD| Guitar Wireless Pedalboard System
€149.00

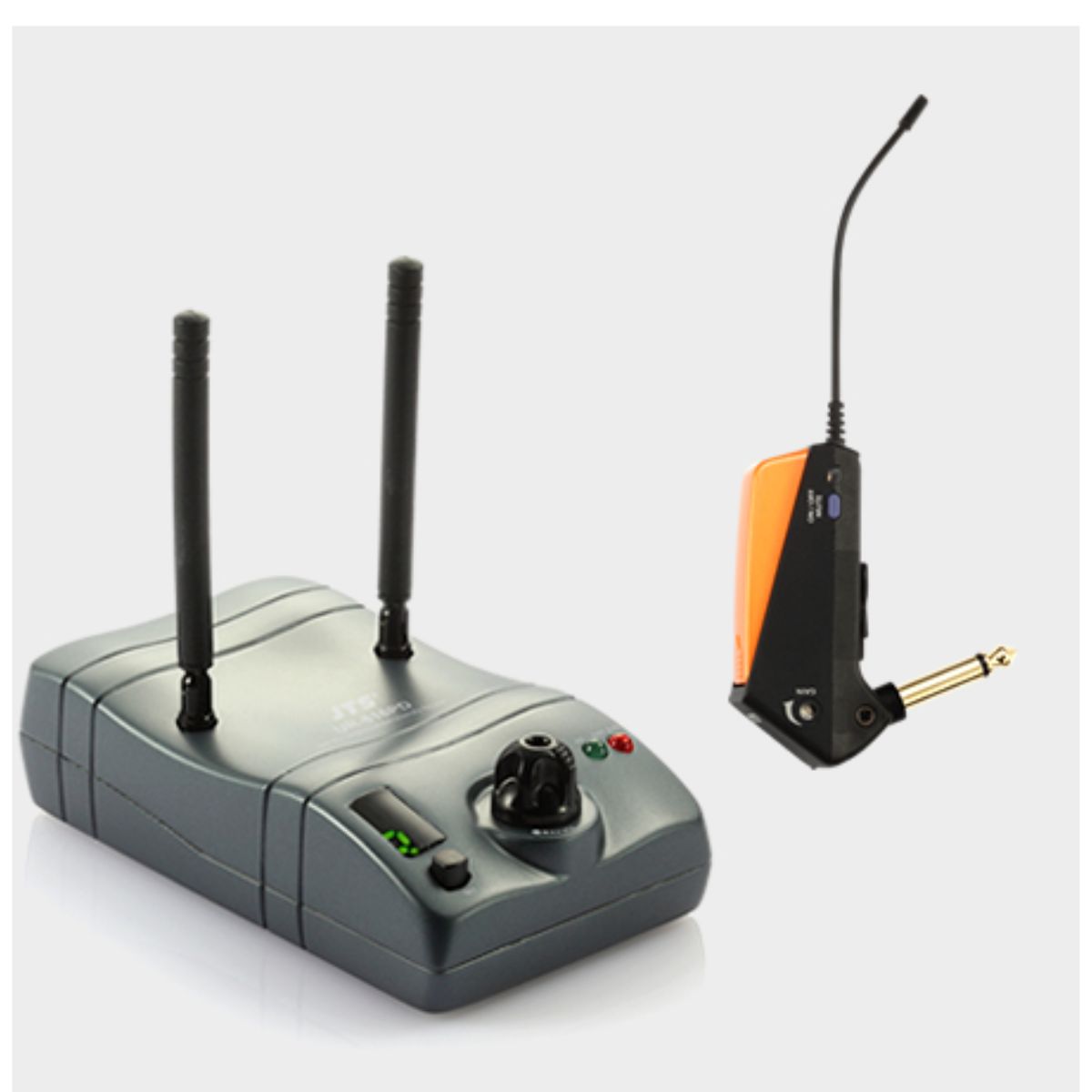

This JTS Wireless Pedal Board system includes the UR-816PD pedalboard receiver and UT-16GT guitar plug transmitter.
1 in stock
JTS UR-816PD| Guitar Wireless Pedalboard System
Our Code: 06BJTS-UR-816PD
Description
This JTS Wireless Pedal Board system includes the UR-816PD pedalboard receiver and UT-16GT guitar plug transmitter.
This system operates in the 638-674 MHz. To check if these frequencies operates best in your area please use the ACMA Channel Finder at.
With 16 selectable UHF channels, this system will transmit for up to 60 metres depending on the conditions.
Features
UR-816PD
Preset 16 selectable UHF channels.
* Single transmitter operation.
* Diversity technology prevents dropouts in the RF link.
* PLL synthesized technology.
* Noise mute and pilot tone squelch.
* Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
* Tuned antennas maximize the effective range of the wireless link.
* Compact space design.
UT-16GTP :
* Sub miniature guitar transmitter with patent pending design.
* UHF PLL 16 preset selectable channels.
* Powered by one AAA battery for over 8 working hours.
* Over 60 meters of stable operation distance.
* High signal to noise ratio.
* Standby function provided for stable wireless link.
* Provide great convenience to guitar player.
|
UR816PD Frequency Preparation |
PLL Synthesized Control |
|
Carrier Frequency Range |
502~960 MHz |
|
S/N Ratio |
>105dB |
|
T.H.D. |
<0.6%@1KHz |
|
Display |
LED |
|
Display Contents |
Antenna A/B, RF/AF Status |
|
Controls |
Power On/Off, Channel Selecting, Audio Level |
|
Audio Output Level |
-12dB |
|
AF Output Impedance |
600Ω |
|
Squelch. |
Pilot Tone, Noise and Mute |
|
Operation Voltage |
9-15 VDC, 200mA |
|
Output Connector |
1 Unbalanced Ø6.3mm phone jack |
|
Dimension(m/m |
124mm (W)* 33mm (H)* 73mm (D) |
UT 16GTP
|
Frequency Preparation |
PLL Synthesized Control |
|
Carrier Frequency Range |
502~960 MHz |
|
RF Outputs |
Maximum 10mW |
|
Stability |
±10KHz |
|
Frequency Deviation |
±48KHz |
|
LED Display |
Power On/Off, Low battery |
|
Controls |
Power On/Off, AF Level, Channel Selecting, Mute |
|
Spurious Emissions |
<-50 dBC |
|
Audio Frequency Response |
40~18,000 Hz |
|
Battery |
LR03, AAA 1.5V |
