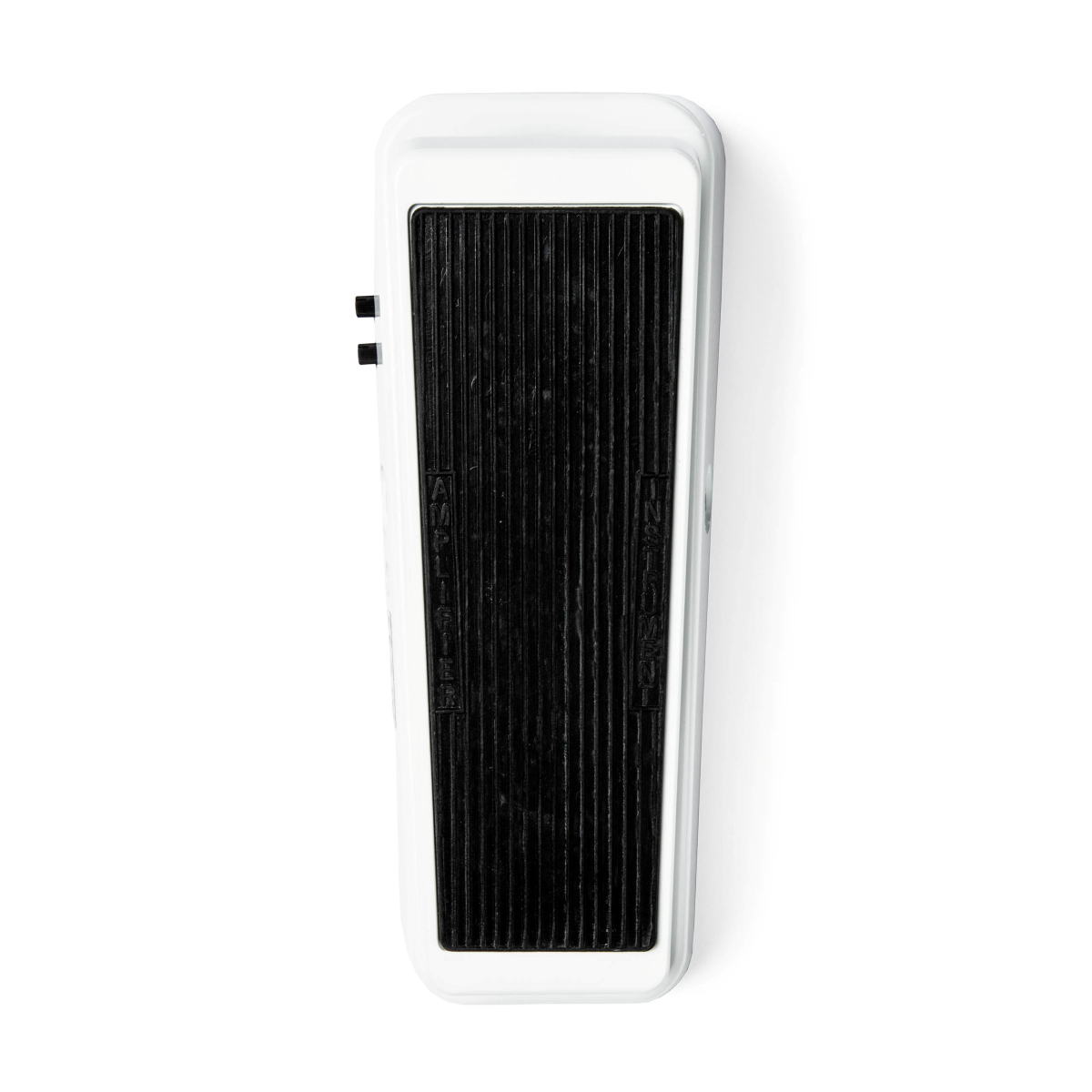

Dunlop 105Q Crybaby Bass Mini Wah



CBM105Q CRY BABY® BASS MINI WAH

POWER The CBM105Q Cry Baby Bass Mini Wah is powered by one 9-volt battery (remove bottom plate to install), an AC adapter such as the Dunlop ECB003/ECB003EU, or the DC Brick™ and Iso-Brick™ power supplies. CONTROLS • VOL knob controls effect volume • Q knob adjusts frequency width of wah effect • Silent auto-return switching puts pedal into bypass mode when you take your foot off rocker • AUTO-RETURN DELAY control (internal) sets how long effect

SETUP INSTRUCTIONS •

Run an instrument cable from your guitar to the CBM105Q’s INSTRUMENT jack and another cable from the CBM105Q’s AMPLIFIER jack into your amplifier’s input.

• Set VOL and Q controls to their middle positions.

• The CBM105Q is bypassed (off) while your foot is off the pedal. To engage the wah effect, simply press the toe of the pedal down with your foot.

• Rock your foot back and forth on the pedal to hear the vocal, expressive tones that the Cry Baby Wah is famous for. Q CONTROL adjusts wah frequency width filter intensity

• Rotate Q control clockwise for a narrower frequency range and a more vocal sound; rotate counterclockwise for a more subtle wah filter effect.

• Rotate VOL control clockwise to increase effect volume or counterclockwise to decrease it.

• To increase effect ring-out time, remove bottom plate and rotate AUTO-RETURN DELAY pot counterclockwise (set to 12 o’clock by default). To decrease effect ring out time,

SPECIFICATIONS

 Impedance

Input 1 MΩ

Output 1 kΩ

Resonant Frequency

Heel Down 180 Hz

Toe Down 1800 Hz

Output Characteristics

Maximum Level +7.5 dBV

VOL Control (Volume) 0dB/-21 dB

Heel Down Gain* +22 dB / +8.5 dB

Toe Down Gain** +32 dB / +12.5 dB

Bypass

Automatic Buffered

Delay** 35ms to 550ms

Delay Factory Preset 290ms

Noise Floor***

Bypass -100 dBV

Heel Down (Effect On) -94 dB

Toe Down -87 dBV

Current Draw 6.7mA

*VOL full CW, Q ADJ full CW/CCW

**Internal Adjustment

***A-weighted, VOL and Q ADJ full CW, 0dBV = 1VRMS
