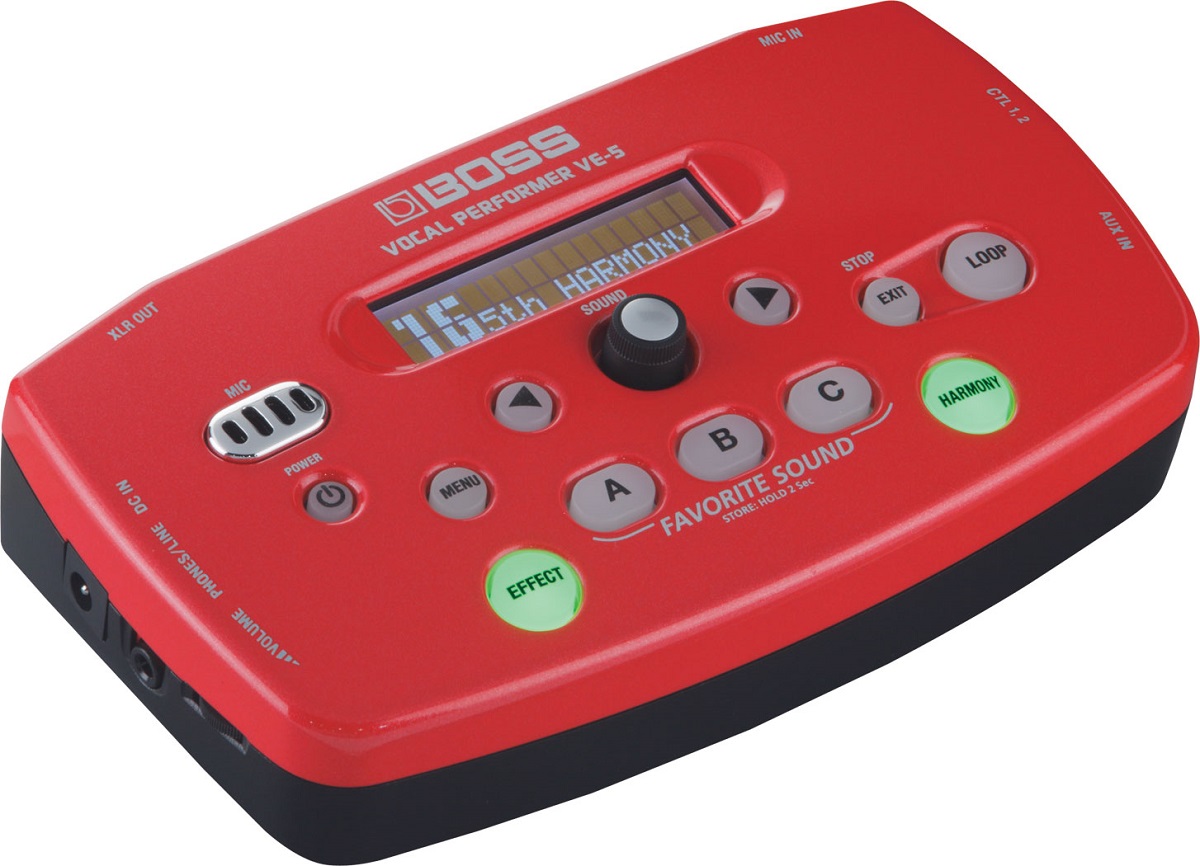

Boss VE-5 Vocal Performer Red

Nominal Input LevelMIC IN: -40 dBu (MicSens = 40)
AUX IN: -20 dBuInput ImpedanceMIC IN: 4 k ohms
AUX IN: 22 k ohmsNominal Output LevelXLR OUT: -40 dBu
PHONES/LINE: TBDOutput ImpedanceXLR OUT: 600 ohms
PHONES/LINE: 66 ohmsMemorySound: 50Effect TypesDYNAMICS, PITCH CORRECT, TONE/SFX, DOUBLE/HARMONY, DELAY, REVERBPhrase Loop38 sec. (Mono only)Display16 characters, 2 lines (backlit LCD)ConnectorsMIC IN jack/XLR type (balanced, phantom power: DC 48 V, 10 mA Max), 1/4 inch TRS phone type (balanced)
AUX IN jack (Stereo miniature phone type)
XLR OUT jack (XLR type)
PHONES/LINE jack (Stereo miniature phone type)
CTL 1, 2 Jack (1/4" TRS phone type)
DC IN Jack (DC 9 V)Power SupplyRechargeable Ni-MH Battery (AA, HR6) or Alkaline (AA, LR6) x 4, AC Adaptor (PSA series: sold separately)Current Draw190 mA (9 V max.)Expected battery life under continuous useRechargeable Ni-MH Battery (AA, HR6): Approx. 20 hours (phantom power: OFF)/Approx. 9 hours (phantom power: ON)
Alkaline (AA, LR6) : Approx. 13 hours (phantom power: OFF)/Approx. 6 hours (phantom power: ON)
* These figures will vary depending on the specifications of the batteries and the actual conditions of use.AccessoriesOwner’s Manual
Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information)

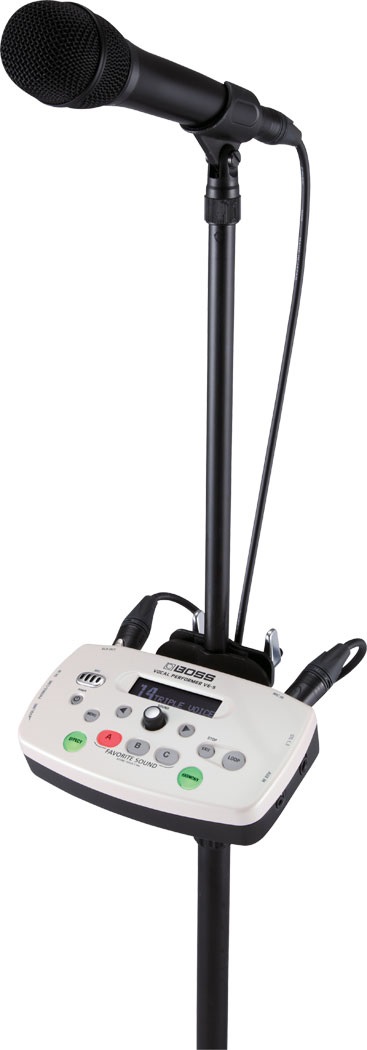

Mic Stand Holder (Screw x 2, Washer x 2, Spring Washer x 2)
Audio Cable (Stereo Miniature Phone Type, Cable Tie Attached)
Alkaline Battery (AA, LR6) x 4Options (sold separately)AC Adaptor (PSA series)
Footswitch (FS-5U, FS-6, FS-7)SIZE AND WEIGHT (INCLUDING BATTERIES)Width178 mm
7-1/16 inchesDepth108 mm
4-1/4 inchesHeight55 mm
2-3/16 inchesWeight460 g
1 lbs. 1 oz.SIZE AND WEIGHT （INCLUDING BATTERIES AND MIC STAND HOLDER）Width178 mm
7-1/16 inchesDepth159 mm
6-5/16 inchesHeight55 mm
2-3/16 inchesWeight700 g
1 lbs. 9 oz.
