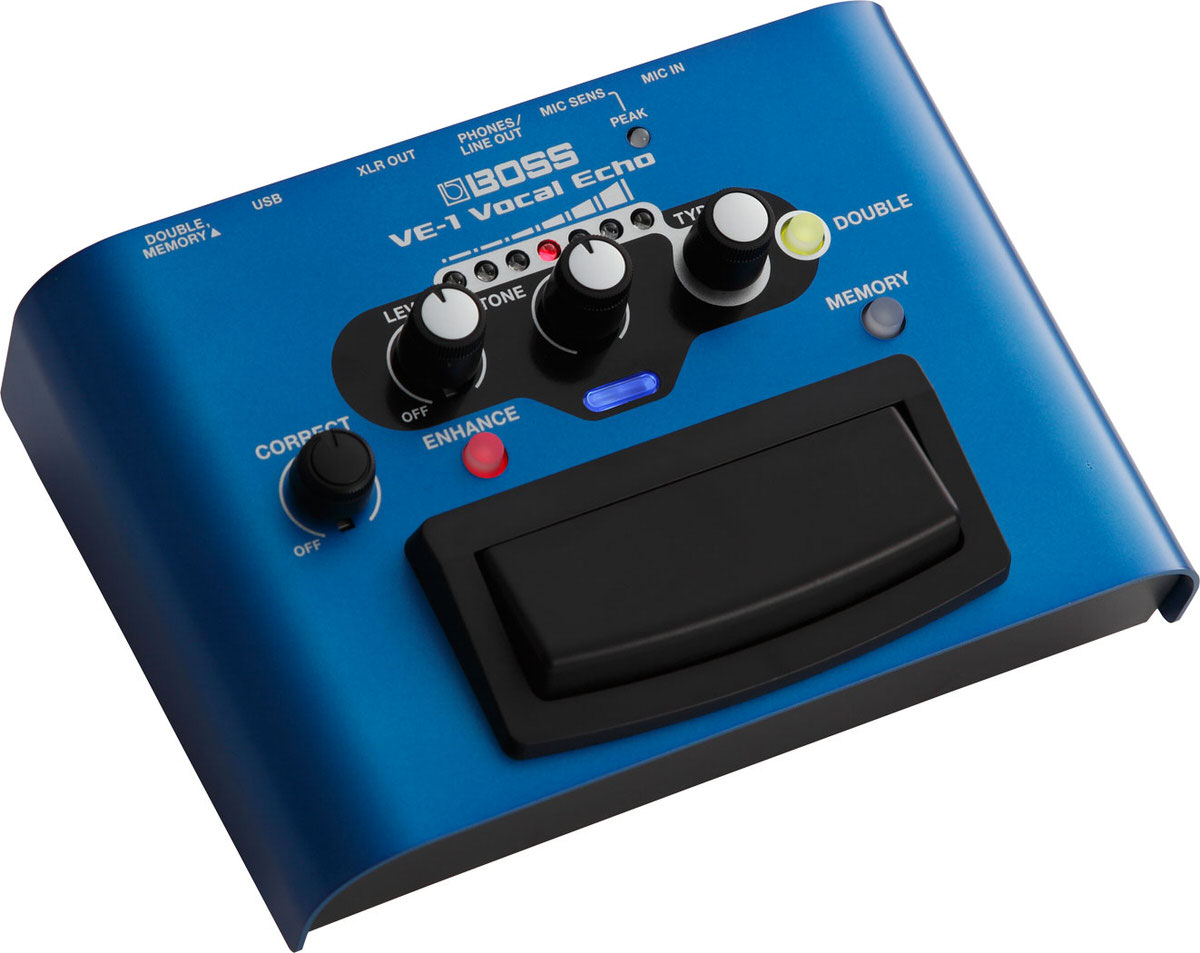

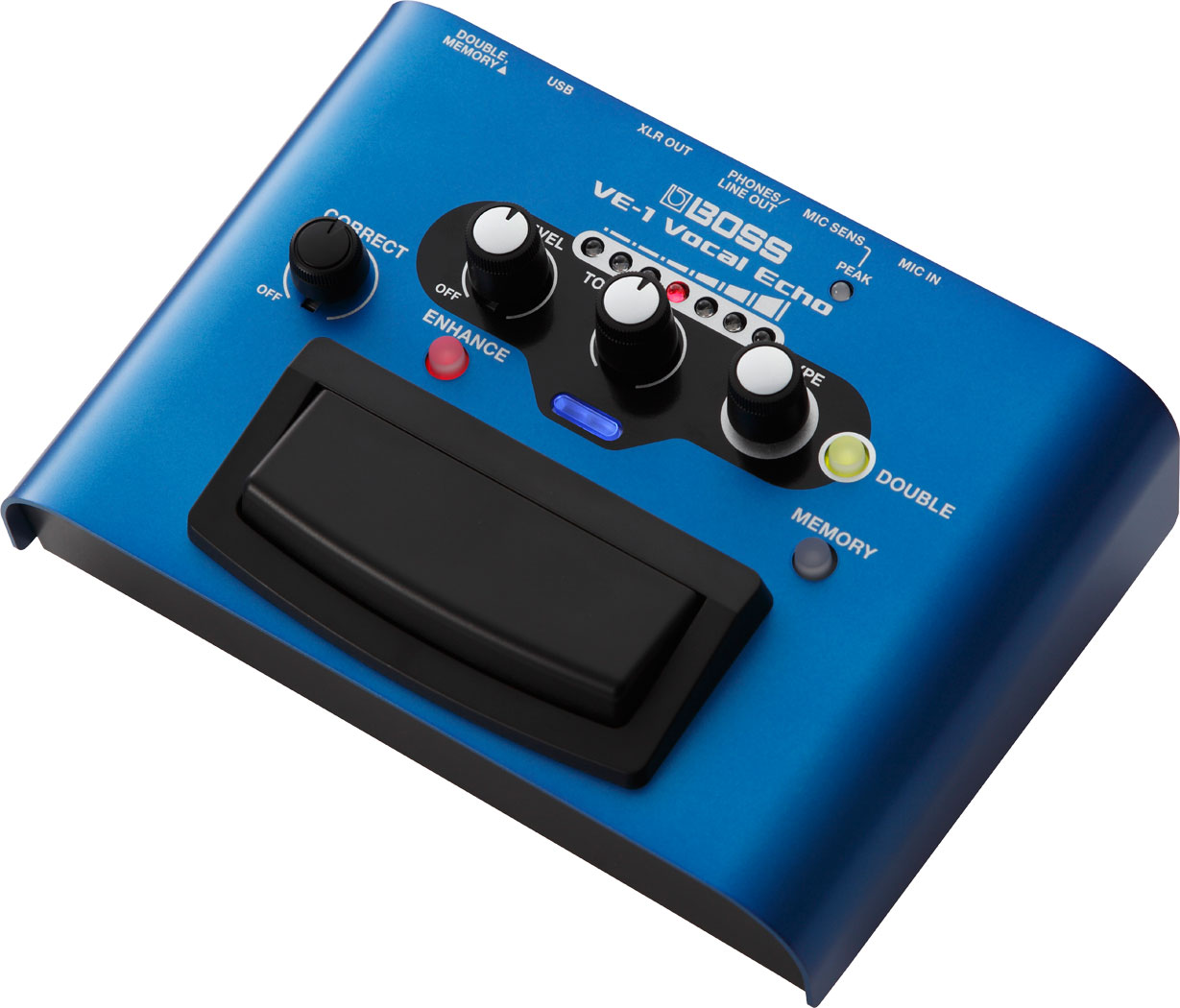

Boss VE-1 Vocal Echo

Nominal Input LevelMIC IN: -40 dBu (MicSens = Center)Input ImpedanceMIC IN: 4 k ohmsNominal Output LevelXLR OUT: -40 dBu
PHONES/LINE OUT: -20 dBuOutput ImpedanceXLR OUT: 600 ohms

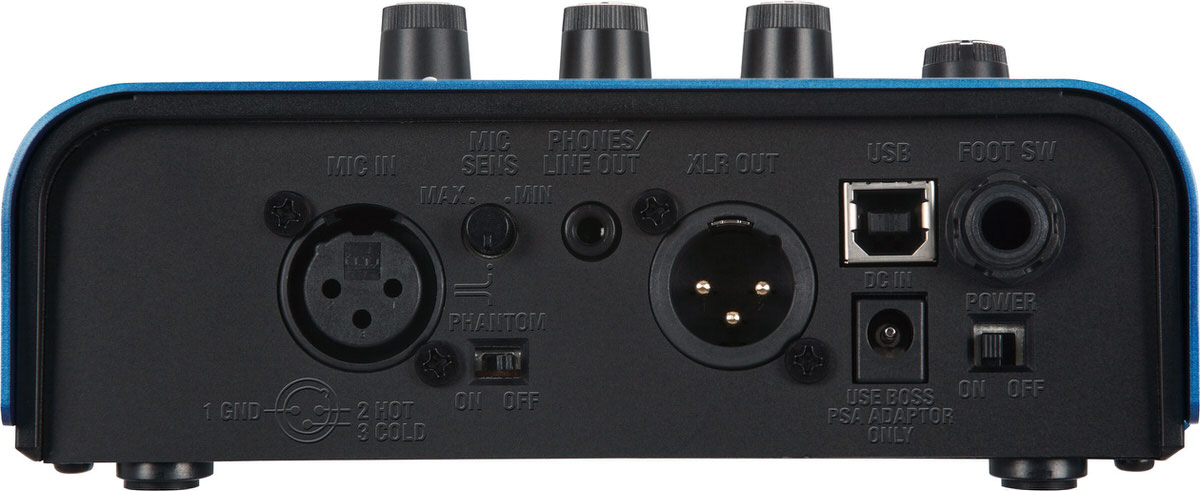

PHONES/LINE OUT: 33 ohmsEffect TypesECHO, DOUBLE, PITCH CORRECT, ENHANCENumber of Echo Types7Number of Memory3ConnectorsMIC IN jack: XLR type, balanced, phantom power (DC 48 V, 10 mA Max)
XLR OUT jack: XLR type
PHONES/LINE OUT jack: Stereo miniature phone type
FOOT SW jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B
DC IN jackPower SupplyRechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
AC Adaptor (sold separately)Current Draw200 mA Max. (9 V)Expected battery life under continuous useRechargeable Ni-MH battery (*1): Approx. 12 hours (phantom power: OFF), Approx. 8 hours (phantom power: ON)
Alkaline battery: Approx. 11 hours (phantom power: OFF), Approx. 7 hours (phantom power: ON)

*1 When using batteries having a capacity of 2,450 mAh.
* These figures will vary depending on the specifications of the batteries and the actual conditions of use.AccessoriesOwner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline Battery (AA, LR6) x 4Options (sold separately)AC Adaptor (PSA series)
Footswitch (FS-5U, FS-6, FS-7)
