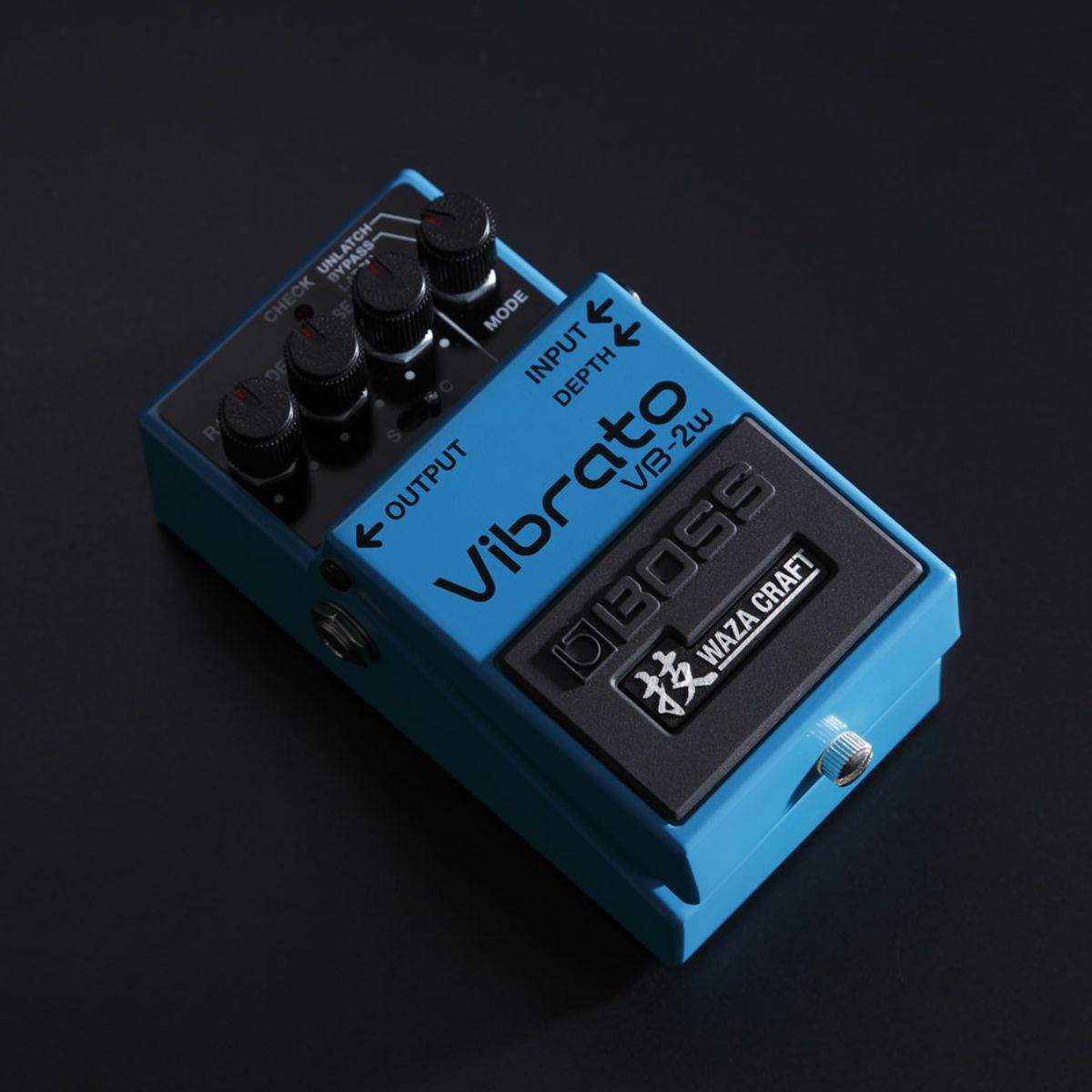

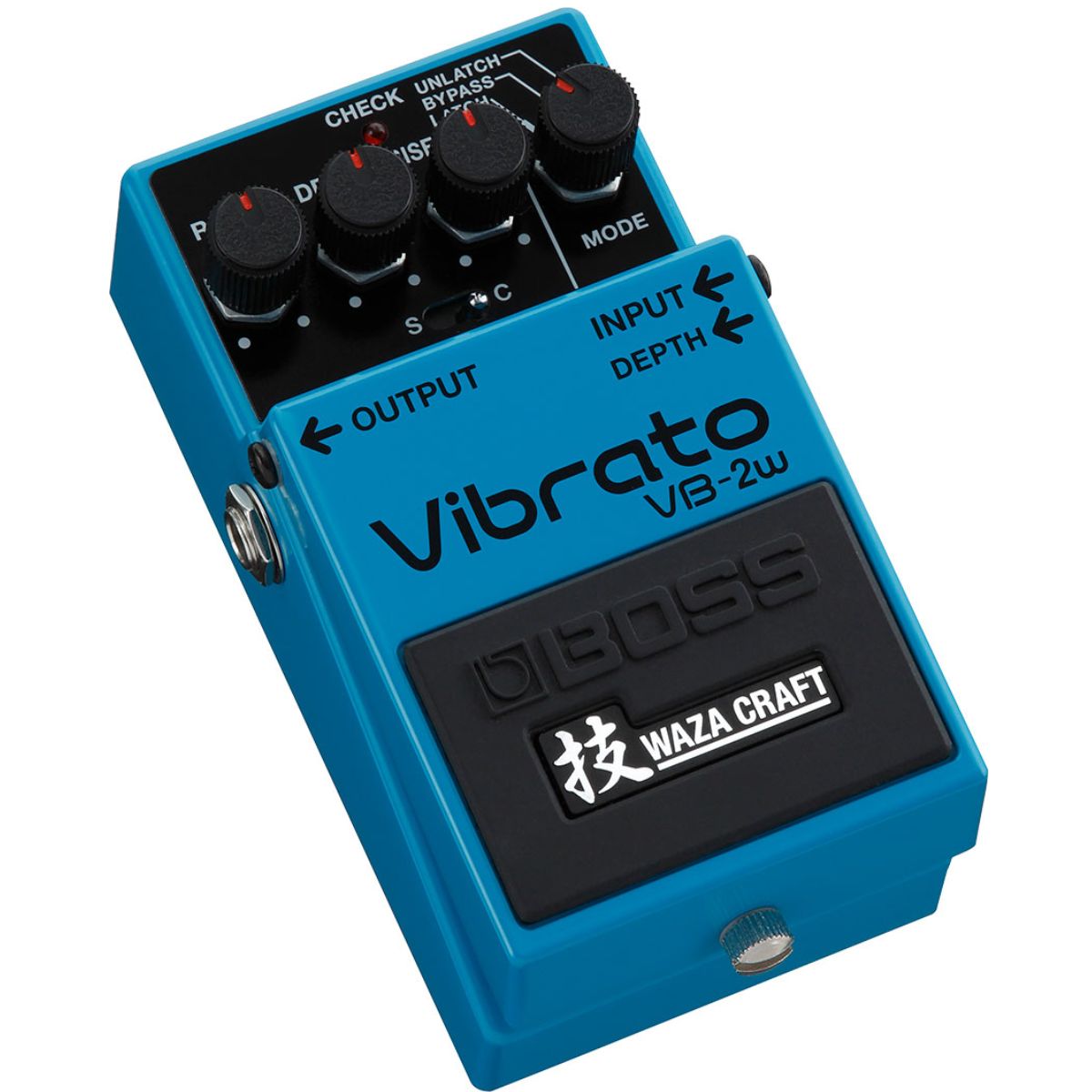

Boss VB-2 True Vibrato Expression | With Waza Innovation

Modes

3 modes
LATCH
UNLATCH
BYPASS

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Bypass

Buffered bypass

Controls

Pedal switch
Standard/Custom switch
RATE knob
DEPTH knob
RISE TIME knob
MODE knob

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack
OUTPUT jack
DEPTH jack
DC IN jack

Power Supply

Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately)

Current Draw

35 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)

Alkaline: Approx. 22 hours
Carbon: Approx. 4 hours

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)

Options (sold separately)

AC adaptor: PSA series
Expression Pedal: FV-500H, FV-500L, Roland EV-5

SIZE AND WEIGHT

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-3/8 inches

Weight (including battery)

450 g
1 lb

* 0 dBu = 0.775 Vrms
