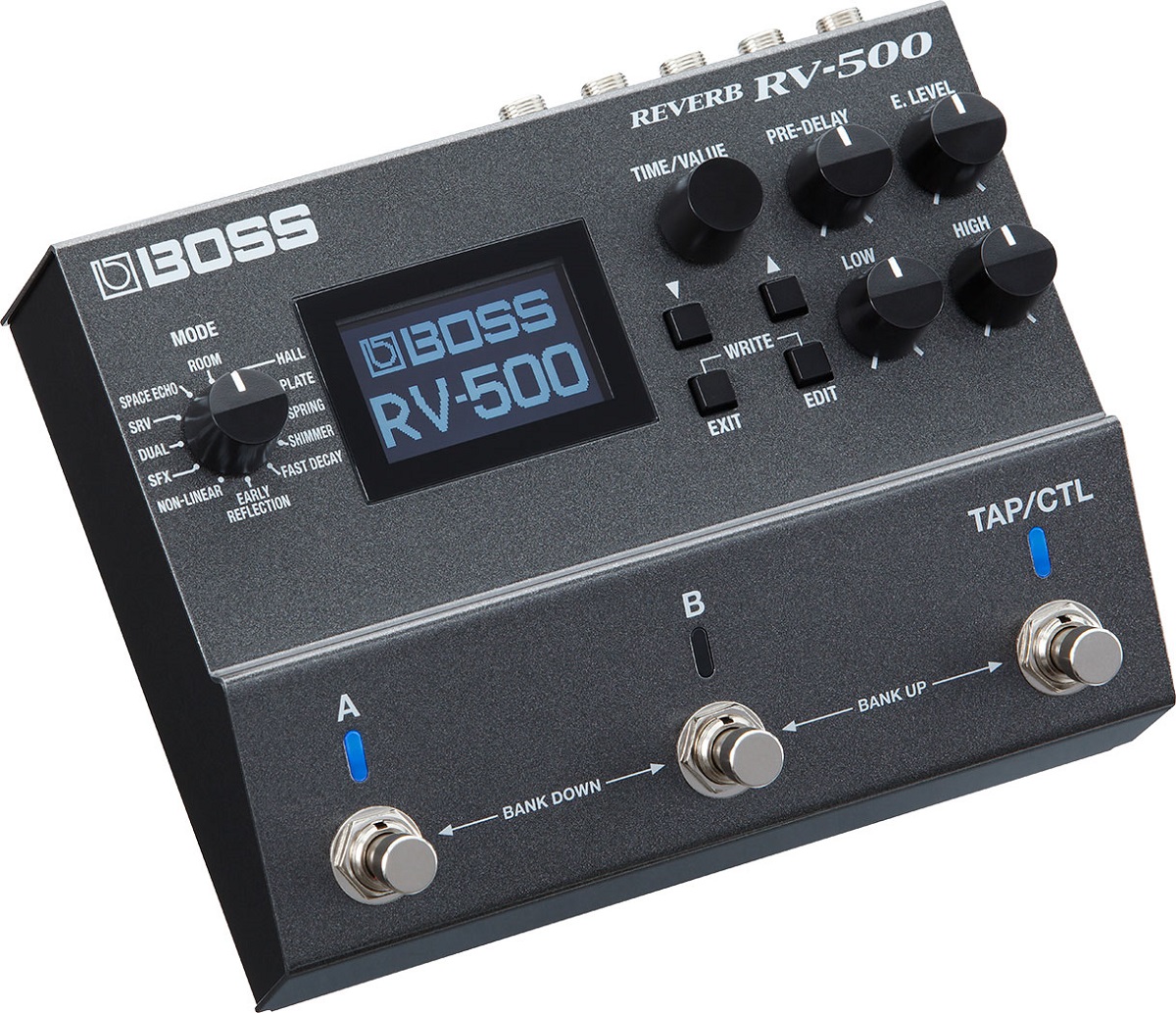

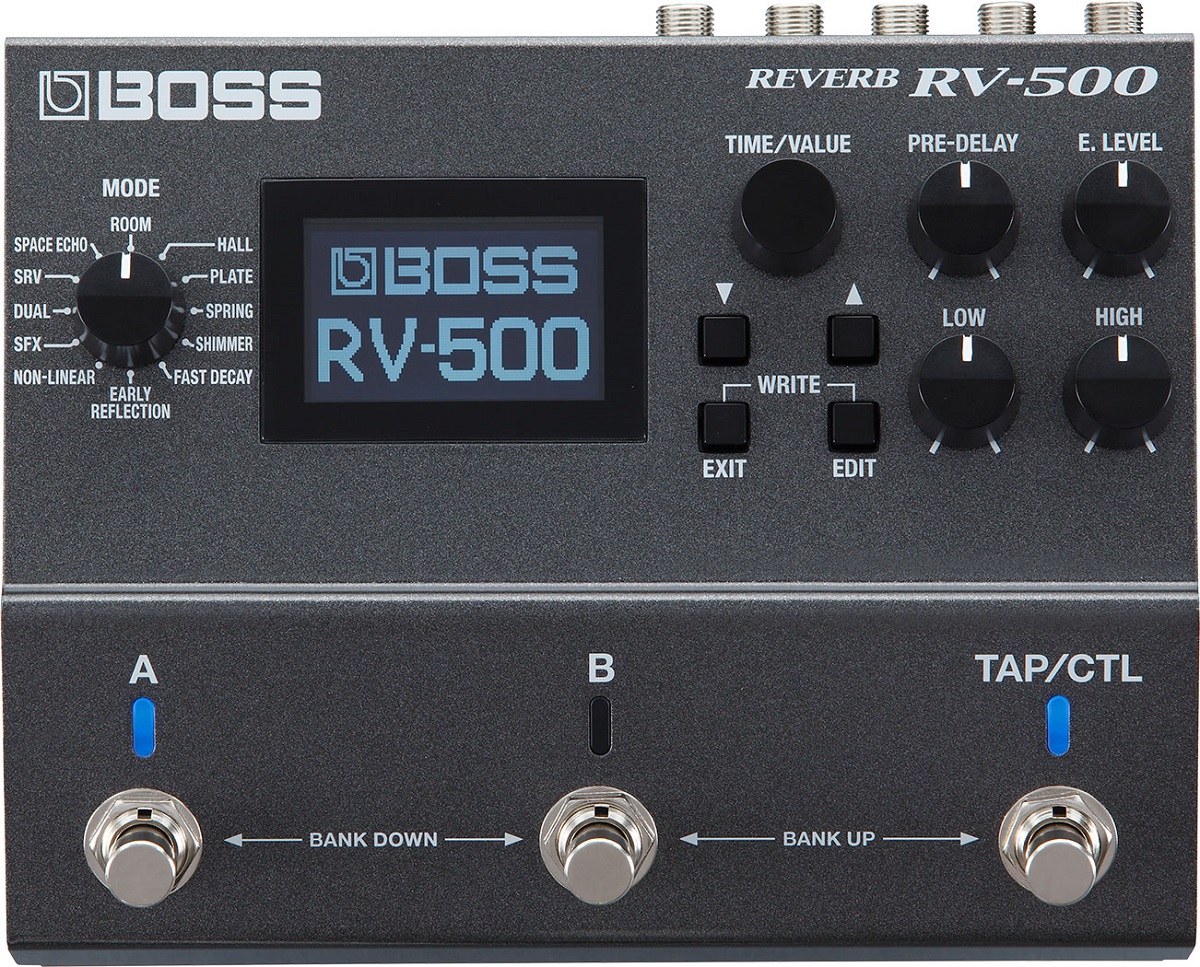

Boss RV500 Reverb Processor

Sampling Frequency96 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointModes12 modes
ROOM
HALL
PLATE
SPRING
SHIMMER
FAST DECAY
EARLY REFLECTION
NON-LINEAR
SFX
DUAL
SRV
SPACE ECHOMemory198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])Nominal Input LevelINPUT A/MONO, B: -10 dBuMaximum Input LevelINPUT A/MONO, B: +8 dBuInput ImpedanceINPUT A/MONO, B: 1 M ohmNominal Output LevelOUTPUT A/MONO, B: -10 dBuMaximum Output LevelOUTPUT A/MONO, B: +8 dBuOutput ImpedanceOUTPUT A/MONO, B: 2 k ohmsRecommended Load ImpedanceOUTPUT A/MONO, B: 20 k ohms or greaterBypassBuffered bypass or True bypass (with relays)ControlsA switch, B switch, TAP/CTL switch
DOWN button, UP button, EXIT button, EDIT button

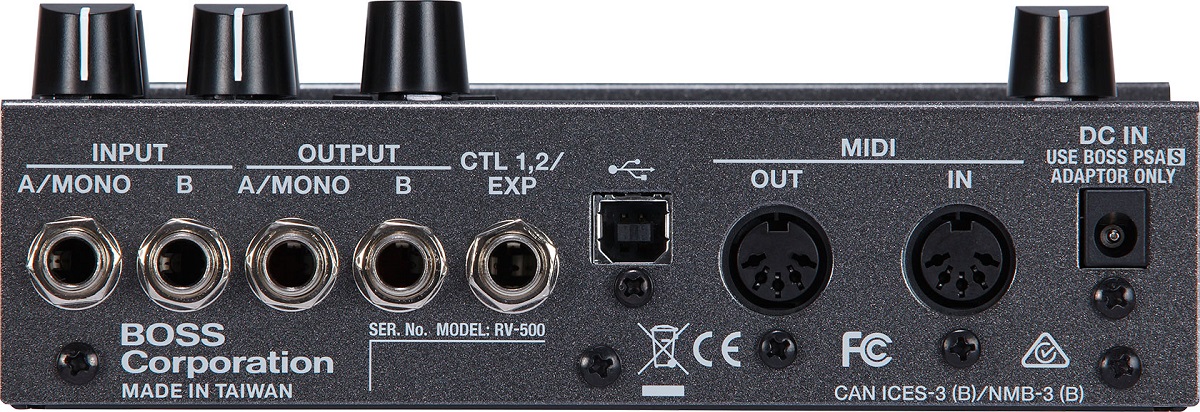

MODE knob, TIME/VALUE knob, PRE-DELAY knob, E.LEVEL knob, LOW knob, HIGH knobDisplayGraphic LCD (128 x 64 dots, backlit LCD)ConnectorsINPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B
MIDI (IN, OUT) connectors
DC IN jackPower SupplyAlkaline battery (AA, LR6) x 4, AC adaptor (sold separately)Current Draw225 mAExpected battery life under continuous useAlkaline: Approx. 4.5 hours
* These figures will vary depending on the actual conditions of use.AccessoriesOwner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4Options (sold separately)AC adaptor: PSA-S series
Footswitch: FS-5U, FS-5L
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5SIZE AND WEIGHTWidth170 mm
6-3/4 inchesDepth138 mm
5-7/16 inchesHeight62 mm
2-1/2 inchesWeight (including battery)1.0 kg
2 lbs 4 oz
