BOSS RC505 Flagship Table Top Looper | 5 simult Stereo Phase tracks

Specifications



Nominal Input Level

INPUT MIC (variable): -40 dBu (typ.), -10 dBu (max)
INPUT INST (variable): -10 dBu (typ.), +4 dBu (max)
INPUT AUX: -20 dBu

Input Impedance

INPUT MIC: 4 k ohms
INPUT INST: 200 k ohms
INPUT AUX: 22 k ohms

Nominal Output Level

LINE OUT: -10 dBu

Output Impedance

LINE OUT: 2 k ohms

Recommended Load Impedance

LINE OUT: 10 k ohms or greater

Recording/Playback

Maximum Recording Time: Approx. 3 hours (stereo)
Maximum Phrase Memory: 99
Number of Tracks: 5
Data Format: WAV (44.1 kHz, 16-bit linear, stereo)

Effect Type (INPUT FX/TRACK FX)

FILTER
PHASER
FLANGER
SYNTH
LO-FI
GUITAR TO BASS
TRANSPOSE
ROBOT
VOCAL DIST
VOCODER
COMP
EQ
ISOLATOR
OCTAVE
PAN
SLICER
DELAY
TAPE ECHO
GRANULAR DELAY
CHORUS
REVERB
BEAT REPEAT *1
BEAT SHIFT *1
BEAT SCATTER *1
VINYL FLICK *1

*1 TRACK FX only

Effect Type (MASTER FX)

COMP
REVERB

Rhythm Type

85

Display

16 characters, 2 lines (backlit LCD)

USB

Mass Storage Class
Audio/MIDI

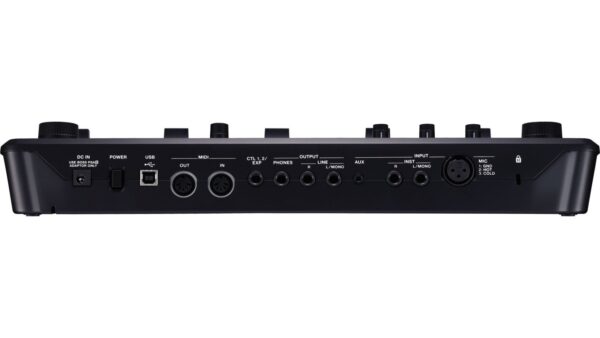

Connectors

INPUT MIC jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max)
INPUT INST (L/MONO, R) jacks: 1/4-inch phone type
INPUT AUX jack: Stereo miniature phone type
PHONES jack: 1/4-inch Stereo phone type
LINE OUTPUT (L/MONO, R) jacks: 1/4-inch Stereo phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
USB port: USB Type B
MIDI (IN, OUT) connectors
DC IN jack

Power Supply

AC adaptor

Current Draw

420 mA

Accessories

AC adaptor
Owner's manual

Options (sold separately)

Footswitch: FS-5U, FS-6, FS-7
Expression pedal: Roland EV-5, FV-500L, FV-500H

SIZE AND WEIGHT

Width

420 mm
16-9/16 inches

Depth

210 mm
8-5/16 inches

Height

68 mm
2-11/16 inches

Weight

1.4 kg
3 lbs. 2 oz.



ASIO is a trademark and software of Steinberg Media Technologies GmbH.
