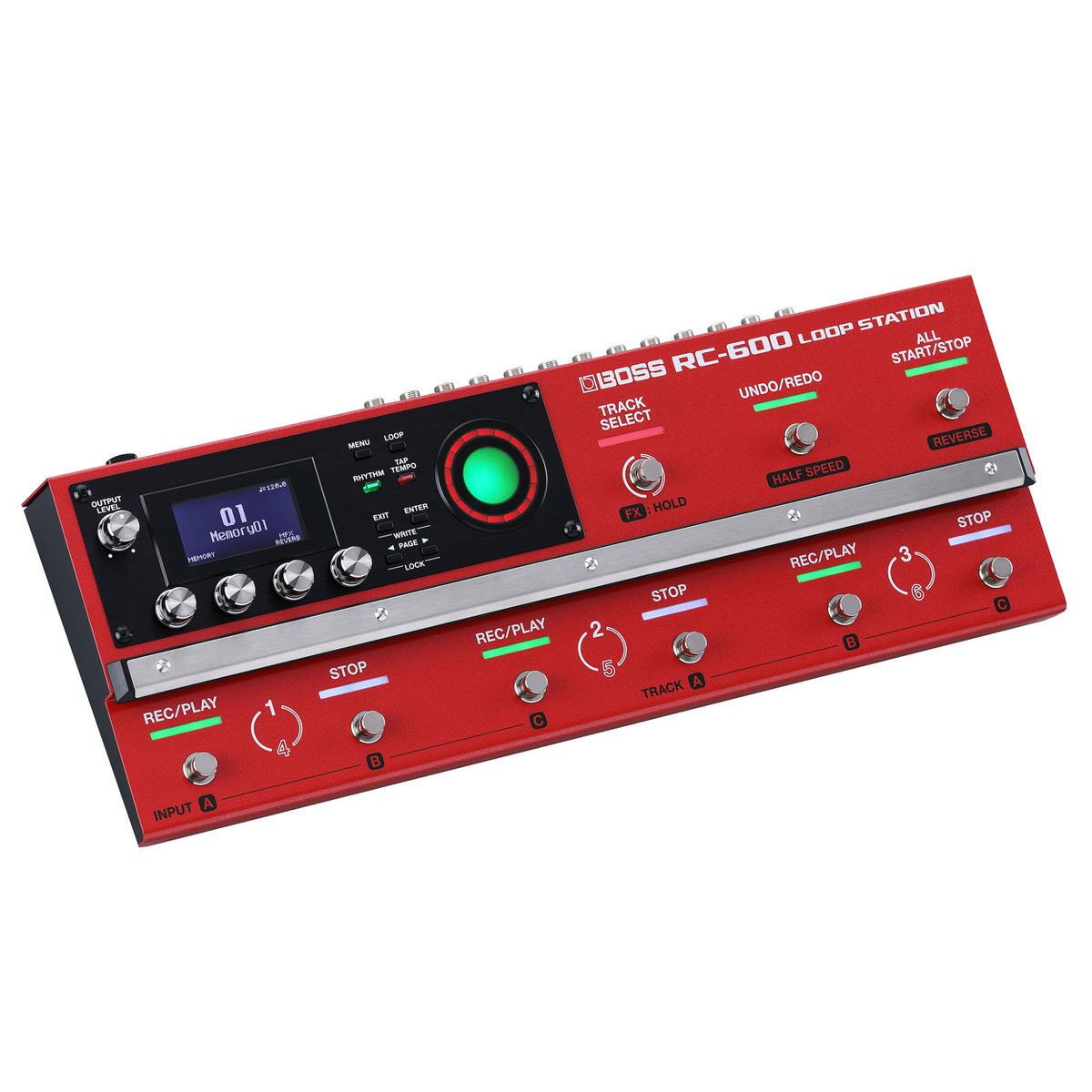

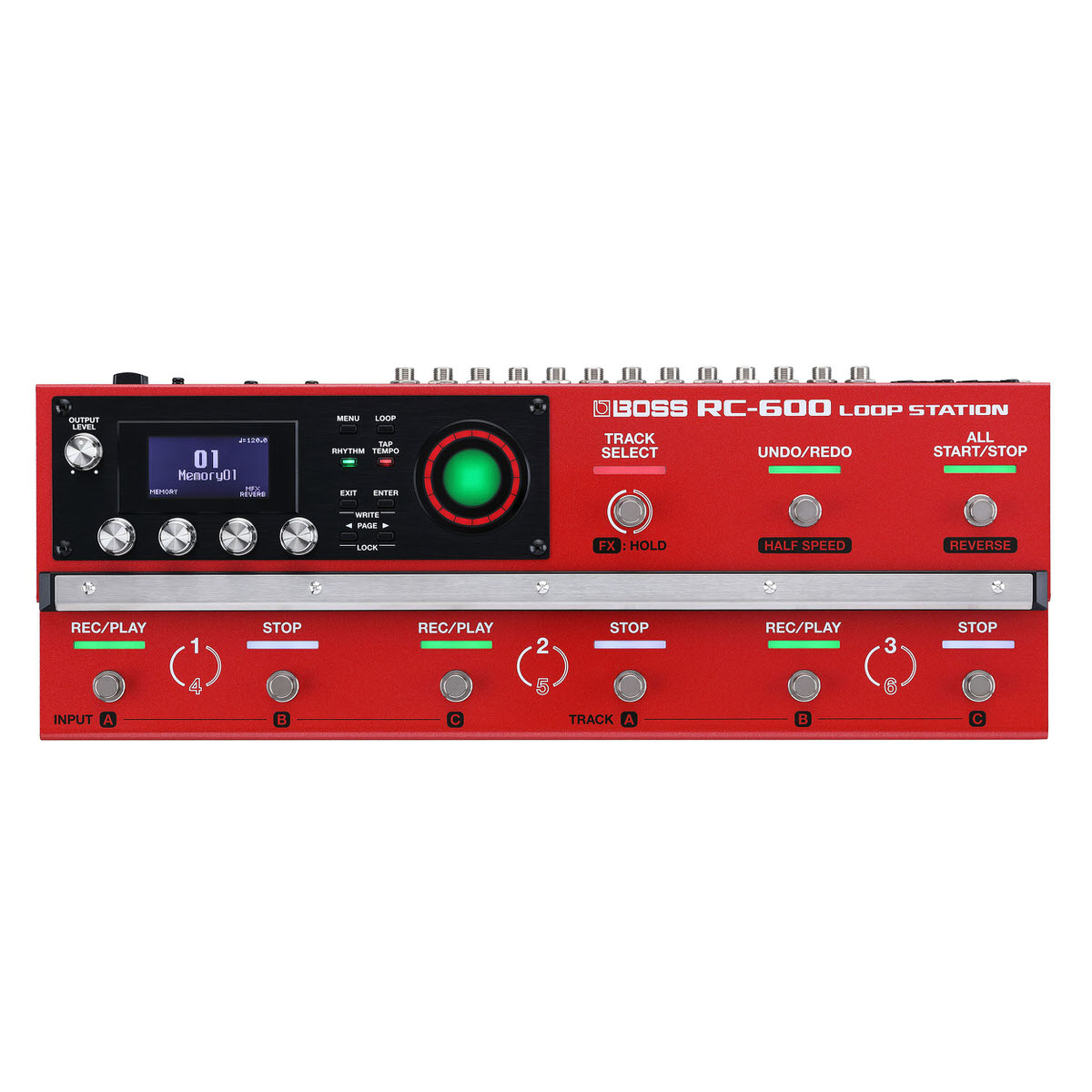

Boss RC-600 Loopstation

SPECIFICATIONSSampling Frequency44.1 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointRecording/PlaybackNumber of Tracks: 6
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)Rhythm Type200 types or greaterRhythm Kit16 typesEffectINPUT FX: 49 types
TRACK FX: 53 types
MASTER FX: 2 typesMemory99Nominal Input LevelMIC IN 1, 2: -40 dBu
INST IN 1, 2: -10 dBuMaximum Input LevelMIC IN 1, 2: 0 dBu
INST IN 1, 2: +7 dBu/+20 dBu (selectable)Input ImpedanceMIC IN 1, 2: 3kohms
INST IN 1, 2: 1 M ohms/25 k ohms (selectable)Nominal Output LevelMAIN OUTPUT: -10 dBu
SUB OUTPUT 1, 2: -10 dBuMaximum Output LevelMAIN OUTPUT: +7 dBu
SUB OUTPUT 1, 2: +7 dBuOutput ImpedanceMAIN OUTPUT: 1 k ohm
SUB OUTPUT 1, 2: 1 k ohmRecommended Load ImpedanceMAIN OUTPUT: 10 k ohms or greater

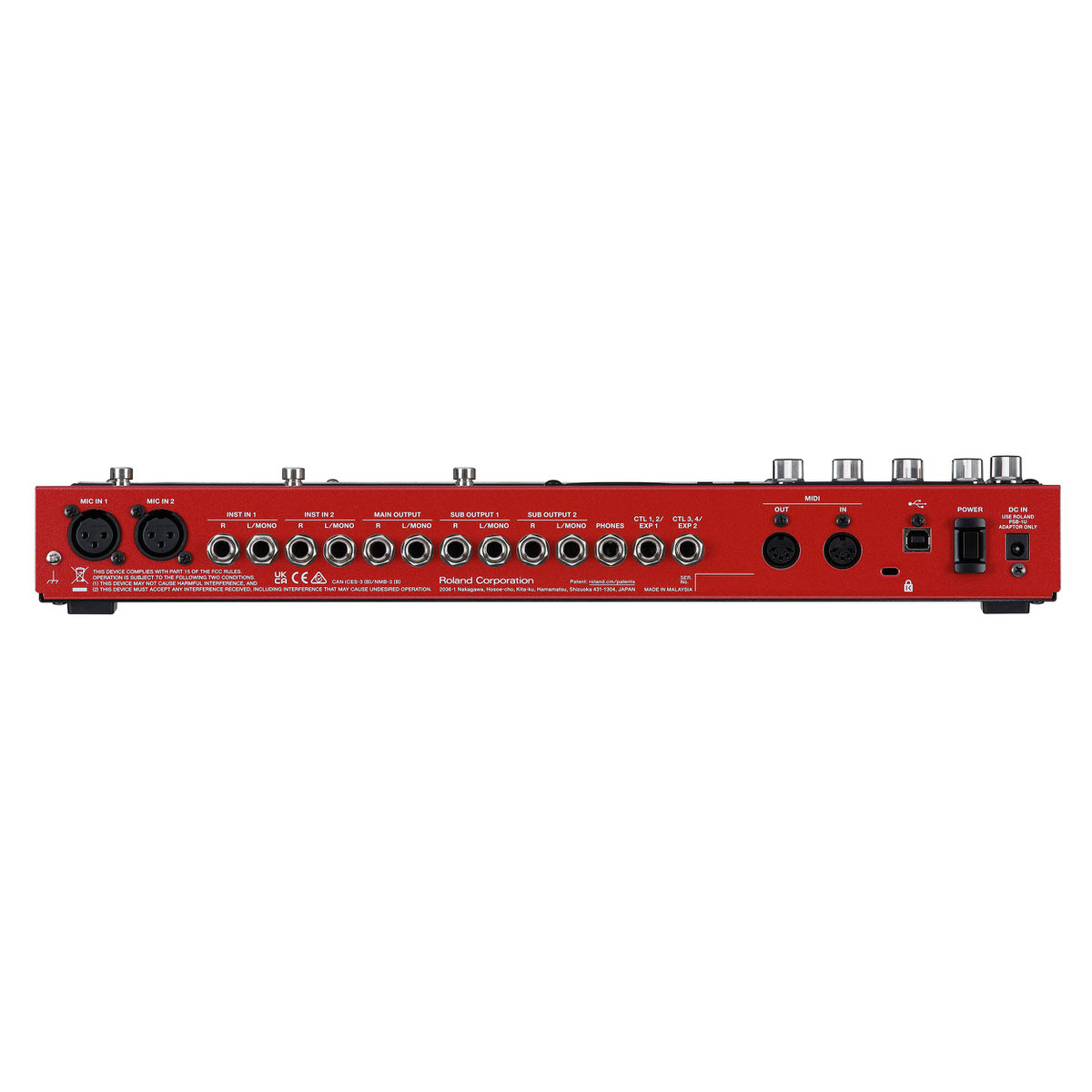

SUB OUTPUT 1, 2: 10 k ohms or greaterControlsREC/PLAY switch x 3, STOP switch x 3, TRACK SELECT switch, UNDO/REDO switch, ALL START/STOP switch, MENU button, LOOP button, RHYTHM button, TAP TEMPO button, ENTER button, EXIT button, PAGE buttons, 1--4 knobs, OUTPUT LEVEL knobDisplayGraphic LCD (128 x 64 dots, backlit LCD)ConnectorsMIC IN 1, 2 connectors: XLR type (balanced, phantom power: DC 48 V, 10 mA Max
INST IN 1, 2 jacks, MAIN OUTPUT jacks, SUB OUTPUT 1, 2 jacks: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
CTL1,2/EXP1 jack, CTL3,4/EXP2 jack: 1/4-inch TRS phone type
USB port: USB B type
MIDI (IN, OUT) connectors
DC IN jackPower SupplyAC adaptorCurrent Draw1.2 A (with phantom power)
1.1 A (without phantom power)AccessoriesAC adaptor
Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")Options (sold separately)Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5SIZE AND WEIGHTWidth435 mm
17-1/8 inchesDepth163 mm
6-7/16 inchesHeight66 mm
2-5/8 inchesWeight (including battery)2.4 kg
5 lbs 5 oz* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.
