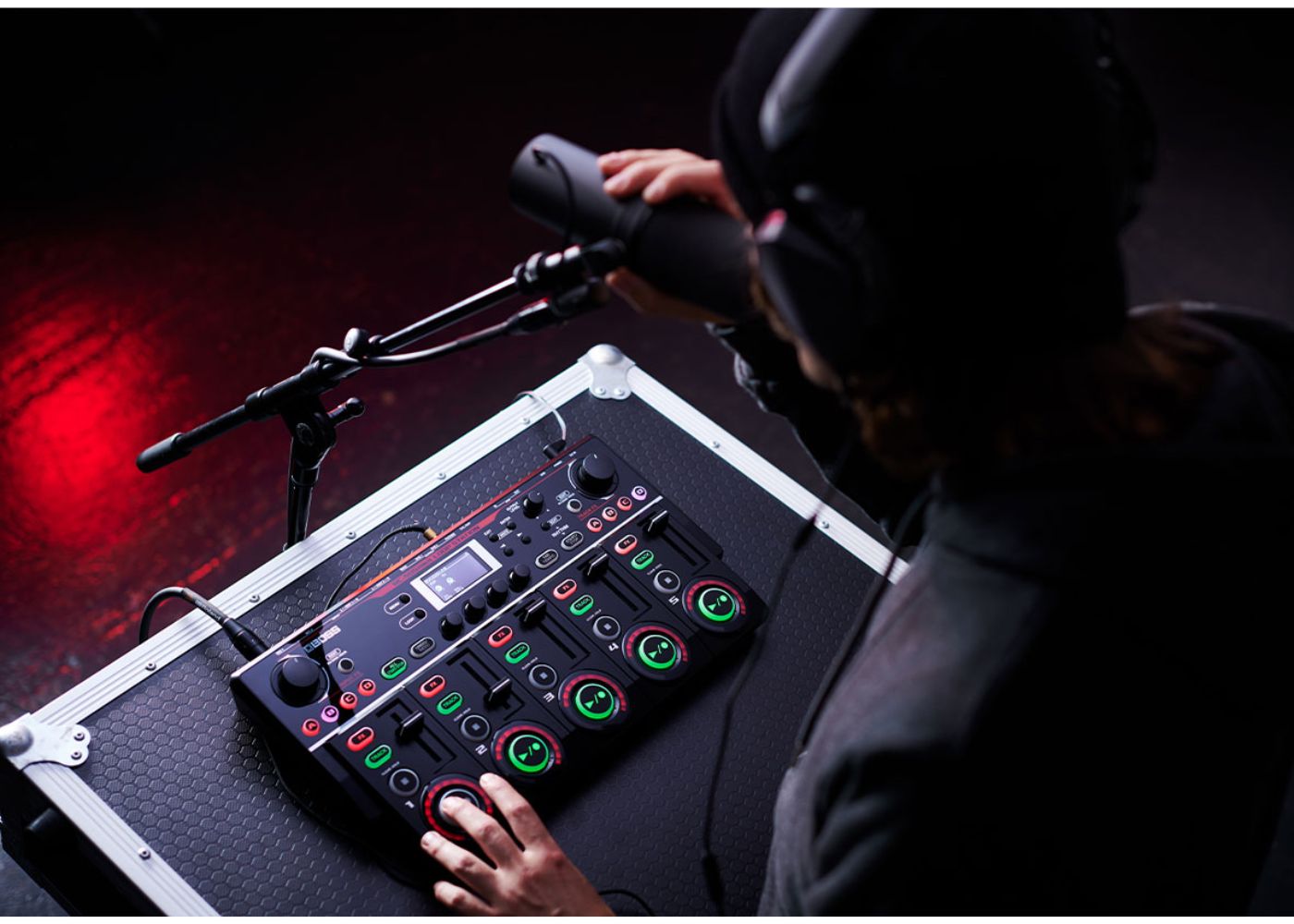

BOSS RC-505MKII Flagship Table top Loopstation | for music creation

SPECIFICATIONS



Sampling Frequency

44.1 kHz

AD/DA Conversion

32 bits

Processing

32-bit floating point

Recording/Playback

Number of Tracks: 5
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)

Rhythm Type

200 types or greater

Rhythm Kit

16 types

Effect

INPUT FX: 49 types
TRACK FX: 53 types
MASTER FX: 2 types

Memory

99

Nominal Input Level

MIC 1, 2 INPUT: -40 dBu
INST 1, 2 INPUT: -10 dBu

Maximum Input Level

MIC 1, 2 INPUT: 0 dBu
IINST 1, 2 INPUT: +7 dBu/+20 dBu (selectable)

Input Impedance

MIC 1, 2 INPUT: 3k ohms
INST 1, 2 INPUT: 1 M ohms/25 k ohms (selectable)

Nominal Output Level

MAIN OUTPUT: -10 dBu
SUB 1, 2 OUTPUT: -10 dBu

Maximum Output Level

MAIN OUTPUT: +7 dBu
SUB 1, 2 OUTPUT: +7 dBu

Output Impedance

MAIN OUTPUT: 1 k ohm
SUB 1, 2 OUTPUT: 1 k ohm

Recommended Load Impedance

MAIN OUTPUT: 10 k ohms or greater
SUB 1, 2 OUTPUT: 10 k ohms or greater

Controls

TRACK1--5 REC/PLAY button, TRACK1--5 STOP button, TRACK1--5 TRACK button, TRACK1--5 FX button, ALL START/STOP button, UNDO/REDO button, TAP TEMPO button, RHYTHM START/STOP button, RHYTHM EDIT button, INPUT FX A--D button, INPUT FX EDIT button, TRACK FX A--D button, TRACK FX EDIT button, MENU button, LOOP button, ENTER button, EXIT button, PAGE buttons, 1--4 knobs, OUTPUT LEVEL knob, TRACK1--5 LEVEL Faders

Display

Graphic LCD (128 x 64 dots, backlit LCD)

Connectors

MIC IN 1, 2 jack: XLR type (balanced, phantom power: DC 48 V, 10 mA Max
INST IN 1, 2 jacks, MAIN OUT jacks, SUB OUT 1, 2 jacks: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
CTL1,2/EXP1 jack, CTL3,4/EXP2 jack: 1/4-inch TRS phone type
USB port: USB B type
MIDI (IN, OUT) connectors
DC IN jack

Power Supply

AC adaptor

Current Draw

1.0 A (with phantom power)
0.9 A (without phantom power)

Accessories

AC adaptor
Owner's Manual
Leaflet "USING THE UNIT SAFELY"

Options (sold separately)

Footswitch: FS-5U
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5

SIZE AND WEIGHT

Width

420 mm
16-9/16 inches

Depth

234 mm
9-1/4 inches

Height

67 mm
2-11/16 inches

Weight

1.8 kg
4 lbs

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
