BOSS RC-5 Compact Looper Pedal | 13 hours recording time

SPECIFICATIONS

Sampling Frequency

44.1 kHz

AD/DA Conversion

32 bits

Processing

32-bit floating point

Recording/Playback

Number of Track: 1
Data Format: WAV (44.1 kHz, 32-bit float, stereo)
Maximum Recording Time: Approx. 1.5 hours (1 track), Approx.13 hours (total of All memories)

Rhythm Type

57 Patterns x 2 Variations

Rhythm Kit

7 types

Effect

Reverb (only for rhythm part)

Memory

99

Nominal Input Level

INPUT A/MONO, B: -20 dBu

Input Impedance

INPUT A/MONO, B: 1 M ohm

Nominal Output Level

OUTPUT A/MONO, B:-20 dBu

Output Impedance

OUTPUT A/MONO, B: 1 k ohm

Recommended Load Impedance

OUTPUT A/MONO, B: 10 k ohms or greater

Bypass

Buffered bypass

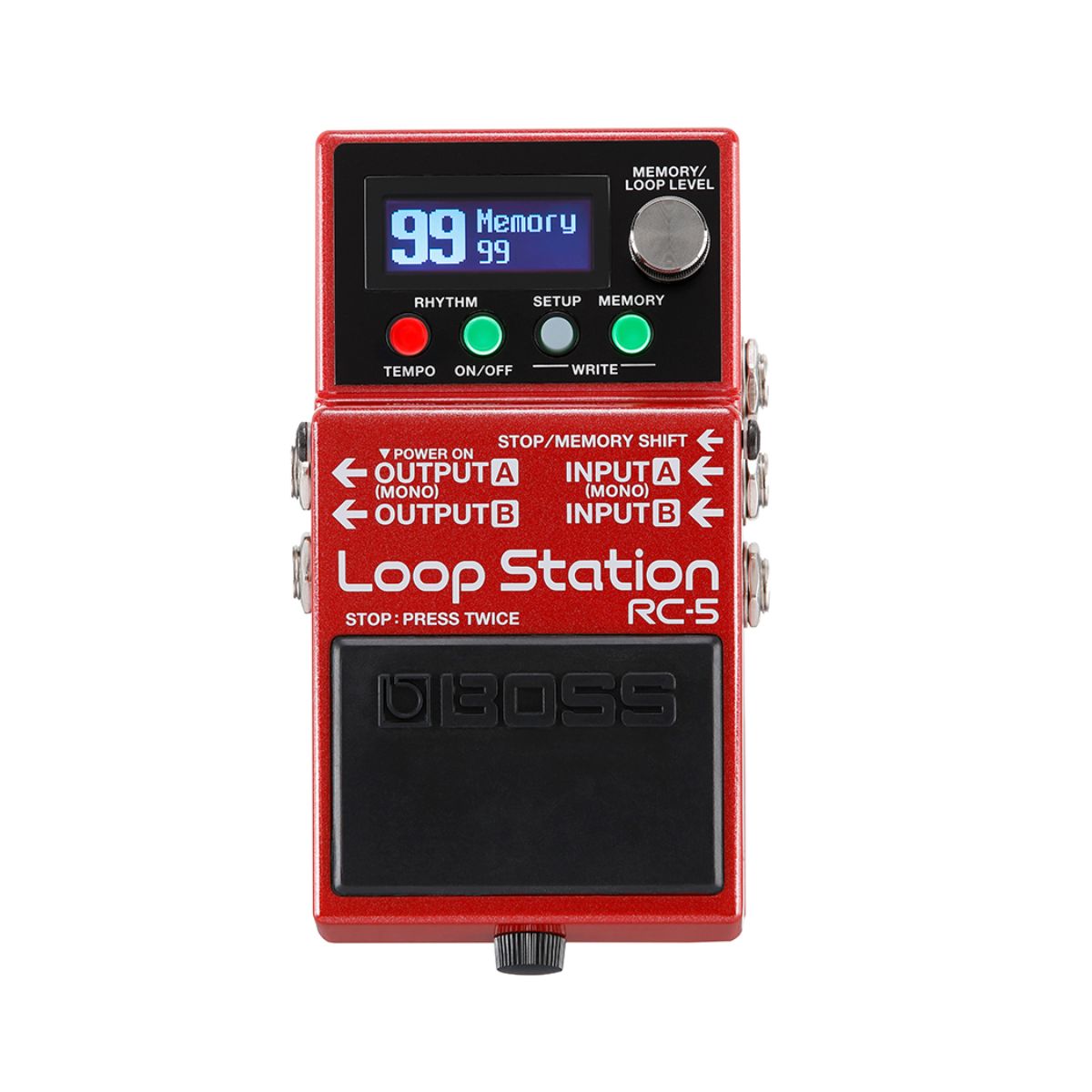

Controls

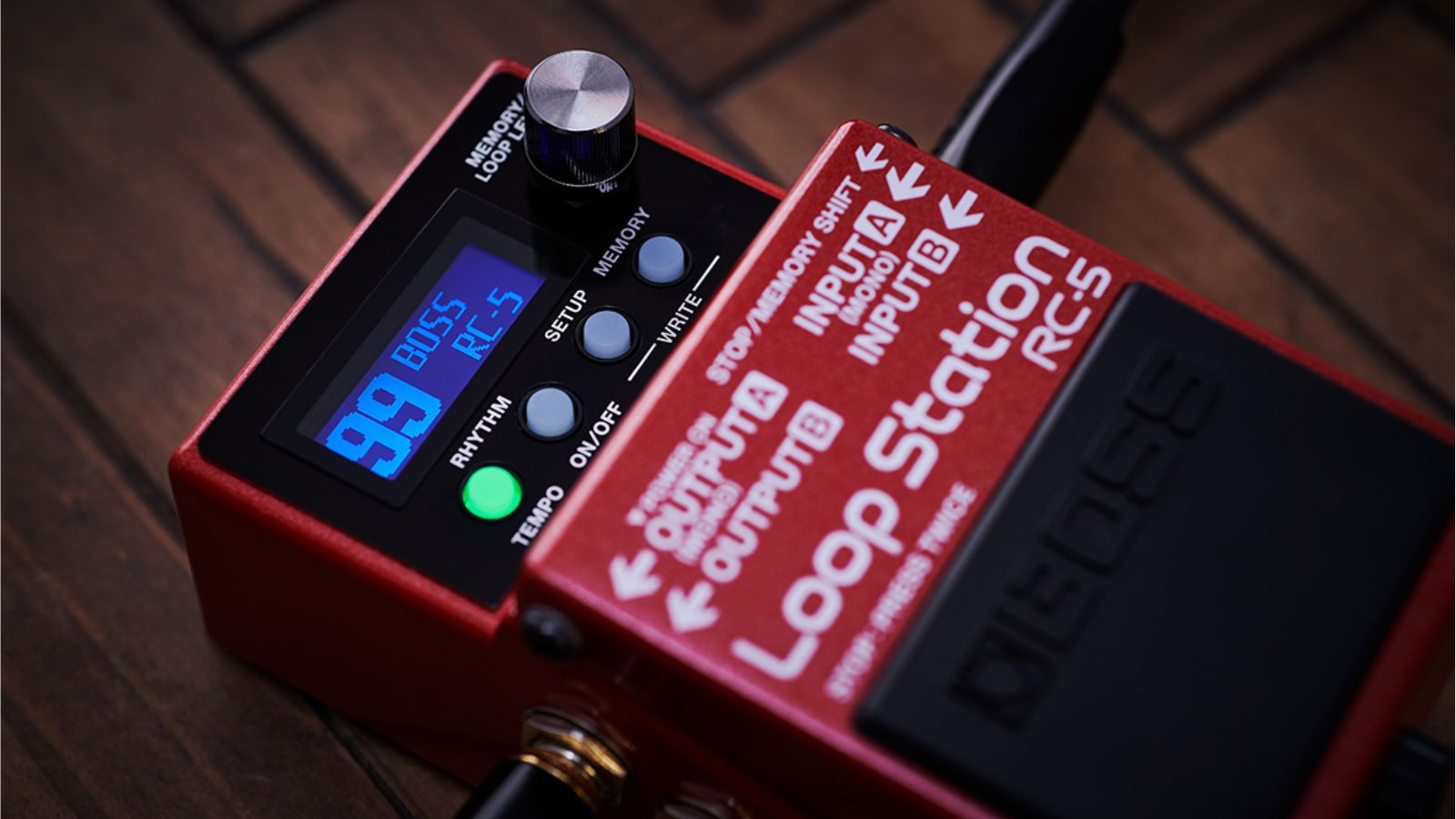

MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch

Display

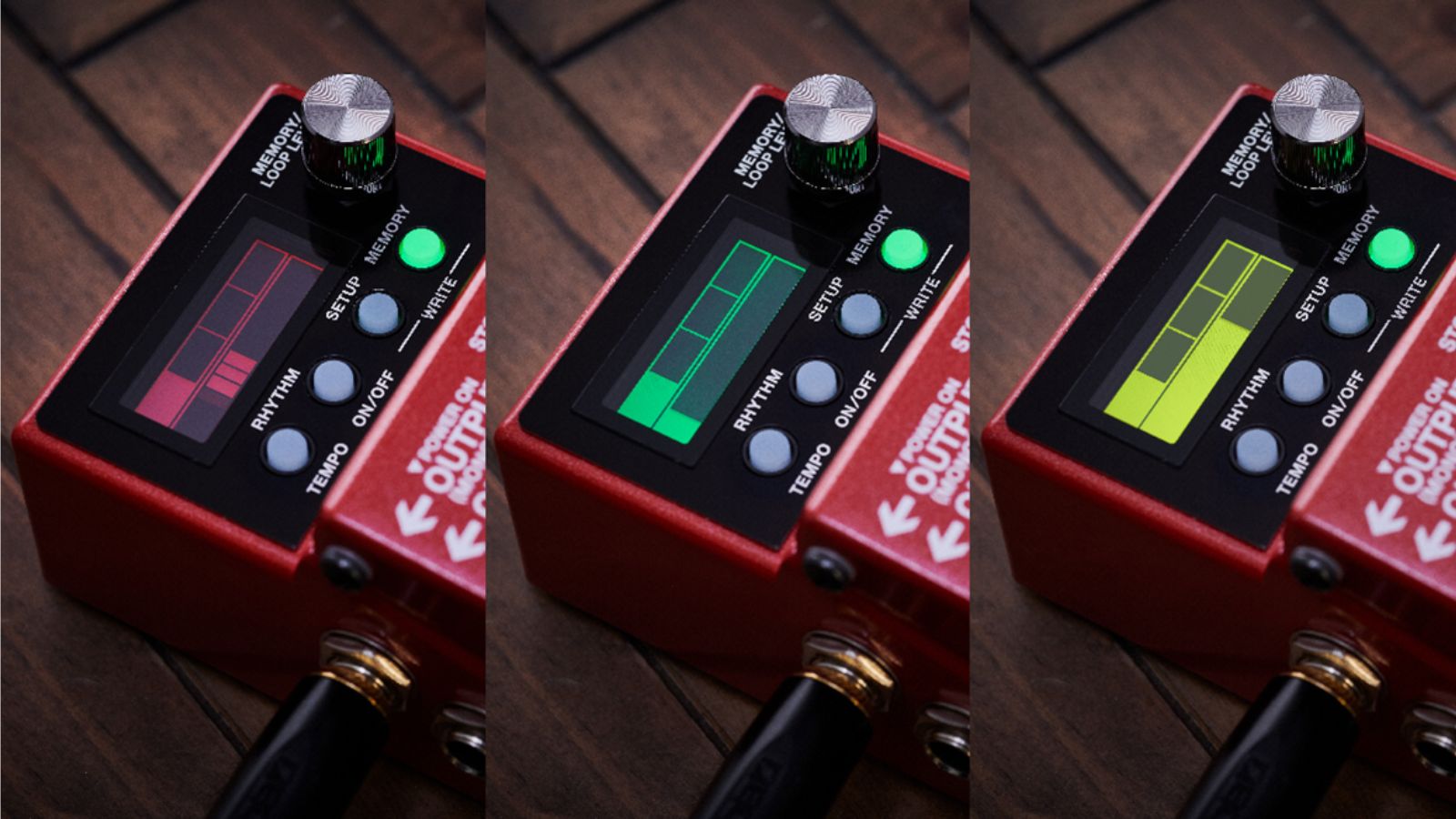

Graphic LCD (96 x 32 dots, RGB backlit LCD)

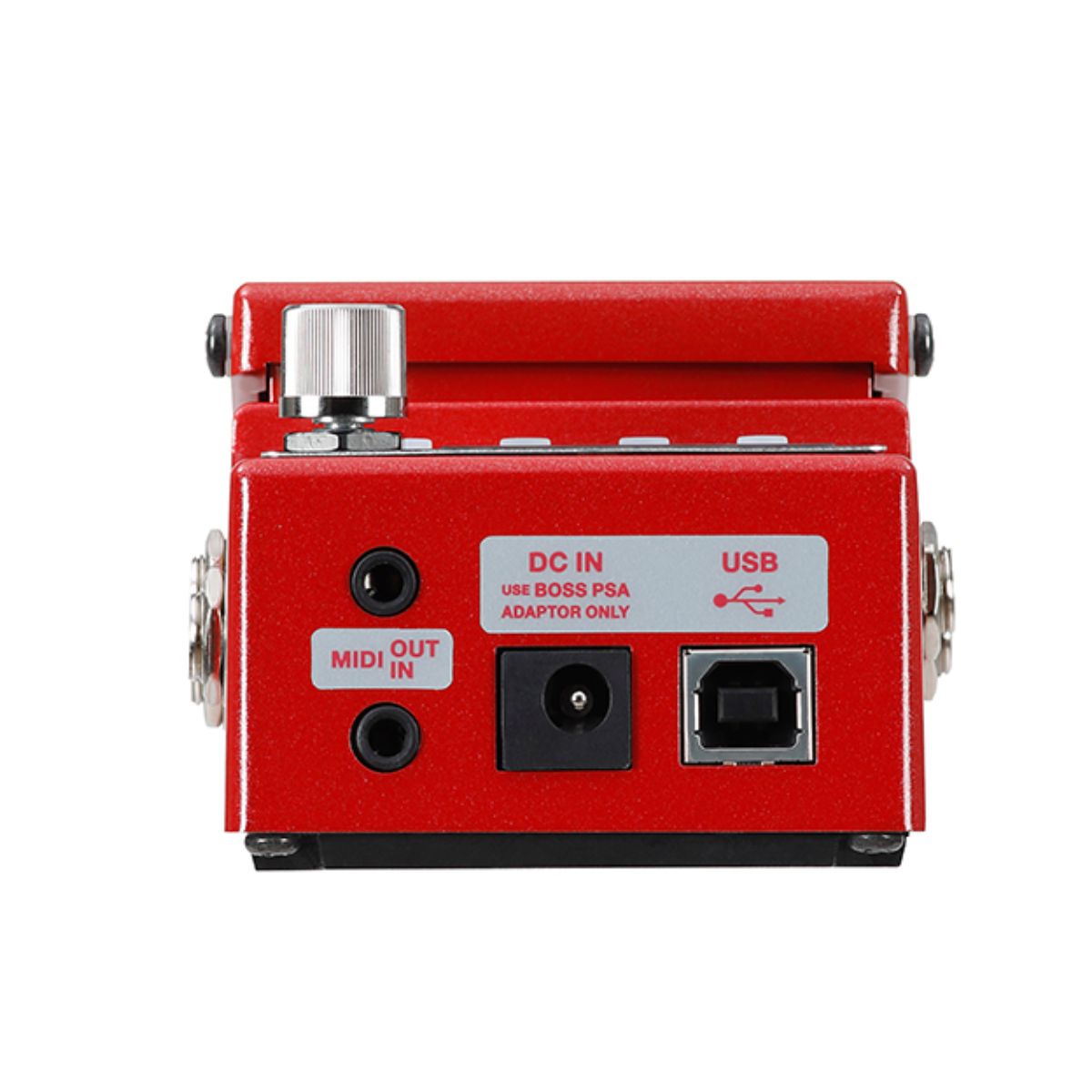

Connectors

INPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
STOP/MEMORY jack: 1/4-inch TRS phone type

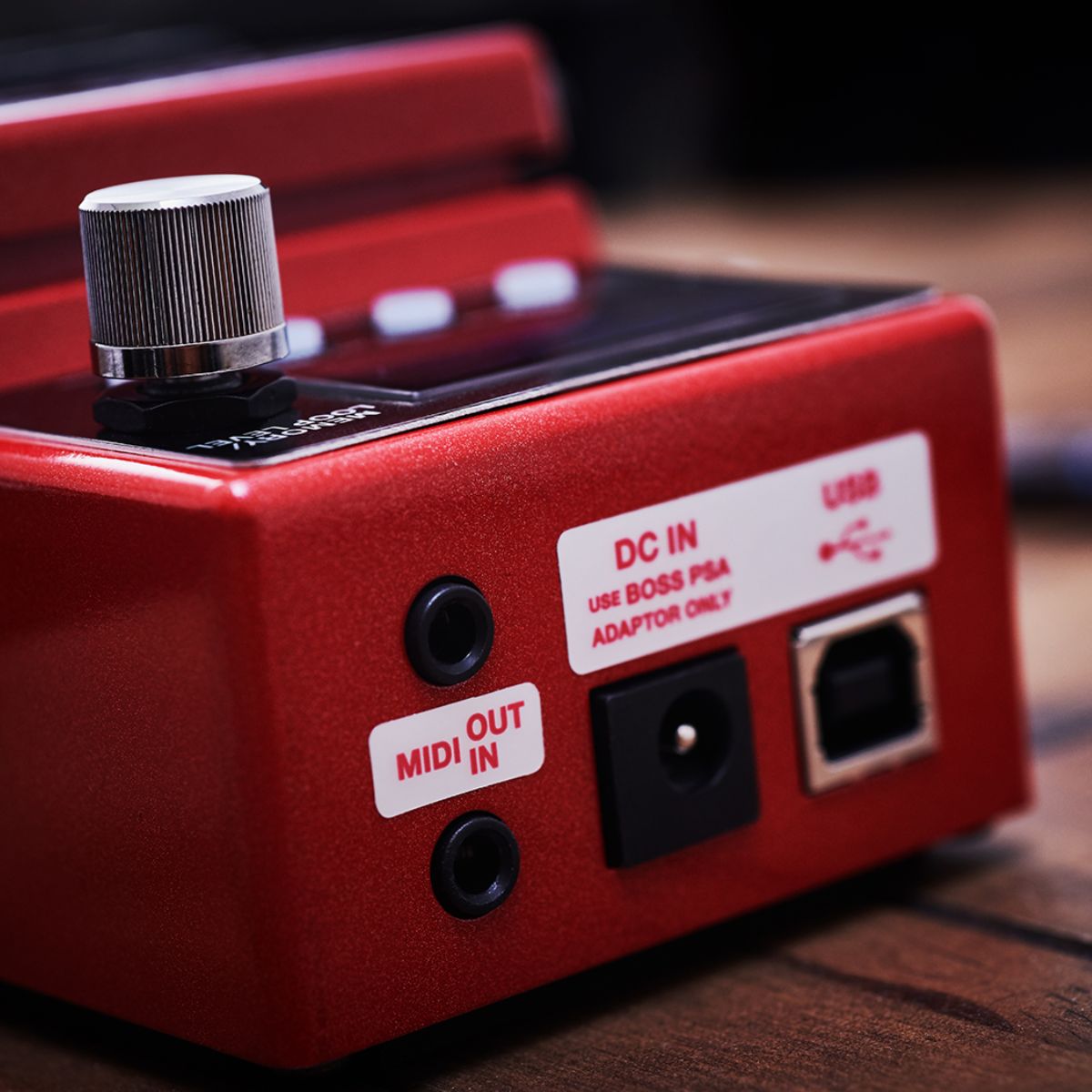

USB port: USB B type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack

Power Supply

Alkaline battery (9 V, 6LR61 or 6LF22)
AC adaptor (PSA series: sold separately)

Current Draw

170 mA

Expected battery life under continuous use

Alkaline: Approx. 2 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61 or 6LF22)

Options (sold separately)

AC adaptor: PSA-S series
Footswitch: FS-5U

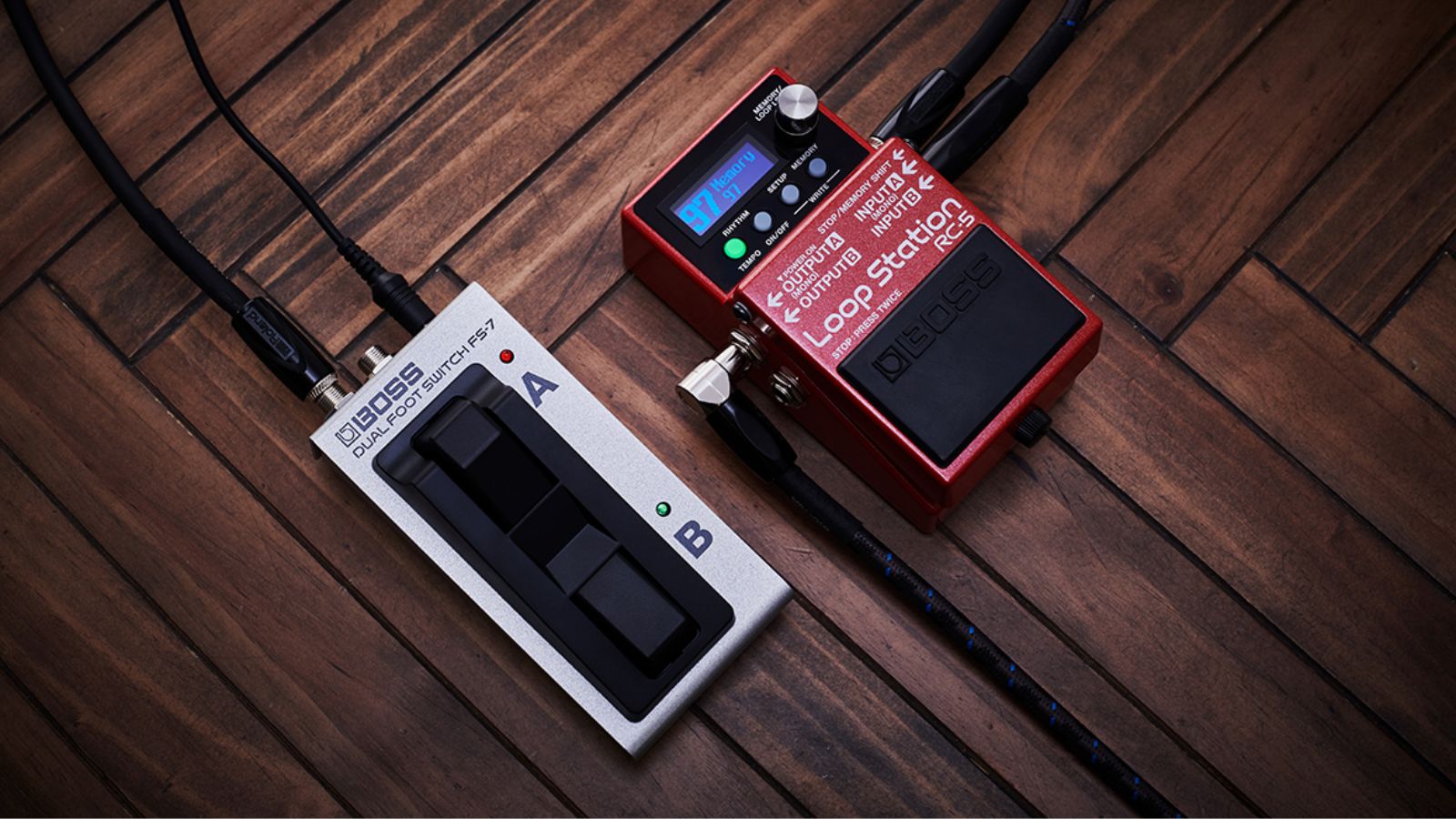

Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

SIZE AND WEIGHT

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

56 mm
2-1/4 inches

Weight (including battery)

450 g
1 lb

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
