Boss MD200 Modulation Pedal

Sampling Frequency96 kHzAD/DA Conversion32 bitsProcessing32-bit floating pointModes12 modes
CHORUS, CE-1 CHORUS, FLANGER, PHASER, VINTAGE PHASER, CLASSIC VIBE, VIBRATO, TREMOLO, ROTARY, AUTO WAH, SLICER, OVERTONEMemory127 + ManualNominal Input LevelINPUT A/MONO, B: -10 dBuMaximum Input LevelINPUT A/MONO, B: +7 dBuInput ImpedanceINPUT A/MONO, B: 2 M ohmNominal Output LevelOUTPUT A/MONO, B: -10 dBuMaximum Output LevelOUTPUT A/MONO, B: +7 dBuOutput ImpedanceOUTPUT A/MONO, B: 1 k ohmsRecommended Load ImpedanceOUTPUT A/MONO, B: 10 k ohms or greaterBypassBuffered bypassControlsON/OFF switch, MEMORY/TAP switch
MODE knob, RATE knob, DEPTH knob, E. LEVEL knob, PARAM 1 knob, PARAM 2 knob, PARAM 3 knob

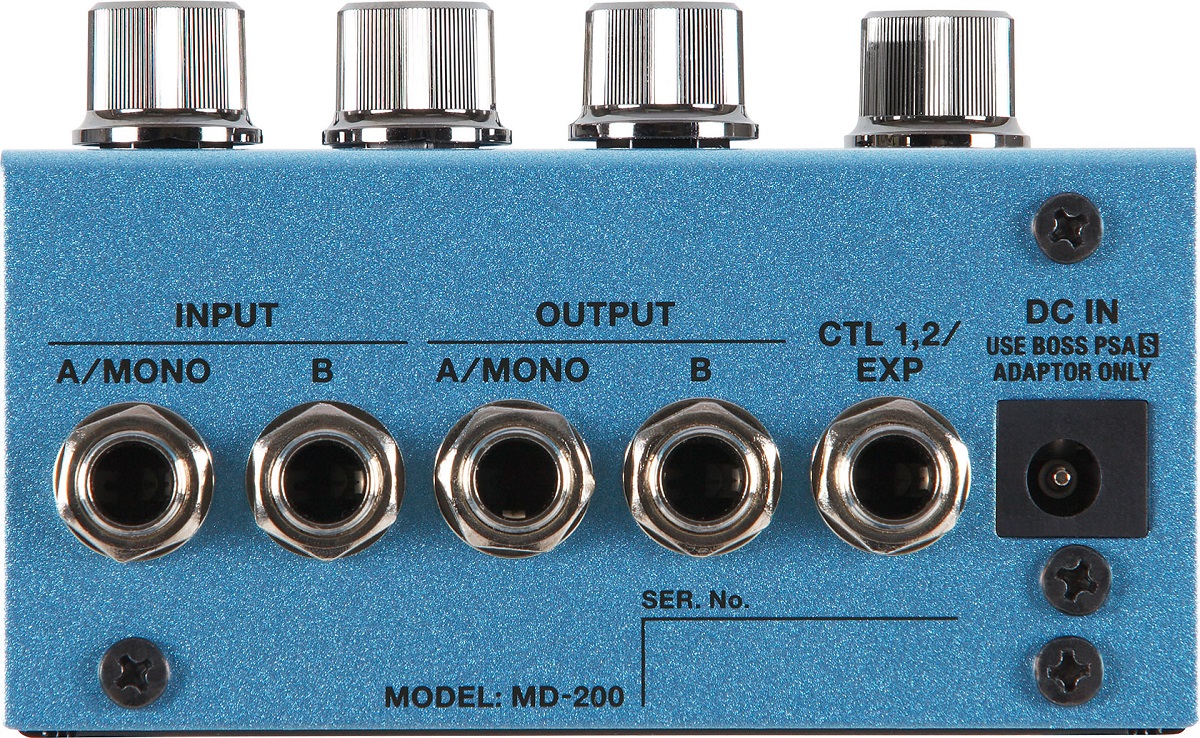

TAP DIVISION button, MEMORY buttonDisplay7 segments, 3 characters (LED)IndicatorTAP DIVISION indicator, MEMORY (MAN, 1--4) indicatorsConnectorsINPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type

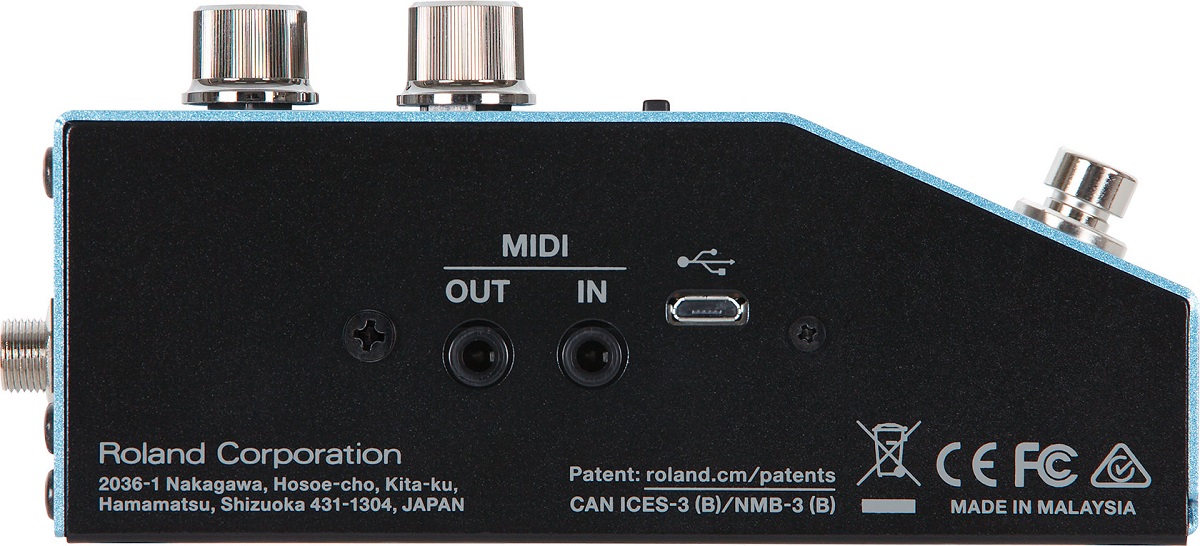

MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)Power SupplyAlkaline battery (AA, LR6) x 3, AC adaptor (sold separately)Current Draw225 mAExpected Battery Life Under Continuous UseAlkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.AccessoriesOwner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4Options (sold separately)AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI cable: BMIDI-5-35SIZE AND WEIGHTWidth101 mm
4 inchesDepth138 mm
5-7/16 inchesHeight63 mm
2-1/2 inchesHeight (including rubber foot)65 mm
2-9/16 inchesWeight610 g
1 lb 6 ozWeight (including battery)680 g
1 lb 8 oz
