BOSS GA-FC-EX | Expanded foot Control for Select BOSS Amplifiers

Expanded Floor Control for Select BOSS Amplifiers

The GA-FC EX provides expanded foot control functionality for select BOSS amplifier models. It maintains the simple setup and intuitive workflow of the standard GA-FC while offering additional functions for greater performance flexibility

Standard Features

• Expanded GA-FC with enhanced functionality for select BOSS amplifiers

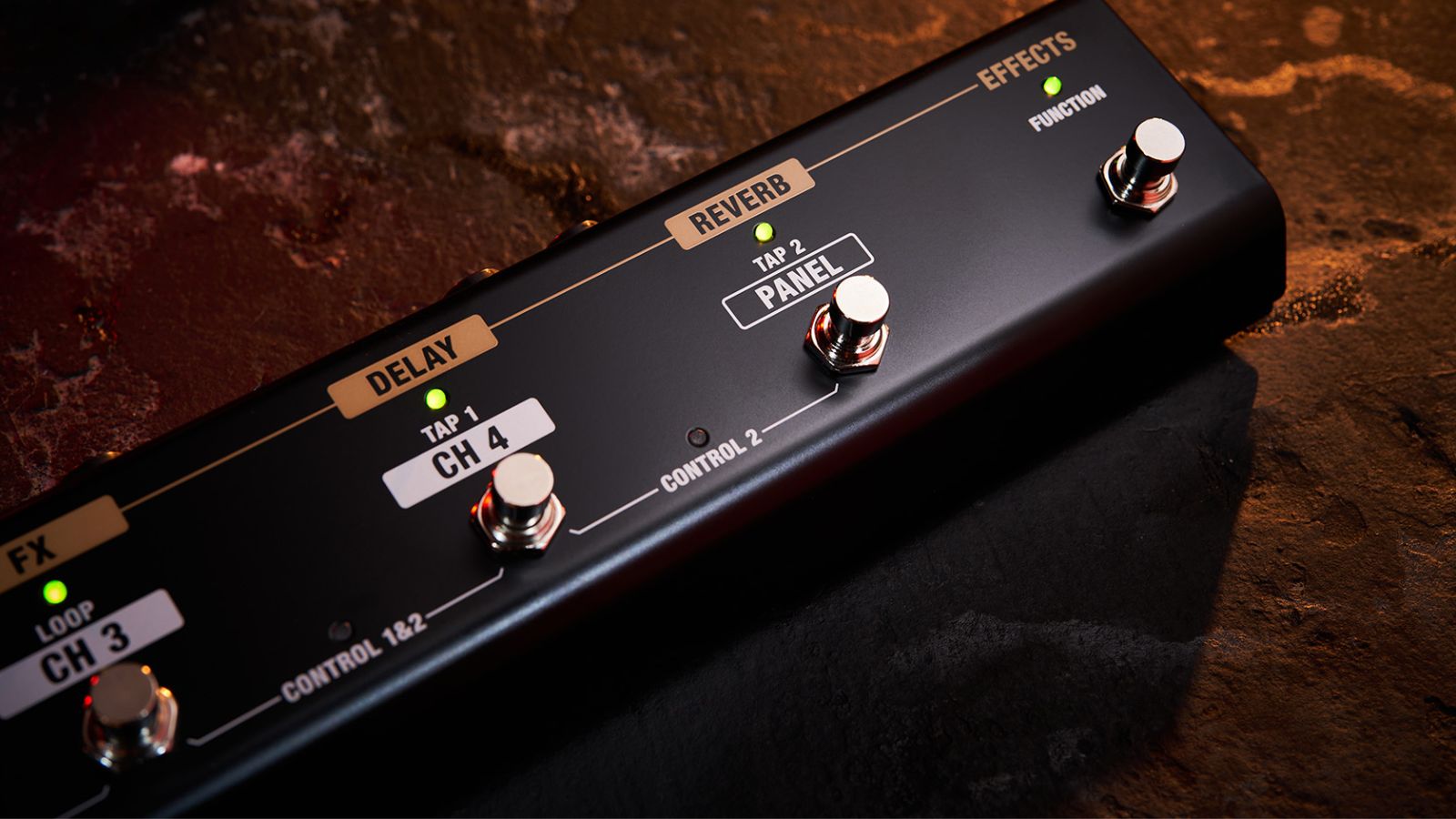

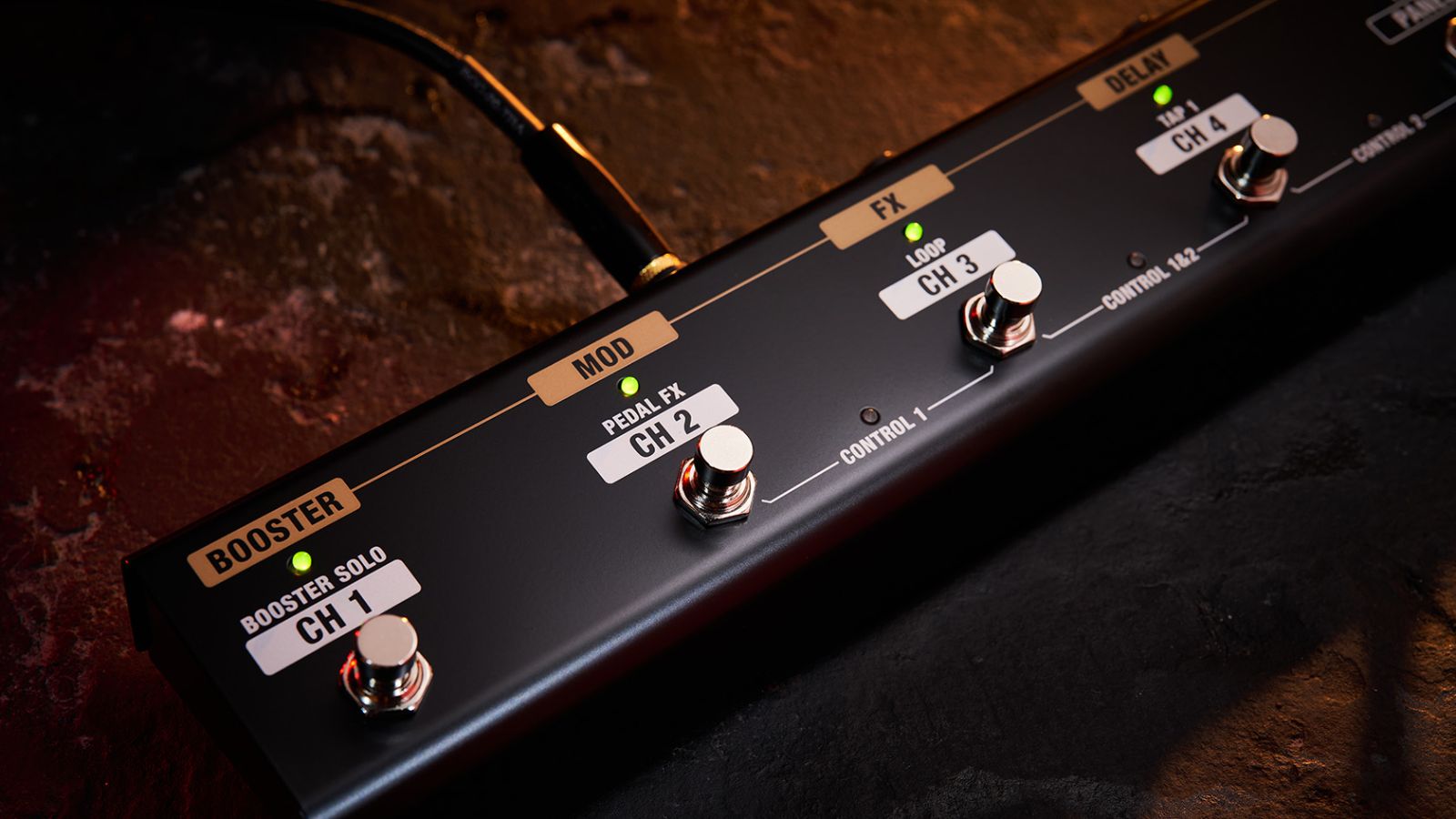

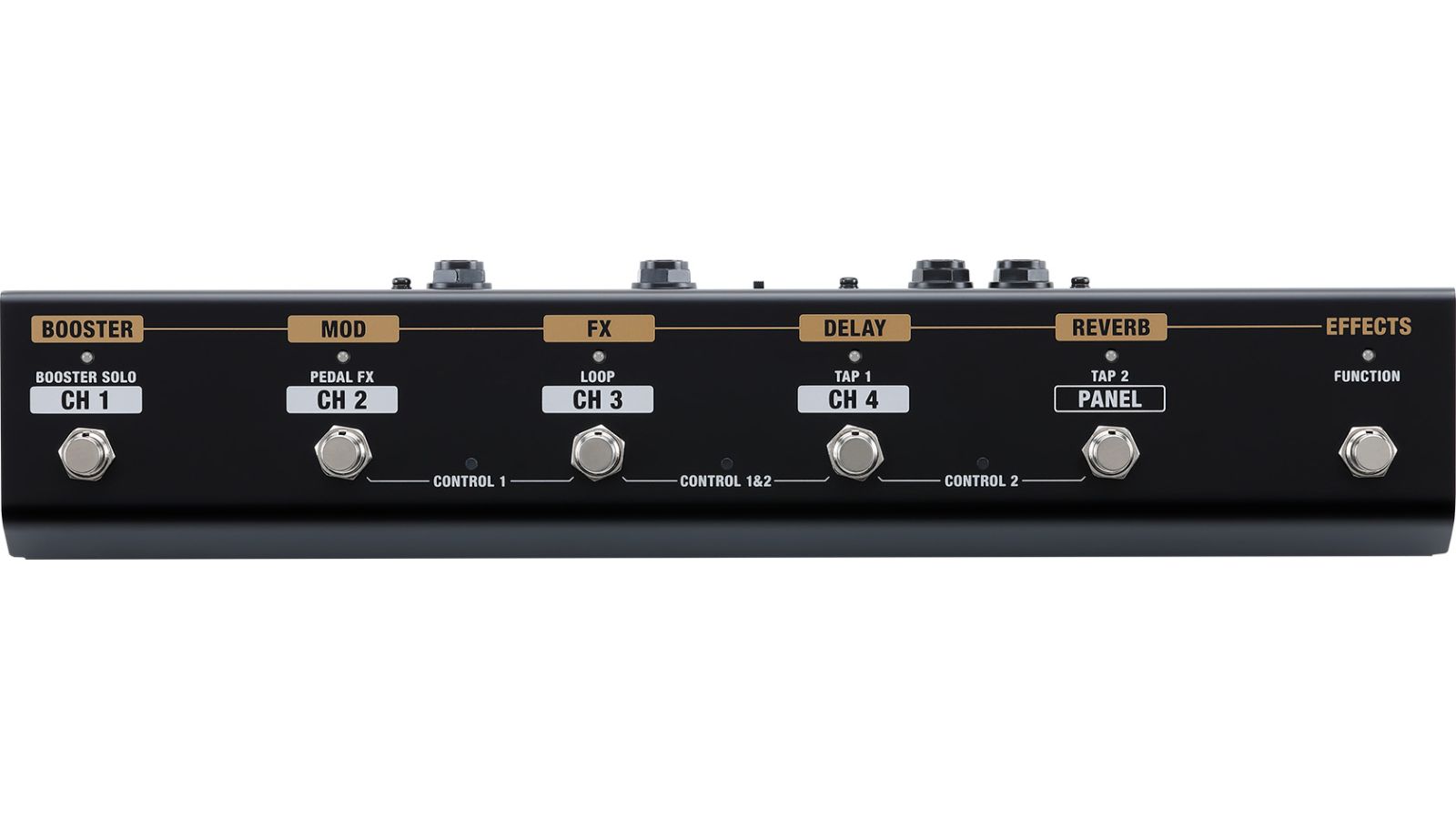

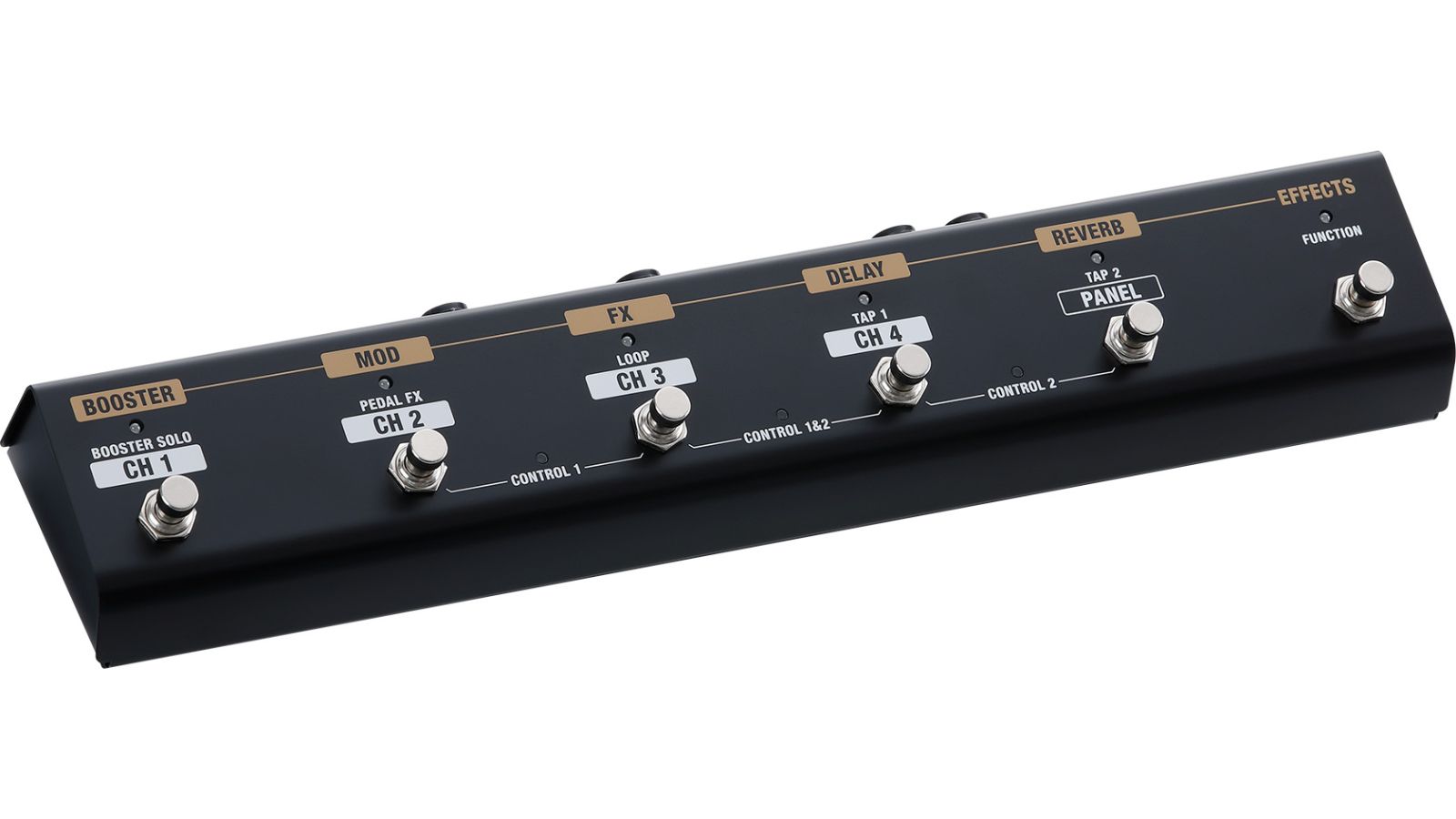

• Rugged metal chassis and six heavy-duty footswitches
• Control channel selection, effect on/off, and more
• Two-colour LEDs for easy view of control status
• Two dedicated expression pedal jacks

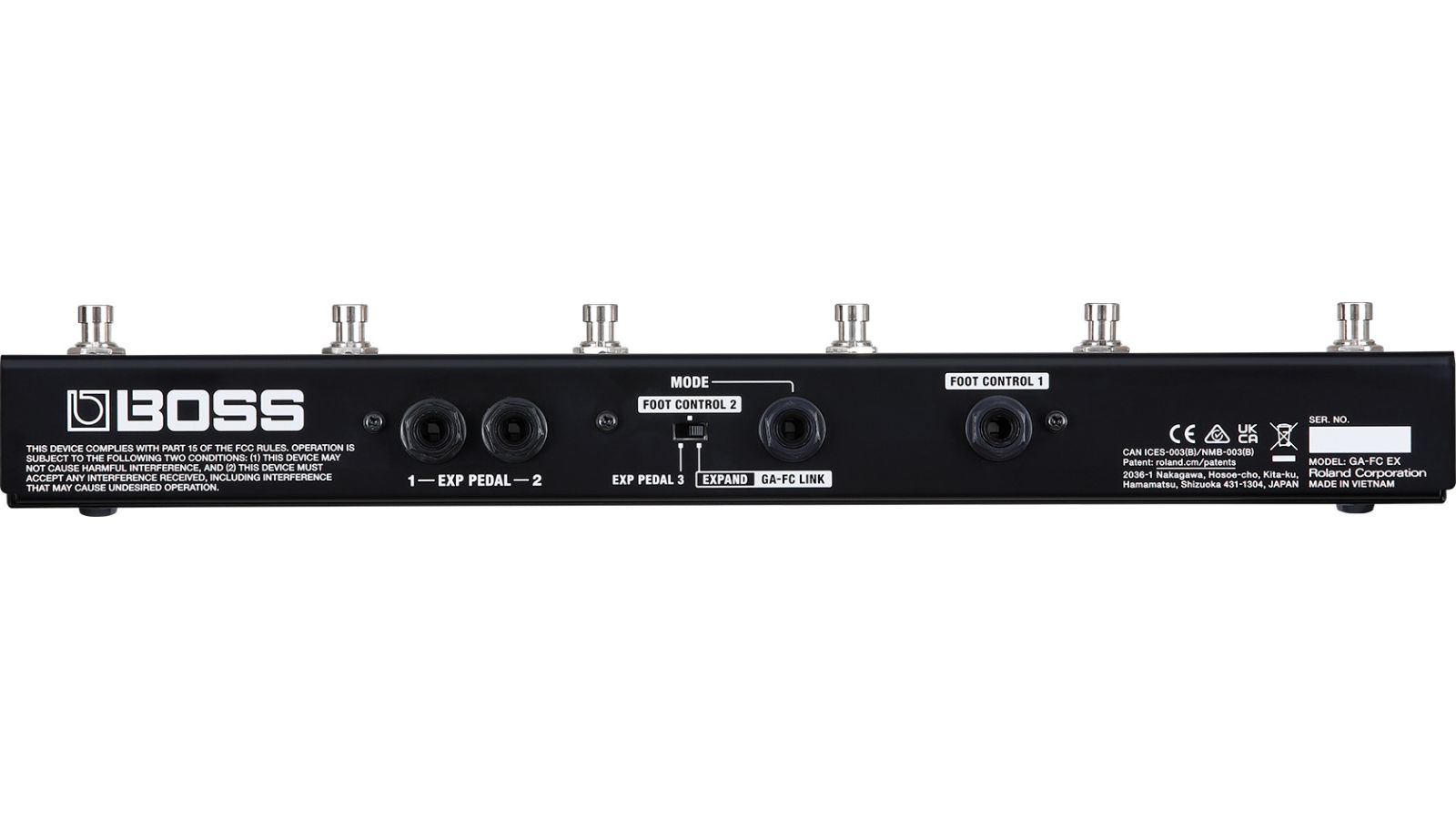

• Additional control jack with three-way mode selector
• EXPAND mode for adding another GA-FC EX or a GA-FC
• FOOT CONTROL 2 mode for operating two amps at once

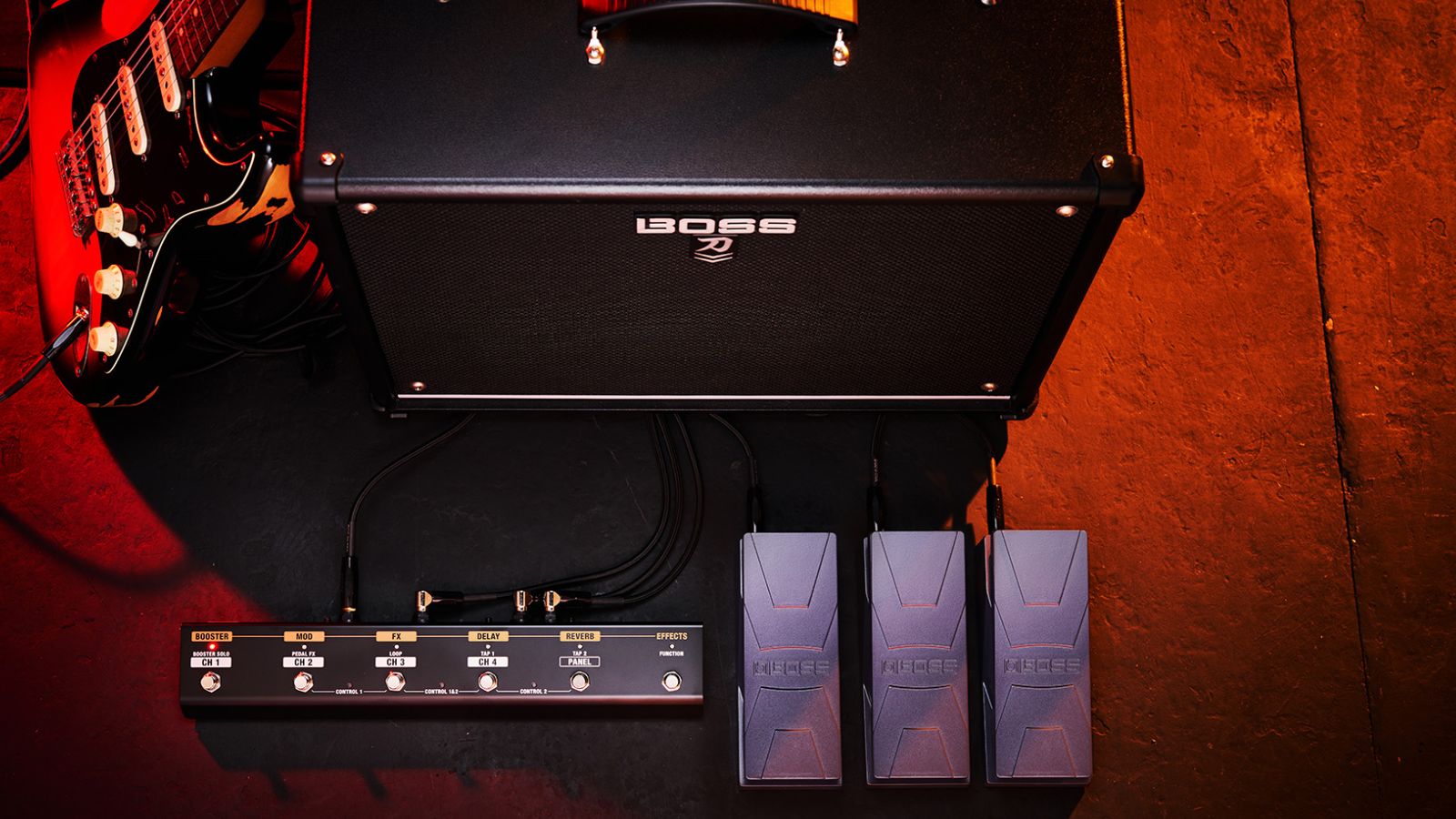

• EXP PEDAL 3 mode for a third expression pedal
• Works as a standard GA-FC controller with other amplifier models
• Connects with a single 1/4-inch TRS cable (included)—no power required

More Power and Flexibility

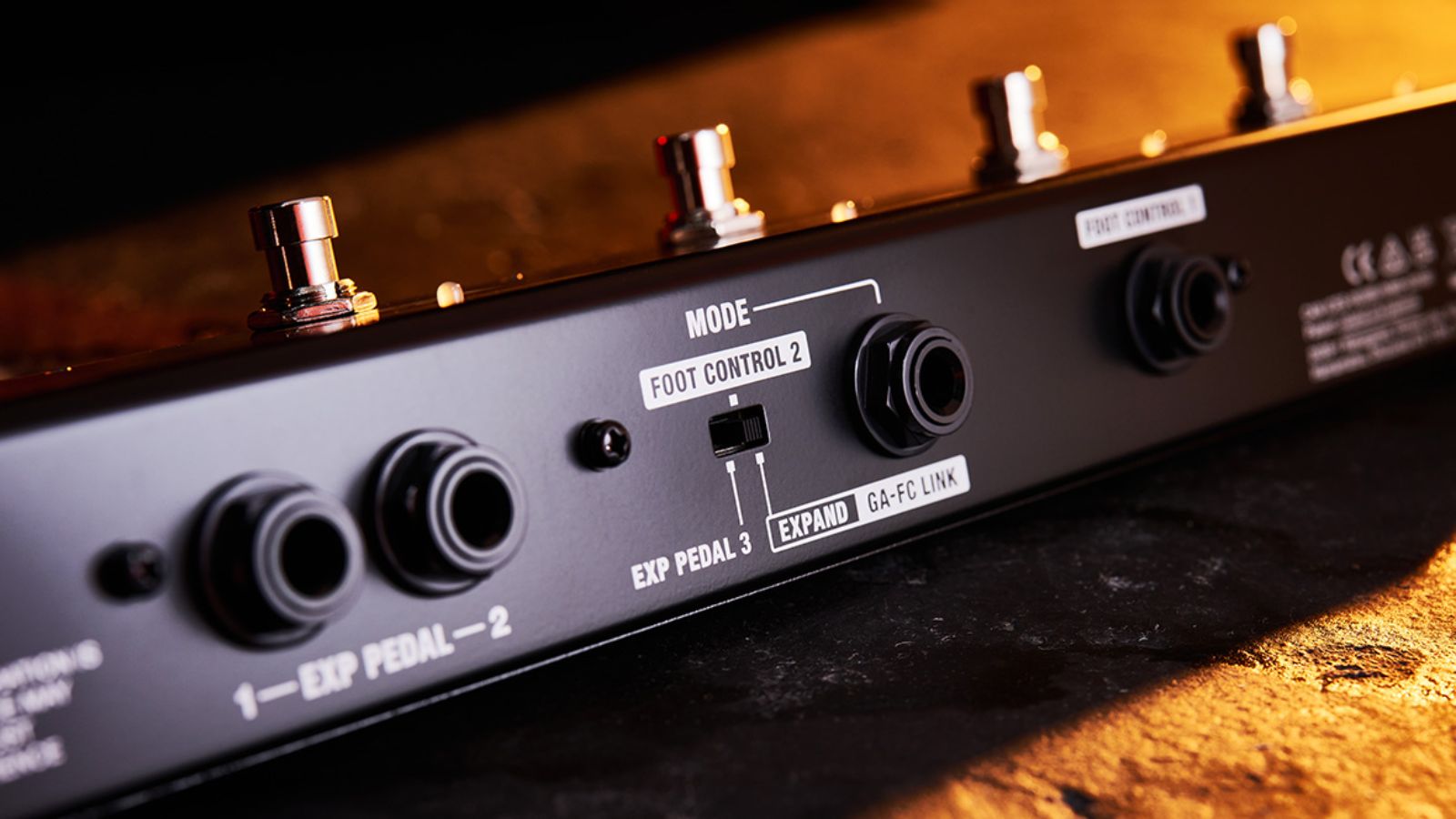

The GA-FC EX builds on the standard GA-FC with several enhanced features. Status LEDs with two colours make it easier to see changes when switching. And along with two dedicated expression pedal jacks, there’s an additional control jack with a three-way mode selector. It allows you to connect a third expression pedal or use the GA-FC EX for expanded applications.

Enhanced Performance Control for Katana Gen 3 and MkII Amps

The mode selector on the GA-FC EX opens up powerful control capabilities with supported Katana Gen 3 and MkII models.

Double Your Footswitches

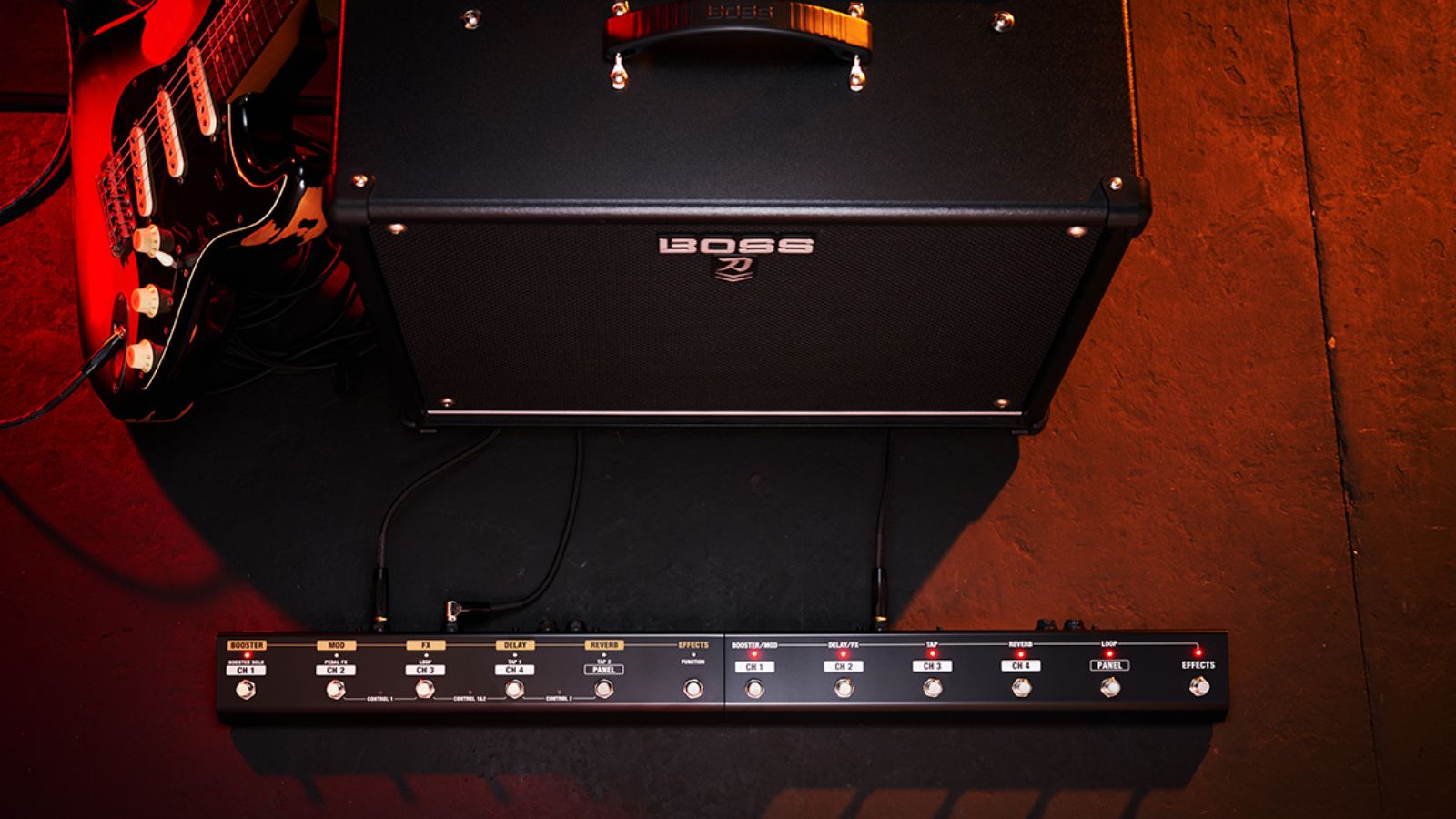

Set the mode switch to EXPAND and connect an additional GA-FC EX or a standard GA-FC for even more floor control. With twice the footswitches, you have instant access to all memories and effects at once.

Operate Two Amps
If you use two Katana Gen 3 and MkII amps in your setup, FOOT CONTROL 2 mode is for you. Connect one GA-FC EX via two cables to select memories and effects on both amps, either together or independently.

Compatible Products

The following BOSS amplifiers support all GA-FC EX features.

• All Katana Gen 3 models except the Katana-50 Gen 3
• All Katana MkII models except the Katana-50 MkII

Future products with GA-FC EX support will be listed here as they become available.

The GA-FC EX can be used with the following BOSS and Roland products that support the GA-FC Foot Controller, but only standard GA-FC control functions are available.

• Katana-100, Katana-100/212, Katana-Head and Katana-Artist
• Nextone Special, Nextone Artist, and Nextone Stage
• Waza Tube Amp Expander
• Katana-210 Bass, Katana-110 Bass and Katana-500 Bass Head
• Acoustic Singer Pro and Acoustic Singer Live
• Gigcaster 8 and Gigcaster 5
• SDE-3000EVH and SDE-3000D
• Roland Blues Cube Artist, Blues Cube Artist 212, and Blues Cube Tour
