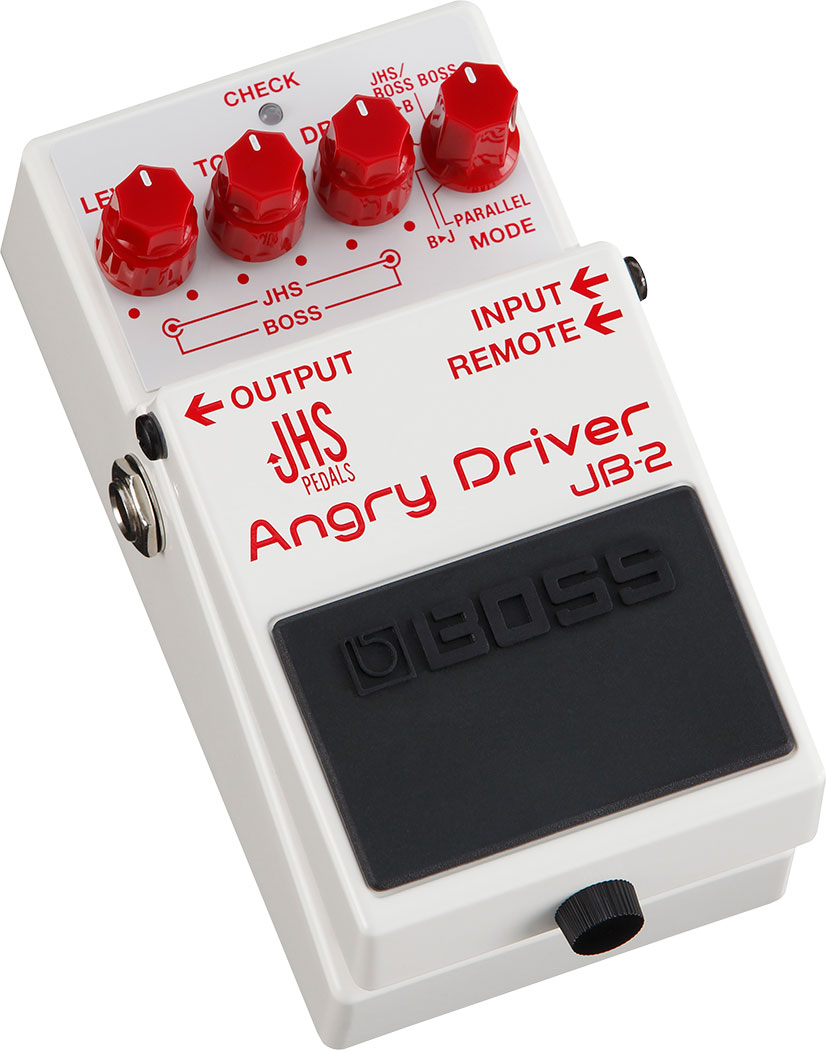

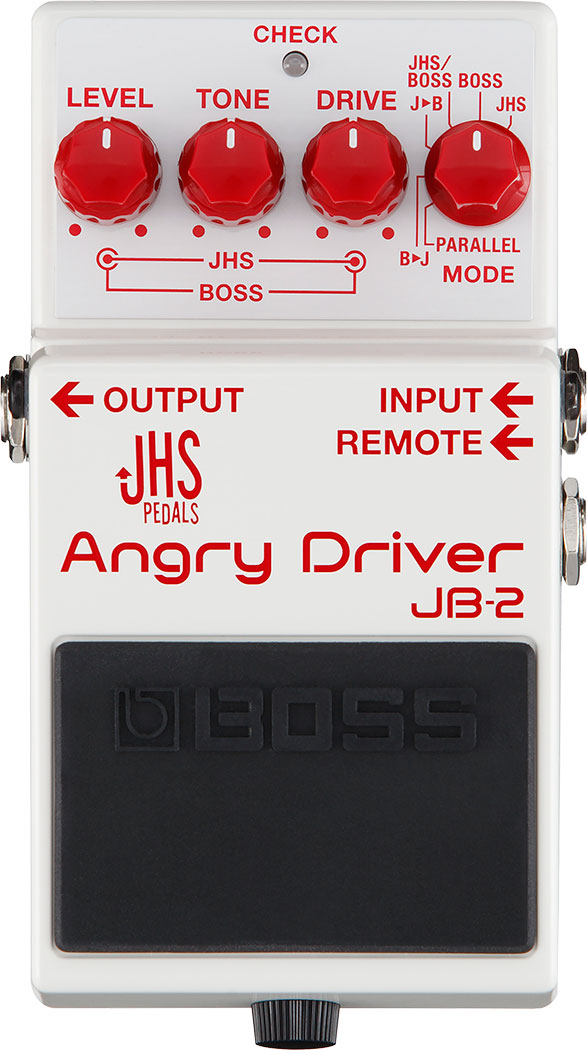

Boss JB2 Angry Driver Overdrive

Nominal Input Level-20 dBuInput Impedance1 M ohmNominal Output Level-20 dBuOutput Impedance1 k ohmRecommended Load Impedance10 k ohms or greaterControlsPedal switch
MODE knob, DRIVE knob, TONE knob, LEVEL knobIndicatorCHECK indicator (Serves also as battery check indicator)ConnectorsINPUT jack, OUTPUT jack, REMOTE jack, AC adaptor jack (DC 9 V)Power SupplyAlkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (sold separately)Current Draw50 mAExpected battery life under continuous useAlkaline: Approx. 9.5 hours
Carbon: Approx. 2.5 hours
* These figures will vary depending on the actual conditions of use.AccessoriesOwner's Manual, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information") Alkaline battery (9 V, 6LR61)Option (sold separately)AC adaptor (PSA series)
Foot switch: FS-5L, FS-6, FS-7SIZE AND WEIGHTWidth73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight (including battery)440 g
1 lb
