BOSS GT1000CORE Multi FX | Complete Guitar/ Bass Processing Experience

SPECIFICATIONS

Sampling Frequency

96 kHz

AD/DA conversion

32 bits

Processing

32-bit floating point

Memory

250 (User) + 250 (Preset)

Phrase loop

38 sec. (MONO)
19 sec. (STEREO)

Tuner internal detection

+/- 0.1 cent

Normal input level

INPUT L/MONO, R: -10 dBu
RETURN 1, RETURN 2: -10 dBu

Maximum input level

INPUT L/MONO, R: +12 dBu
RETURN 1, RETURN 2: +12 dBu

Input impedance

INPUT L/MONO, R: 2 M ohms
RETURN 1, RETURN 2: 1 M ohm

Normal output level

OUTPUT L/PHONES, R/MONO: -10 dBu
SEND 1, SEND 2: -10 dBu

Maximum output level

OUTPUT L/PHONES, R/MONO: +12 dBu
SEND 1, SEND 2: +12 dBu

Output impedance

OUTPUT L/PHONES, R/MONO: 44 ohms
SEND 1, SEND 2: 1 k ohm

Recommended load impedance

OUTPUT L/PHONES, R/MONO: 10 k ohms or greater (Phones: 44 ohms or greater)
SEND 1, SEND 2: 10 k ohms or greater

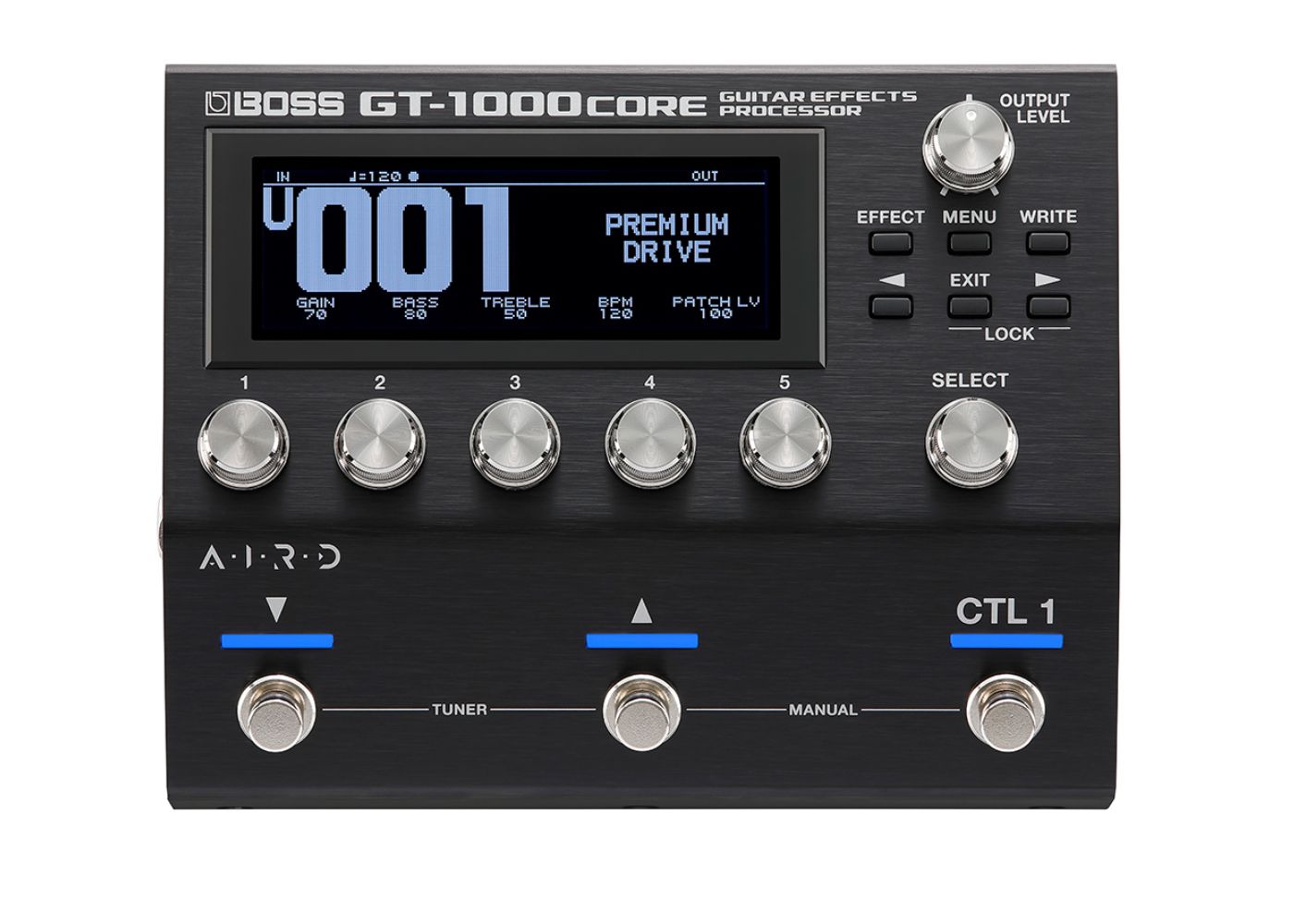

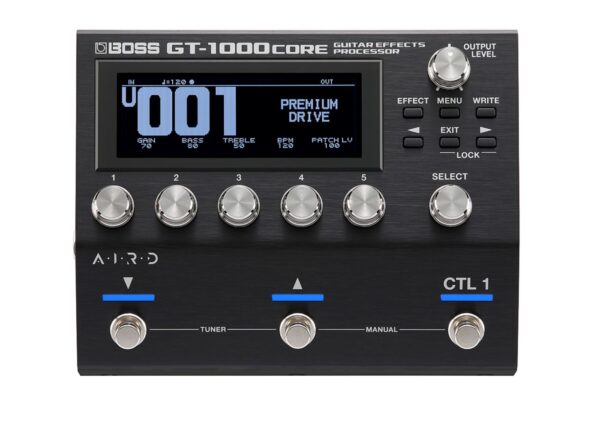

Controls

DOWN switch, UP switch, CTL 1 switch
EFFECT button, MENU button, EXIT button, WRITE button, PAGE button
1-5 knobs, SELECT knob, OUTPUT LEVEL knob

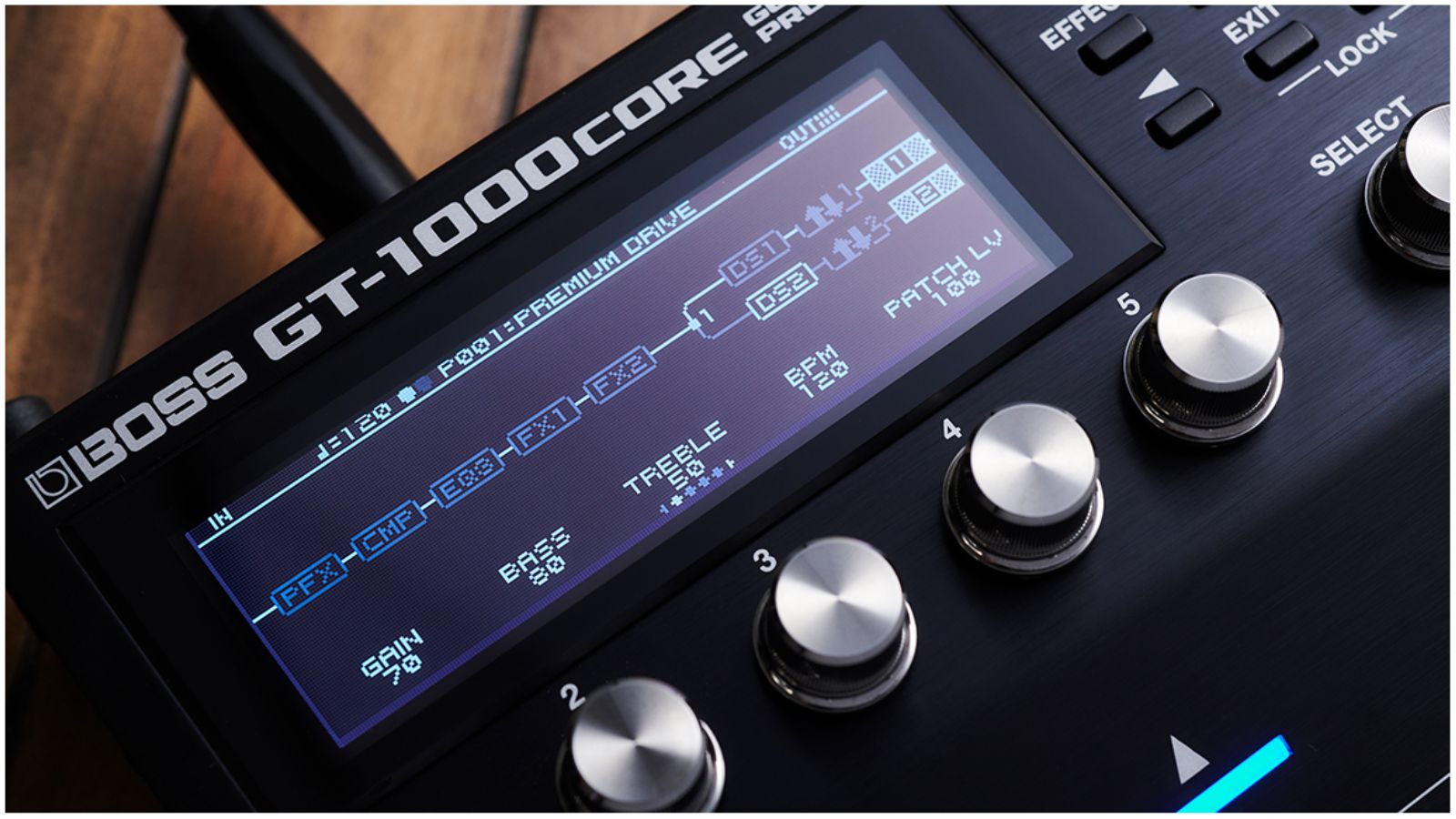

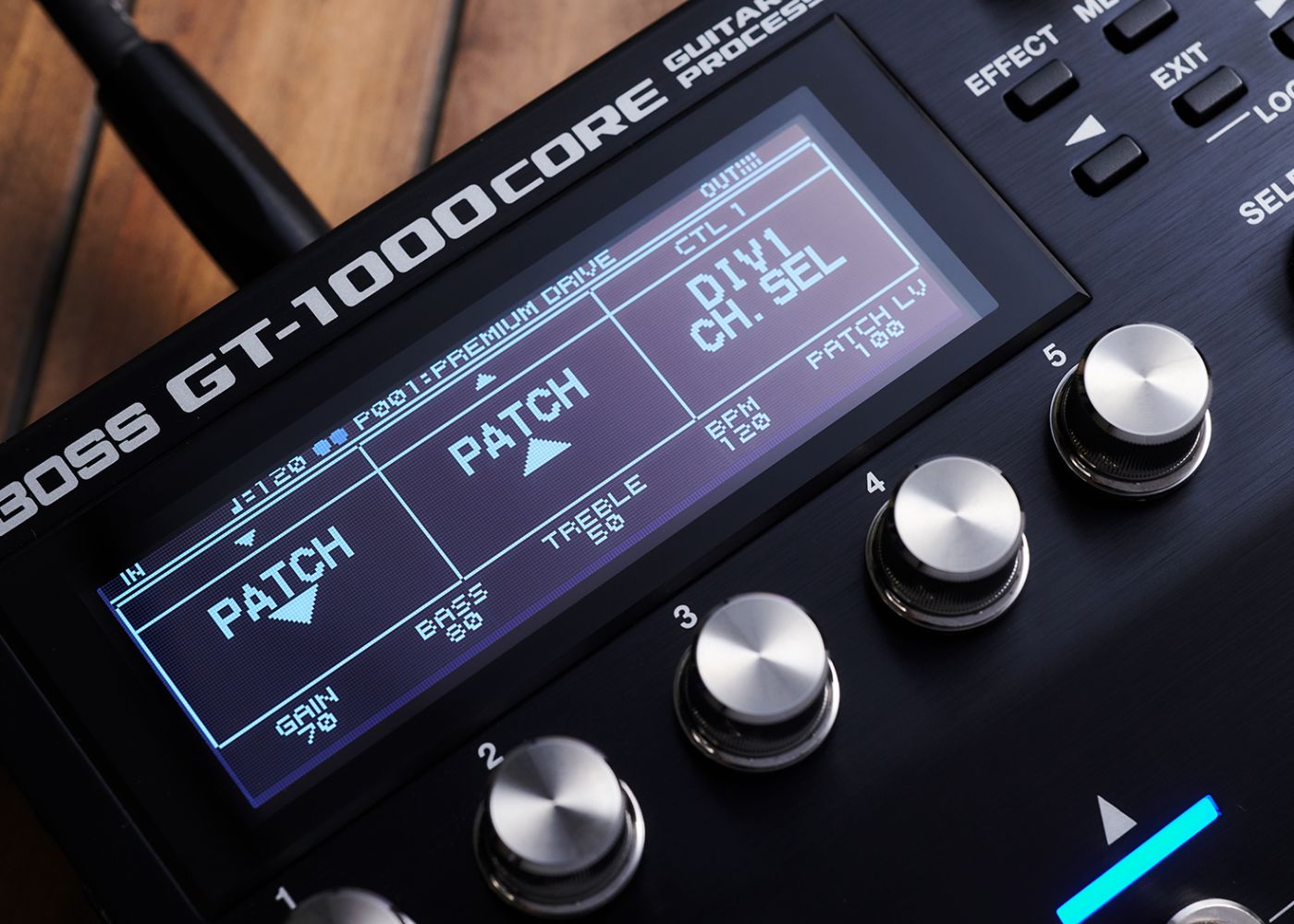

Display

Graphic LCD 256 x 80 dots

Indicators

UP indicator, DOWN indicator, CTL 1 indicator

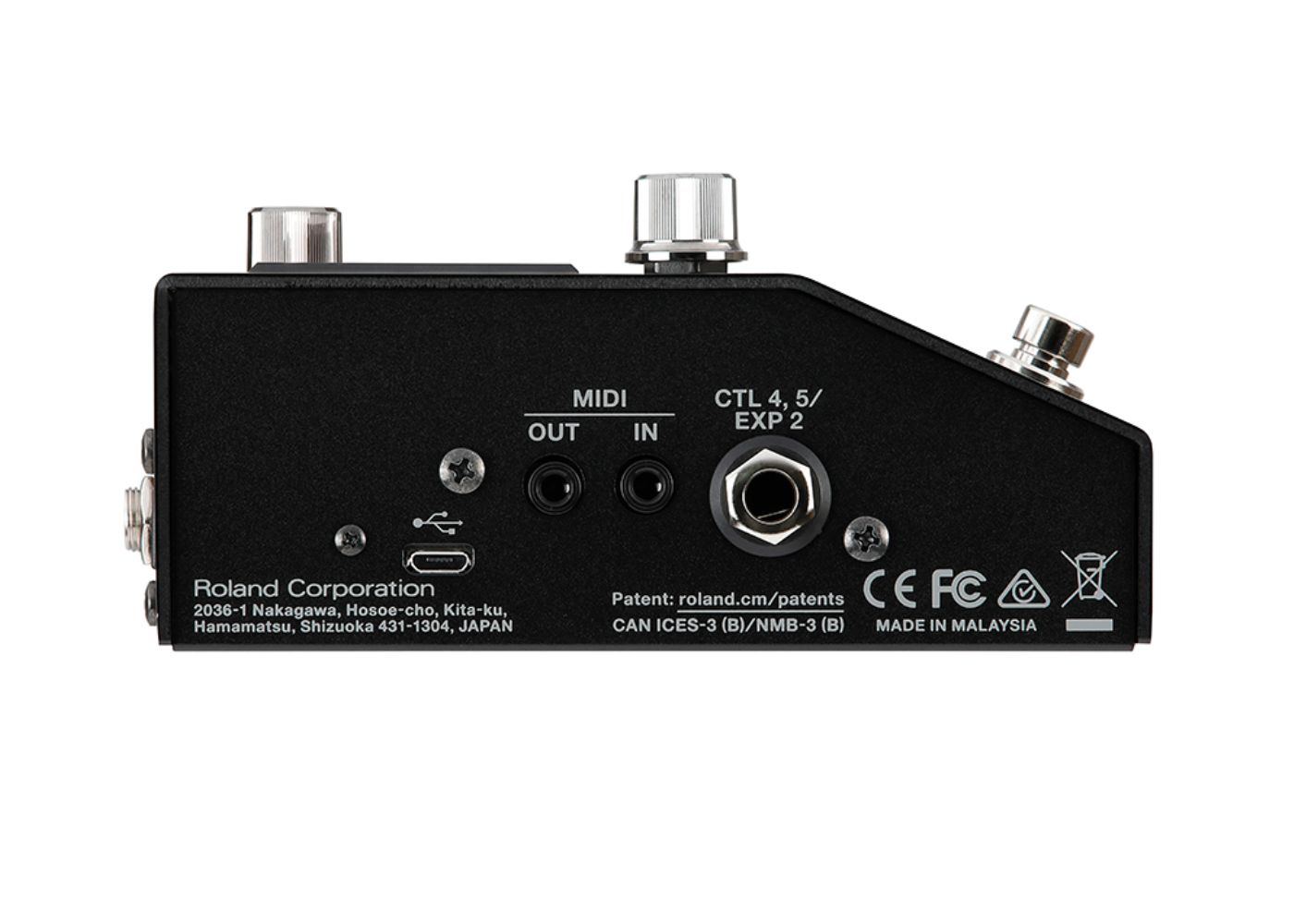

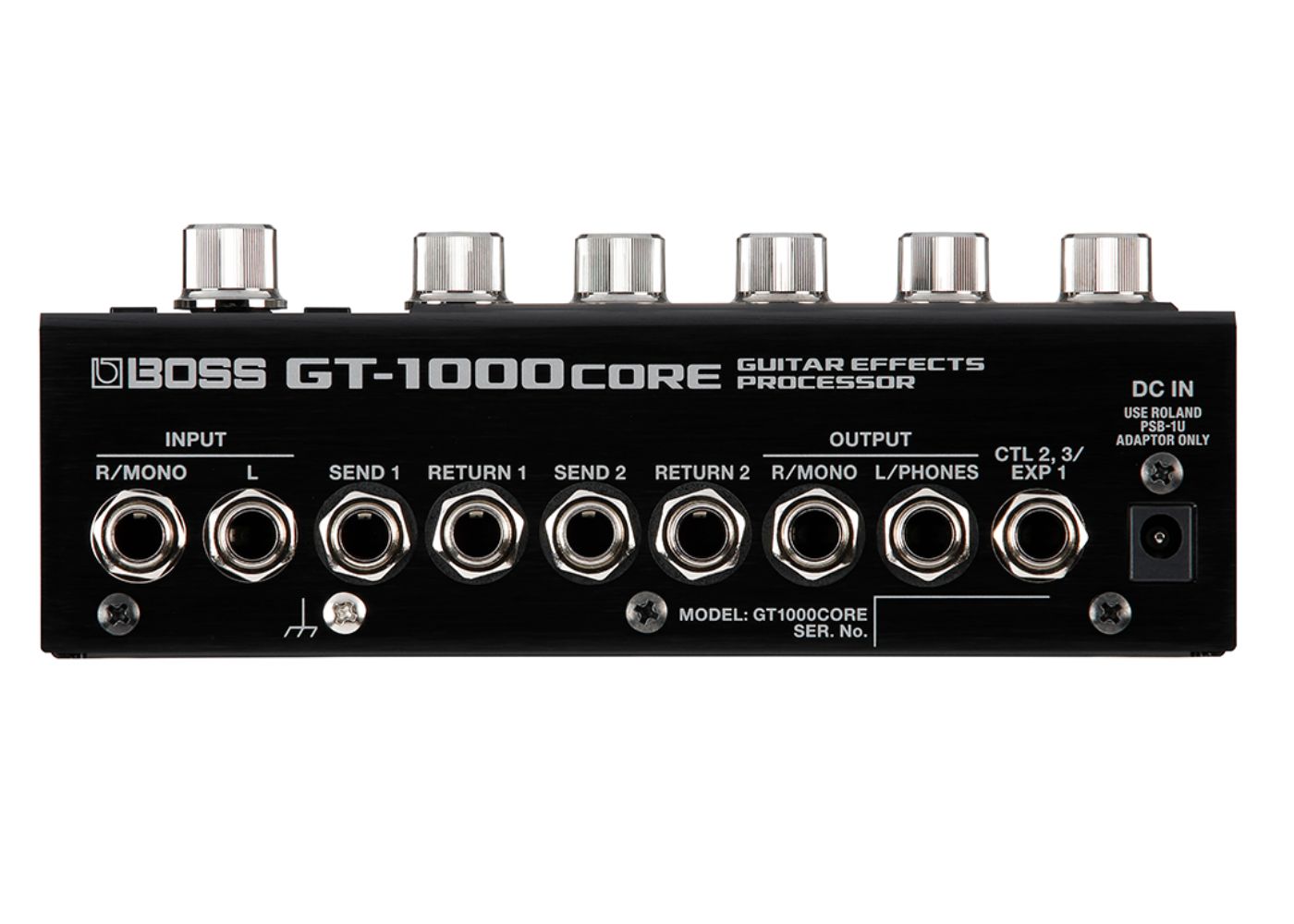

Connectors

INPUT (L/MONO, R), OUTPUT (R/MONO) jacks: 1/4-inch phone type
OUTPUT (L/PHONES) jack: 1/4-inch TRS phone type
CTL 2, 3/EXP 1､CTL 4, 5/EXP 2 jacks: 1/4-inch TRS phone type
MIDI (IN, OUT) connectors: Stereo miniature phone type
USB COMPUTER port: USB Micro-B type
DC IN jack

Power supply

AC adaptor

Current draw

670 mA

Accessories

AC adaptor
Owner's manual
Leaflet "USING THE UNIT SAFELY"
Rubber foot x 4

Options (sold separately)

Footswitch: FS-5U
Dual footswitch: : FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

SIZE AND WEIGHT

Width

173 mm
6-13/16 inches

Depth

135 mm
5-3/8 inches

Height (including rubber foot)

65 mm
2-9/16 inches

Weight

920 g
2 lbs 1 oz

*0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
