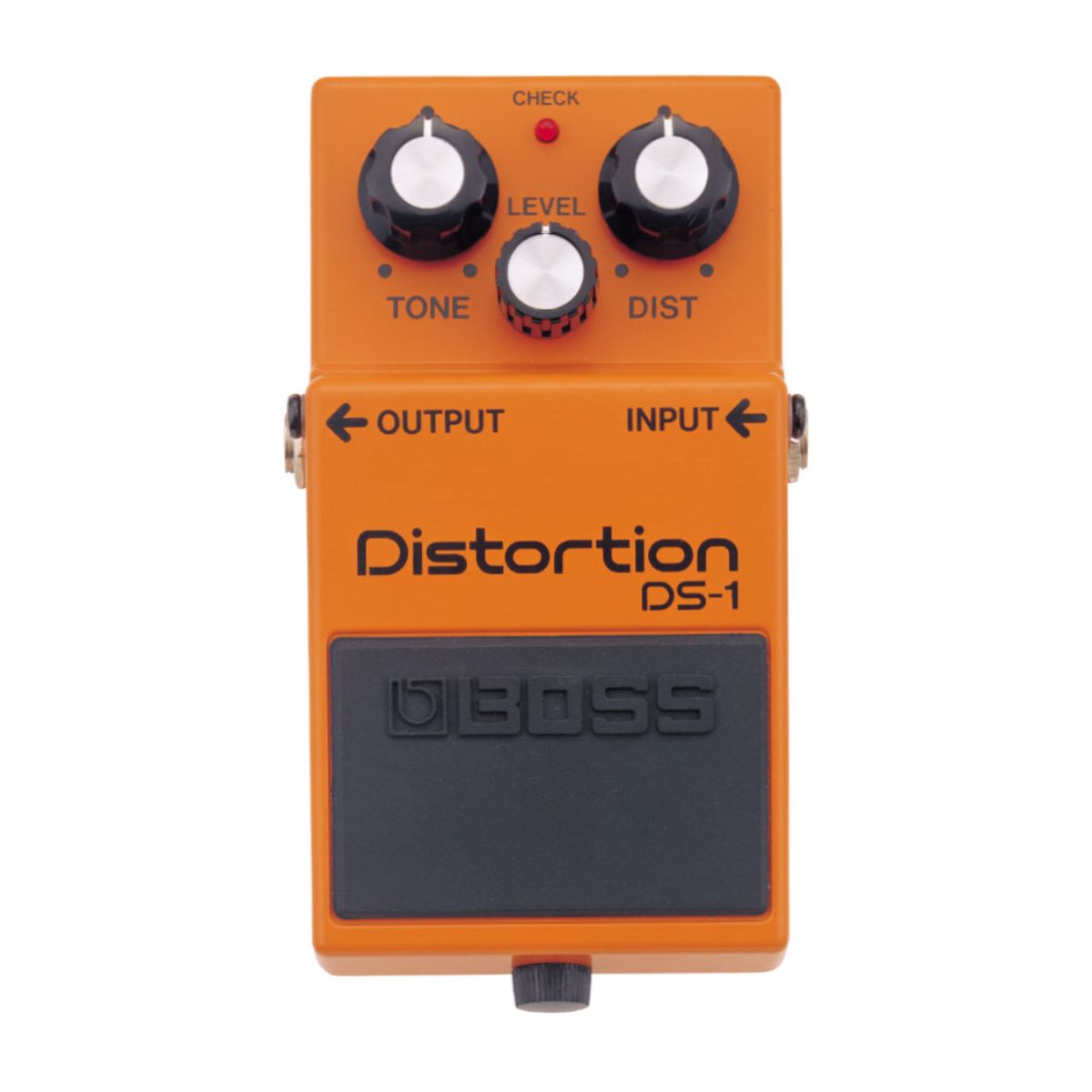

Boss DS-1 compact pedal| Iconic original Distortion from Boss

Nominal Input Level-20 dBu

Input Impedance1 M ohm

Nominal Output Level-20 dBu

Output Impedance1 k ohm

Recommended Load Impedance10 k ohms or greater

Controls

Pedal switch

TONE knob

LEVEL knob

DIST knob

Indicator

CHECK indicator (Used for indication of check battery)

Connectors INPUT jack: 1/4-inch phone type

OUTPUT jack: 1/4-inch phone type

DC IN jack

Power Supply Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)

AC adaptor (PSA series: sold separately)

Current Draw10 mA

Expected battery life under continuous use

Carbon: Approx. 50 hours

Alkaline: Approx. 80 hours

* These figures will vary depending on the actual conditions of use.

Accessories: Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")

Carbon-zinc battery (9 V, 6F22)

Option (sold separately)AC adaptor (PSA series)



SIZE AND WEIGHT ( INCL. BATTERY )

Width73 mm

2-7/8 inchesDepth129 mm

5-1/8 inchesHeight59 mm

2-3/8 inchesWeight360 g

13 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
