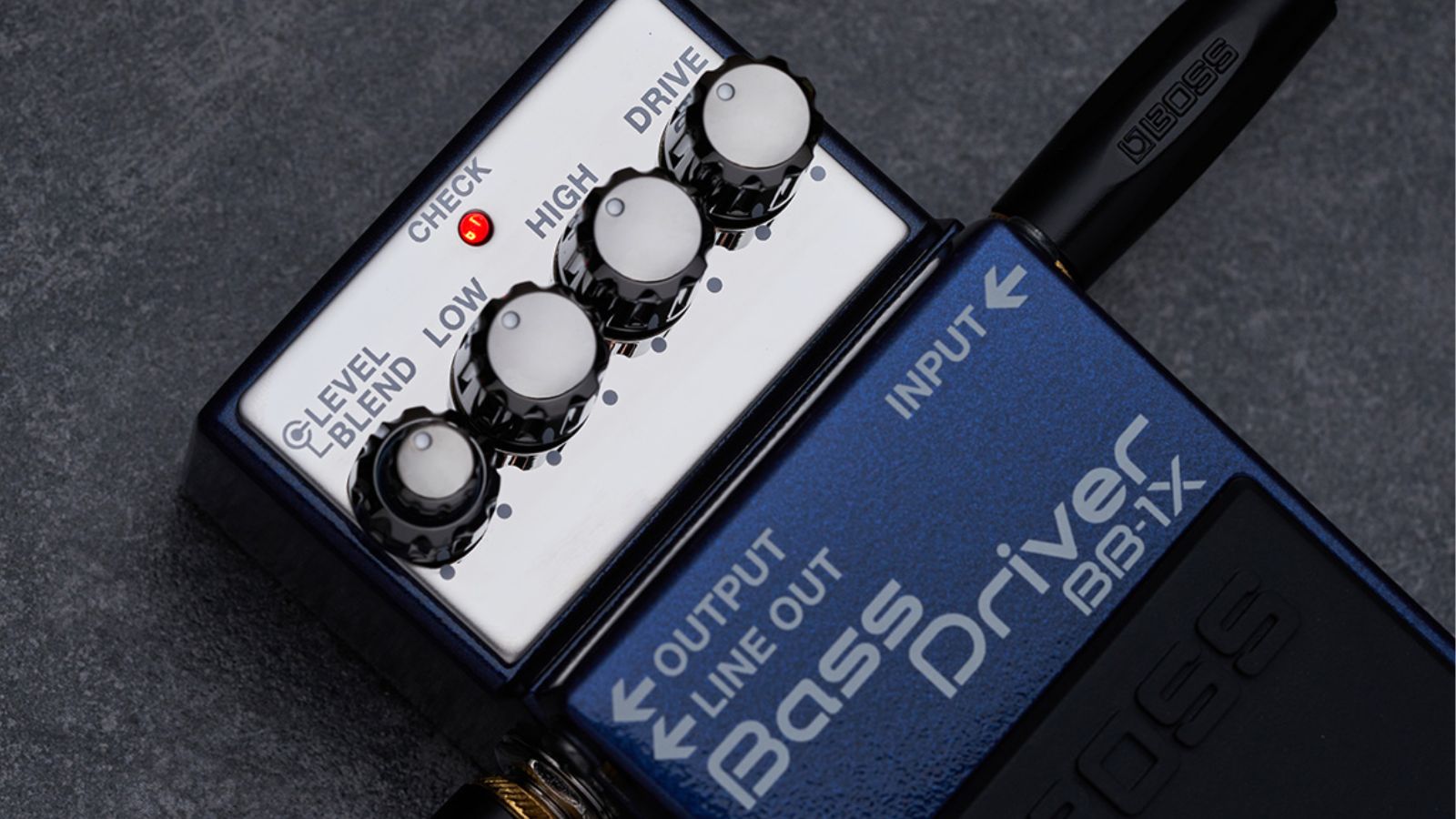

BOSS BB-1X Bass Driver | premium stompbox for bold and punchy Bass

SPECIFICATIONS

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

OUTPUT jack: -20 dBu
LINE OUT jack: -20 dBu

Output Impedance

OUTPUT jack: 1 k ohm
LINE OUT jack: 600 ohms

Recommended Load Impedance

OUTPUT jack: 10 k ohms or greater
LINE OUT jack: 600 ohms or greater

Controls

Pedal switch
LEVEL knob
BLEND knob
LOW knob
HIGH knob
DRIVE knob

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack
OUTPUT jack
LINE OUT jack (1/4-inch TRS phone type)
AC adaptor jack (DC 9 V)

Power Supply

Alkaline battery (9V, 6LR61)
AC adaptor (sold separately)

Current Draw

55 mA

Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)

Alkaline: Approx. 6 hours

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)

Option (sold separately)

AC adaptor (PSA series)

SIZE AND WEIGHT

Width

73 mm
2-7/8 inches

Depth

129 mm
5-1/8 inches

Height

59 mm
2-6/16 inches

Weight

445 g
1 lb

* 0 dBu = 0.775 Vrms
